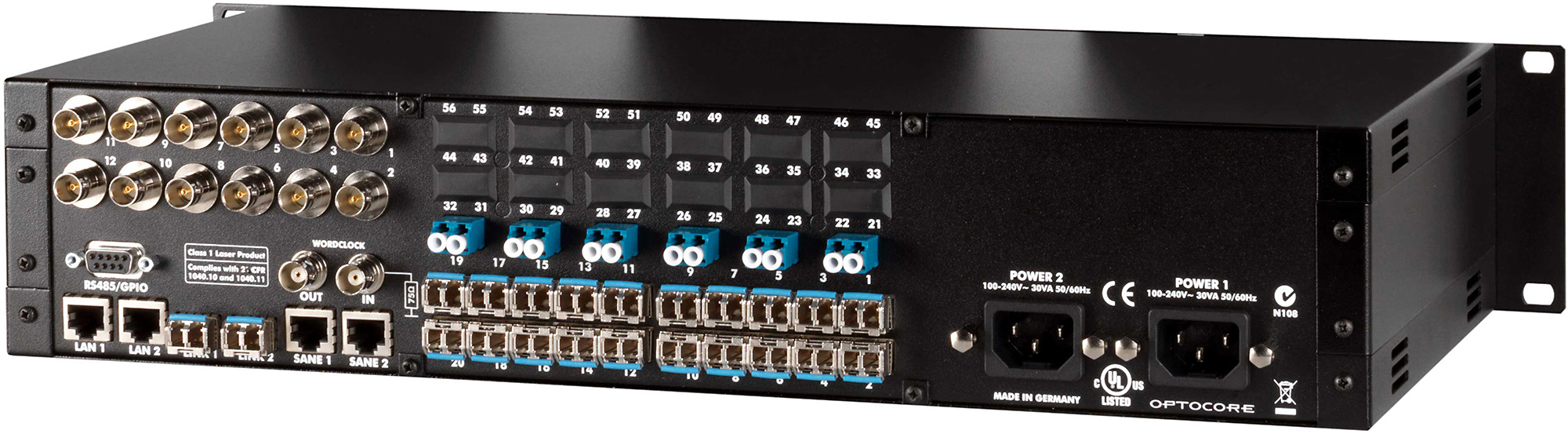

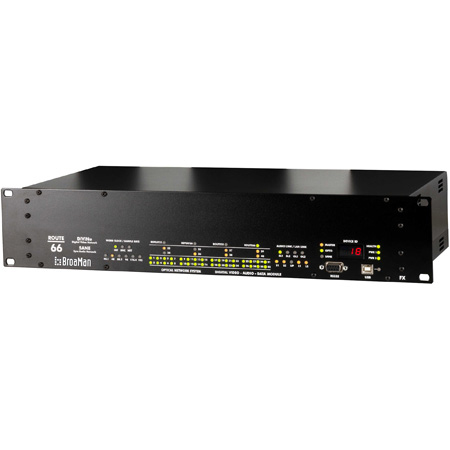

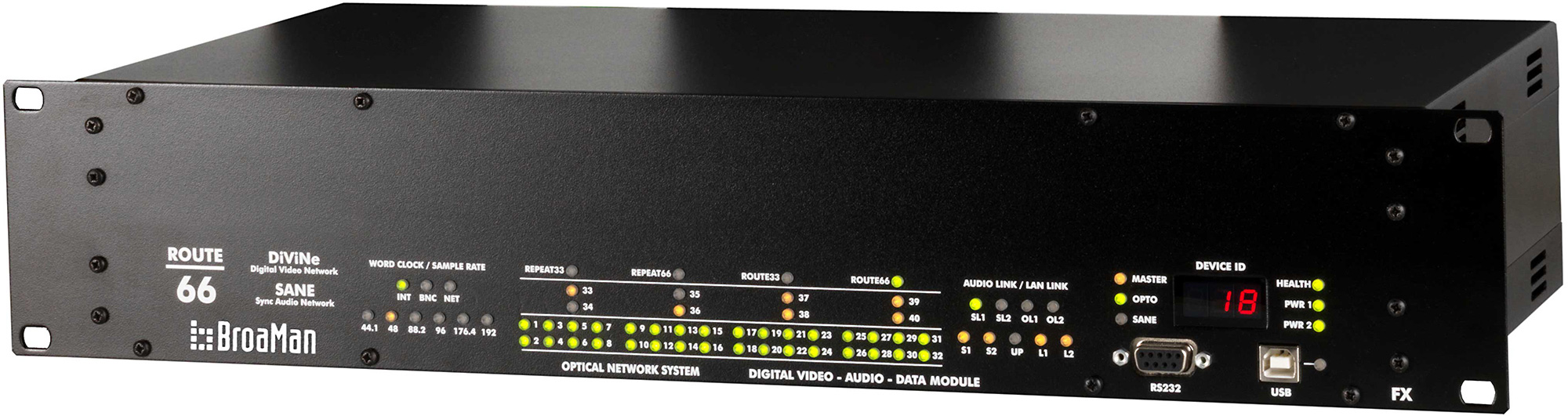

BroaMan ROUTE-66-AUTO-20 Opticore Router for 20 Fiber Locations 2RU

Manufacturer: BroaMan

Item #: BRM-ROUT66AUTO20   •   MFG #: ROUTE-66-AUTO-20




Our Price:$14,350.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Route66 Series is a group of fiber interfaces that routes multiple professional video and audio signals, such as SD/HD/3G-SDI over the same optical fiber. The panels have a 40x40 optical MUX and router for up to 24 BNC-SDI 3G/HD/SD video ports, up to 20 duplex or 36 simplex protocol-independent LC fiber ports.

    The Route66 routes inputs from 3rd-party video or from fiber from other BroaMan devices, such as MUX-22 Series or Repeat48 Series, under user control. The protocol independence provides for full flexibility and as Route66 Series interfaces do not code or decode the signals, the latency is near zero.

    One Route66 AutoRouter can transform Optocore rings, ProGrid or DiGiCo rings into intelligent star with automatic stream patch. It closes the optical loop automatically depending on connected ports.

    The ROUTE-66-AUTO-10 is a 2RU BroaMan fiber stream AutoRouter, which can transform Optocore, ProGrid or DiGiCo ring into intelligent star with automatic stream patch - it closes the optical loop automatically depending on connected ports. 10 location Route66 AutoRouter enables connection of 10 satellite devices or 10 rings to create one large ring. It is equipped with 20 multimode TRX. Redundant PSUs are included.


    • Features

      • 40x40 optical multiplexer using CWDM or DWDM to single-fiber I/O ports
      • Up to 24 BNC-SDI ports for 3G/HD/SD video input or output with or without re-clockers
      • Up to 20 additional general protocol-independent duplex LC fiber ports
      • Up to 36 general protocol-independent simplex LC fiber ports
      • Protocol Independence for routing 1G Ethernet, SMPTE311m camera feeds, intercom, MADI, Optocore signals and 3rd-party digital audio at the same time on the same device
      • Compatible with MUX-22 Series and Repeat48 Series for distributed transport solutions
      • Optional Route66 will automatically patch assigned channels to 5, 10, or 20 satellite stageboxes

    • Specifications

      • Optical Link
      • Connection: Duplex LC, Complies with 21 CFR 1040.10 and 1040.11
      • Protocol: Independent (no restriction)
      • Transmission: Full Duplex
      • Fiber Cable Lengths: Standard singlemode transceiver ≥10 km; Special singlemode transceiver ≥ 80 km (on request)

        SANE, LAN, Data & Auxiliary Ports
      • Audio: TIA - 568A/B, Optocore; 200 Mbit/s
      • LAN: TIA - 568A/B, IEEE - 802.3; 10/100 Mbit/s
      • Aux: Fiber Duplex LC 1310nm fiber tunnel Protocol: Independent (no restrictions)
      • Data Channels: Digital control data; 4
      • Data Rate: Up to 10 Mbps

        Video
      • Standards: SD, ED, HD, Dual Link, 3G
      • Complies with SMPTE: 259M, 292M, 344M, 372M, 424M
      • Interface: SDI - Serial Digital Interface

        Word Clock
      • Hardware Standard: BNC - 75 Ω
      • Data Rate: Dependent on sample rate; Up to 192 kHz
      • Impedance: Output ≤ 5, Ω Input 75 Ω
      • Drive Level: Output; ≥ 1 Vpp
      • Zero Level: Referring to GND; +1.7 V
      • Sense Level: Input; ≥ 400 mVpp

        Remote Control
      • RS232: EIA / TIA - 232; 57 600 Baud
      • USB: USB 2.0 - Device; 12 Mbit/s
      • LAN: IEEE - 802.3; 10/100 Mbit/s

        Physical
      • Power Supply Type: Switch-mode, universal input, Dual Redundancy
      • Main Voltage: 100-240 V; 50-60 Hz
      • Impedance: Termination: 330 Ω Source: ≤ 10 Ω
      • Frequency: 50-60 Hz
      • Cooling: Passive, via surface and ventilation openings on both sides of the device
      • Dimensions (H x W x D): 3.46" x 19" x 7.87"
