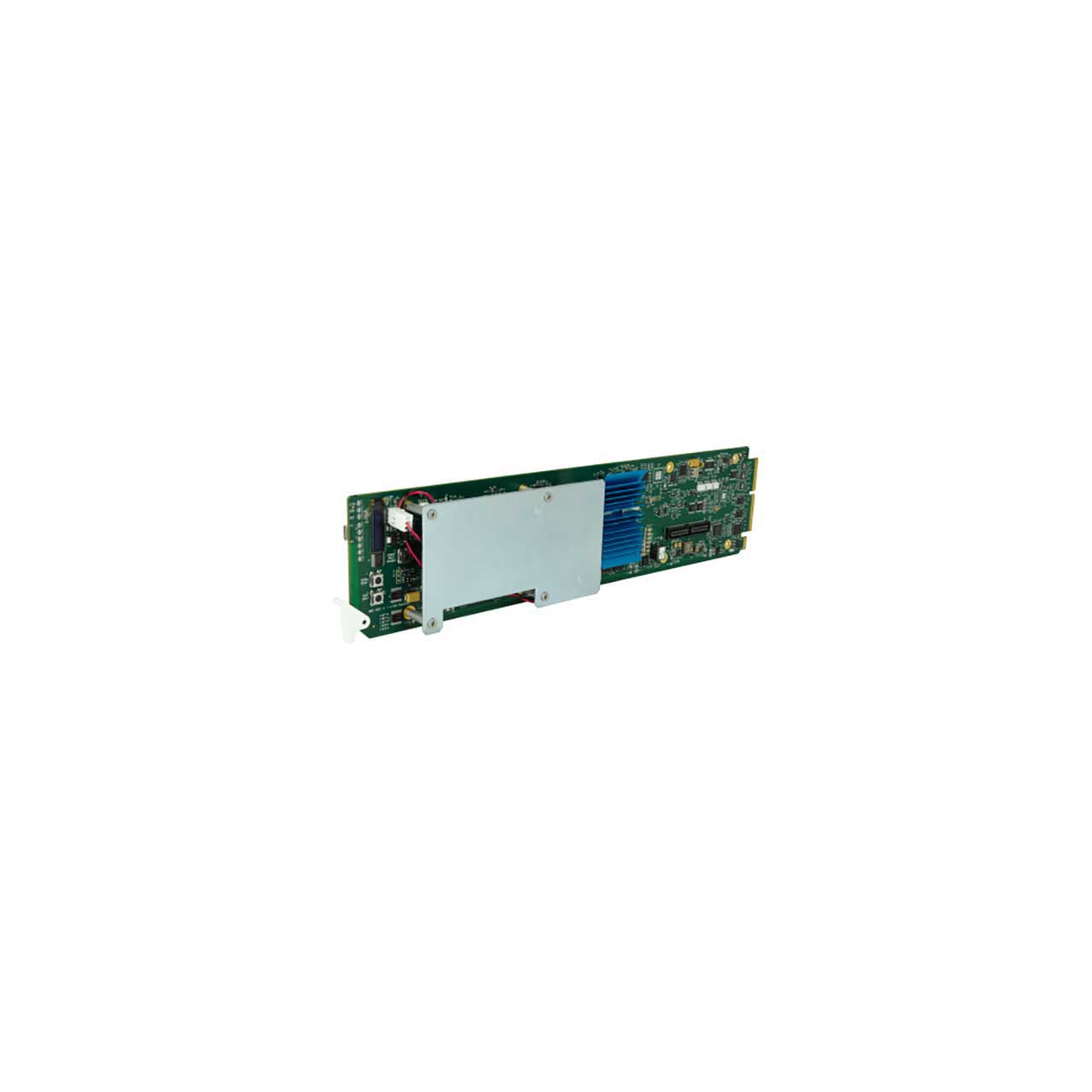

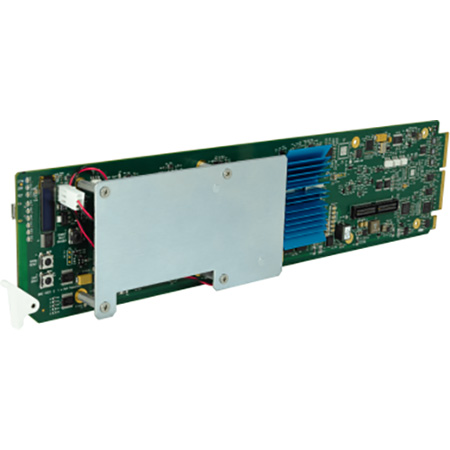

Cobalt 9926-4HtoS 3G/HD/SD Quad-Channel openGear HDMI-To-SDI Converter

ITEM #: CB-9926-4HTOS MFG #: 9926-4HTOS

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$4,065.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    9926-4HTOS - Overview

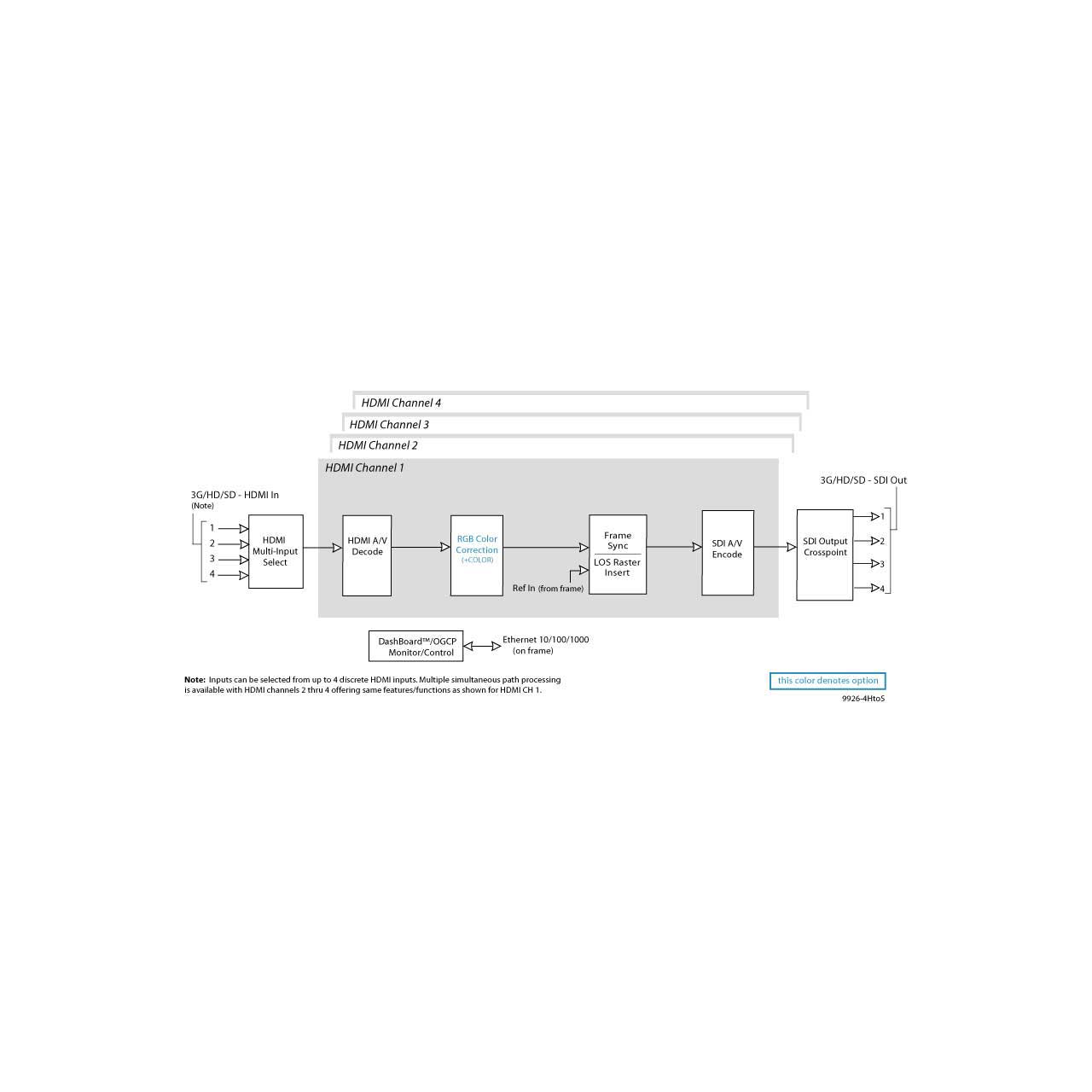

    The 9926-4HtoS 3G/HD/SD Quad-Channel openGear® HDMI-To-SDI Converter with Per-Channel Frame Sync provides four independent paths of true 3G and HD conversions from HDMI to SMPTE 424M, 292M, or 259M. Each channel is equipped with full independent frame sync as well as full input and output audio crosspoints. Input and output HDMI and SDI crosspoints allow program sourcing and distribution across any of the four HDMI inputs and four SDI outputs.

    In existing openGear® installations, the quad-channel capacity of 9926-4HtoS can save space and lend to installation integrity over using throwdown devices. Preset save/load allows saving custom card settings while allowing one-button revert to factory settings. Layered presets allow invoking changes related only to a specific area of concern (audio routing, for example) while not changing any other processing settings or aspects. Full user DashBoard or Remote Control Panel remote control allows full status and control access locally or across a standard Ethernet network.

    • Features:

      • Supports all popular formats: 480i, 576i, 720p, 1080i, 1080p
      • Four independent HDMI-to-SDI processing paths on a single openGearr cards neatly integrates high capacity in openGearr environments
      • Independent frame sync for all inputs with manual or LOS-detect insertion of frozen frame or selectable-color flat-field
      • Full input and output audio crosspoints, including independent flex mix, stereo downmixers, and audio delay functions
      • Remote control/monitoring via DashBoardT software or OGCP-9000 Remote Control Panel
      • Hot-swappable
      • Make 9926-4HtoS into a standalone unit by using 9926-4HtoS with our BBG-1300-FR 1RU Enclosure for openGearr Cards standalone enclosure
      • Five year warranty

    • Specifications:

      • Standards Supported: SMPTE 259M, 292M, 424M
      • HDMI Inputs: (4) HDMI 2.0; mini connectors
      • 3G/HD/SD-SDI Outputs
        (2x4) 75Ω outputs (max)
        Output Signal Level: 800 mV ±10%
        DC Offset: 0 V +/- 50 mV
        Alignment Jitter (3G/HD/SD): < 0.3/0.2/0.2 UI

        Frame Sync Audio/Video Delay
      • Max offset: 20 frames
      • Latency (min): 1 frame

        User Audio Delay Offset from Video
      • Bulk delay control: -33 msec to +3000 msec.
      • Per-channel delay controls: -800 msec to +800 msec

        Frame Reference Input
      • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"

    • Warranty:

      • 5 Year Warranty
