Cobalt BBG-1070-QS-A 3G/HD/SD-SDI/CVBS Standalone Expandable Multiviewer

ITEM #: CB-BBG-1070-QS-A MFG #: BBG-1070-QS-A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Cobalt Digital
Free Shipping with $49 Minimum Order

Our Price:

$3,515.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

BBG-1070-QS-A - Overview

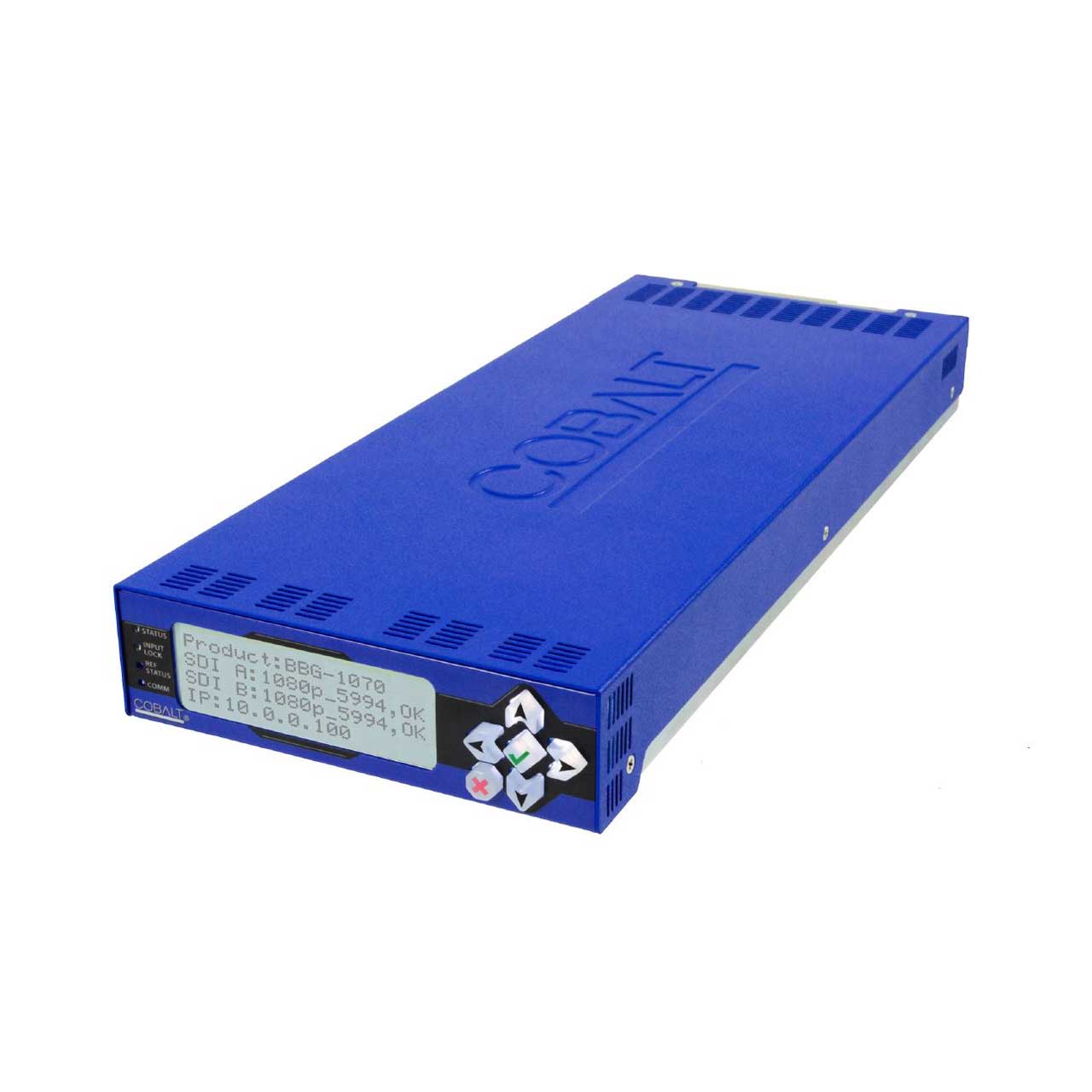

The all-new Cobalt BBG-1070-QS 3G/HD/SD-SDI/CVBS Standalone Expandable Multiviewer with Advanced On-Screen Graphics integrates five discrete 3G/HD/SD-SDI or CVBS inputs onto a single 3G/HD/SD-SDI quint-split output, with each input image being flexibly inserted into the output image area.

Any template layout or custom layout changes can be done "on-the-fly" in real time, without tedious setup compiler or layout programs like many other split/multiviewer products. While the BBG-1070-QS offers unprecedented flexibility, it also offers an unprecedented ease of use. Fully-flexible layouts using any of several one-button template presets or fully customizable layouts using easy to use sizing/positioning custom controls. Custom layouts can be saved to user presets.

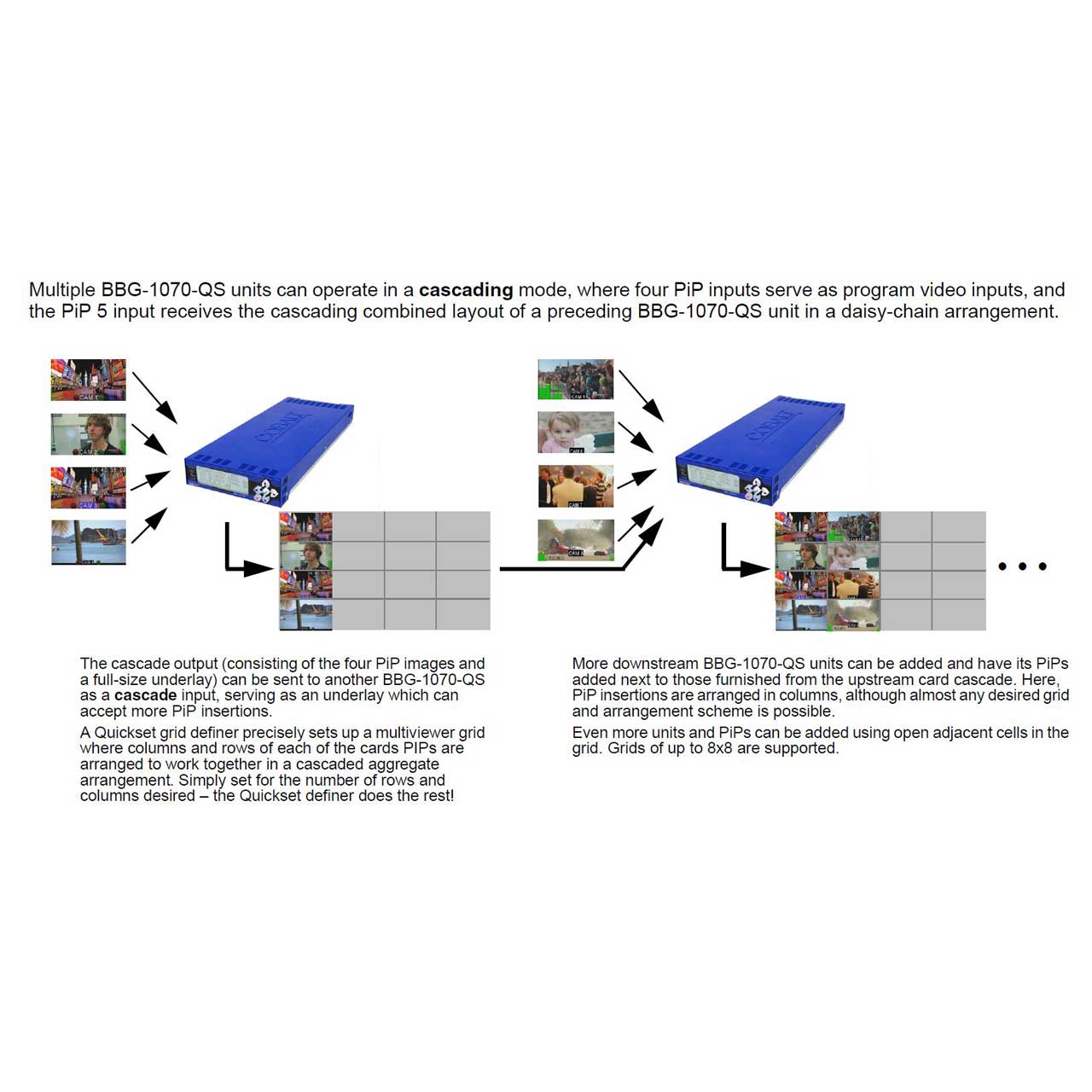

Multiple BBG-1070-QS units can be cascaded to provide splits greater than the base quint-split. The PIP5 input can be used in a cascaded chain of BBG-1070-QS units that provides multiviewer layouts of up to 8x8 (64:1). The QuickSet grid definer precisely and easily sets up a multiviewer grid where columns and rows of each of the cards PIPs are arranged to work together in a cascaded aggregate arrangement. Low-latency processing allows multiple BBG-1070-QS units to be cascaded without significant accumulated delays within the chain.

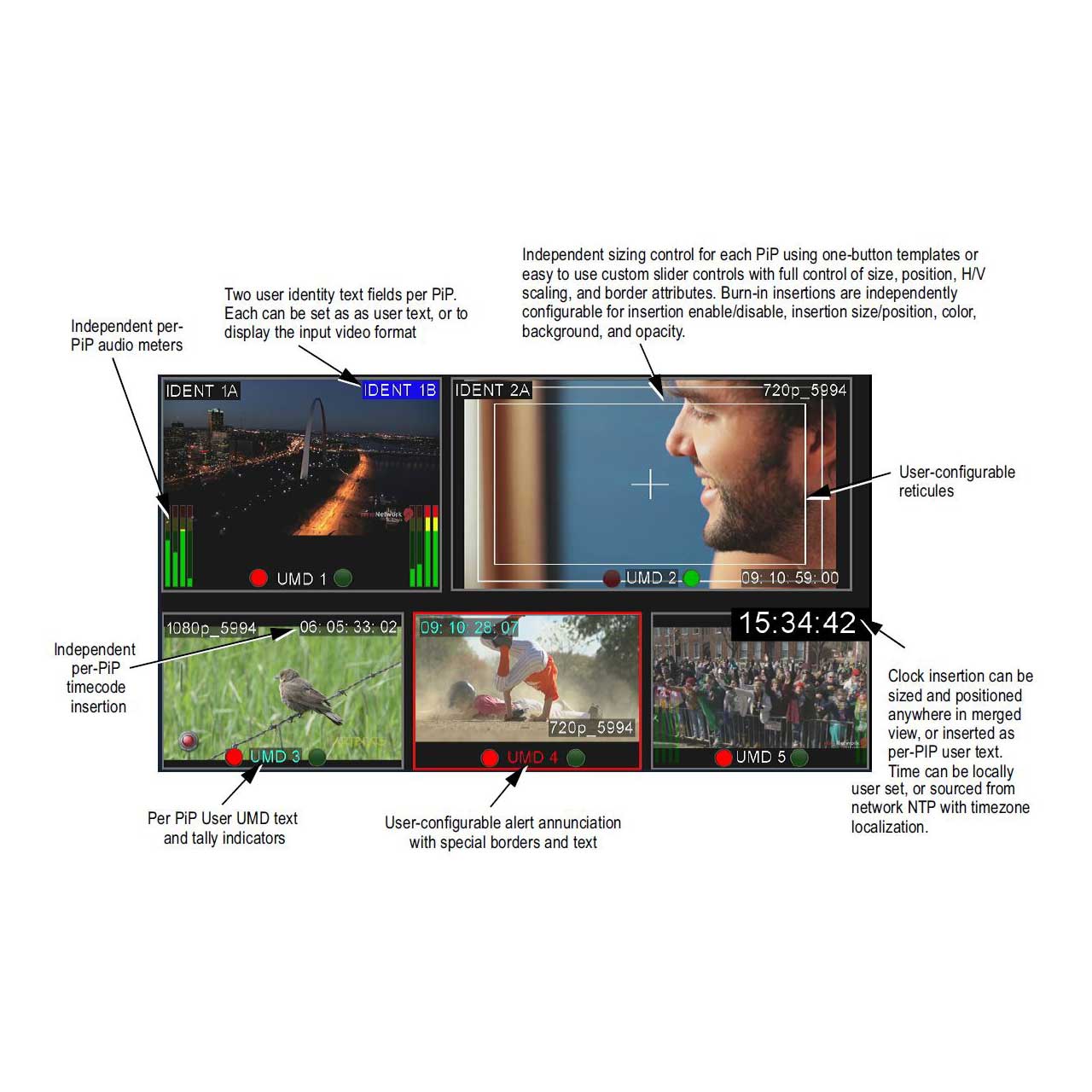

Advanced graphics such as user identify text, PiP input video format, audio meter bars, tally/UMD, reticules, and timecode can be burned into any PiP with full user attributes control. CEA 608 Ch1 text strings can serve as user text overlays, allowing direct closed captioning presence/quality compliance checks for up to 5 simultaneous video streams per unit. User-configurable Quality Check allows subjective criteria such as black/frozen frame or audio silence events to propagate an on-screen alarm/alert to the output image (such as alert text burn-in or border alert highlighting). Asynchronous inputs can be directly accommodated – each PiP input is provided its own independent timing alignment controls with lock to reference. An HDMI output (with audio embedding) allows direct feed to a wall monitor. GPIO allows direct input routing control and status monitoring. DashBoard remote control allows easy centralized control and monitoring access.

The compact standalone form factor allows desktop usage, as well as the 1/3-rack size of the BBG-1070-QS allowing 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19” frame).

  • Features:

    • Scalable PiP solution. Single unit provides up to 5:1 split, with up to ten 5:1 splits per frame.
    • Allows easy, real-time “on the fly” custom layout changes without needing setup compiler or layout programs.
    • Easy to configure PiP sizing and borders. Advanced graphics include audio meters, character burn, and reticules. PiP sizing/splits using one-button templates or easy-to-use, intuitive web GUI controls. Custom settings can be saved to user presets.
    • GPI, Ethernet, and serial tally inputs provide dual, per-PiP tally indicators.
    • Closed captioning overlays provide direct closed captioning presence/quality compliance checks for up to 5 simultaneous video streams per unit.
    • Cascading Mode and QuickSet grid definer offers easy to set up scalable multiviewer functions (up to 64:1) using multiple cascaded (daisy-chained) BBG-1070-QS units, Two units can provide an 8:1 multiviewer.
    • DashBoard Output Preview function provides display of regularly-sampled screen captures in the device DashBoard page, Provides remote-access program video content/presence and multiviewer layout confidence monitoring via the device’s DashBoard display without needing collocation with the card or its input or output video signals.
    • Compact footprint – up to 3 units in a 1RU space, Optional tray provides secure captive-fastener mounting of 3 units in a 1RU tray.
    • Audio routing directs selected PiP audio to combined-stream outputs. Audio downmixing also provided.
    • 3G/HD/SD-SDI and HDMI outputs with audio embed outputs.
    • Wall-clock time burn-in on merged output or within PIPs, NTP sync via IP connection with timezone localization.
    • Per-PIP audio meter, tally, user text, and timecode overlays.
    • Fully flexible input compatibility – mixed formats on inputs can be automatically sized and outputted in a combined output scaled to desired broadcast SD/HD/3G output format, Each input automatically detects and sets up for SDI or CVBS input, Supports asynchronous inputs using per-PiP ref lock. Per-PiP independent ARC settings and controls.
    • User quality criteria (such as frozen/black frame) alert/alarms can be propagated to output image with alarm text and border highlighting.
    • Redundant power supply option.
    • Five year warranty.


  • Specifications:

    • Power: 18 Watts. Power supplied by 12VDC AC adapter, universal input (included).

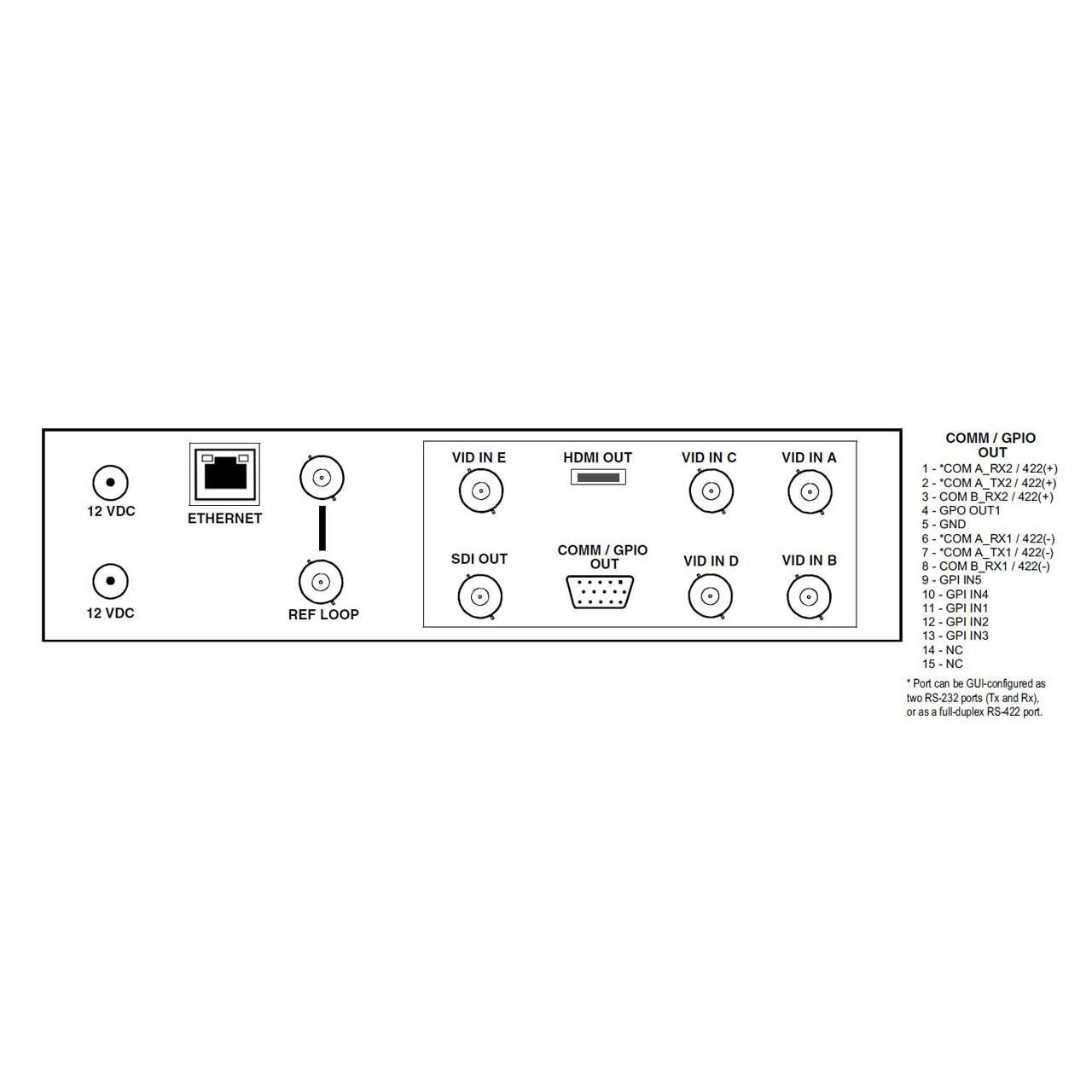

    • Video Input/Outputs: Video Inputs: (5) 75? BNC; auto-detect/setup for 3G/HD/SD-SDI or CVBS, SDI Output: (1) 3G/HD/SD-SDI 75? BNC, HDMI Output: (1) HDMI output with audio embedding,Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE 424M, I/O Latency: Basic PiP Input/Output < 1.5 frames (max). Cascade latency consists of basic, PiP I/O latency plus < 2 line added delay, Receive Cable Length: 3G/HD/SD: 120/180/320 m (Belden 1694A), Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970 GHz, Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI.
    • Timecode Burn-In:Independent per-PIP burn-in via user controls from input video SMPTE embedded timecode. Burn-in enable/disable user controls. Configurable for burn-in string of seconds, seconds:frames, seconds:frames:field. User controls for text size, color, and H/V position.
    • Text Burn-In:Per-PiP UMD and two user identity text strings (as alternate, automatic PiP input video format can be inserted). Independent insertions controls for enable/disable. User controls for text size, color, and H/V position.
    • Audio Output:16-ch embedded. Per-PIP select allows routing of PIP input 16-ch embedded audio to combined SDI output. HDMI output tracks with group 1/2 audio as selected for SDI embedded audio output.
    • Tally Indicators/Inputs: Per-PiP dual tally indicators. GPI, Ethernet, serial per-PiP control. Per-PiP tally lamp position and sizing controls. Per-PiP tally lamp position and sizing controls.
    • Frame Reference Input:Looping reference input. SMPTE 170M/318M “Black Burst”, SMPTE 274M/296M “Tri-Level”.
