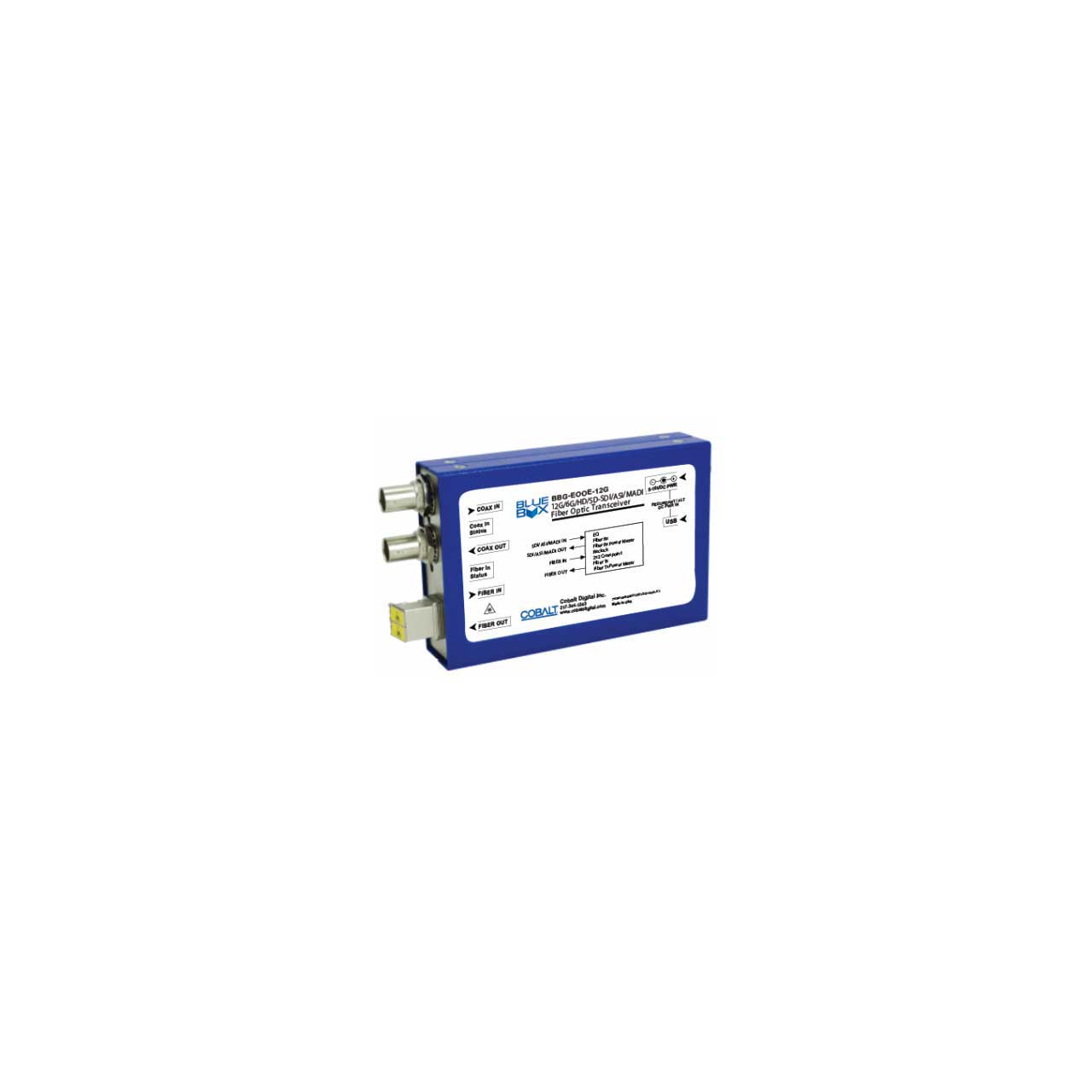

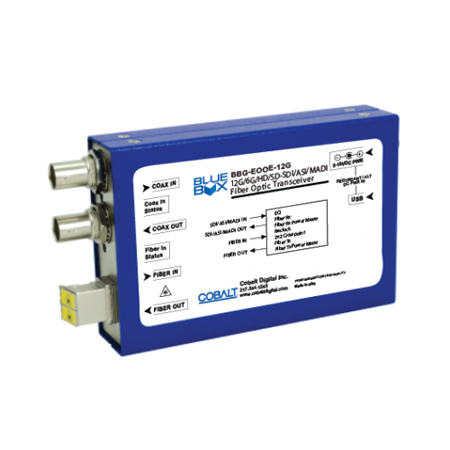

Cobalt BBG-EOOE-12G-FC 12G/6G/3G/HD/SD-SDI/ASI/MADI Fiber Optic Transport Transceiver - Type FC Fiber Connector

BBG-EOOE-12G-FC - Overview

• Features:

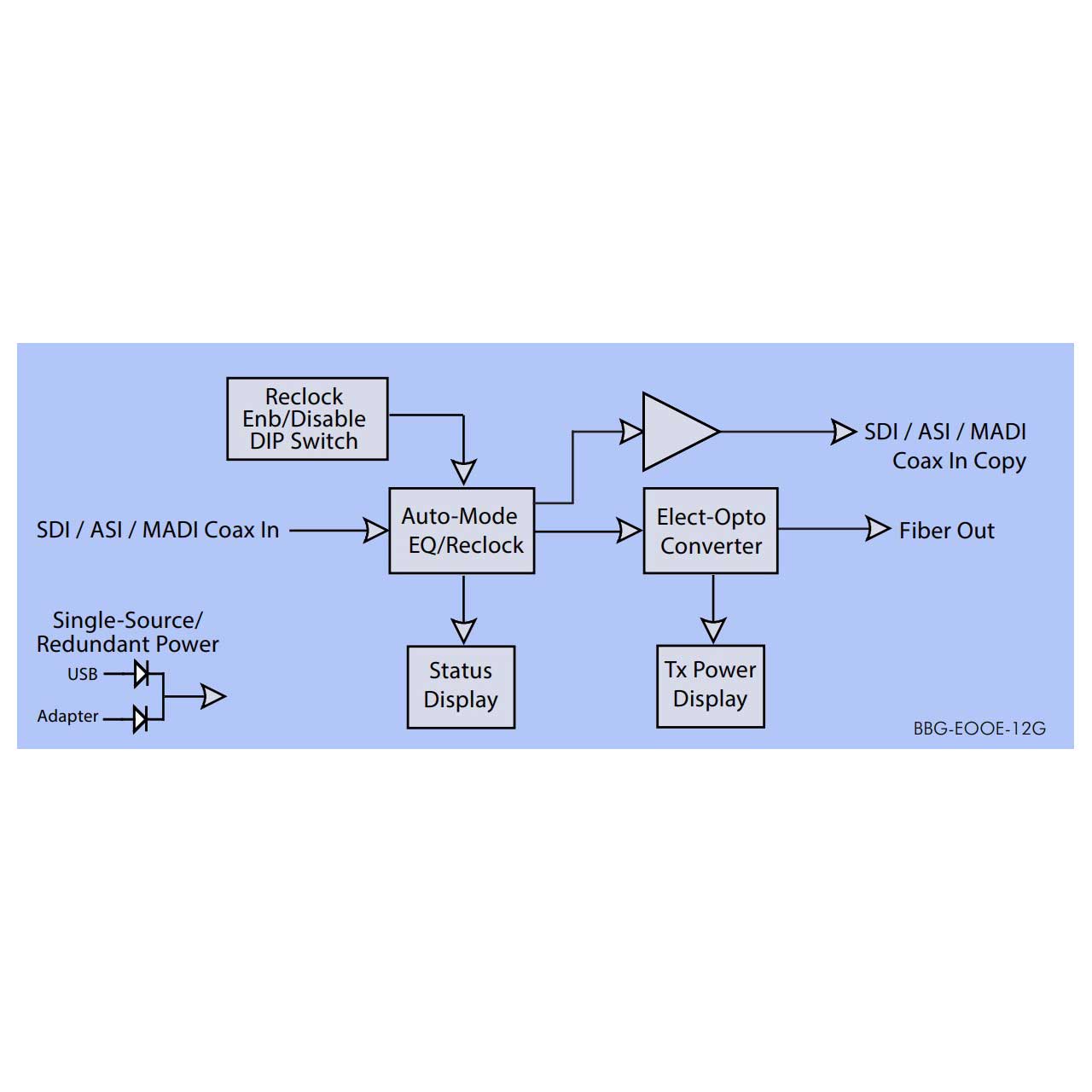

  • Independent companion fiber Rx and Tx paths - all in one easy to use throw-down box. 4-mode crosspoint provides for numerous coax/fiber conversions and routing schemes.
  • Full support of 5Mbps thru 12Gbps transport conversions, with seamless auto-mode EQ/reclocking. No switches to set for different payloads.
  • Available with ST, LC, or FC fiber termination
  • Compatible with SMPTE ST2082, ST2081, 424M, 292M, 259M, 310M, M2S, DVB-ASI, and MADI audio
  • Dual-channel input lock status indicators. Optical Tx and Rx power status fields allow optical Tx/Rx confidence assessment.
  • Error-free pathological support. Full compatibility with other BlueBox™ Coax/Fiber units and Cobalt 9400-series openGear® frame-installed fiber cards.
  • Compact size and low weight design easily affixes directly to camera or host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.
  • USB remote control/status in addition to device indicator and switches. USB BBGConfig app (free download) offers device alternate OEO mode.
  • SFP-based EO/OE converters provide state-of-the-art fiber performance, power consumption, and compactness
  • Powers directly from host equipment USB or standard corded power adapter. USB power and corded adapter can be simultaneously used to provide redundant power sourcing.
  • Rugged construction backed with a five-year warranty


• Specifications:

  • Power:
  • 5-16 VDC, 2.4 W
  • DC Power Connectors
  • USB Mini and coaxial locking connector (for use with supplied Cobalt power adapter)

    Standards/Data Rates Supported:
  • SMPTE ST2082, ST2081, 424M, 292M, 259M, 344M, 305M, DVB-ASI
  • 5Mbps to 12Gbps pathological pattern operation
    (does not support AES-3id audio or other standards using data rates < 5Mbps)

    Input (Fiber-to-Coax Path; Fiber Receive):
  • (1) Fiber input. FC Connectors
  • Wavelength: 1260 to 1620 nm
  • Sensitivity/Input Usable Range: -18 dBm min; -1 dBm max

    Output (Fiber-to-Coax Path; Fiber Receive):
  • (1) 75Ω BNC. Reclocking automatically engaged for recognized signal standards; bypassed for unrecognized standards.
  • Return Loss: >18 dBm up to 270 MHz

    Input (Coax-to-Fiber Path; Fiber Transmit):
  • (1) 75Ω BNC
  • Return Loss: >18 dBm up to 270 MHz

    Output (Coax-to-Fiber Path; Fiber Transmit):
  • (1) Fiber output. FC Connectors. Reclocking automatically engaged for recognized signal standards; bypassed for unrecognized standards.
  • Wavelength: 1310 nm
  • Power: -5.0 dBm (min)

    Dimensions (WxHxD):
  • 5.5" x 3" x 1" (including connector projections)

    Operating Temperature Range:
  • 32°F to 122°F
    Note: Specifications subject to change.


• Item Includes:

  • 1x BBG-EOOE-12G (FC Connectors)
  • 1x PS4 Power Supply


• Warranty:

  • 5 Year Warranty
