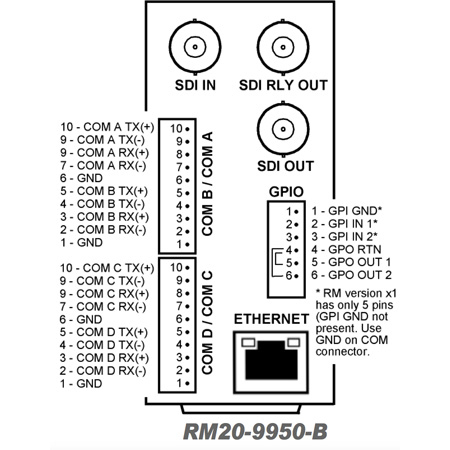

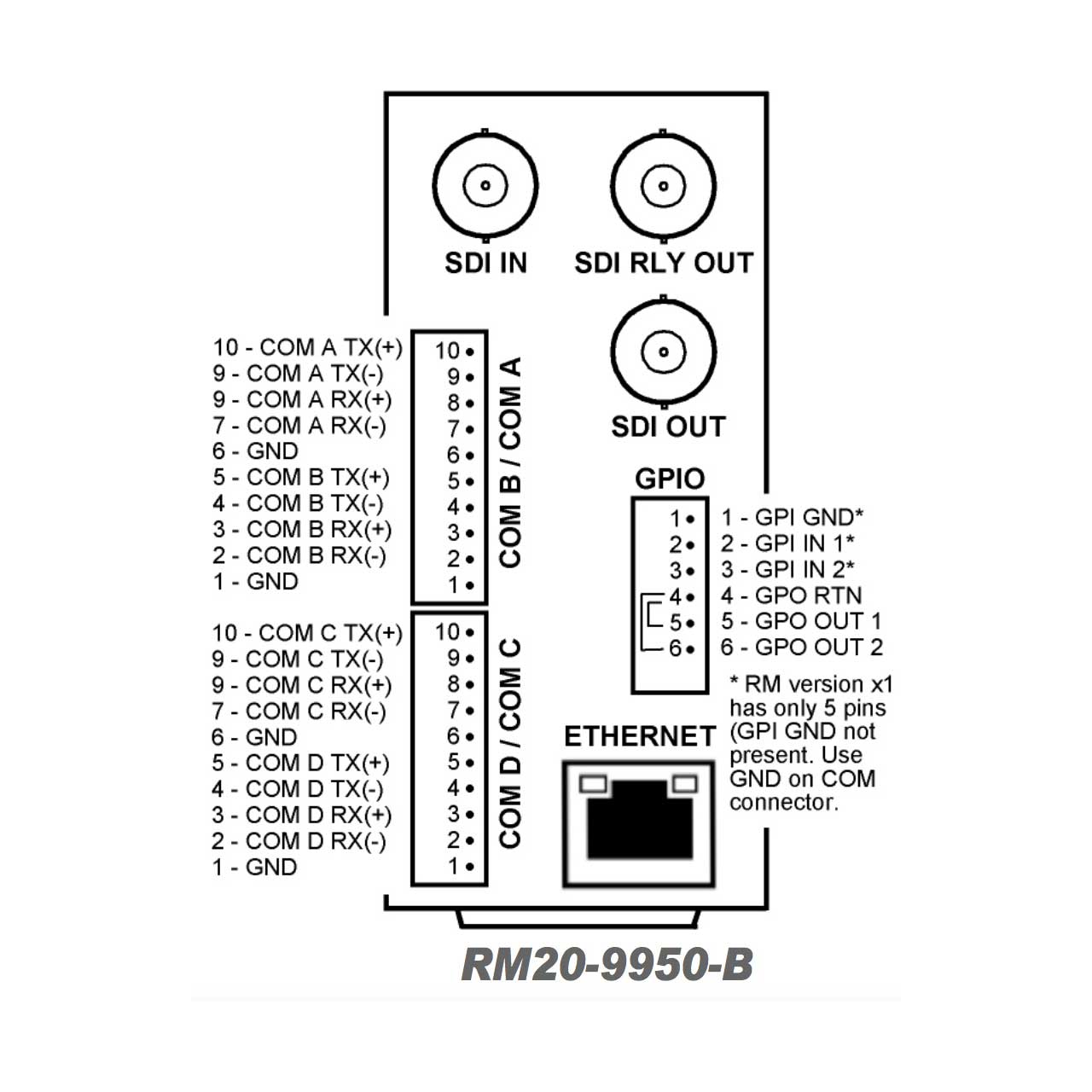

The Cobalt Digital RM20-9950-B is a rear module option for the 9950-EMDE-ANC openGear card. The Cobalt 9950-EMDE-ANC is a 3G/HD/SD-SDI Ancillary Data Embedder/De-Embedder which offers full VANC/HANC ancillary data de-embedding and embedding for 3G/HD/SD-SDI streams. The easy to use user interface allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed-captioning read/insert, GPI/GPO via ANC, or other specialized user payloads. Data insertion and extraction is via serial or IP interfaces. Easy to use DashBoard control provides for easy setup and configuration. The openGearr card-based form-factor and high-density design allows up to ten 9950-EMDE-ANC cards to be fitted to a 20-slot frame. The standard rear I/O module offers SDI I/O and data interface connections, as well as a relay-protected SDI copy output. Full user DashBoardT or remote control panel remote control allows full status and control access locally or across a standard Etherenet network.
