Cleerline SSF-SFP-SM10GBDA 10G SFP+ LC Transceiver BiDi T:1270/R:1330nm - 20Km Max Reach (Requires B on Opposite Side)

ITEM #: CLT-SSF-SFPSMBDA MFG #: SSF-SFP-SM10GBDA

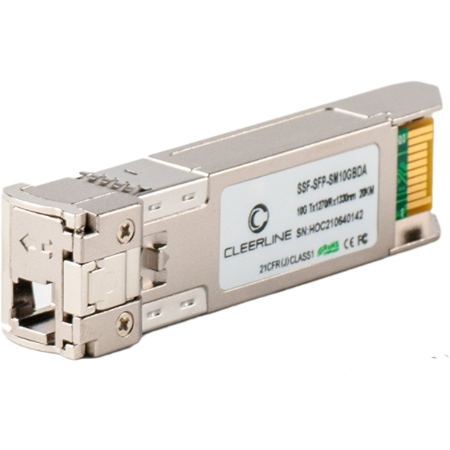

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CLT-SSF-SFPSMBDA

SSF-SFP-SM10GBDA - Overview

Cleerline SSF-SFP-SM10GBDA is a 10G SFP+ Transceiver BiDi T:1270/R:1330nm - 20Km Max Reach. In order to function correctly, these SFPs must be used as a pair: SSF-SFP-SM10GBDA matched with SSF-SFP-SM10GBDB. SOLD SEPARATELY.

Bi-directional (BiDi) 10G SFP+ transceivers are high performance, cost effective modules supporting 20 km transmission distance with single mode fiber.

These modules each accept 1 LC connector.

These single mode transceivers are small form factor pluggable modules for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. The SFP+ 20-pin connector allows hot plug capability.

Modules are designed for single mode fiber and operate at a nominal wavelength of 1270nm or 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. Note: not compatible with HP devices.

  • Features:

    • Supports 9.95Gb/s to 10.3Gb/s data rates
    • Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
    • Single 3.3V Supply
    • Up to 20km on 9/125um SMF
    • A:1270nm DFB Laser transmitter,1330nm receiver
    • B:1330nm DFB Laser transmitter,1270nm receiver
    • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
    • SFP+ MSA SFF-8431 Compliant
    • Digital Diagnostic SFF-8472 Compliant
    • RoHS compliant and Lead Free

  • Specifications:

    • Form Factor: SFP
    • Speed: 9.95 to 10.3Gb/s
    • Optical Connector: Single LC
    • Operating Distance: 20Km
    • Power: Single 3.3V
    • Compliance: MSA SFF-8431, RoHS
    • Operating Mode: Bi-Directional
    • Fiber Type: Single-mode 9/125um, single strand
    • Wavelength: Tx:1270nm/Rx:1330nm
    • Digital Diagnostic: Yes (SFF-8472 compliant)
    • Operating Temperature: 32° to 158&def;F (0° to 70°C)
