Delvcam DELV-2LCD7-4K Dual 7 Inch 1920x1200 3RU Rackmount SDI Monitor Supports 4k at 60Hz

Name: Delvcam DELV-2LCD7-4K Dual 7 Inch 1920x1200 3RU Rackmount SDI Monitor Supports 4k at 60Hz
Brand: Delvcam
SKU: DELV-2LCD7-4K
Price: 820.95 USD
Availability: InStock

ITEM #: DELV-2LCD7-4K MFG #: DELV-2LCD7-4K

Delvcam

List Price:

$873.95

Our Price:

$820.95

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

DELV-2LCD7-4K - Overview

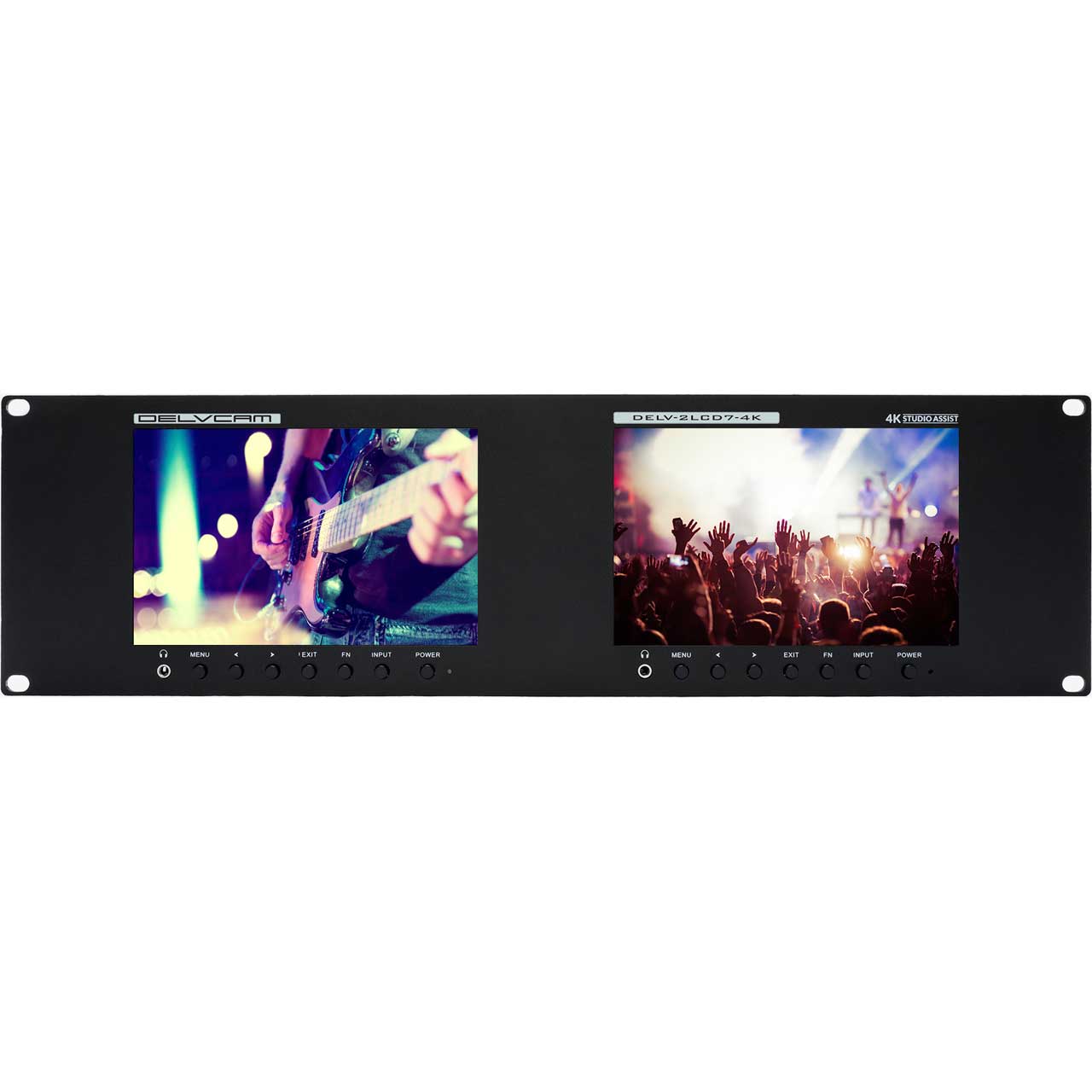

The Delvcam DELV-2LCD7-4K is a dual 7-inch 1920x1200 3RU rackmount SDI monitor that supports 4K@60Hz input resolutions. Complete with SDI & HDMI 2.0 out, as well as LAN and TALLY outputs users can monitor up to 1080p 60Hz SDI and 2160p 60Hz HDMI videos. With a full HD independent dual display, high contrast, 160° viewing angles, and 400cd/m2 brightness, the DELV-2LCD7-4K is a great option for video wall and broadcast truck applications.

Includes 12v DC Power Supply & Tally Connector (Assembly Required)

Features:
- 160° Wide Viewing Angles
- High Resolution: 1920 x 1200
- High Brightness: 400cd/m2
- High Contrast: 2000:1
- Fast Response Time
- Tally Interface with Indicating Light
- Durable and Compact Design
Specifications:

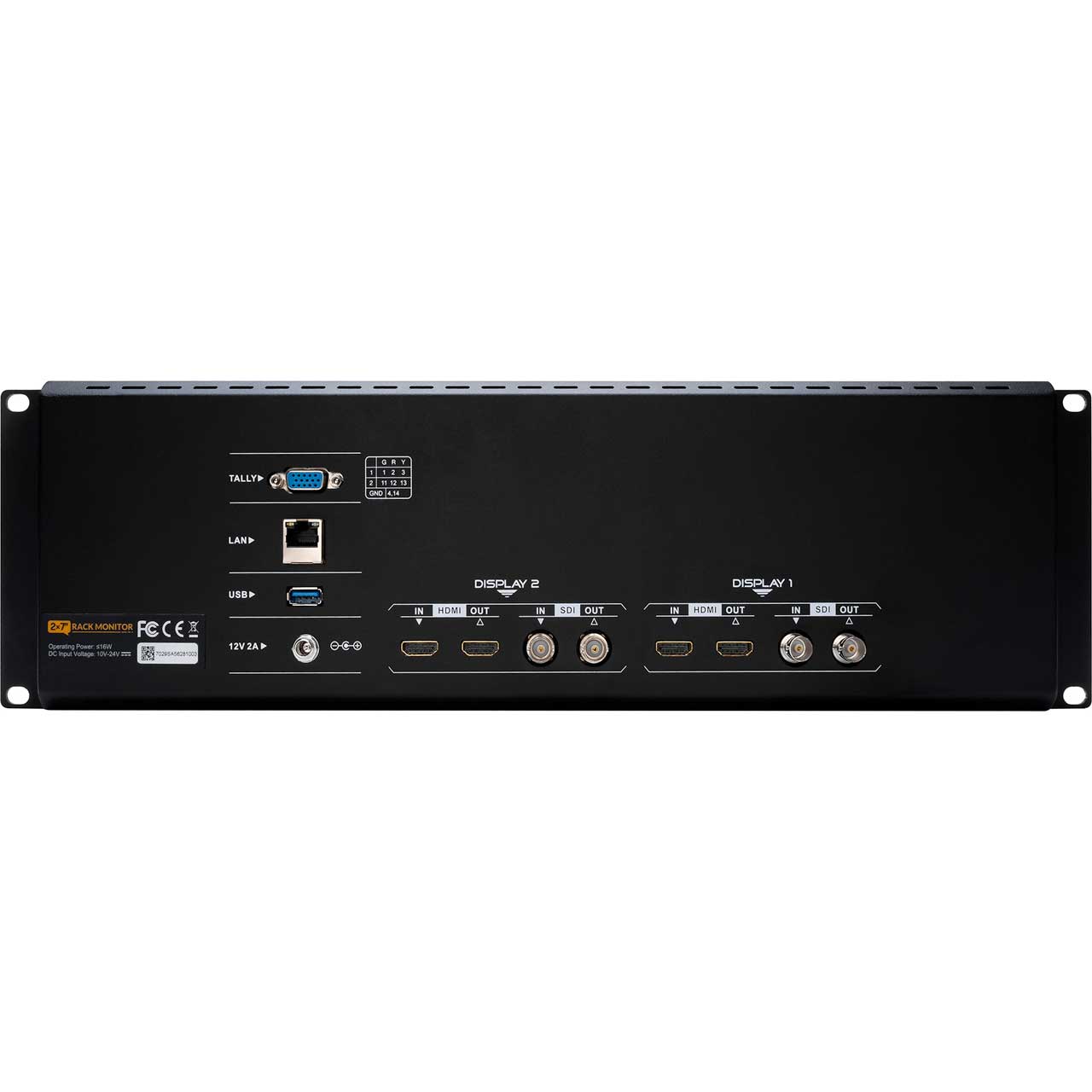

- Inputs: 3G-SDI x 2, HDMI x 2 (Supports 4K @ 60Hz) LAN x 1
- Outputs: 3G-SDI x 2, HDMI x 2 (Supports 4K @ 60Hz), Headphone x 2
- Physical Resolution: 1920 x 1200
- Aspect Ratio: 16:10
- Brightness: 400cd/m2
- Contrast: 2000:1
- Viewing Angle: 160°/160° (H/V)
- HRD: ST 2084 300/1000/10000/HLG
- Supported Log Formats: SLOG2/SLOG3, ARRILOG, CLOG, JLOG, VLOG, NLOG
- LUT Support: 3D-LUT
- Input Voltage: DC 10-24V
- Power Consumption: ≤16W
- Operating Temperature: 32°F - 122°F (0° C - 50°C)
- Storage Temperature: -4°F - 158°F (-20°C - 70°C)
- Dimensions (LxWxD): 18.88 x 5.19 x 1.5in (480 x 131.6 x 29.3mm)
- Weight: 4.925lbs (2.2kg)

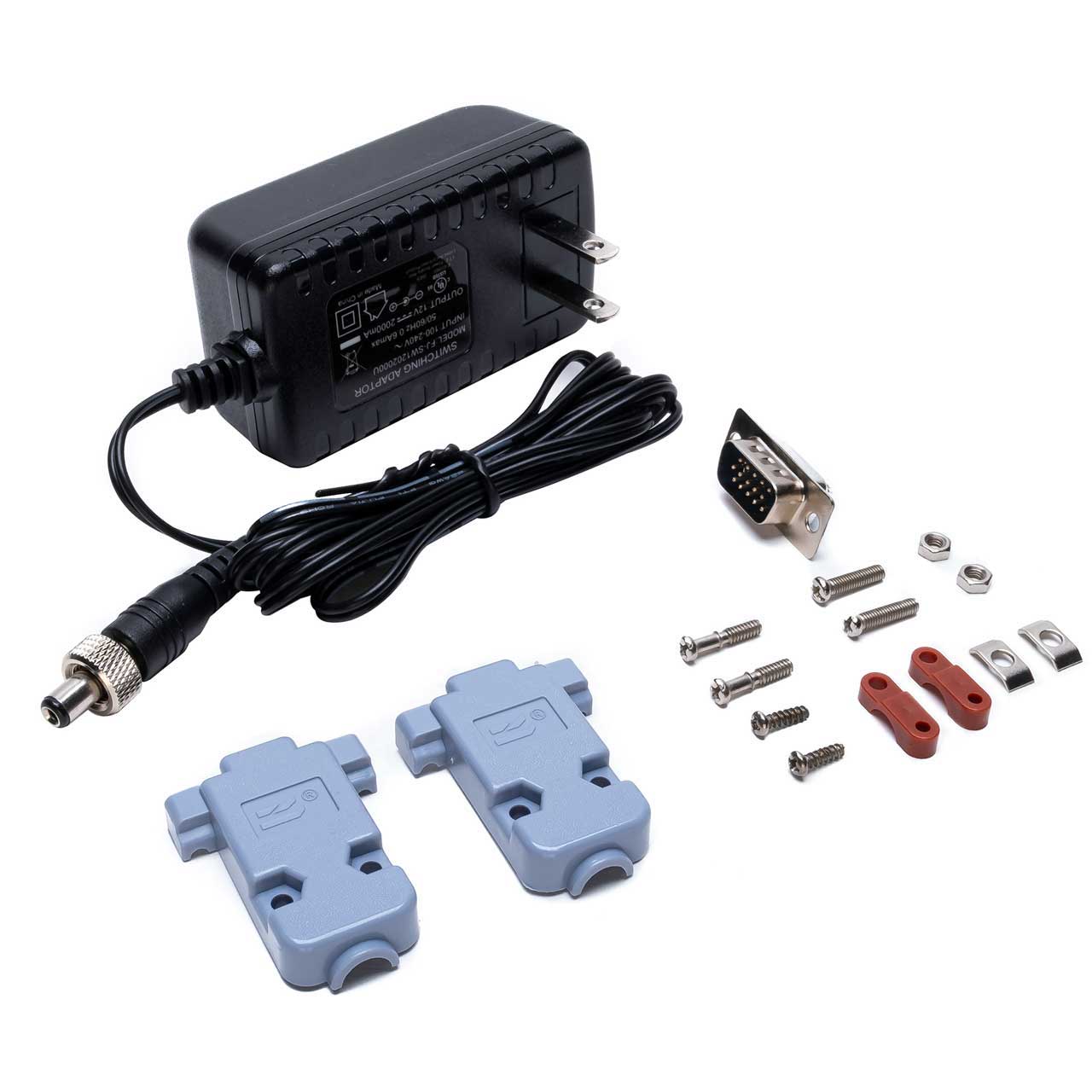

Item Includes:
- 12V 2A DC Power Adapter
- Tally Connector (Assembly Required)
