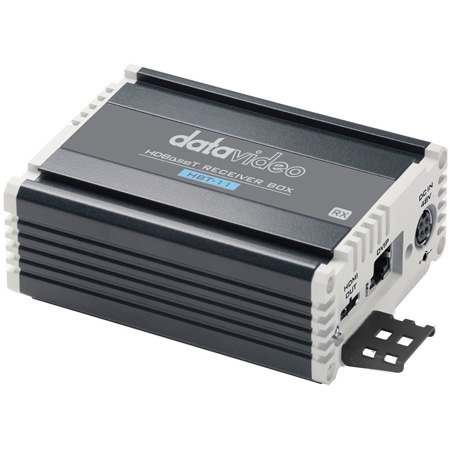

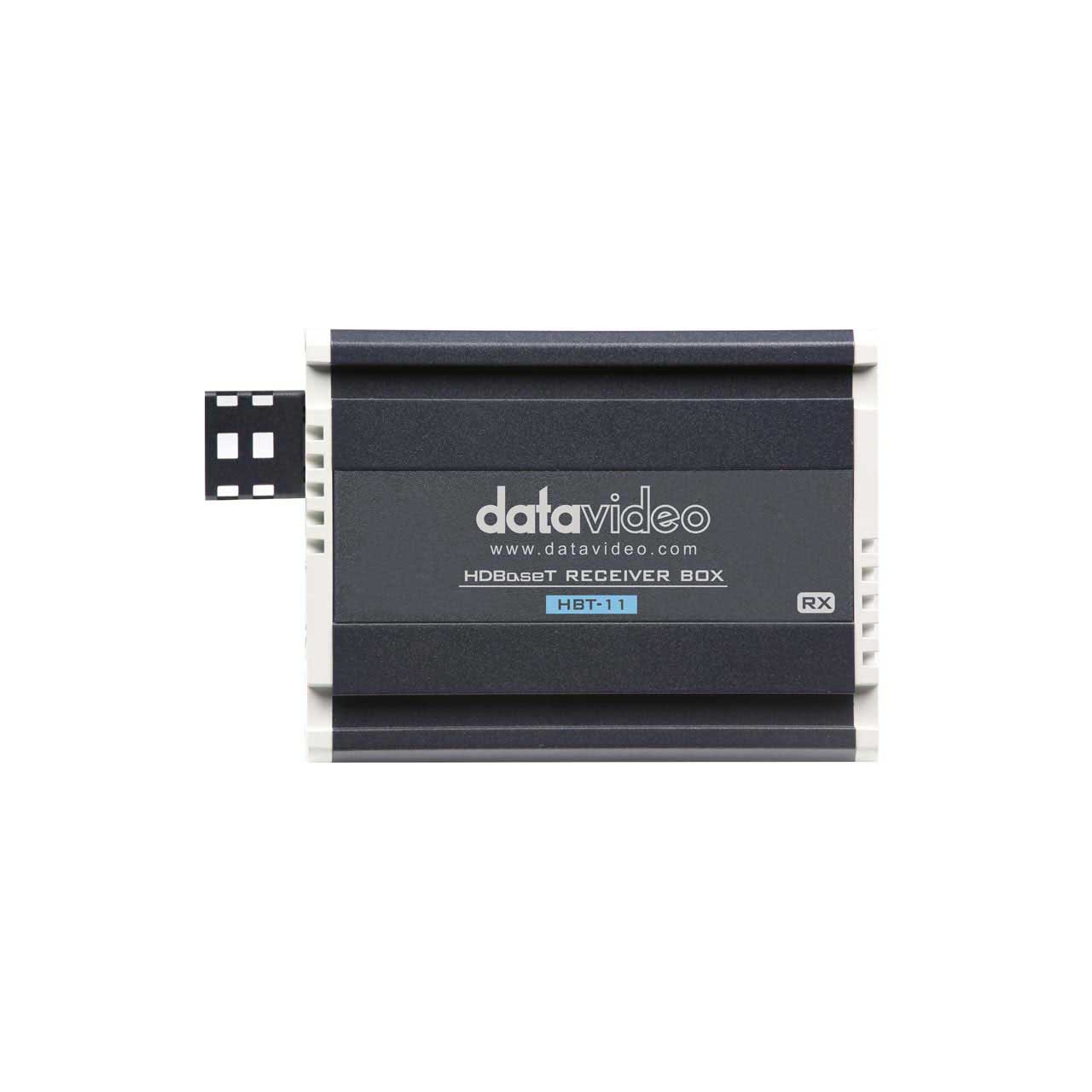

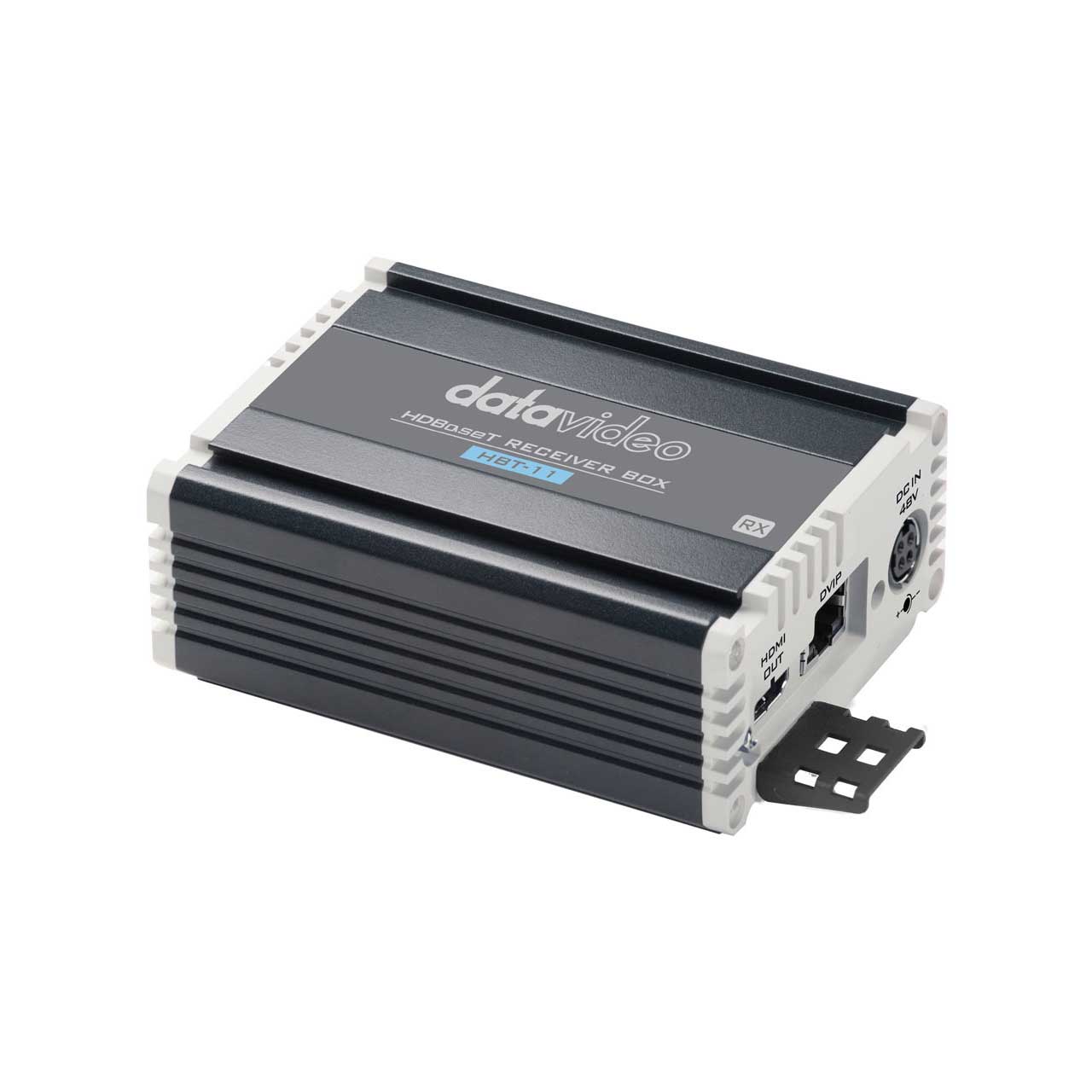

Datavideo HBT-11 HDBaseT Receiver

ITEM #: DV-HBT-11 MFG #: HBT-11

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    HBT-11 - Overview

    Single cable transmission by HDBaseT technology, up to 100m
    Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable. The Datavideo HBT-11 provides a maximum video transmission distance of 100 meters in Full HD Mode. With the 48V power connected to one end of the HBT-11 HDBaseT receiver, the HBT-11 will thus be able to power the transmitter by Power over Ethernet (PoE). On the transmitter end (HBT-10), there is also a 12V/30W DC output serving to supply power to backend devices.

    4K Transmission
    Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver.

    Supports DVIP/RS-422/232 Control Protocol
    The HBT-11 supports protocol enabling to be controlled via RS-422/232 or DVIP interface. DVIP control can be achieved by one Ethernet cable connecting between the transmitter and the receiver. In other words, HDMI video, DVIP control signals and Power over Ethernet (PoE) can be transmitted between the transmitter and the receiver on just one Ethernet cable.

    • Features:

      • Transmit up to 4Kx2K video from HBT-10 Transmitter Box to HBT11 Receiver Box
      • Extend video transmission up to 100m from HBT-10 TransmitterBox to HBT-11 Receiver Box
      • Transmit video, audio, DVIP Ethernet control, RS-422/232 and PoEby a single Cat.5e/6/6a/7 cable
      • 48V PoE Power supply from HBT-11 Receiver side
      • 12V 30W DC output at HBT-10 Transmitter Box side
      • Supports DVIP Control Protocol
      • Supports RS-422/232 Control Protocol
    • Specifications:

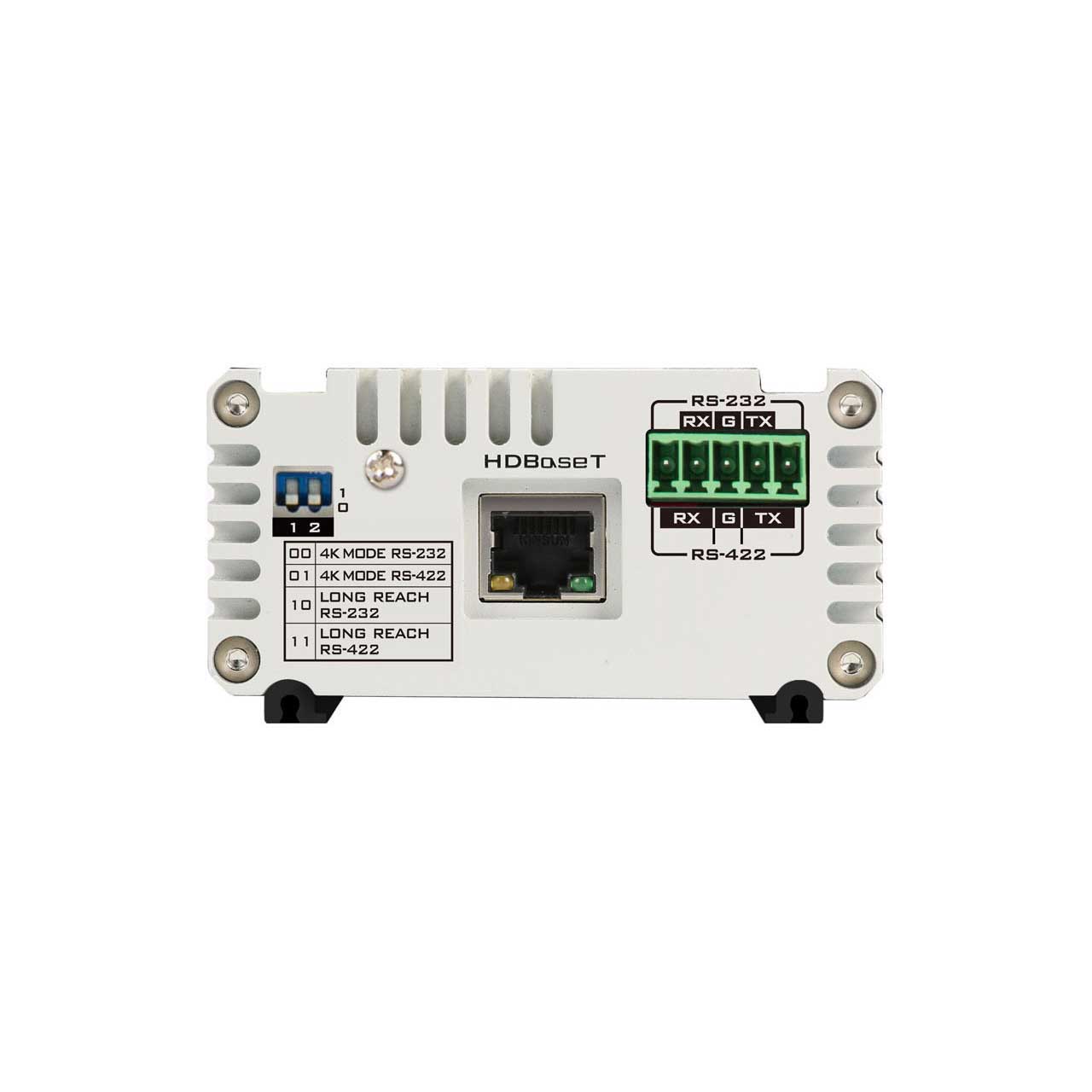

      • Video/Audio Input: HDBaseT RJ-45 x1

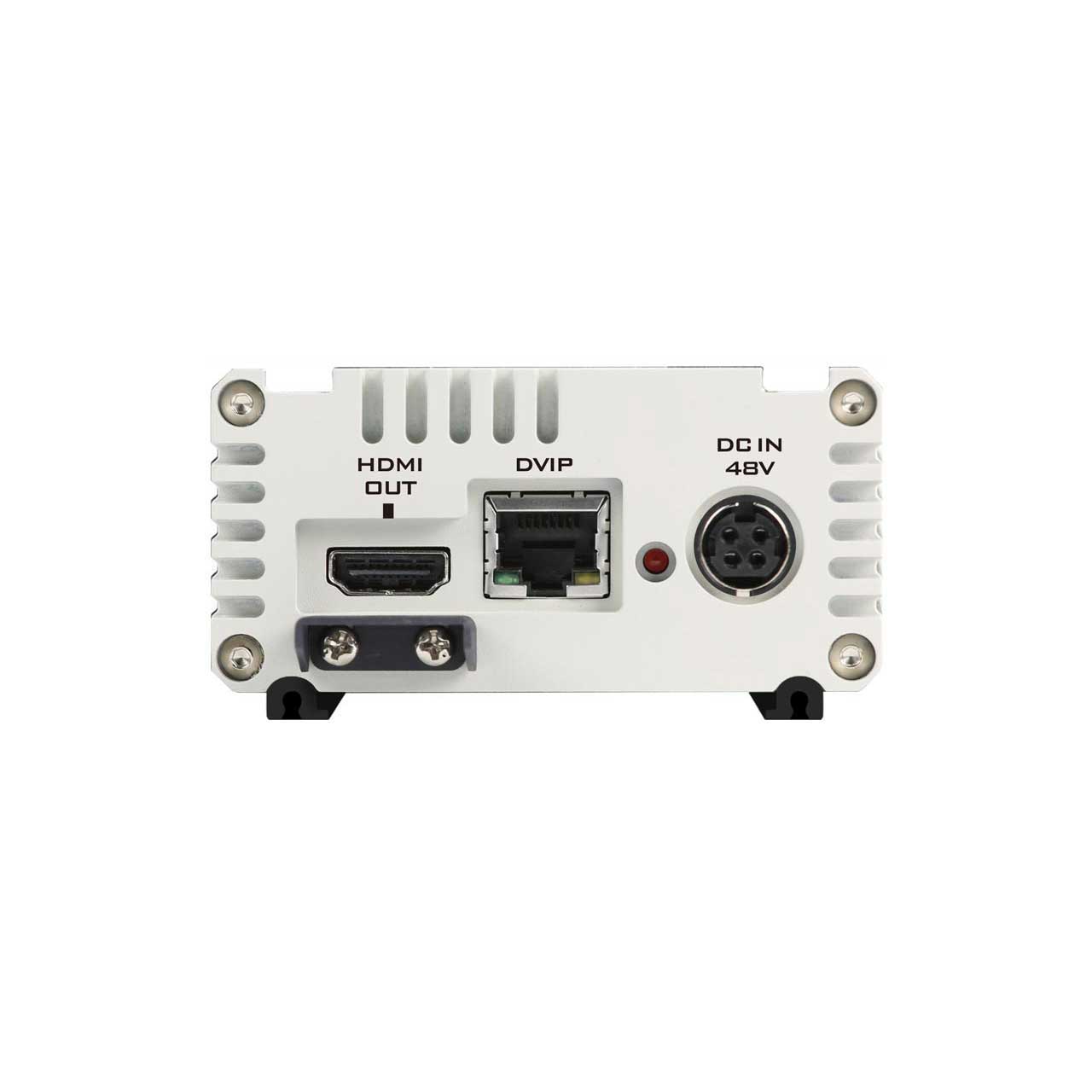

      • Video/Audio Output: HDMI x1
      • DVIP: RJ-45 x1(input)
      • RS-422/ RS-232: Phoenix terminal. Pitch 3.50mm
      • Power: DC IN: DC 48V
      • HDBaseT Distance: Up to 100m by Cat.6 cable
      • Dimension (LxWxH): 132 x 85 x 45 mm
      • Weight: 0.4 kg
      • Operating Temp. Range: 0~40 °C
    • Item Includes:

      • 1x HBT-11 main unit
      • 1x Thank You Card
      • 1x AC cord
      • 1x DC 48V power adaptor
      • 1x Phoenix connector to RJ-45
    • GTIN:
