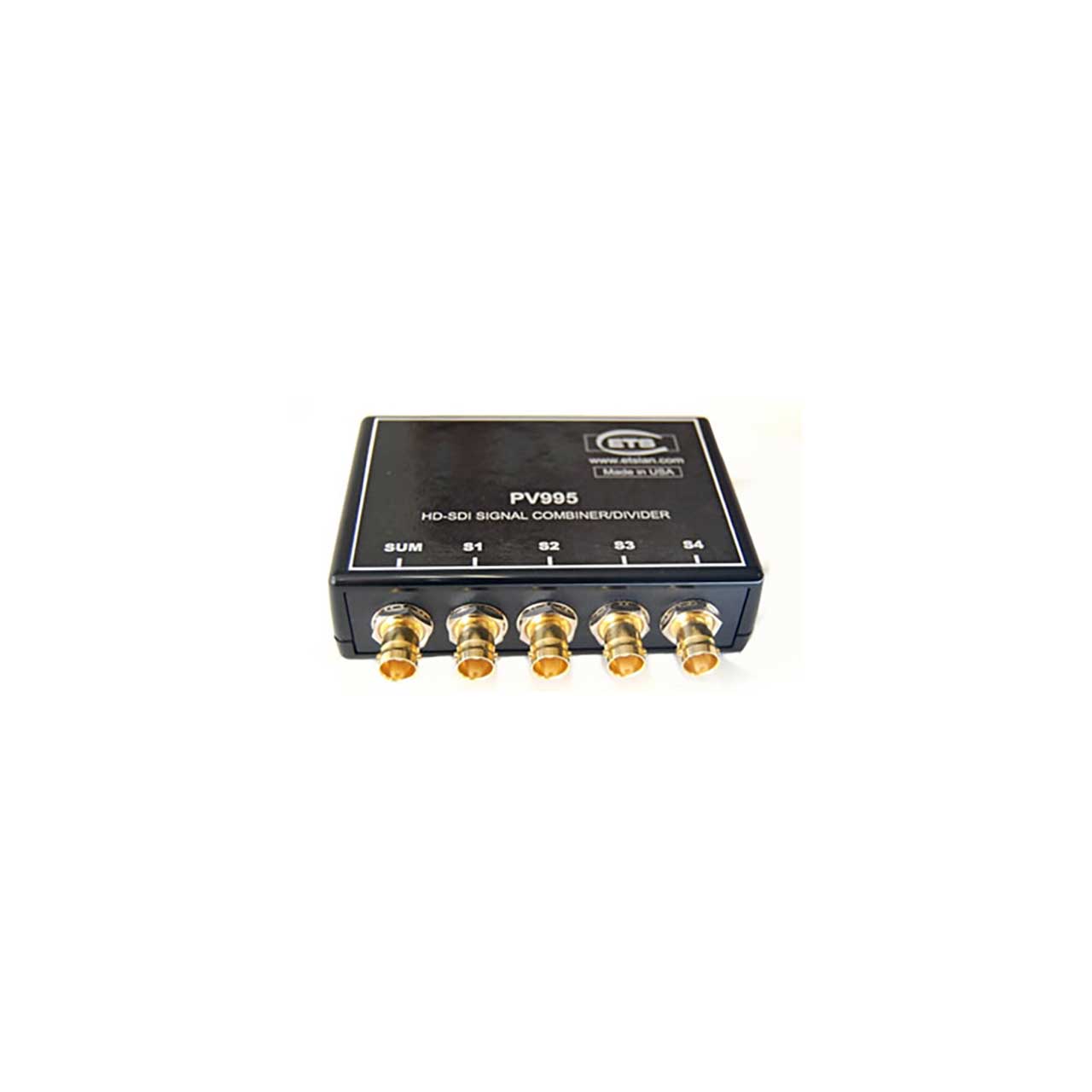

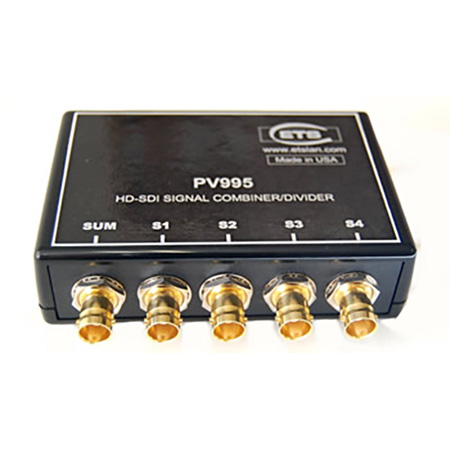

ETS PV995 HD SDI Splitter (1) FBNC to (4) FBNC - 1 Input - 4 Output

ITEM #: ETS-PV995 MFG #: PV995

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

PV995 - Overview

The ETS PV990 Series (PV995) SDI Splitter is a passive, versatile and easy-to-use video splitter designed for studios and on-location productions, as well as live performance venues. The HD-SDI Splitter can be used for monitoring ina wide variety of installations and locations.

The PV990 Series SDI Splitter supports all standard serial digital video data rates up to 3Gbps and is designed to split a SMPTE video signal into two full-quality broadcast video signals and send them to video monitors or other digital devices over RG6 or RG59U coax cable. Distance varies depending on the type of cable, source and display equipment used in the system.

Terminating any unused port with a 75 ohm terminator is recommended in order to achieve the specified performance.

ETS also offers a 2 RU high panel (ETS - PV993) which allows up to 16 splitters to be installed.

HD broadcast installations
High-definition video studio and field productions
HD Production units/OB vans
Multiple displays
Live-action stage monitoring
Monitoring from remote trailer or control room

  • Features:

    • Enables two outputs from a single source without interference or impedance mismatch
    • Passive device with superior reliability and simplicity: no power required
    • Individual splitter or in rackmount panel up to 16 units across
    • Expandable according to production studio requirements
    • Sturdy compact anodized plated metal case
    • 100% tested and USA-made
  • Specifications:

    • Data Rate: Up to 1.485 Gb/s
    • Video Format: SMPTE 259M, SMPTE 292M & SMPTE 424M
    • Connectors: 75Ω FBNC all ports
    • Impedance: 75Ω
    • Insertion Loss: <4 dB
    • Return Loss: -20dB
    • Media: RG6 or RG59 cables
    • Operating Temp: -40° to 185°F (-40° to 85°C)
    • Dimensions: 4.01 x 1.02 x 2.83" (102 x 26 x 72mm)
    • Net Weight: 0.22Lbs 0.10Kg
