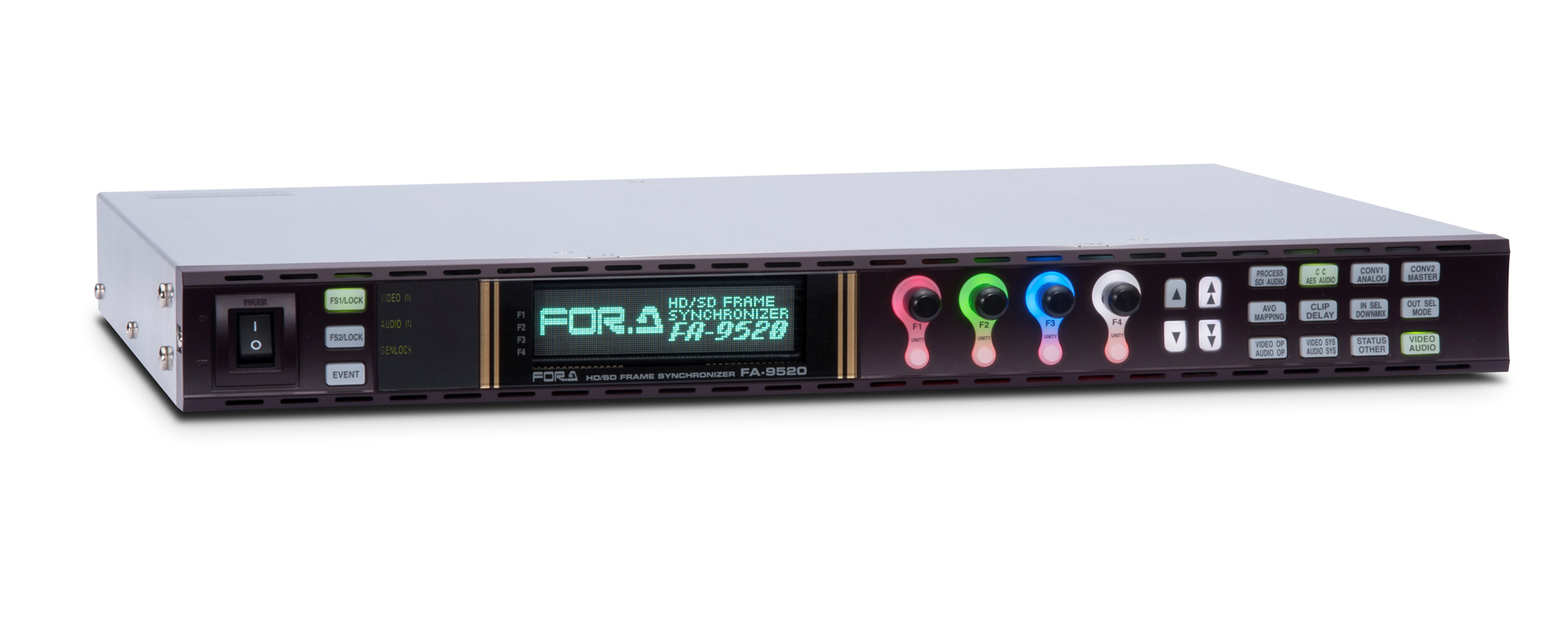

FA-9520 - Overview

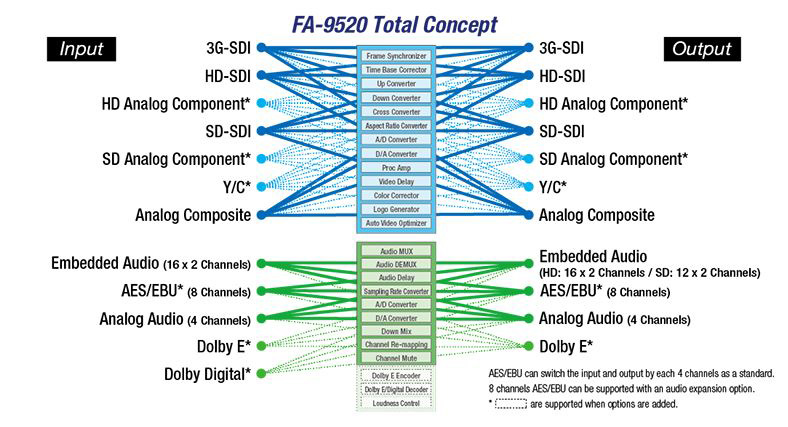

The FA-9520 is a dual channel multipurpose signal processor loaded perfectly for a variety of applications including: master control, mobile production, post production services, live production and more. We have developed the FA-9520 to provide a dual channel version of our industry leading FA-9500 processor. The FA-9250 supports 3G-SDI, HD/SD-SDI, and analog composite I/O. In addition to its functionality as a frame synchronizer, it also provides: up/down/cross/aspect converter, full color corrector and automatic video optimizer (AVO) as standard features. Numerous optional features include: analog component I/O, Dolby E encoder and Dolby E decoder. The wealth of features in the FA-9520 can replace many single purpose units. This is a complete toolbox for almost any video need, all with FOR-A’s legendary signal quality and reliability.

  • Features:

    • Dual Channel Mode
    • 3G-SDI/HD-SDI/SD-SDI/Analog Composite I/O
    • Digital/Analog Audio I/O
    • Up/Down/Cross/Aspect Converter
    • Powerful Frame Synchronizer Performance
    • Color Corrector
    • Closed Caption Conversion (Subtitles) between HD and SD Videos
    • Web GUI for Intuitive Operations and Remote Control
    • Automatic Video Optimizer (AVO)
    • Logo Generator

  • Specifications:

    • Video Input
    • 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω + 2 BNC
    • Analog Composite: 1.0 Vp-p, 75Ω BNC + 1
    • Video Output
    • 3G-SDI: 3 Gbps or HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω BNC + 4 (2 + 2 outputs)
    • Analog Composite: 1.0 Vp-p, 75Ω BNC + 2
    • Video Output (option)
    • HD Analog Component
    • SD Analog Component
    • Video I/O Process: 3 inputs (standard) or 5 inputs (maximum input) - 1 processing - 2 + 2 outputs
    • Video Processing: 4:2:2 Digital Component
    • Quantization
    • 3G/HD/SD-SDI: 10-bit
    • Analog Composite: 12-bit
    • Sampling Frequency
    • 3G-SDI (option): Y: 148.5 MHz, C: 74.25 MHz
    • HD-SDI: Y: 74 MHz, C: 37 MHz
    • SD-SDI: Y: 13.5 MHz, C: 6.75 MHz
    • Frequency Responsed>
    • 100 kHz to 4.2 MHz: 0.5 dB to +0.5 dB
    • 4.2 MHz to 5.0 MHz: 1.0 dB to +1.0 dB
    • roll off above 5.0 MHz (NTSC, composite)
    • 100 kHz to 4.2 MHz: 0.5 dB to +0.5 dB
    • 4.2 MHz to 5.5 MHz: 1.0 dB to +1.0 dB
    • roll off above 5.5 MHz (PAL, composite)

    • Synchronizer mode
    • Frame Sync mode
    • H phase: 1/2 H to +1/2 H
    • V phase: 1/2 frame to +1/2 frame
    • Maximum delay: 1 frame + 1 H, Minimum delay: +1 H
    • Line Sync mode*1
    • H phase: 1/2 H to +1/2 H
    • V phase: 1/2 frame to +1/2 frame
    • Maximum delay: 1 H +1/2 H, Minimum delay: 1 H+2 H
    • AVDL mode*1
    • H phase: 1/2 H to +1/2 H
    • V phase: 1/2 frame to +1/2 frame
    • Maximum delay: 5 H +1/2 H, Minimum delay: +1/2 H (HD)
    • Maximum delay: 1 H +1/2 H, Minimum delay: +1/2 H (SD)
    • Input Sync mode*1*2
    • H phase: 1/2 H to +1/2 H
    • V phase: 1/2 frame to +1/2 frame
    • Maximum delay: 1 frame, Minimum delay: +520 clk

    • Audio Input
    • Embedded Audio
    • 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
    • SD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous only
    • AES/EBU
    • Unbalanced, 1.0 Vp-p, 75 Ω BNC + 4 for AES/EBU input/output, Maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
    • Analog Audio
    • Balanced or unbalanced, 4 inputs (2 stereo channels),
    • 25-pin D-sub (female) x 1 for analog audio input/output
    • 600 Ω or High impedance, 48 kHz, 24-bit

    • Audio Output
    • Embedded Audio
    • 3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
    • SD: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous only
    • AES/EBU
    • Unbalanced, 1.0 Vp-p, 75 Ω BNC + 4 for AES/EBU input/output, Maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
    • Analog Audio
    • Balanced or unbalanced, 4 outputs (2 stereo channels)
    • 25-pin D-sub (female) + 1 for analog audio input/output
    • less than 100 Ω, 48 kHz, 24-bit

    • Audio Delay: 2 ms to 1,000 ms (adjustable in 1 ms steps)
    • Audio Processing (Set per channel): Sampling rate converter (SRC), Gain control, Down mix, Channel re-mapping, Channel mute
    • Interfaces
    • Ethernet: 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 + 2
    • Remote (GPI): 9-pin D-sub (male) (7 terminals) + 1
    • TTL negative logic level signal or Make contact
    • Power: 100 V AC to 240 V AC ±10%, 50/60 Hz
    • Consumption:
    • FA-9520: 60 VA (59W) (at 100 V AC to 120 V AC),
    • 62 VA (56W) (at 220 V AC to 240 V AC)
    • FA-9520 + FA-95PS: 60 VA (59W) (at 100 V AC to 120 V AC)
    • 70 VA (59W) (at 220 V AC to 240 V AC)

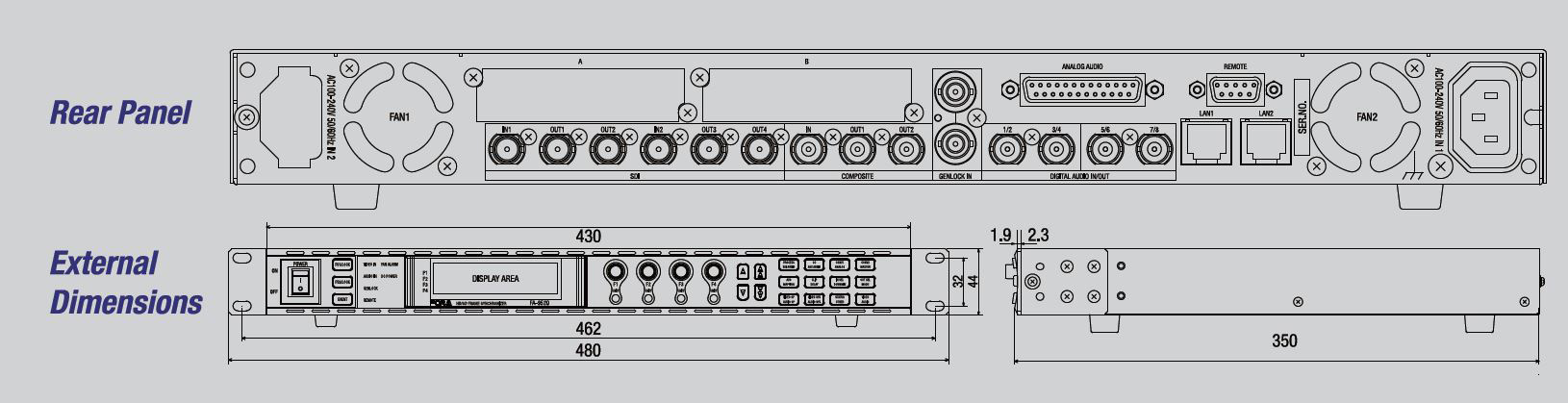

    • Dimensions/Weight: 430 (W) + 350 (D) + 44 (H) mm / 3.0 kg (without options)
