Fiberplex FP1108E/2SFP/DC Un-managed Industrial PoEplus 10 Gig Ethernet Switch - 8x 10/100/1000 / 2x 10GigE SFP

ITEM #: FP1108E-2SFP-DC MFG #: FP1108E/2SFP/DC

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$4,321.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    FP1108E/2SFP/DC - Overview

    Patton's FP1108E Un-Managed Industrial 10 Gig Ethernet Switch supports industrial applications requiring high bandwidth or high density connections, such as power/utilities, water/wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

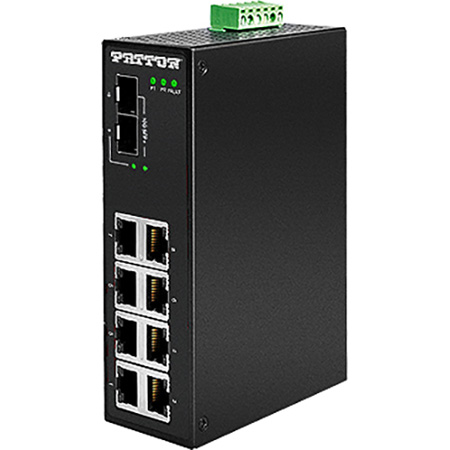

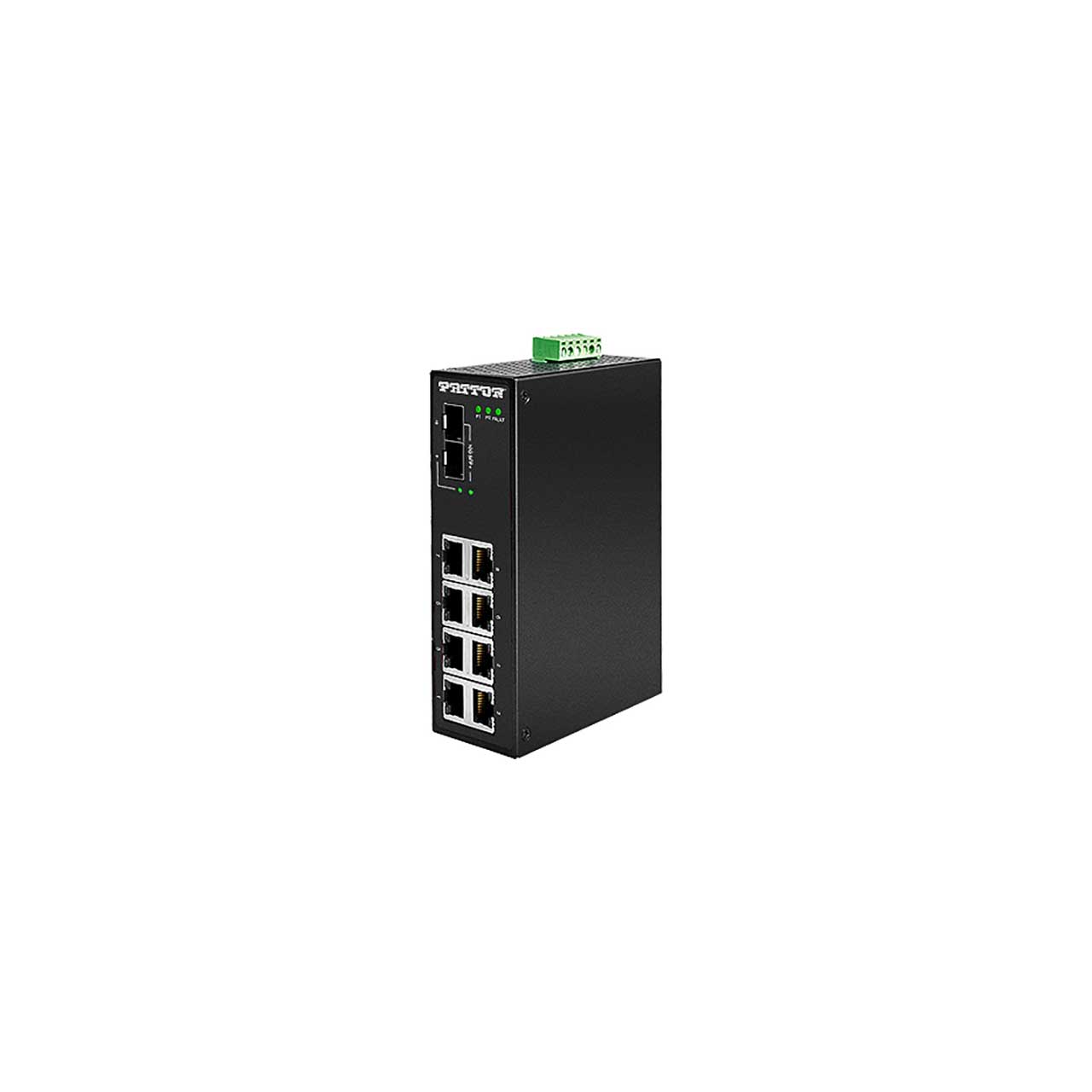

    The FP1108E is housed in a sturdy IP30 rated DIN-rail enclosure with wall mount options. The physical layer interfaces include eight port 10/100/1000 Ethernet ports on RJ45 connectors and two 10G SFP+ cages that can be utilized for fiber trunk connections. To ensure operation in harsh environments the FP1108E provides additional EFT and ESD protection to prevent any unregulated voltage or harmful transients and has an operating temperature rating of -40 to 75°C (-40 to 167°F).

    • Features:

      • Supports auto MDI/MDI-X function
      • 10 ports include 8 10/100/1000TX RJ45 ports and 2 10-Gig SFP+ cages
      • Store-and-forward switching architecture
      • 20-Gbps backplane (switching fabric)
      • 16K MAC address table
      • 9,216 bytes Jumbo frame supports
      • ESD protection: 6,000 VDC support
      • Redundant power input design: 12-48 VDC
      • Built-in relay output for power failure detection
      • Surge protection: 2,000 VDC support
      • Operating temperature range--EOT: -40 to 75°C
      • IP30 rugged metal case design
      • DIN-rail and wall mount support

    • Specifications:

      • Ethernet Port: 8 RJ45 Ports with 10/100/1000TX auto MDI/MDI-X connection & 2 100/1000 SFP cages
      • Fiber Port: Wavelength:?Refer to SFP+ modules/SFP-OC 2 1-Gig SFP cages
      • Standards: IEEE 802.3, 3u, 3ab, 3az
      • Switching Architecture: Backplane (Switching Fabric): 20 Gbps
      • Transfer Rate: up to 1.0Gbps for Gigabit Ethernet port
      • Jumbo Frame: 9.6 Kbytes
      • MAC Table Size: 8K
      • Free fall / Shock / Vibration: IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
      • Overload Current Protection: Present
      • Operating Temperature: -40 to 75°C (-40 to 167°F)
      • Storage Temperature: -40 to 85°C (-40 to 185°F)
      • Ambient Relative Humidity: 5 to 95%, (non-condensing)
      • Input Voltage: 12-48 VDC, Redundant Input (with 1 removable 6-contact terminal block) 100-240 VAC adapter (optional)
      • Power Consumption: 10 Watts
      • Reverse Polarity Protection: Yes
      • Housing: Metal, IP30 protection, DIN-Rail Mounting (wall mounting bracket is also included)
      • Dimensions: 2.12W x 3.89D x 5.59H in. (54W x 99D x 142H mm)
      • Weight: Unit Weight: 2.5 lbs. Shipping Weight: 3.0 lbs
      • Certifications: FCC, CE, UL 61010-1, UL 61010-2-201, ISA 12.12.01, Class 1 Div 2
      • EMI: FCC Class A
      • EMS: EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
