Multidyne FS-3X3-TRXB-ST 3 x 3 Ch. FiberSaver Transceiver/Remapper ST Connectors - Requires FS-3X3-TRXA-ST for Operation
  • Multidyne FS-3X3-TRXB-ST 3 x 3 Ch. FiberSaver Transceiver/Remapper ST Connectors - Requires FS-3X3-TRXA-ST for Operation
  • Multidyne FS-3X3-TRXB-ST 3 x 3 Ch. FiberSaver Transceiver/Remapper ST Connectors - Requires FS-3X3-TRXA-ST for Operation

Questions? Ask a Markertek Expert:
800-522-2025 Email

Multidyne FS-3X3-TRXB-ST 3 x 3 Ch. FiberSaver Transceiver/Remapper ST Connectors - Requires FS-3X3-TRXA-ST for Operation

Manufacturer: Multidyne

Item #: FS-3X3-TRXB-ST   •   MFG #: FS-3X3-TRXB-ST



List Price:$6,995.00
Our Price:$6,295.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Multidyne FS-3X3-TRXB-ST 3 x 3 Ch. FiberSaver Transceiver/Remapper, 1 fiber HUT-MUX: Optimized for the SMPTE HUT, 3 inputs & 3 outputs (BNC or optical) over 1 fiber. The FiberSaver series was designed and built to help engineers and designers to be able to recover from situations where there are many signals to move over fiber, but not enough available fibers due to a lack of access to run more fiber or full cable trays. With our new FiberSaver, input any digital optical signal with a data rate of up to 4.25Gb/sec and it will be received and then re-transmitted at a CWDM wavelength and launched into the CWDM multiplexer. At the other end of the link, the signal is then demultiplexed and restored. Up to 18 optical signals can be combined without the complexity of having specific CWDM lasers...and their spares... for each of your optical sources.Alternately, you can use the BNC inputs and outputs to transport up to six SDI signals up to full, uncompressed 3Gb/sec, on just one fiber. And the built-in reclockers ensure that your signals arrive in pristine condition. Since the FiberSaver is receiving and then retransmitting the optical signal, you get a fresh optical budget that allows transmission over even longer distances. And this doesn't work just for MultiDyne equipment. Any optical signal that is digital (even
    analog signals that are digitally en-coded) and less than 4.25Gb/sec can be used. Older multimode systems? Yes! MADI audio signals? Yes! The Fiber Saver Series. The most economical way to maxi-mize your fiber usage today while providing excess capacity for tomorrow.

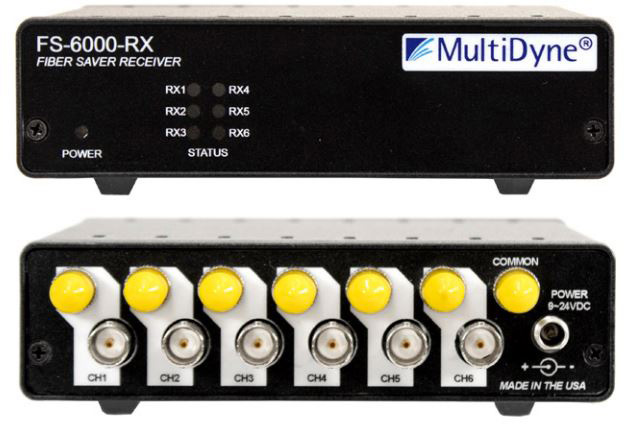

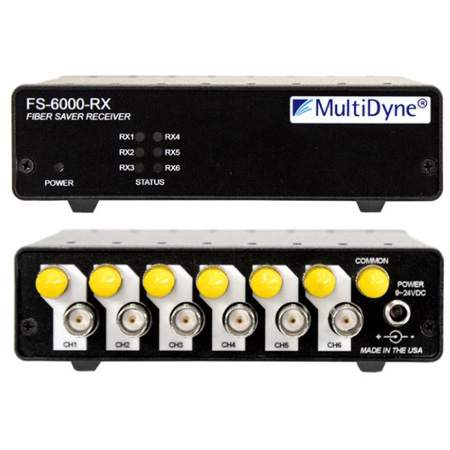

    Please note! Item shown is for reference only. Shown is a 6 channel version of the FS-3X3-TRXA/B-ST.

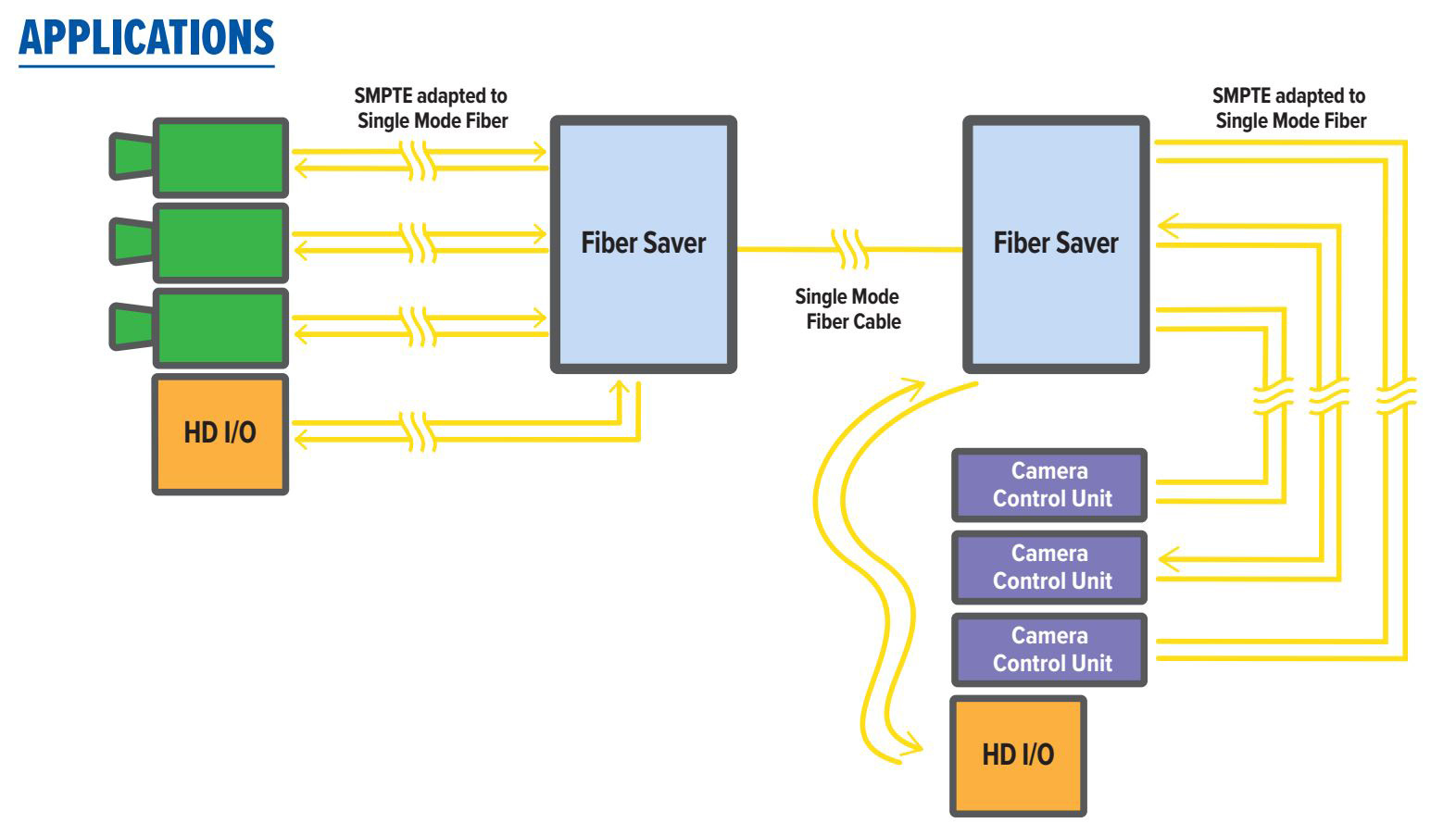

    APPLICATIONS:
    Sports Broadcasting
    Shared control rooms
    Remote studios/STL's
    Tele-Medicine
    Distance learning
    Corporate A/V Taking advantage of stadium and campus fiber infrastructures


    • Specifications

      • SDI Input/Output
      • Bit Rates: 19 Mbps to 3Gbps.
      • Connectors: BNC.
      • Impedence: 75 Ohms.
      • Signal Level: 800 mV nominal pp.
      • Standard:SMPTE 425M, 297M, 292M, 259M-C & DVB-AS.
      • Return Loss: >15 dB at 5 MHz - 1.485 GHz, >10 dB at 1.5 GHz to 3 GHz.
      • Jitter (wideband) HD: < 0.3 UI.
        Optical Input/Output.
      • Data Rates: Up to 4.25Gbps.
      • Connectors ST.
      • Input Range 1250 - 1650nm.
      • Input Power -7 to -15 dBm.
      • Interface Digital optical.
      • Output Power -3 dBm typical.
      • Output Range Muxed CWDM freq.
