Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL
  • Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL
  • Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL
  • Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL
  • Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL

Questions? Ask a Markertek Expert:
800-522-2025 Email

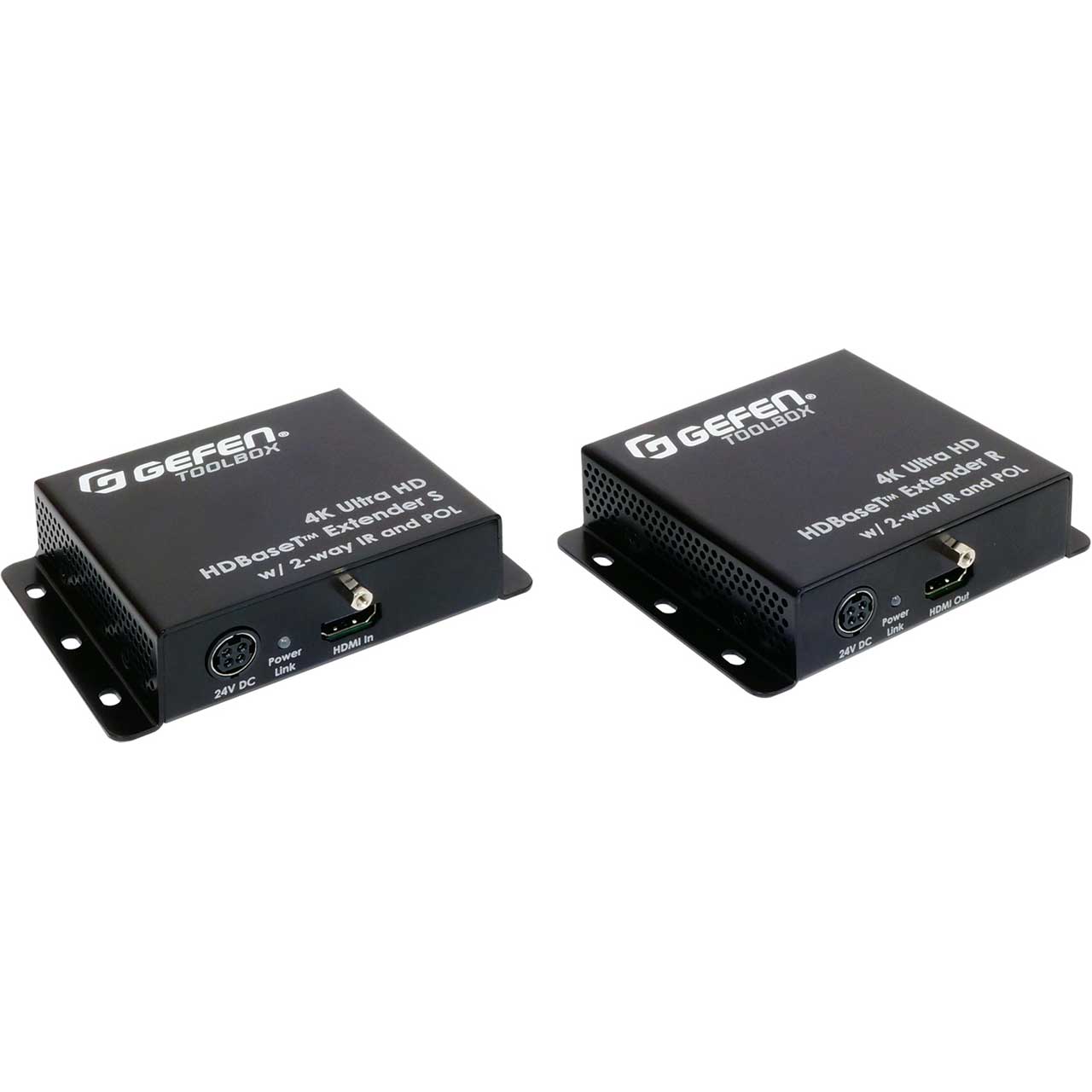

Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT Extender with 2-way IR and POL

Manufacturer: Gefen Inc

Item #: GEF-GTB-UHD-HBTL   •   MFG #: GTB-UHD-HBTL



List Price:$399.00
Our Price:$274.38

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

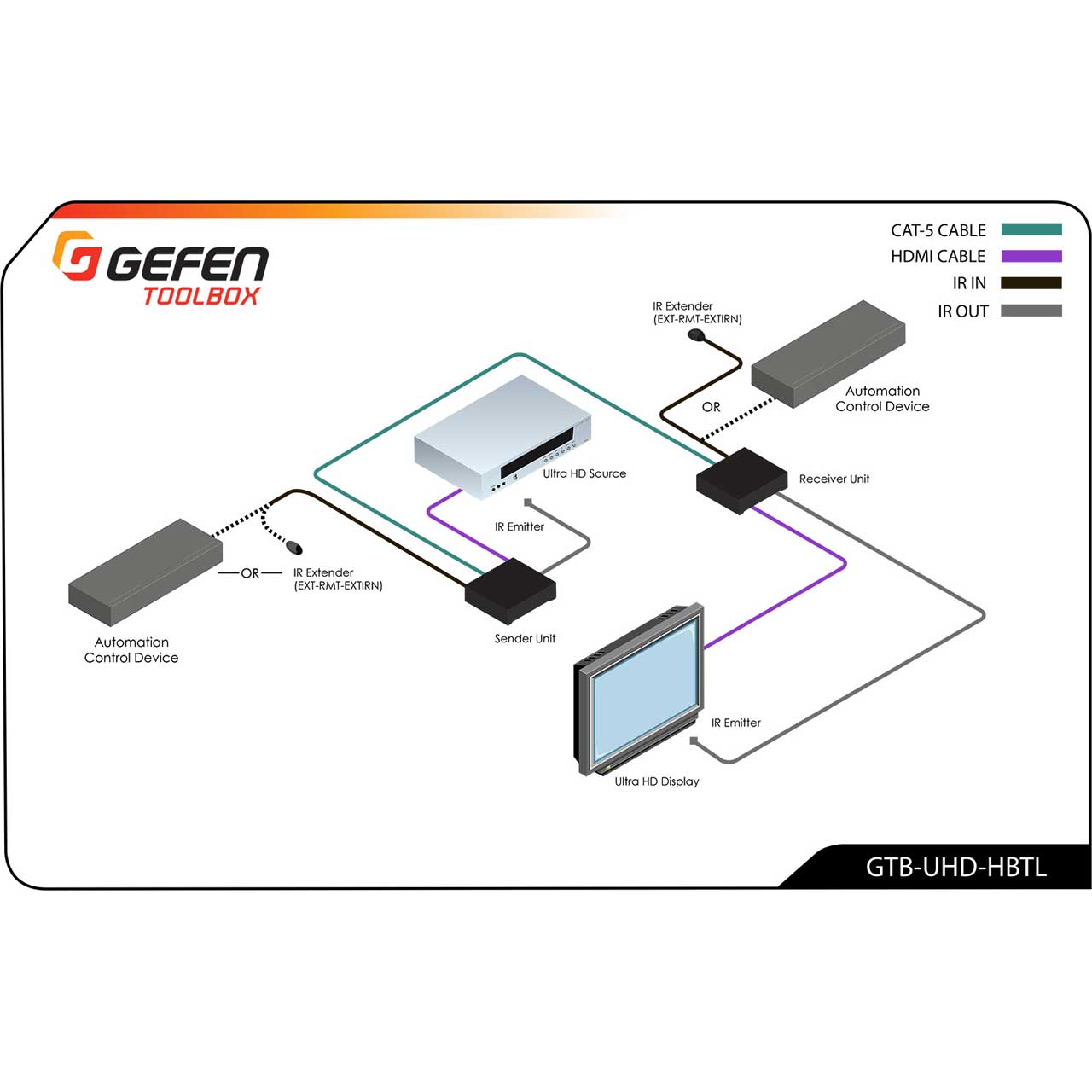

    The Gefen GTB-UHD-HBTL 4K Ultra HD Extender uses Gefen's implementation of the HDBaseT™ technology to extend HDMI up to 230 feet/70 meters at 1080p and up to 130 feet/40 meters at 4K, using one CAT-5e or better cable. Resolutions up to 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) with 7.1 channels of HBR (High Bit Rate) lossless digital audio are supported. This product provides 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit. Gefen's Bi-Directional POL (Power Over Line) technology powers the Sender or the Receiver unit using the same cable that extends the HDMI signal. Only one of the two units will need a power supply. This feature simplifies installation in cases when an electrical outlet may not be available near the source or the display. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.

    Note: Shielded (STP) CAT-5e or CAT-6A is recommended. Unshielded (UTP) CAT-5e or CAT-6A may be acceptable depending on cable quality but is not the preferred choice. Care should always be given to keep these cables away from power lines and other sources of electromagnetic interference. This product supports sources up to 4K 300 MHz (60 Hz 4:2:0 or 30 Hz 4:4:4). It is not compatible with sources that are capable of HDR or 4K 600 MHz (60 Hz 4:4:4).


    • Features

      • 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0), up to 130 feet/40 meters (8-bit color)
      • 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4), up to 130 feet/40 meters (8-bit color)
      • 4K Cinema (DCI) (4096 x 2160 @ 24 or 30 Hz 4:4:4), up to 130 feet/40 meters (8-bit color)
      • 1080p Full HD (60 Hz), up to 230 feet/70 meters (up to 12-bit Deep Color)
      • HDMI 2.0
      • HDCP 2.2 and 1.4
      • 12-bit Deep Color
      • LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ pass-through
      • 3DTV pass-through
      • CEC pass-through
      • Lip Sync pass-through
      • IR extension from Sender to Receiver and from Receiver to Sender
      • Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable - only one side will need external power
      • Uses Gefen's implementation of HDBaseT™ technology with enhanced features
      • Advanced EDID Management
      • Locking power connector
      • Surface mountable

    • Specifications

      • Maximum Pixel Clock 300 MHz

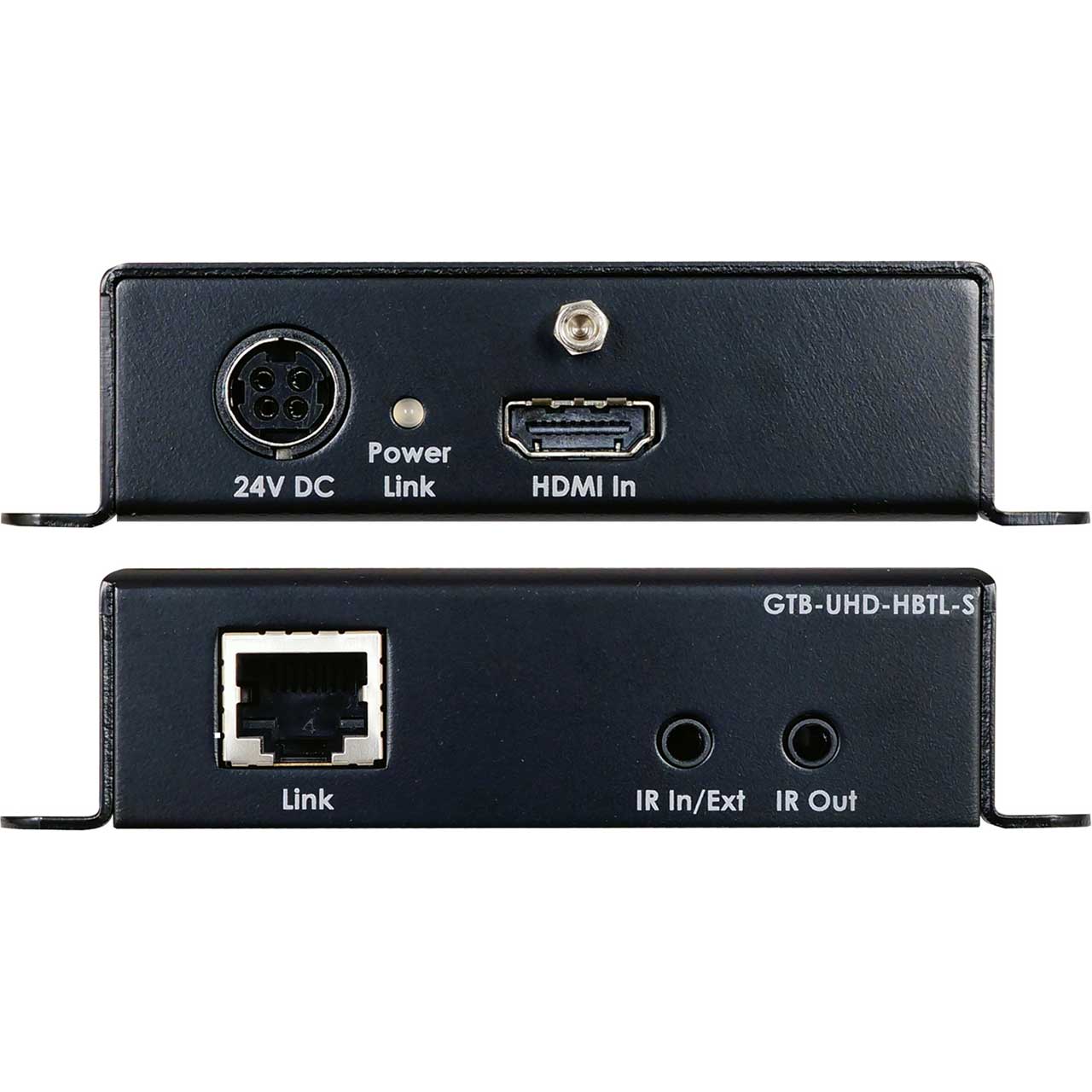

      • Video Input Connector (Sender) (1) HDMI Type A 19-pin, female, locking

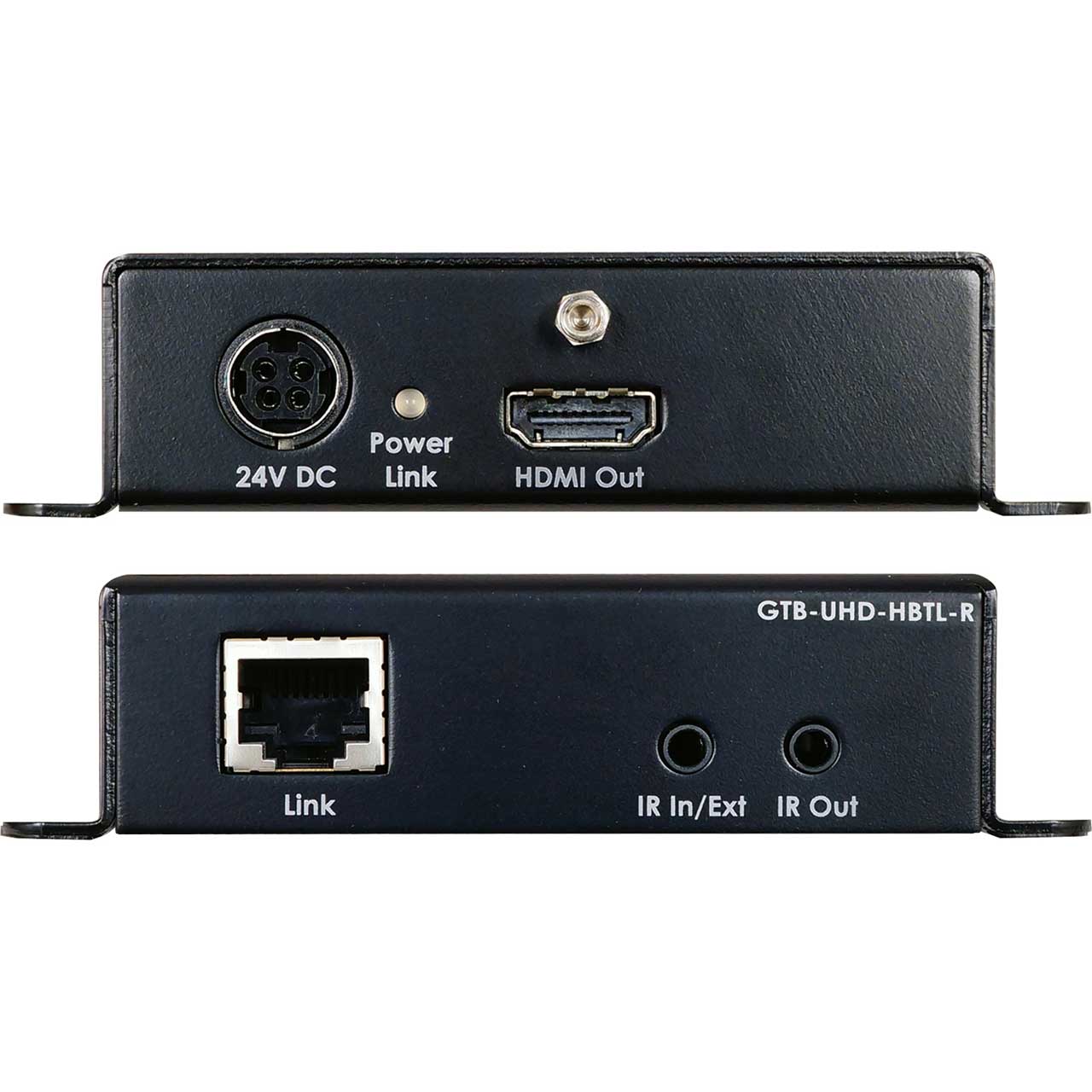

      • Video Output Connector (Receiver) (1) HDMI Type A 19-pin, female, locking
      • Link Connector (Sender/Receiver) (1) RJ-45, shielded
      • IR Ext/In port (Sender/Receiver) (1) 3.5mm mini-stereo jack
      • IR Extender type EXT-RMT-EXTIRN
      • IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
      • Power/Link Indicator LED (Sender/Receiver) (1) Bi-color Blue/Green
      • Power Supply (1) 24V DC, locking
      • Power Consumption (Sender and Receiver combined) 10W maximum
      • Operating Temperature +32 to +122°F (0 to +50 °C)
      • Operating Humidity 5% to 90% RH, non-condensing
      • Storage Temperature -4 to +185 °F (-20 to +85 °C)
      • Storage Humidity 0% to 95% RH, non-condensing
      • MTBF 50000 hours
      • Dimensions (W x H x D, Sender/Receiver) 4.3 inch x 1 inch x 3.2 inch (110mm x 26mm x 85mm)
      • Net Weight (Sender/Receiver) 0.4 lbs. (0.2 kg) each
      • Shipping Weight 2.3 lbs. (1.1 kg)
      • Length: 4.25 (Inches)
      • Width: 12.1 (Inches)
      • Height: 6 (Inches)
      • Weight: 2.3 (Lbs)

    • Item Includes

      • Sender unit (GTB-UHD-HBTL-S)(1)
      • Receiver unit (GTB-UHD-HBTL-R)(1)
      • 6 ft. Locking HDMI cable (CAB-HD-LCK-06MM)(1)
      • IR Emitter (EXT-IREMIT)(1)
      • IR Extender (EXT-RMT-EXTIRN)(1)
      • 24V DC power supply (EXT-PS24U1AIP or EXT-PS24U1AIP-6)(1)
      • Quick-Start Guide (QSG-GTB-UHD-HBTL)(1)

    • Warranty

      • 3 year

    • GTIN:

      0888814999532
