JVC KY-PZ510BU Ultra Wide Angle 4K60P HEVC Auto-Tracking PTZ Camera with 3G-SDI/HDMI/USB/IP Output - Black

ITEM #: JVC-KY-PZ510BU MFG #: KY-PZ510BU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$2,799.00

Our Price:

$2,699.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    KY-PZ510BU - Overview

    With a blistering set of innovative features, JVCs KY-PZ510 Series of PTZ cameras should be on any church?s short list. Capable of 4K 60p performance for high-quality shots with lots of movement, these cameras are putting to shame the PTZ cameras of just a few years ago that were often referred to as just glorified security cameras. Besides just pure image and resolution quality, these new JVC cameras offer some truly innovative, cutting-edge capabilities like multi-slice encoding technology that is intended to reduce latency and boost image quality with lower bit rates. Plus, they are designed to work with remote production. Yes, switching your services remotely --- from home, or sub-contracted out in another state --- is now more realistic for a larger swath of the church market.

    The KY-PZ510N PTZ Cameras also has won the Sound & Video Contractor category in the InfoComm Best of Show 2022 Awards.

    The 4K KY-PZ510BU (White) PTZ Camera features the latest in remote production technology. The PTZ camera also offers enhanced SMART auto-tracking, Vertical Interval Time Code (VITC) with Network Time Protocol (NTP) which provides the new JVC PTZ camera with multi-camera synchronization for seamless live event production.

    HEVC SRT 4K60p Streaming
    Using the latest HEVC technology, the KY-PZ510BU can support multi-slice encoding to ensure higher quality video at lower bitrates for remote production over the internet (REMI).The camera also support H.264 encoding, which offers increased compatibility with a variety of hardware and software applications. Furthermore, the 4K60p streaming delivers natural imagery in settings with a lot of movement, such as sports and live events.

    Super Wide Angle
    The cameras super-wide horizontal angle of view (80 degrees) and focal length of 21.8 to 261.8mm are the perfect way to present live-action events as well as the full scope of a classroom, auditorium or house of worship.

    Smart Auto-Tracking
    The SMART auto-tracking function of the cameras means that operators can set the camera to focus on and follow one person in the view, such as an instructor, pastor or specific person in a live production.

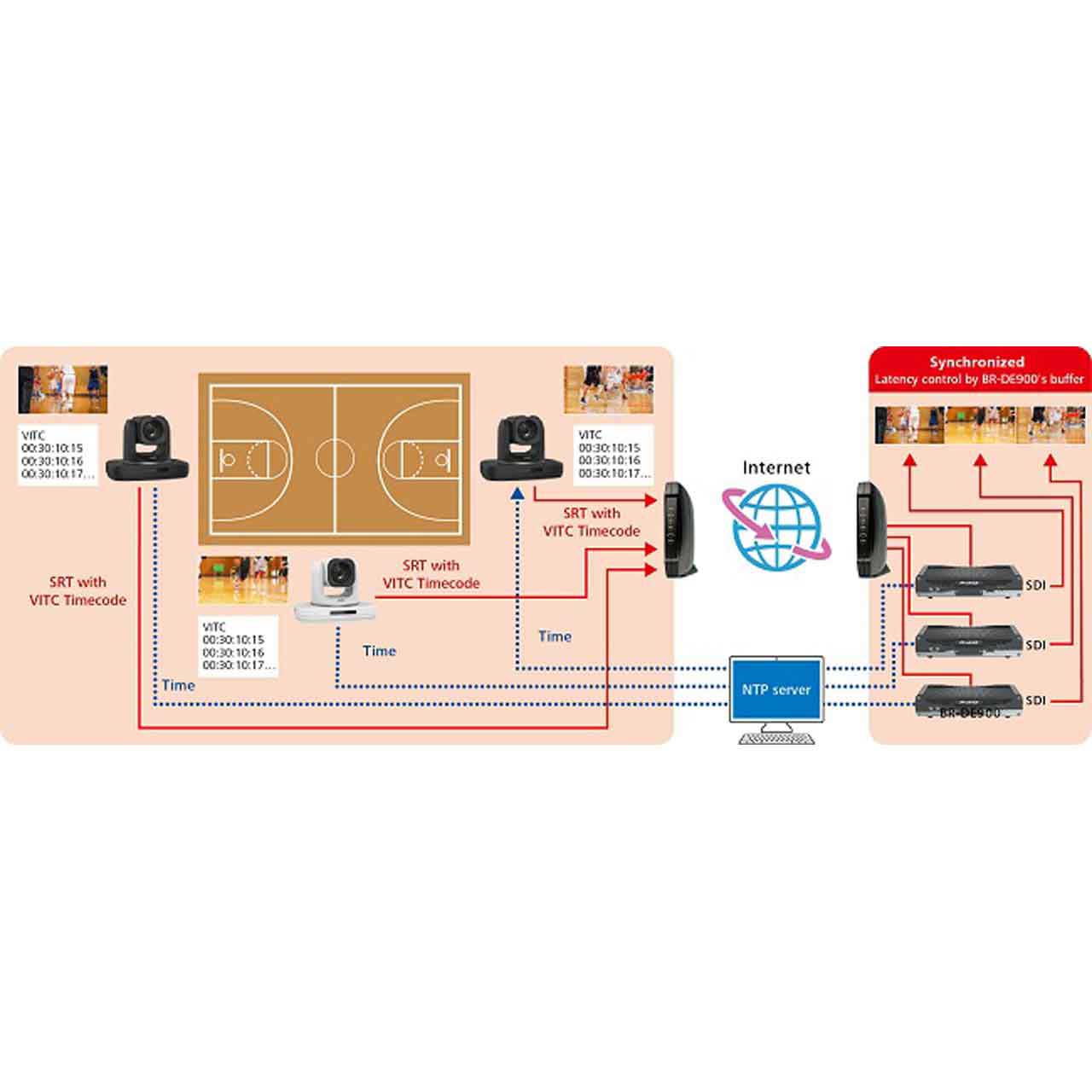

    Multi-Camera Synchronization
    Multi-camera synchronization of live video streams is made possible with the VITC (Vertical Interval Time Code) and NTP (Network Time Protocol) used in 1080 60p mode. This feature is ideal for the mixing and streaming of concerts, shows, and sporting events where image synchronization is critical.

    The KY-PZ510BU can simultaneously output SRT, and RTMPS for hybrid local/remote workflows to deliver the highest quality distribution to the worlds most popular CDNs.

    • Features:

      • Super-Wide 80-degree Field of View
      • 4K60p H.265/HEVC Streaming
      • Multi-Slice Encoding Technology
      • SMART Auto Tracking
      • Still Image Capture
      • Multi-Camera Synchronization with VITC and NTP

    • Specifications:

      • Camera
      • Sensor: 1/2.8 inch, CMOS, effective pixels: 8.40M
      • Scanning Mode: Progressive
      • Lens: 12x, f = 3.47mm ~ 41.7mm, F1.8 ~ F3.7
      • Digital Zoom: OFF, 4x, 8x, 16x
      • Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
      • Gain: 0db to 45db
      • Shutter: 1/30s ~ 1/10000s
      • White Balance:Auto, Indoor, Outdoor, One-Push, Manual
      • Horizontal Angle of View: 80° to 7.5°
      • Vertical Angle of View: 49.9° to 4.3°
      • Horizontal Rotation Range: Ý162.5°
      • Vertical Rotation Range: -30° ~ +90°
      • Pan Speed Range: 1.8° ~ 80.5°/s
      • Tilt Speed Range: 1.5° ~ 49°/s
      • H/V Flip: Supported
      • H/V Auto Inversion: Supported
      • Image Freeze: Supported:
      • Number of Preset: 255
      • Preset Accuracy: 0.1°

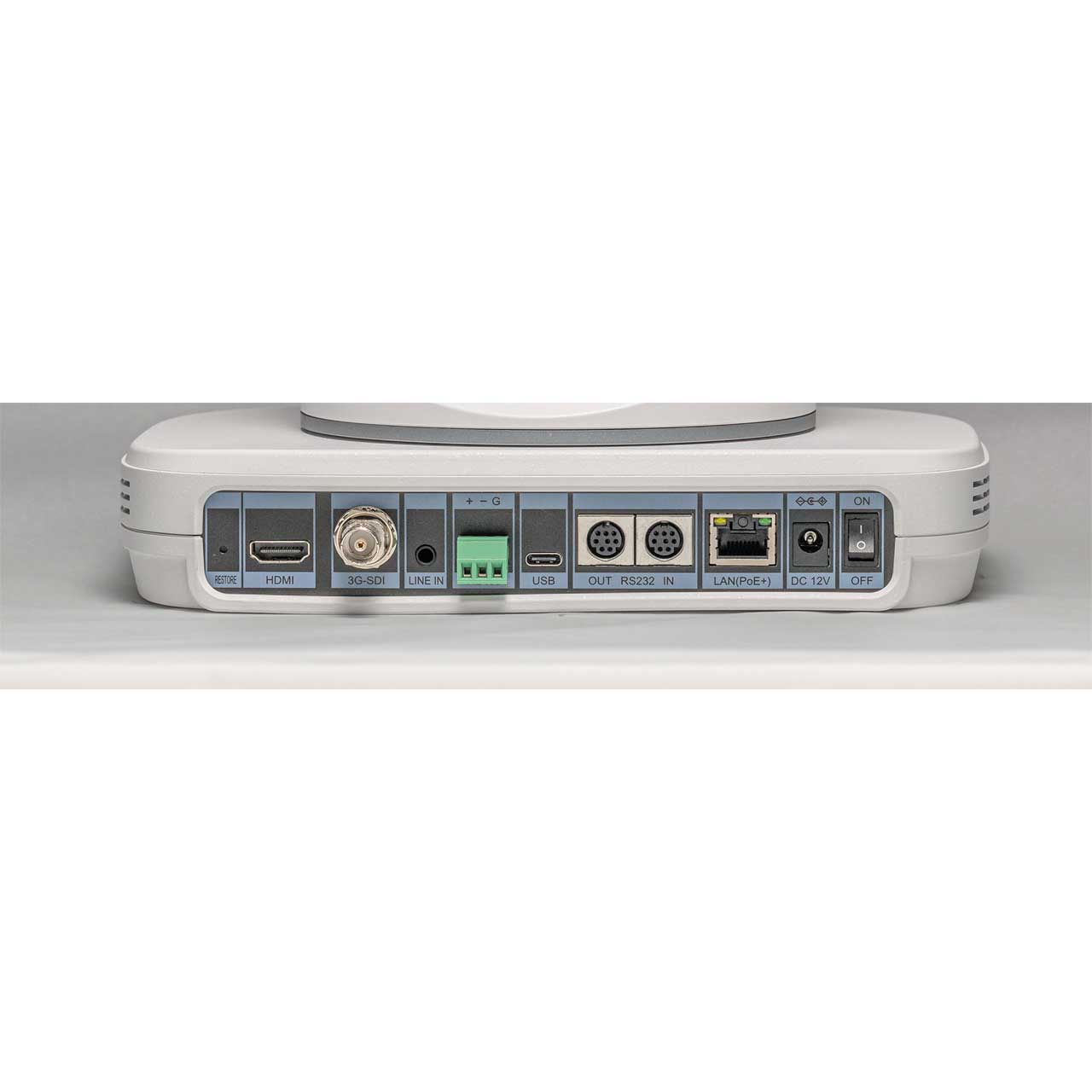

        Input / Output Interfaces
      • HDMI Output: TYPE A, Max 3840x2160/ 60p, 50p
      • 3G-SDI Output: BNC type, Embedded audio, Video: SMPTE 424M ,SMPTE 292M, Audio: SMPTE 299M, Max 1920x1080, 60p, 50pBNC type, Embedded audio, Video: SMPTE 424M ,SMPTE 292M, Audio: SMPTE 299M, Max 1920x1080, 60p, 50p
      • Network Interface (LAN): RJ-45 (Ethernet ): 1000BASE-T/100BASE-TX
      • Audio Interface: Stereo Mini-jack 3.5mm
      • USB Type-C for UVC: Including UAC UVC Ver1.0 - Ver1.5 MJPEG/H.264, MAX: 3840x2160/30p (Host mode not supported)
      • Communication Interface: RS-232C 8-pin Mini-DIN, RS485 2-pin Phoenix port

        Network
      • Video Compression: H.265/HEVC, H.264/MotionJPEG
      • Video Stream: Main Stream: Resolution: 640x360 to 3840x2160, Frame Rate: 25p to 60p, Sub Stream Resolution: 320x240 to 720x480, Frame Rate: 25p to 60
      • Streaming Protocol: RTSP/RTP: H.264: 3840x2160/60p50p/60Mbps with VITC, H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC, H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC, MJPEG: 1920x1080/60p50p, RTMP, RTMPS: H.264: 3840x2160/60p50p/60Mbps, SRT: H.264: 3840x2160/60p50p/60Mbps with VITC, H.265: 3840x2160/60p50p(MultiSlice)/60Mbps with VITC, H.265: 3840x2160/30p25p(SingleSlice)/60Mbps with VITC
      • Remote Protocols: NDI, Standard, Pelco, JVC (WEB API, RM-LP100)
      • VITC, Superimposition on Streaming: RTSP, SRT, UDP: 4K/60p support

        Generic
      • LED: Tally: Green x1, Red x 1; Power On (front): Blue x1
      • Power: DC12V (AC adapter), PoE+ (IEEE802.3at standard)
      • Power Consumption: 14.5W or less
      • Temperature: Operating: 32°F - 104°F, Storage: -40°F - 140°F
      • Humidity: Operating: 30% to 80%, Storage: Under 85%
      • Dimensions (WxHxD): 11.6" x 9.5" x 9.3"
      • Net Weight: Approximately 7.9 lbs.

    • Item Includes:

      • 1x JVC KY-PZ510BU Ultra Wide Angle 4K60P HEVC Auto-Tracking PTZ Camera with 3G-SDI/HDMI/USB/IP Output - Black
