Perfect for home theater rooms, small offices and other applications where there is a need to switch three HDMI sources to one 4K display!

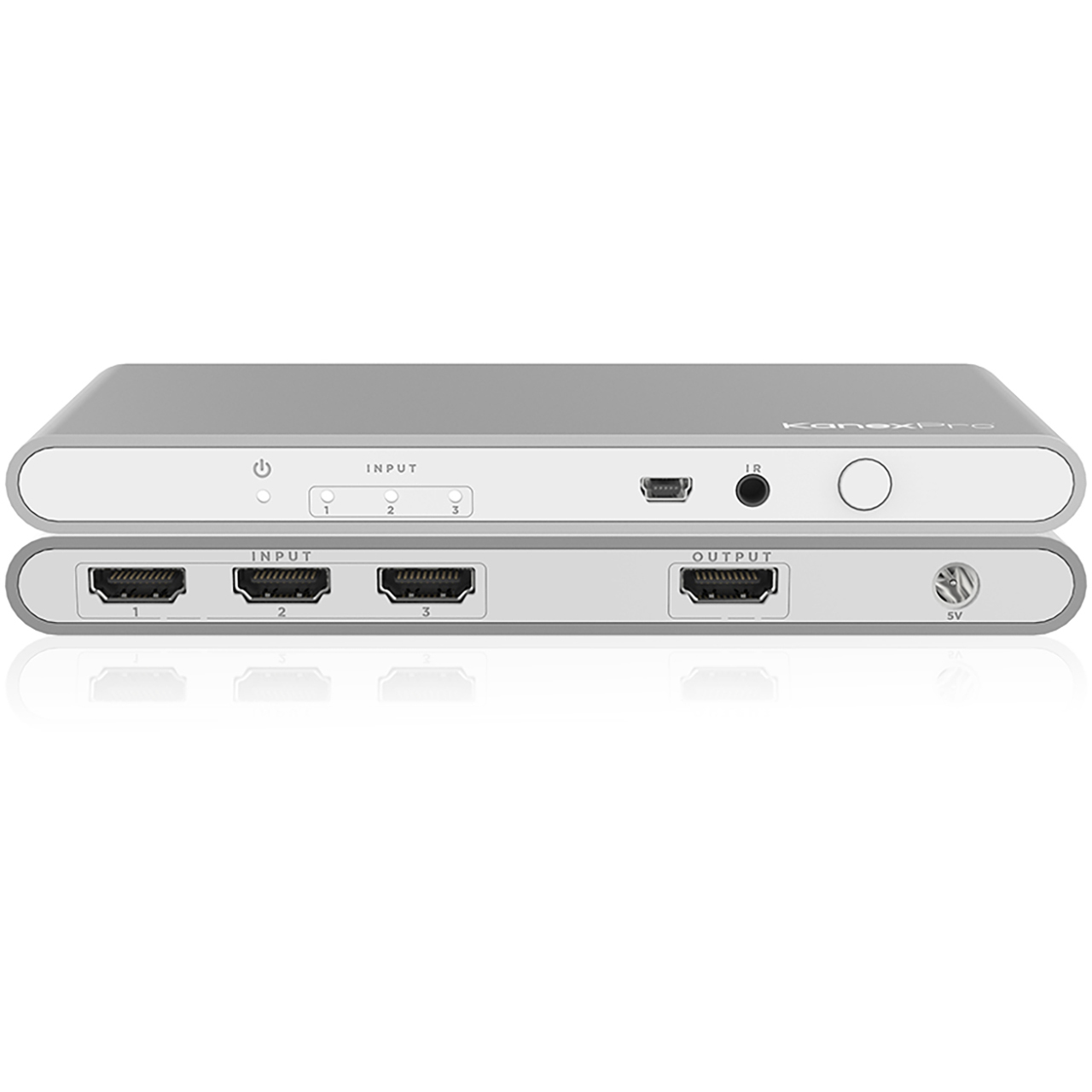

The KanexPro SW-HD20-3X14K is a high-performance, three HDMI input to one HDMI output switcher engineered to support True4K UHD resolutions up to 4K@60Hz with HDCP2.2 specifications. It also supports all 3D TV formats and Full HD 1080p resolutions. Instantly switch between your 4K HDMI devices to one display and control the switch using IR remote included.
-

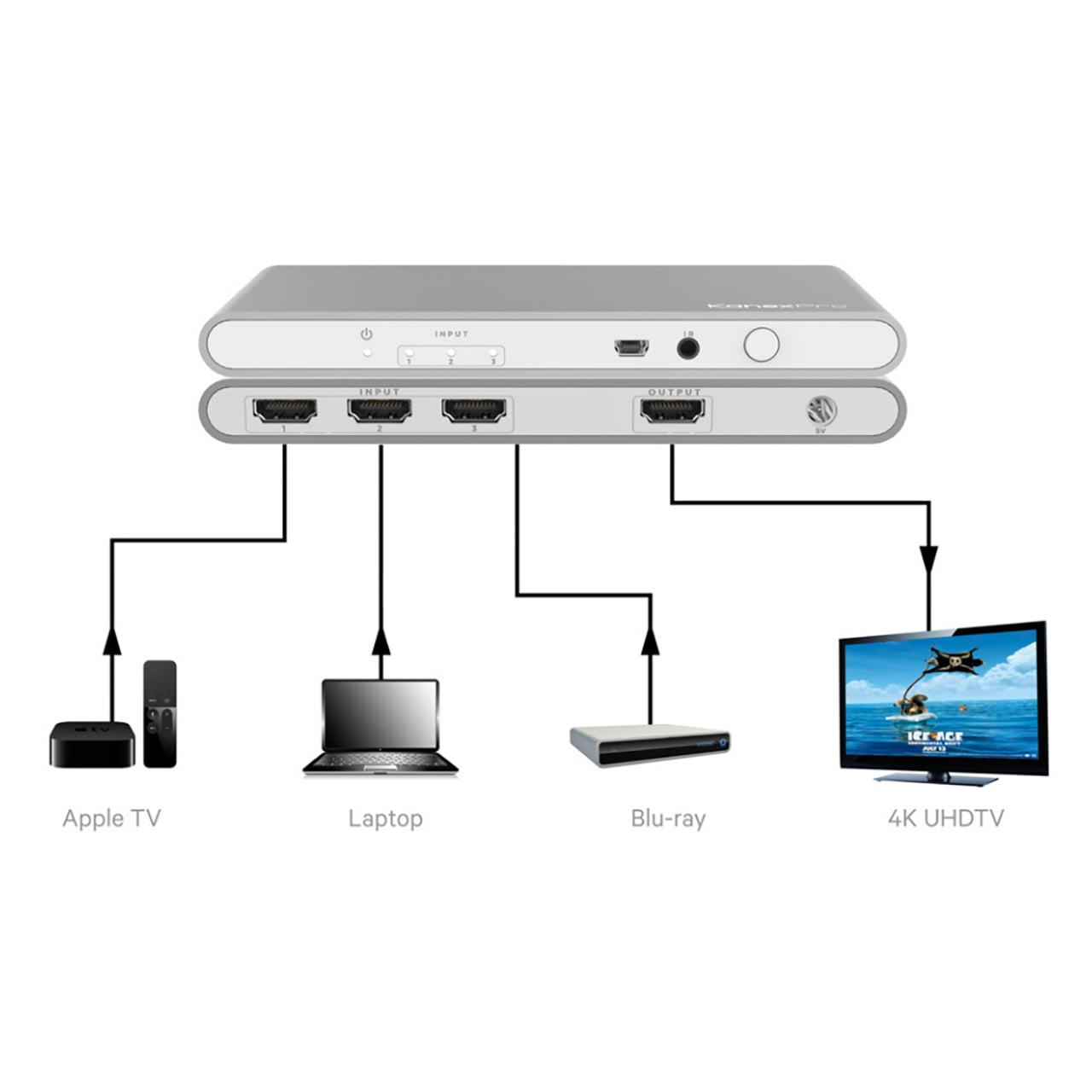

- Auto switch three HDMI sources to one 4K display
- 4K@60Hz UHD, 1080p & 3D resolutions
- 4Kx2K @30Hz with 24bit RGB, YCBCR 4:4:4 & YCBCR 4:2:2.
- Computer resolutions up to QSXGA@60Hz
- Supports 3D frame sequential video formats to 1080p @60Hz
- HDCP 2.2 compliant
- Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- High bandwidth for ultimate video experience

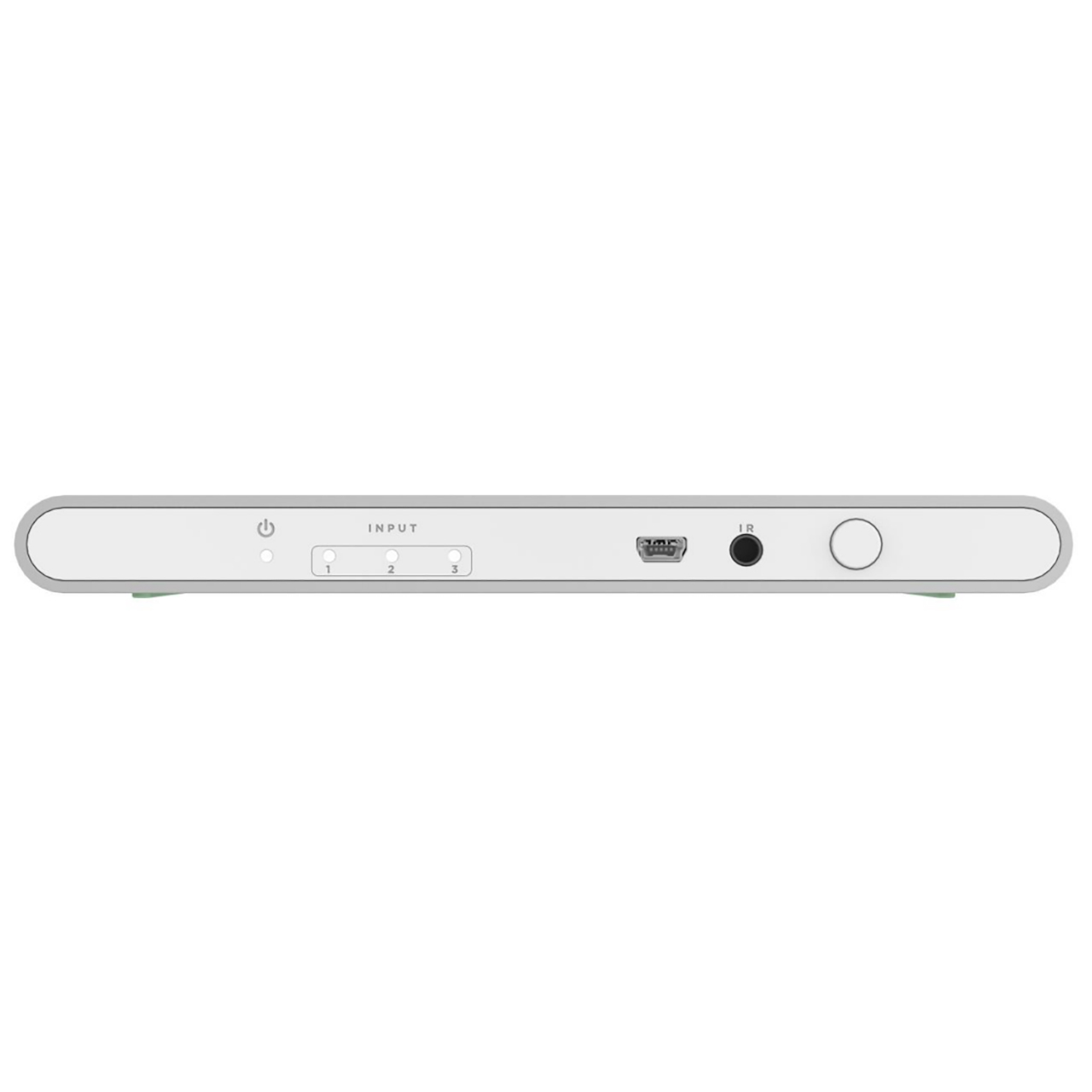

- Front-panel LED's for input/output signal presence
- Ultra compact design
- 5V DC external power supply included
- Includes IR remote
-
- Signal Input/Outputs:
- Input DDC Signal: 5 Volts p-p (TTL)

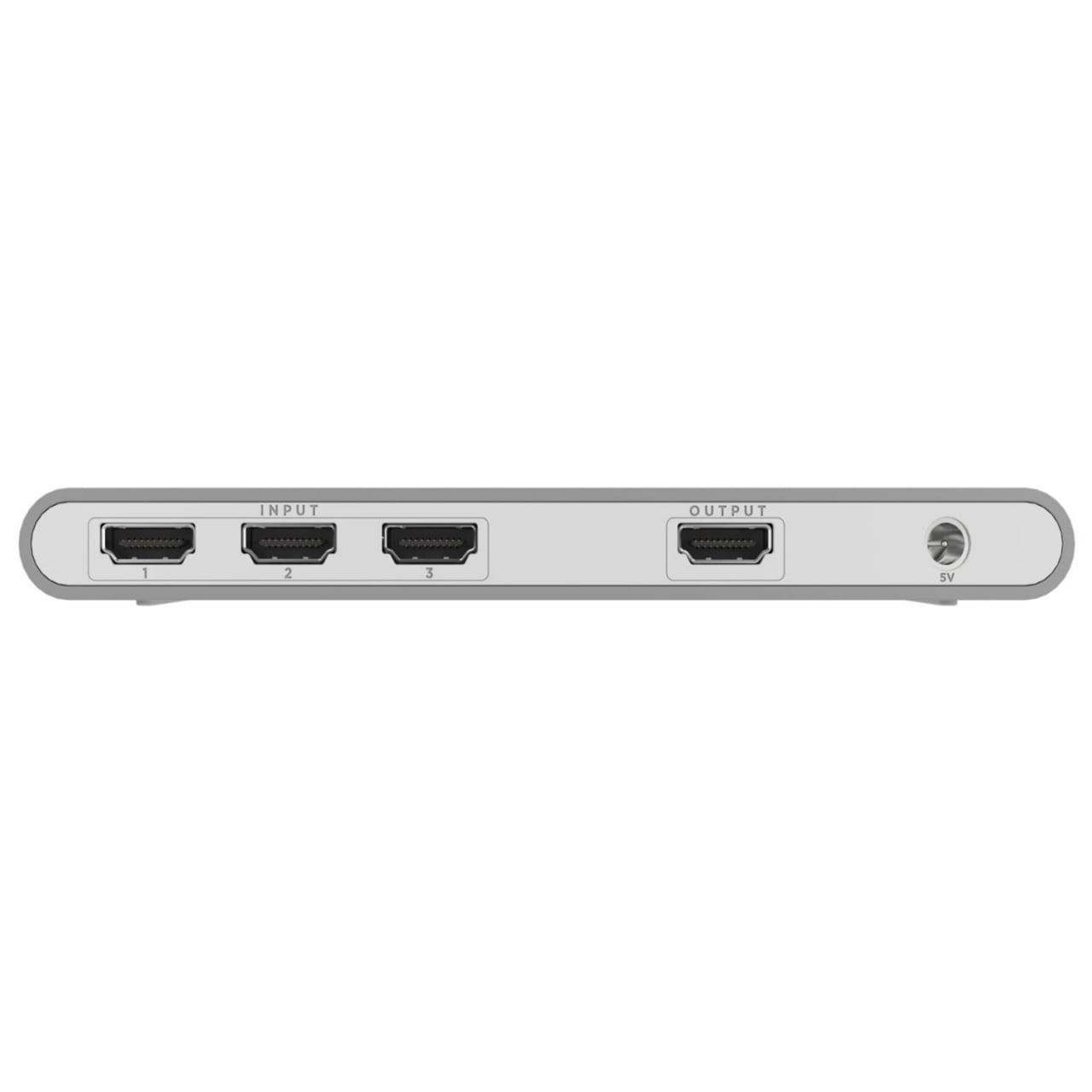

- Input & Output Signal: High Speed HDMI Spec 2.0a - Input Ports: 3x HDMI (Female)
- Output Port: 1x HDMI (Female)
- Operating Frequency: Vertical Frequency Range: 50/60Hz
- Supported Resolutions:
- (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
- Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@60Hz
- 480i -1080p50/60, 4Kx2K@24/30
- 4K2K@30Hz with 12bit YCBCR 4:2:0, VGA~UXGA - IR Specs: Input Port 1x IR Receive port
- Power Requirements:
- Power Consumption: 2W
- External Power Supply: 5V DC @ 1A - Regulatory Approvals:
- Converter Unit: FCC, Ce, UL
- Power Supply: UL, Ce, FCC
Other - Operating Temperature: 32°F - 104°F
- Storage Temperature: -4°F - 140°F
- Dimensions (HxWxD): 0.67" x 2.51" x 6.10"
- Weight: 0.396lbs
-
- 1x HDMI 3x1 Switcher
- 1x 5V, 1A Power Supply
- 1x Remote control IR Receiver Extend cable
- 1x Operation Manual
-
