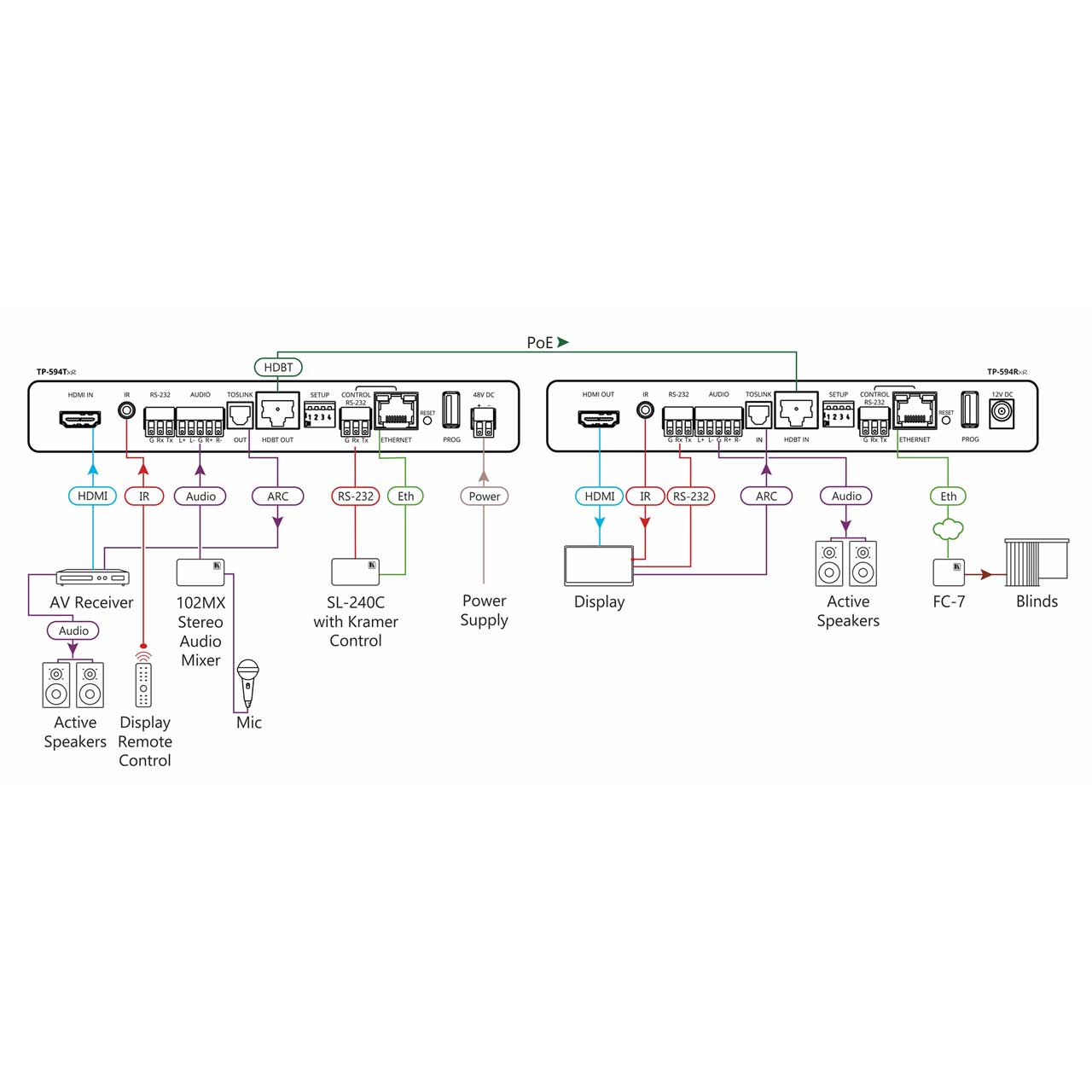

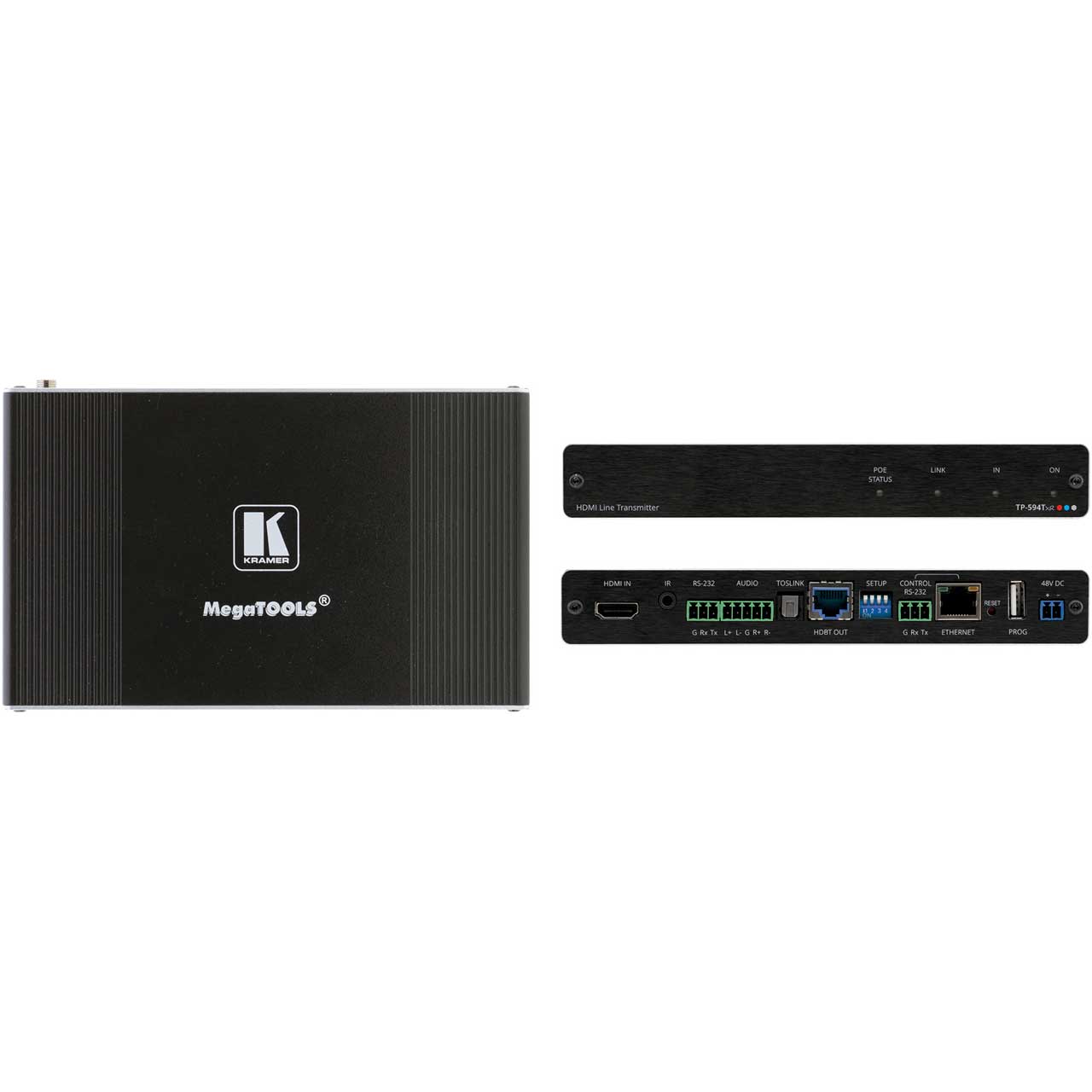

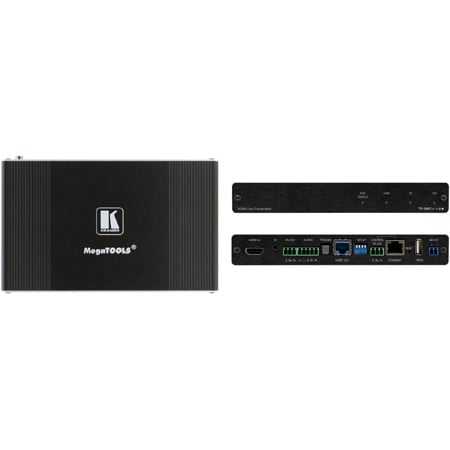

The Kramer TP-594Txr is a high-performance, extended-reach HDBaseT 2.0 transmitter for 4K60Hz (4:4:4) HDR, HDMI™, Ethernet, RS-232, IR, ARC(Audio Return Channel) and stereo audio signals over twisted pair. TP-594Txr converts all input signals into the transmitted HDBaseT 2.0 signal and enables routing of the received ARC signal to the HDMI input and to the digital/analog audio ports in a compatable receiver like the KR-TP-594RXR (sold separately). It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution and provides even further reach for lower HD video resolutions. The analog port also enables embedding audio into the HDBaseT signal.
Perfect for:
Single-cable 4K HDR AV and ARC extension for AV receiver connectivity in large residential rooms.
Smooth integration with standard 4K AV and control systems, providing intelligent ARC and audio routing.
Long-distance 4K HDR AV, ARC and LAN signal extension for multi-room, large dividable auditoriums and lecture hall connectivity.
4K HDR AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities.
