Lilliput BM280-12G-VBP 28-Inch 12G-SDI 4K Broadcast Director Monitor with 12G-SDI 4K HDMI Inputs - V Mount

ITEM #: LIL-BM280-12GVBP MFG #: BM280-12G-VBP

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,999.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    BM280-12G-VBP - Overview

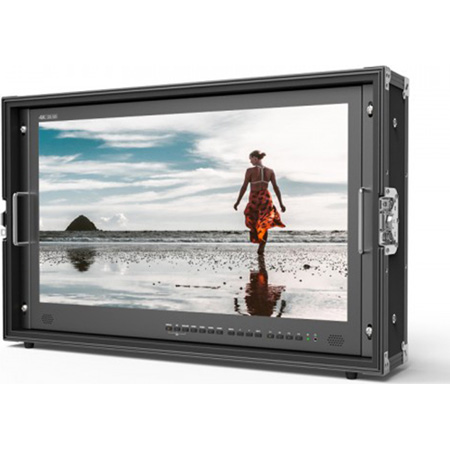

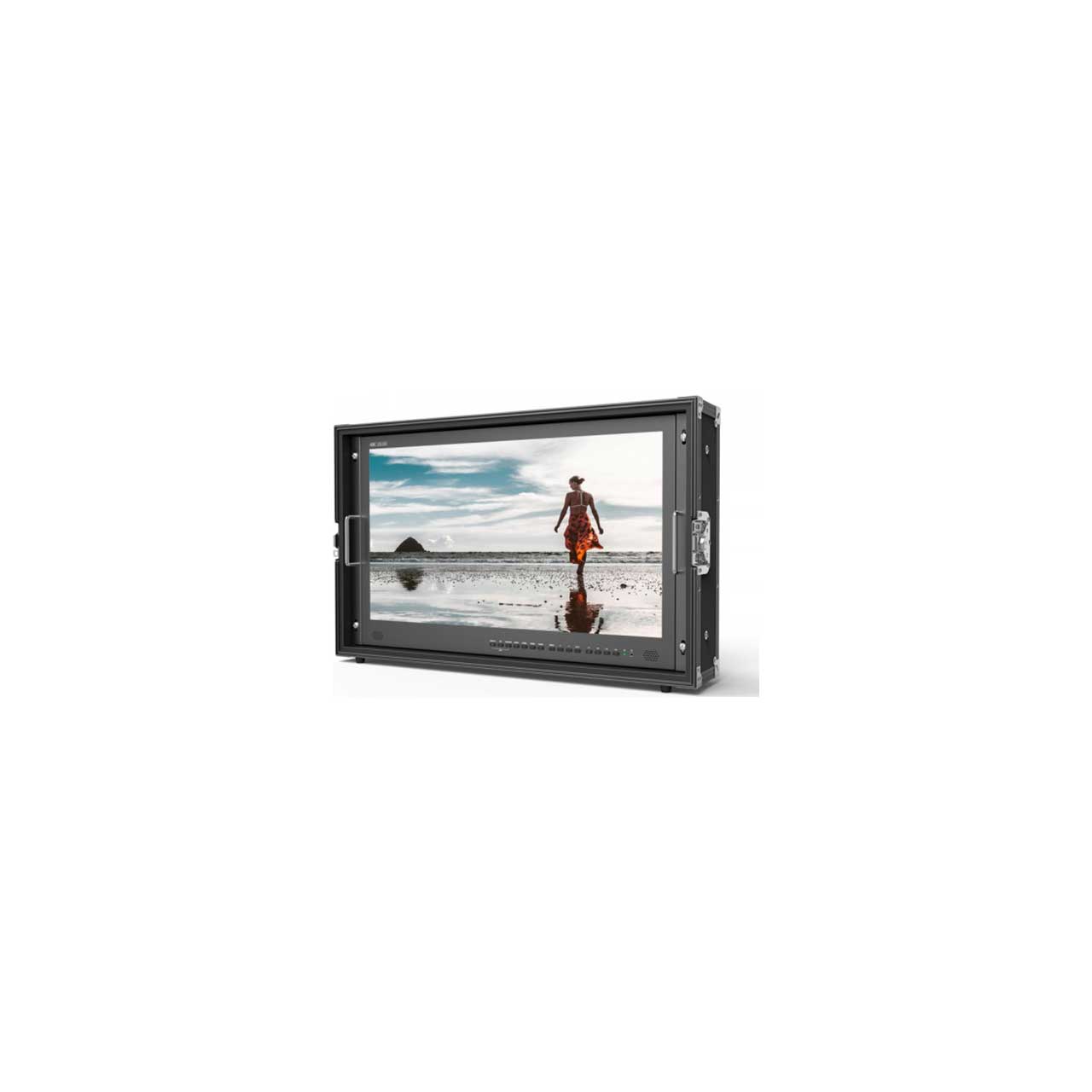

    The Lilliput BM280-12G is a 28" 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

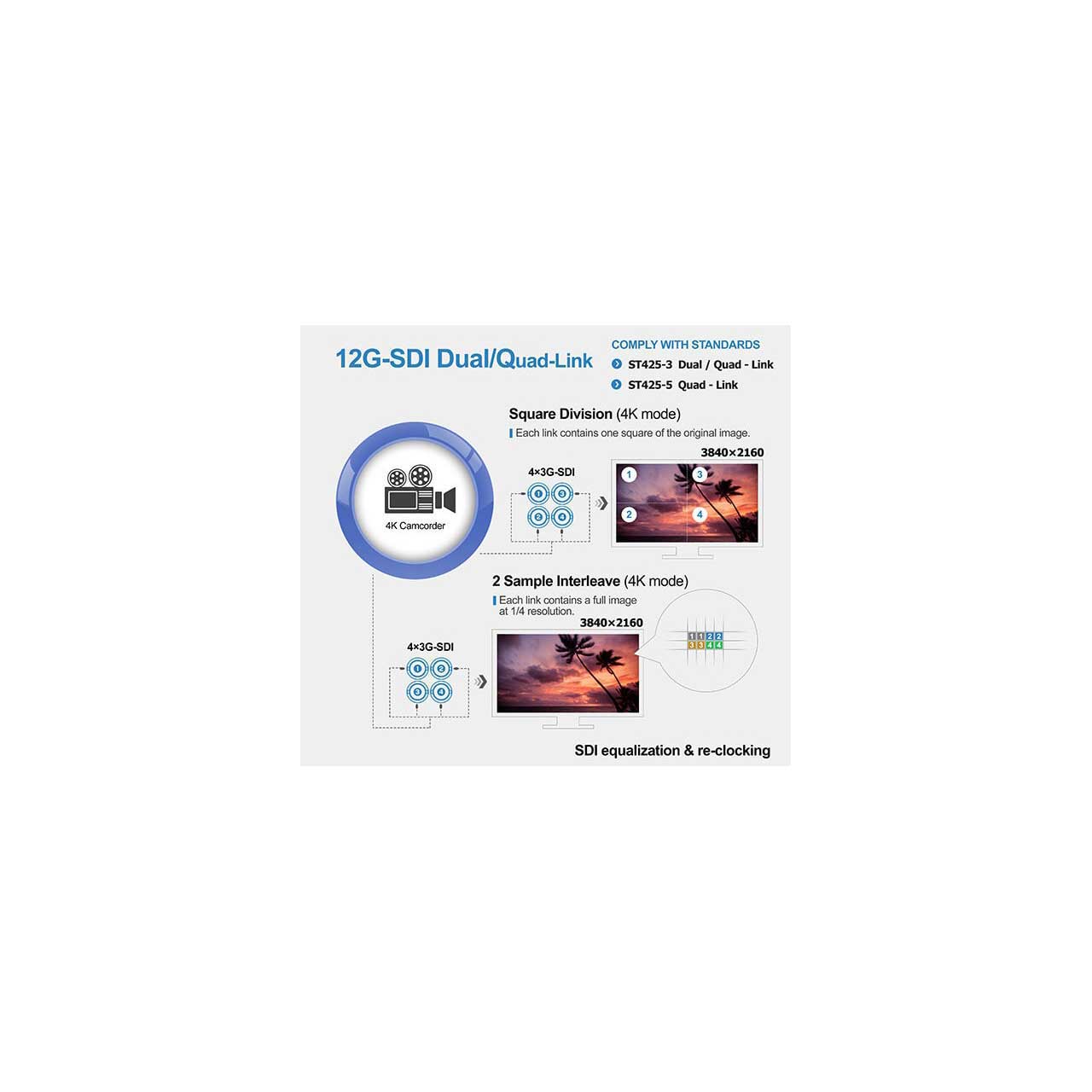

    The BM280-12G has two SDI input standards - ST425-3, which uses the 4x SDI inputs to carry 1/4 of the overall screen image, and ST425-5 which allows you to knit together the 4 SDI inputs and interleave them over each other. Both of these allow for a full 4K image over the 4x 3G SDI connections.

    4K Ultra-HD resolution
    The BM280-12G monitor features the latest 4K imaging technology. Connected through by HDMI 2.0, 4K screens are Ultra HD - containing 8.3 million pixels making the resolution four times more powerful than full HD making them the ultimate in cinematic displays.

    12G SDI Input
    The BM280-12G monitor has a 12G-SDI Single link input and output loop onboard. It can support 12G bandwidth inputs, as well as being backward compatible with 3G bandwidth inputs.

    Solid Transmission Distances
    The BM230-12G has a robust signal transmission range, meaning that you can use up to a 70 meter 12G-SDI input cable, and an output cable at up to 50 meters length, offering a flexible path to SDI connectivity. We measure this by looking at the height of the "eye" in the signal wave as shown on an oscilloscope. The BM280-12G has a "tall" eye when analysed, which highlights the strength and jitter-free quality of the signal.

    Image flip mode - View it your way
    Integrate the monitor into your current workflow at whatever angle you choose. X flip - Y flip functionality gives you that flexibilty

    Please Note! Please check that your camera's output feed frequency is compatible with the input frequencies of this monitor by clicking here for Lilliput's list of monitors and supported frequency types (for blackmagic camera owners and other 25fps camera types)

    • Features:

      • Versatile 4K/QFHD Input Capability.
      • This monitor is equipped with standard 12G-SDI input interface(x2), 3G/HD-SDI input interface(x2)and support 4K 2-sample interleave signals and 4K square division signals.
      • Supporting 12G/6G-SDI(4K) 2 Channel, 3G/HD-SDI (Level A/B) 2 Channel.
      • Quad Link Square Division.
      • Quad Link 2 Sample Interleave (2SI).
      • Ultra HD 4K screens containing 8.3 million pixel(3840x2160), so the resolution is four times that of Full HD.
      • Image flip offers great convenience for user's to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles.

    • Specifications:

      • Display
      • Size: 28"
      • Resolution: 3840x2160
      • Brightness: 300cd/m²
      • Aspect ratio: 16:9
      • Contrast: 1000:1
      • Viewing Angle: 170°/160°(H/V)

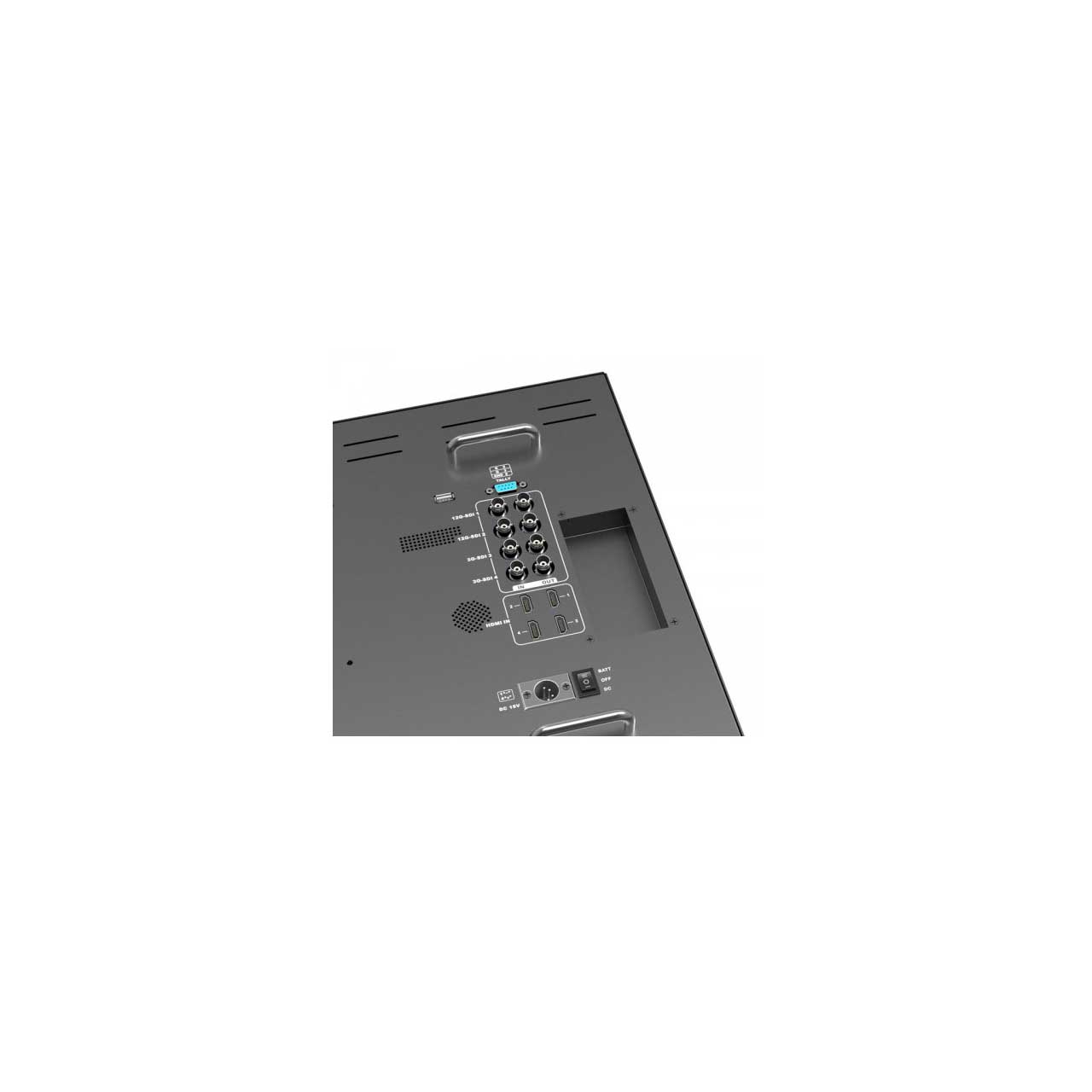

        Video Input
      • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
      • HDMI: 1xHDMI 2.0, 3xHDMI 1.4
      • Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
      • SDI: 2x12G, 2x3G (Supported 4K-SDI Formats Single/Dual/Quad Link)

        Supported In / Out Formats
      • SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
      • HDMI: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60

        Audio In/Out (48kHz PCM Audio)
      • SDI: 12ch 48kHz 24-bit
      • HDMI: 2ch 24-bit
      • Ear Jack: 3.5mm
      • Built-in Speakers: 2

        Power
      • Operating power: =61.5W
      • DC In: DC 12-24V
      • Compatible batteries: V-Lock or Anton Bauer Mount
      • Input voltage (battery): 14.4V nominal

        Environment
      • Operating Temperature: 0°C~50°C
      • Storage Temperature: -20°C~60°C

        Other

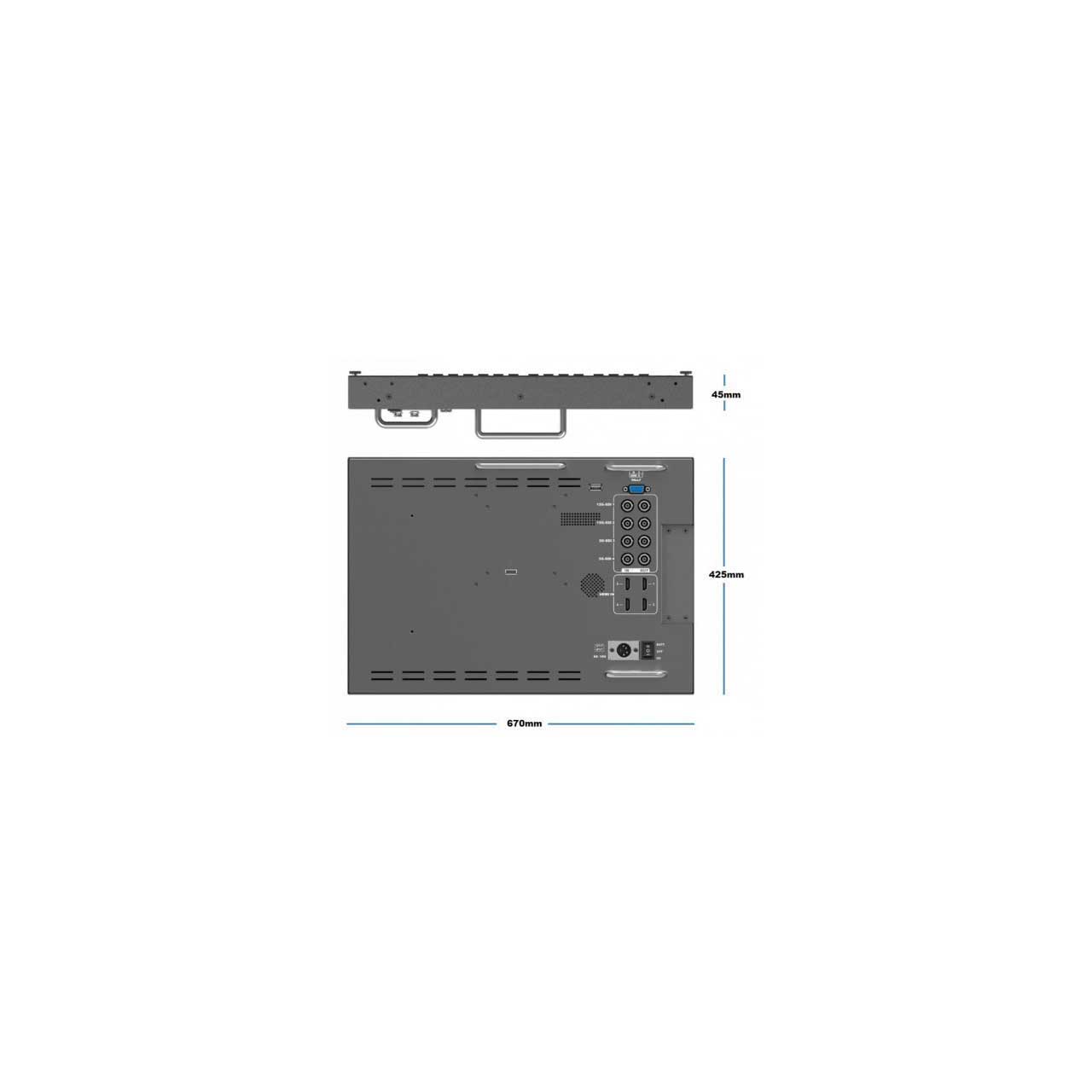

      • Dimension(LWD): 670x425x45mm / 761x474x173mm (with case)
      • Weight: 9.4kg / 21kg (with case)

    • Item Includes:

      • 1x Lilliput BM280-12G-VBP 28-Inch 12G-SDI 4K Broadcast Director Monitor with 12G-SDI 4K HDMI Inputs - V Mount

    • GTIN:

      6950821601495
