OCM-1842 - Overview

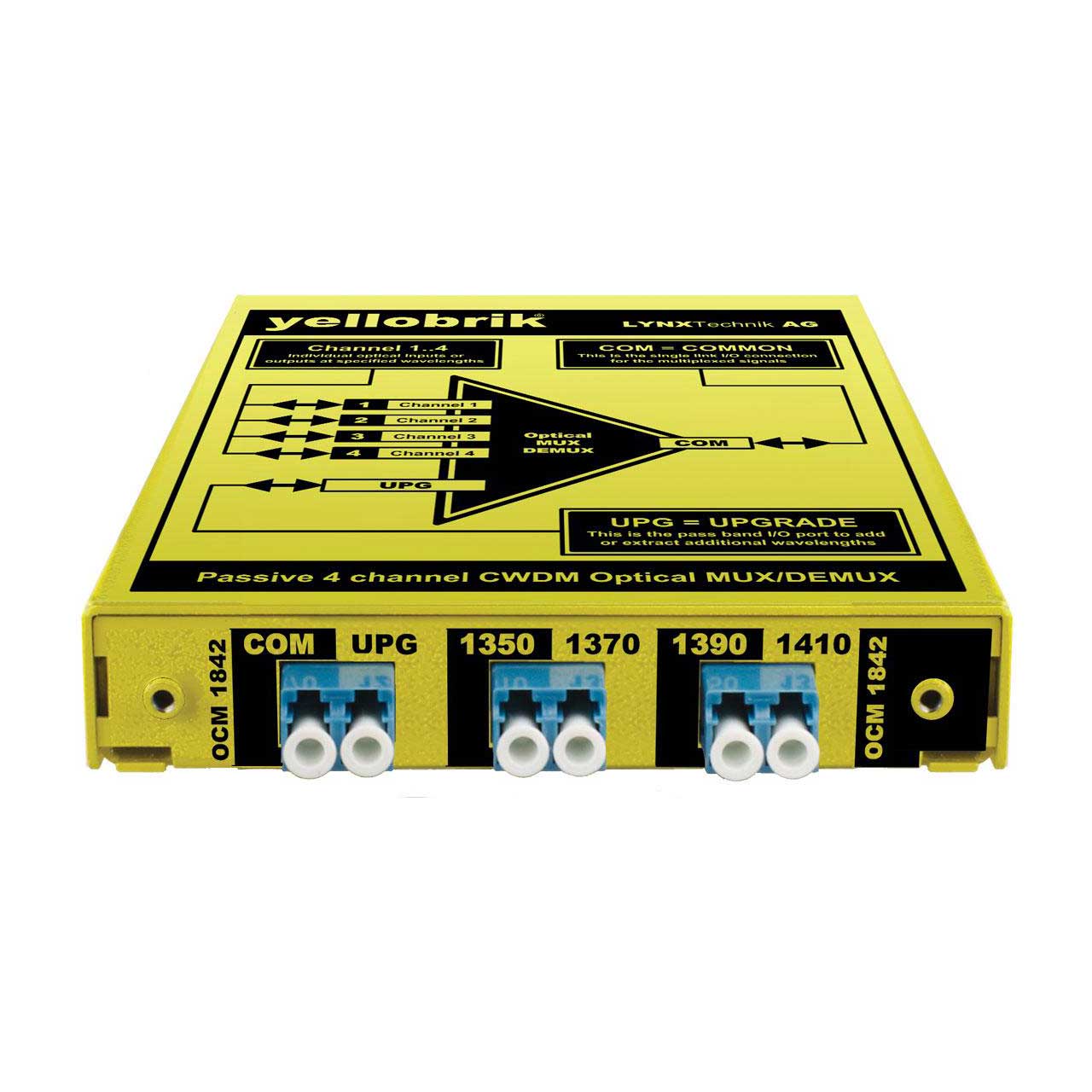

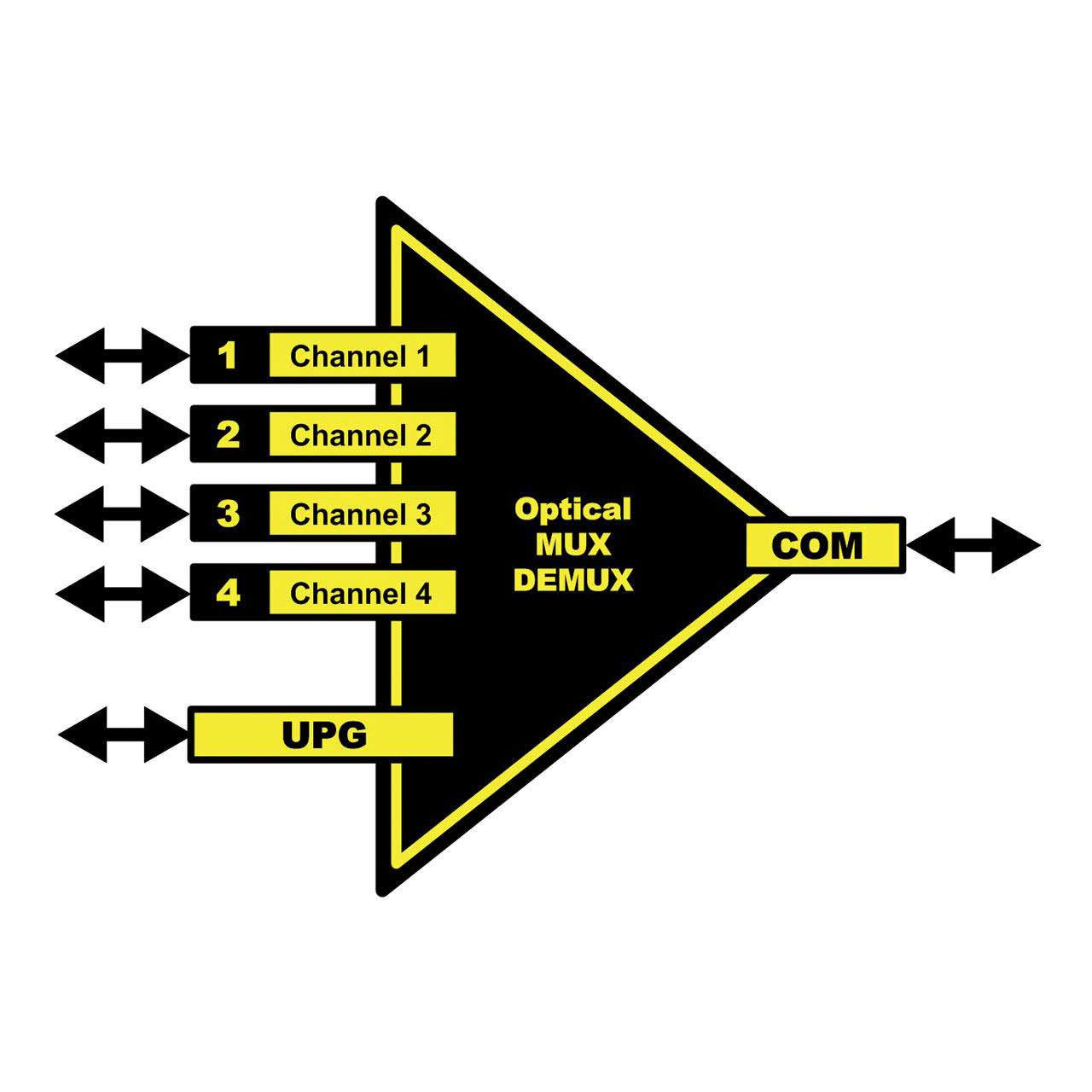

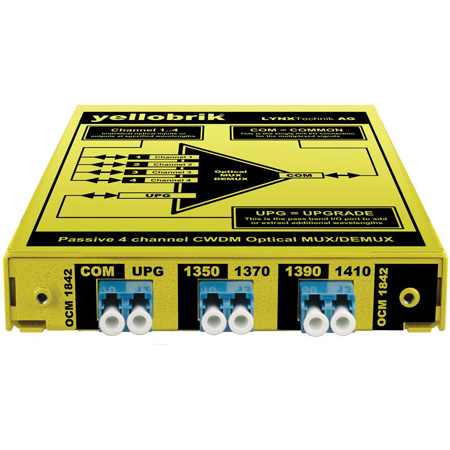

The LYNX Technik O CM 1842 is a compact CWDM passive 4 channel optical multiplexer/demultiplexer designed to send and receive up to 4 individual signals over a single fiber link. This module accommodates 1350nm, 1370nm, 1390nm, 1410nm. The module has an UPG (Upgrade) port to cascade additional 4 channel modules expanding the system to a maximum of 16 channels.

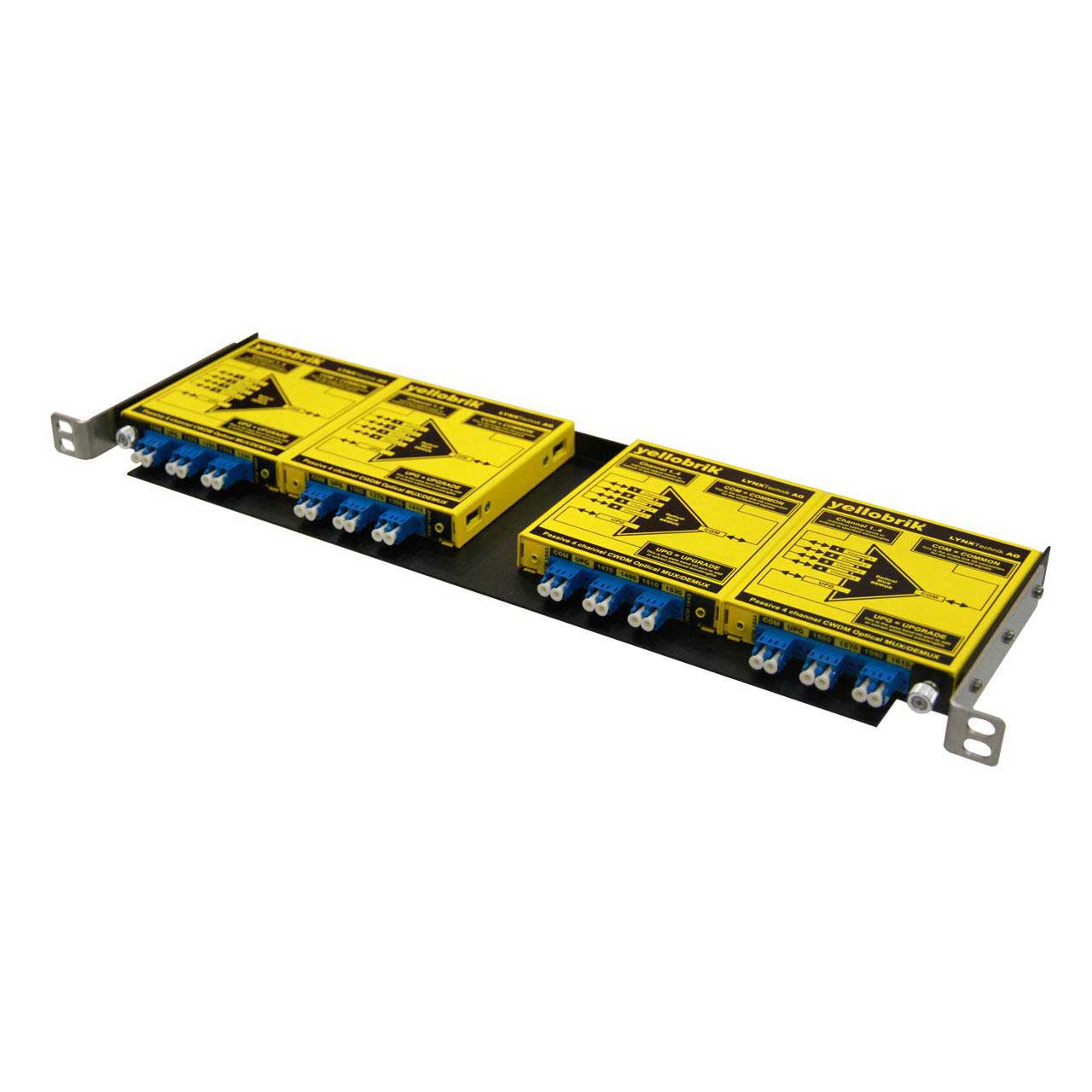

The modules can be used standalone or integrated into the optional RFR 1018 1/2 RU 19" rack frame, which can accommodate all four modules. Ideal for system installations.

Ideally suited for use with the CWDM yellobrik fiber modules (all 16 wavelengths are available).

Please Note: SFP Modules Required, Sold Separately. Images for reference only.

  • Features:

    • Send/Receive up to 4 channels over a single fiber link
    • Wavelengths 1350nm, 1370nm, 1390nm, 1410nm
    • Passive operation (no power required)
    • Combine all four modules for up to 16 channels
    • LC/PC single mode optical connections
    • Optional ½ RU 19" rack frame (RFR 1018)


  • Specifications:

    • Optical I/O
    • 4x Fiber Optic I/O channels
    • Center frequencies taken from ITU-T G.694.2
    • OCM 1842 = 1350,1370,1390,1410nm
    • 1x COM (common) connection = multiplexed I/O
    • 1x UPG (Upgrade) I/O connection (pass band connection to other OCM 189x modules)
    • LC/PC Connectors SMF (single mode)
    • Channel Insertion Loss: 2.7dB , UPG Insertion loss: 1dB
    • Polarization Dependant Loss: max 0.2dB
    • Return Loss: > 45dB
    • Isolation (to adjacent channel): > 30dB
    • Directivity > 55dB
    • Temp. Dependant Loss: < 0.005dB/°C
    • Temp. Dependant Change of Wavelength: < 0.003nm/°C
    • Max. Input Power: 500mw
    • Single or full duplex operation

    • Power: None required (passive operation)
    • Dimensions without Connectors (LxWxH): 3.93" x 4.33" x 0.75" (100mm x 110mm x 19mm)
    • Dimensions with Connectors (LxWxH): 3.93" x 5.12" x 0.75" (100mm x 130mm x 19mm)
    • Weight: 0.31lbs (140g)


  • Item Includes:

    • Lynx LNX-O-CM-1842 Module
    • SFP Modules Required, Sold Separately.


  • GTIN:

    4250479319424
