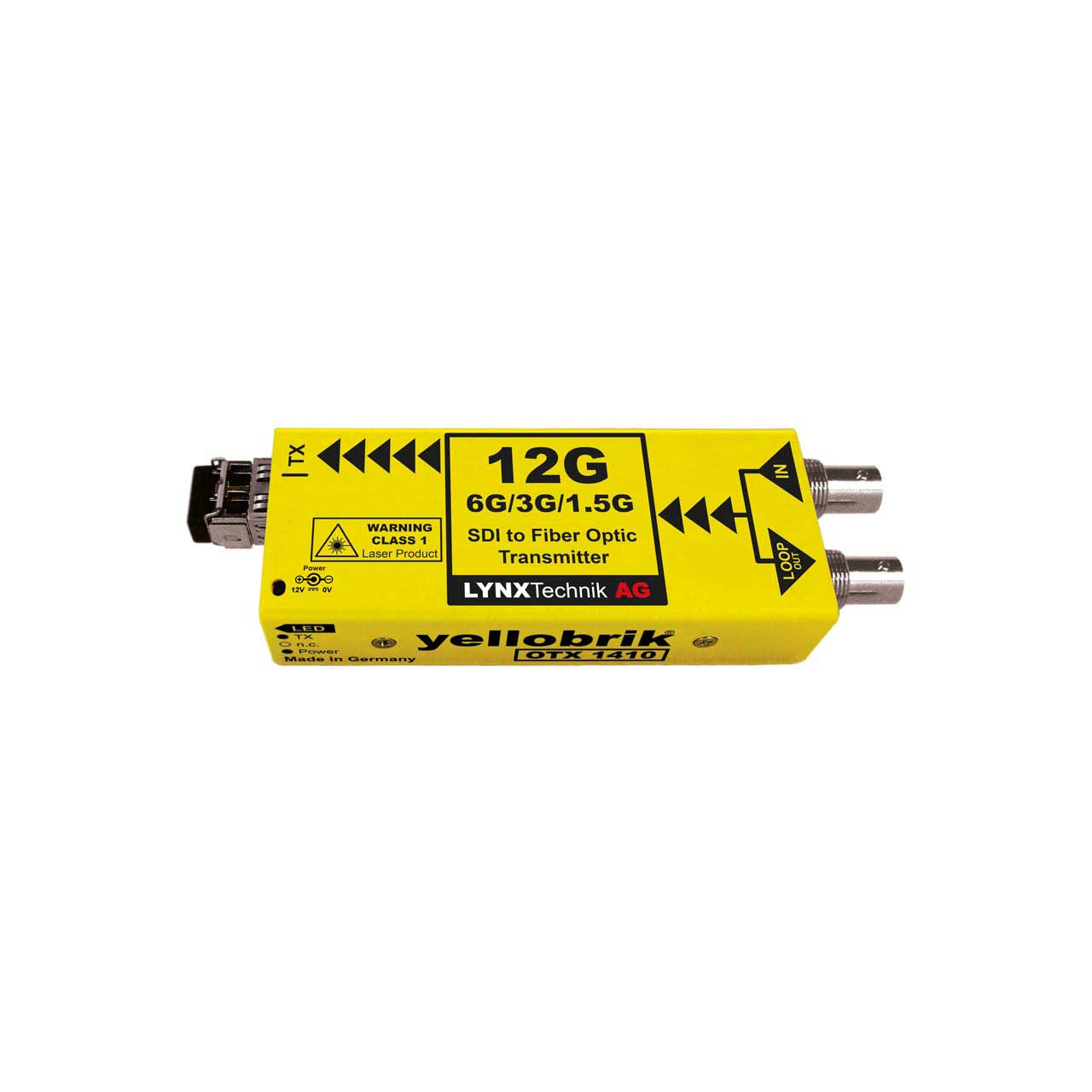

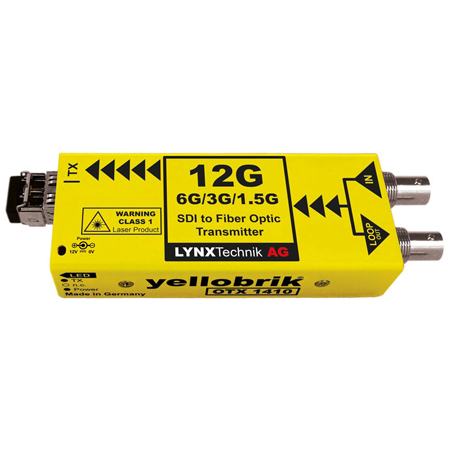

LYNX Technik OTX 1410 LC-40 12G/6G/3G/HD SDI to Fiber Optic Transmitter with SDI Loop Out - 10km - 1310nm - LC Connector

O TX 1410 LC-40 - Overview

• Features:

  • Supports 12G, 6G, 3G, 1.5G and 270M SDI video inputs
  • 3G Level A and Level B (support for all formats)
  • Auto reclocking 270M, 1.5Gbit/s, 3Gbit/s, 6Gbit, and 12Gbit/s
  • Error free optical transmission
  • Reclocked SDI loop out connection
  • LC and ST connection variants
  • Singlemode fiber connection
  • Up to 10km (6.2 miles) @ 12Gbit/s with OTX 1410 LC and ST variant
  • Up to 40km (24.8 miles) @ 12Gbit/s with OTX 1410 LC-40 variant
  • Hot swappable and hot pluggable


• Specifications:

  • SDI Video
  • 1x SDI input on 75 Ohm BNC connector
  • 1x SDI output reclocked loop on 75 Ohm BNC connector
  • SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
  • Multi-standard operation from 270Mbit/s to 12Gbit/s
  • Multi-rate reclocking: 1.5Gbit/s to 12bit/s
  • Electrical Return Loss:
    to 1.5GHz >15dB
    to 3GHz >10dB
    to 6GHz >7dB
    to 12GHz >4dB
  • Automatic cable EQ:
    1.5Gbit/s - 220m - Belden 1694A cable
    3Gbit/s - 150m - Belden 1694A cable
    6Gbit/s - 90m - Belden 4794R cable
    12Gbit/s - 80m - Belden 4794R cable

    Optical Output
  • 1x fiber optic output
  • Simplex (singlemode) using LC/PC Connection
  • SMPTE 297M - 2006
  • Wavelength: 1310nm
  • Optical Power: -3dBm (typ.)
  • TX Active LED on side of module
  • Max. Distance: 40km @ 12Gbit/s

    General
  • Power: +12V DC @ 2.0W nominal - (supports 7 - 24V DC input range)
  • Power LED on side of module
  • Physical Size (incl.connectors): 5.51 x 1.65 x 0.86" (140 x 42 x 22mm)
  • Weight: 125g (4.4oz)
  • Ambient Temperature: 5° to 40°C (41° to 104°F) 90% Humidity (non condensing)


• Item Includes:

  • 1x OTX 1410 LC-40
  • 1x SPF module
  • 1x AC power supply


• Warranty:

  • 3 YEARS


• GTIN:

  4250479328495
