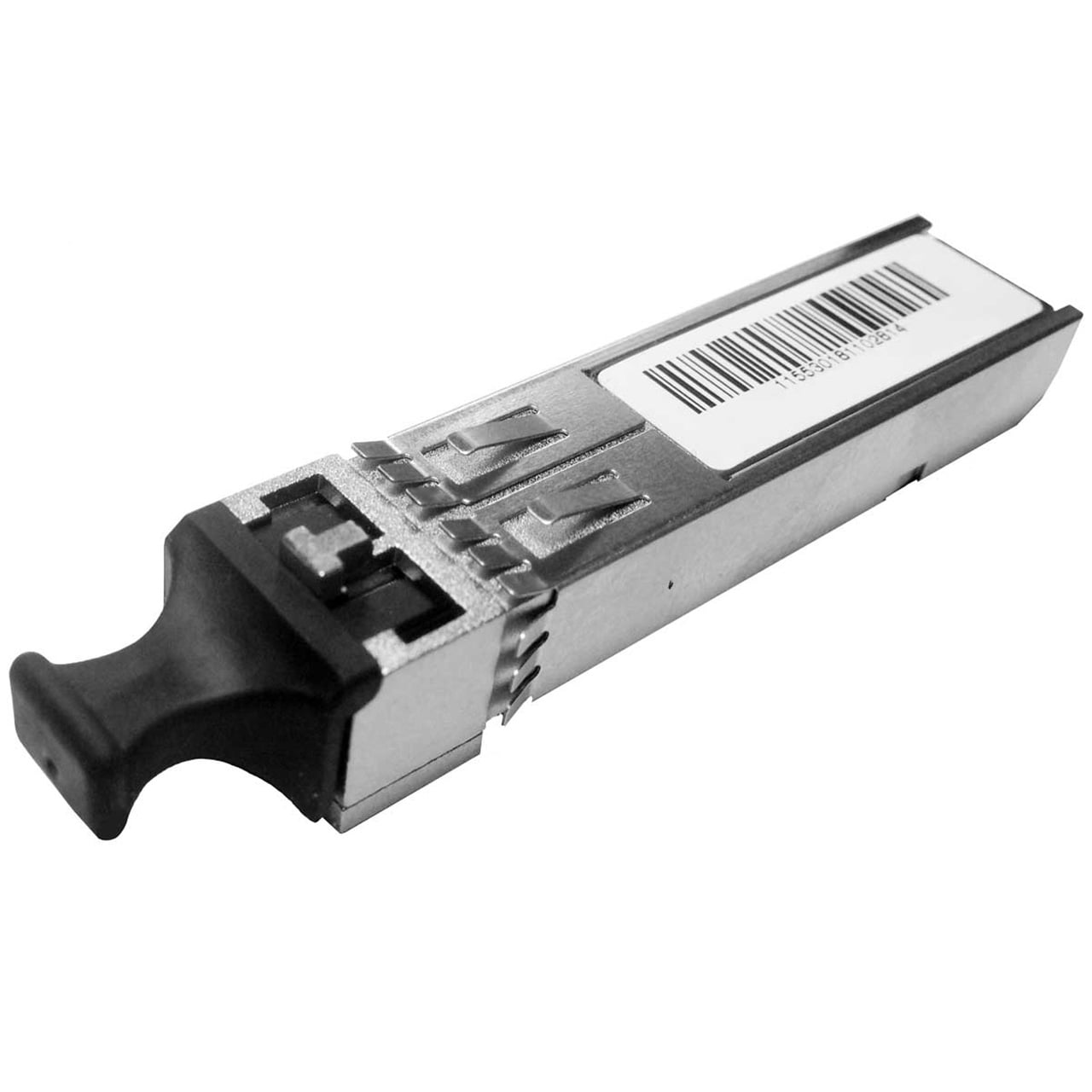

The Lynx Technik OH-TR-1-LC SDI optical transceiver is an integrated part or plug in option for select LYNX Technik products.
This SFP module includes a receiver and a transmitter which facilitates the conversion of an electrical SDI signal into an optical signal for transmission over fiber, and also receives an optical SDI signal and converts to an electrical signal for further processing. Transmission wavelength is a fixed 1310nm and suitable for distances up to 10km using singlemode fiber.
The Receiver is a "catch all" device and supports any wavelength between 1260 and 1620nm. The module accommodates 270Mbit/1.485Gbit and 2.97Gbit SDI signals conforming to SMPTE 424M, 292M, 259M and DVB-ASI and also AES10 (MADI). A socket, or "cage" is provided for the SFP in the supporting LYNX product for easy installation or upgrade. The SFP is hot swappable.
