Marshall VDA-104-3GS-2 1x4 3G-SDI Distribution Amplifier

ITEM #: MAR-VDA-104-3GS2 MFG #: VDA-104-3GS2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Marshall Electronics
Free Shipping with $49 Minimum Order

List Price:

$177.00

Our Price:

$150.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    VDA-104-3GS2 - Overview

    The Marshall Electronics VDA-104-3GS-2 is a re-clocking distribution amplifier. It provides re-clocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI or 3G SDI is auto detected and displayed via LED indicators.

    • Features:

      • Passes all ancillary data
      • Reclocking function reshapes the signal to improve transmission distance

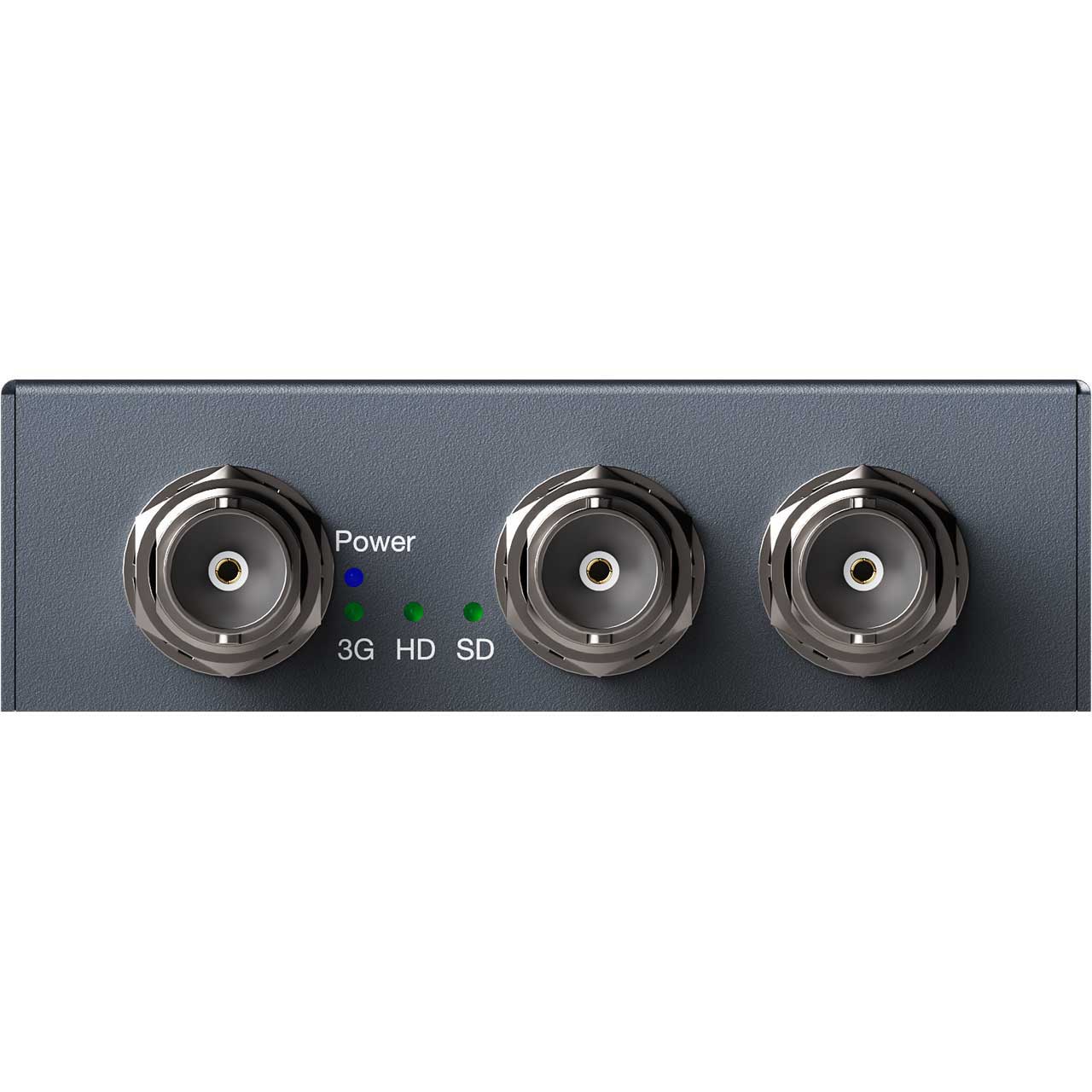

      • Video format LED indication
      • Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD/3G
      • Reclocking function reshapes the signal to improve transmission distance
      • Compact metal housing


    • Specifications:

      • Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
      • Supported video formats:
      • SD: 480i59.94 "NTSC", 576i50 "PAL"
      • HD: 720p24, 25, 30, 50, 59.94, and 60
      • 1080i50, 59.94, and 60
      • 1080p24, 25, and 30
      • 3G: 1080p50, 59.94 and 60. Supports Level A and B
      • 2K: 2048x1080p24 and 30


    • Item Includes:

      • 1x VDA-104-3GS2 3G/HD/SD-SDI Re-Clocking Distribution Amplifier


    • GTIN:

      0801813228755
