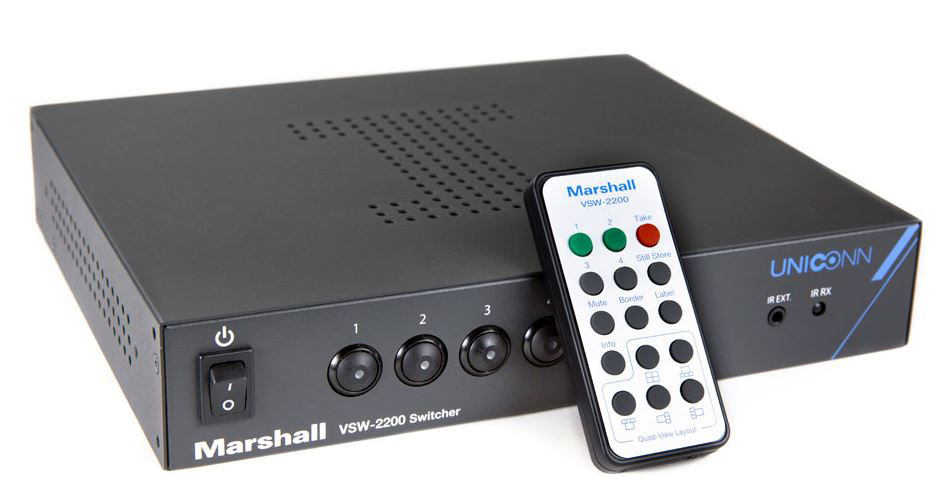

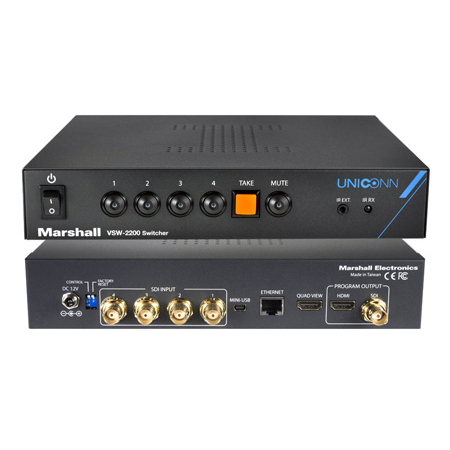

Marshall VSW-2200 Seamless 3GSDI Quad-View Switcher
  • Marshall VSW-2200 Seamless 3GSDI Quad-View Switcher
  • Marshall VSW-2200 Seamless 3GSDI Quad-View Switcher


Marshall VSW-2200 Seamless 3GSDI Quad-View Switcher

Manufacturer: Marshall Electronics

Item #: MAR-VSW-2200   •   MFG #: VSW-2200



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the MAR-VSW-2200

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The VSW-2200 4-Input Seamless A/V Switcher is suitable for use in multimedia presentations,
live streaming, teleconferencing, camera switching and many other A/V applications. All four
inputs may be simultaneously monitored in a single "Quad-View" display. In addition to the four
live inputs, the VSW-2200 can store up to four still images for use as full-screen graphics pages.
Switching is seamless between video sources whether interlace or progressive, varying resolutions
and differing frame rates. The embedded processor converts signals from various input source
formats to match the native resolution of monitors, flat panel displays, projectors, encoders, etc.
Program and Quad-view outputs are separately selectable up to 1920x1080 @ 50/60 fps. Program
Output is provided in both SDI and HDMI formats while the Quad-view is output only via HDMI.

Flexible control is provided using the front panel buttons, hand-held remote, or connected to USB
and Ethernet computer interfaces. The included software control application provides adjustment
of Brightness, Contrast, Saturation, Horizontal and Vertical Positioning, Quad-View Layout, Labels
and Borders.


  • Features

    • 4 Inputs, supports clean switching between 3G/HD/HD-SDI formats
    • SDI & HDMI Switched Output, HDMI Preview Output
    • Controllable via Ethernet, USB or IR remote allowing flexible system design
    • Inputs provide re-clocking, equalization, scaling and up/down conversion Ideal for small to medium-sized conferences or productions Desktop or rack-mountable (1 RU)
    • Supports video formats from PAL & NTSC up to 1080p50/59.94/60

  • GTIN:

    0801813177114
