Matrix Switch MSC-HDDA4 3G/HD/SD-SDI 4 Output  Distribution Amplifier
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

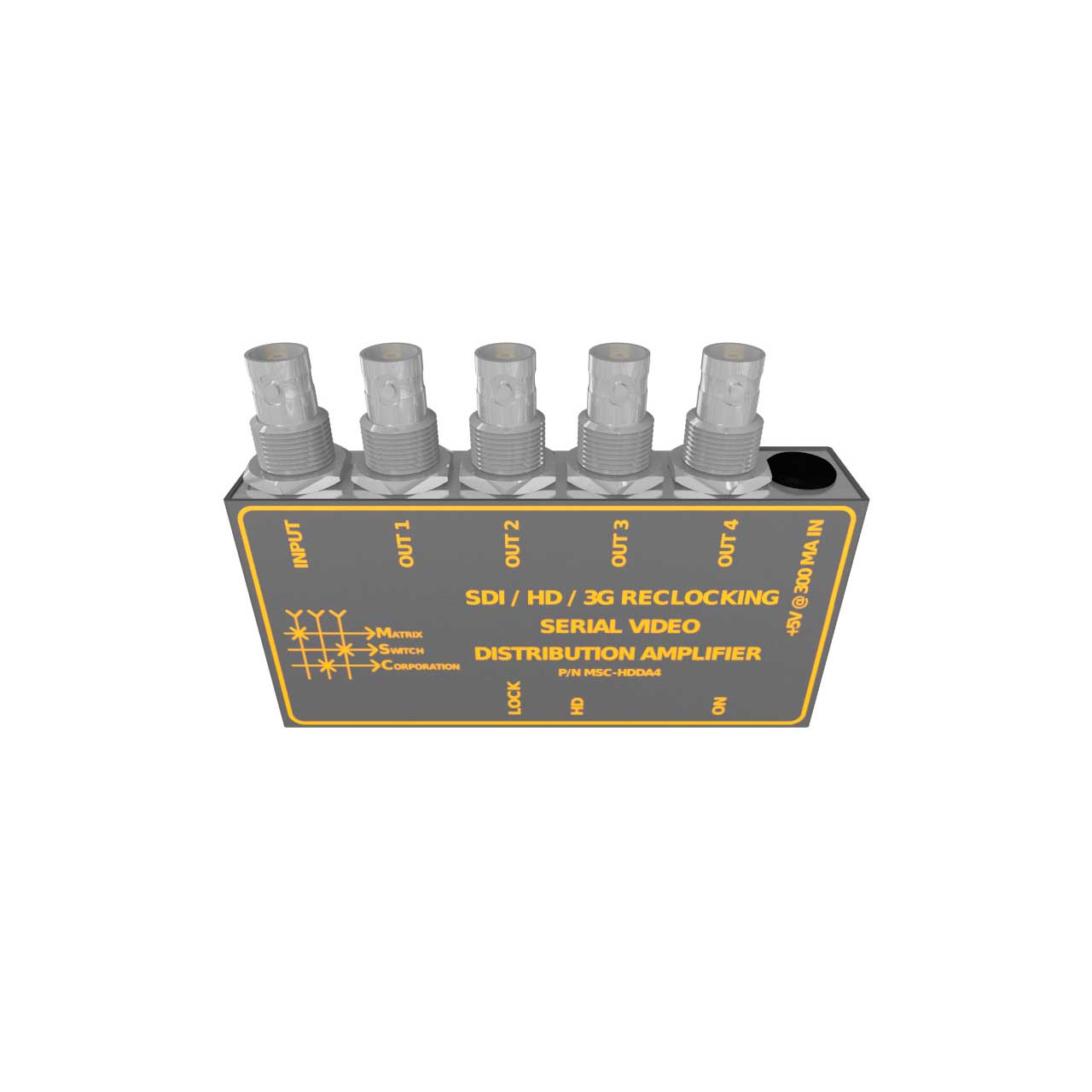

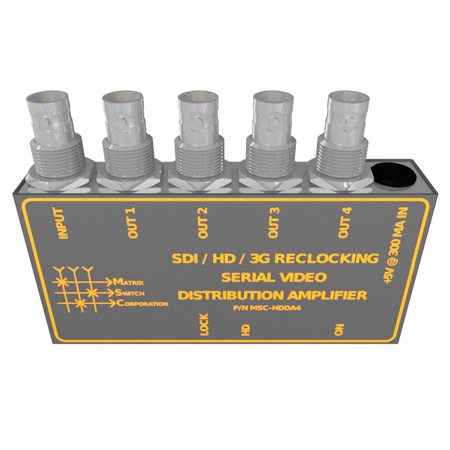

    Matrix Switch MSC-HDDA4 3G/HD/SD-SDI 4 Output Distribution Amplifier

    Item #: MSC-HDDA4   •   MFG #: MSC-HDDA4


    List Price:$250.00
    Our Price:$219.00

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      Matrix Switch Corporation distribution amplifiers combine exceptional performance with value. Their compact size allows for them to be utilized in space constrained situations and all external connections are on the same side making for a clean installation.

      Our 4 output models are offered in three different data rates, including: 3G-SDI, ASI/SDI and AES/SPDIF. We also offer a 16 output 3G-SDI distribution amplifier for larger signal distribution applications.

      The MSC-HDDA4 and MSC-HDDA16 include 143MBPS, 270MBPS, 1.484GBPS and 2.97GBPS Auto Rate Detection with "Power OK", "Lock" and "HD" indicators. Two MSC-HDDA16 SDI Distribution Amplifiers can be mounted in a 1RU space using the MSC-DA16RA rack adapter, providing wide distribution of one or two SDI signals to 31 or 32 destinations.

      • Features

        • Compact size. Less than 7 cubic inches for 4 output models.
        • Choice of models supporting three different data rates.
        • Low power consumption of less than 2W.
        • Automatic cable equalization.
        • Auto re-clock / bypass any rate from 10KBPS through 2.97GBPS (3G-SDI models).
        • Power, Lock and HD indicator lights.
        • All connectors on one edge for easy installation.
      • Specifications

        • Specifications
        • Size: 4.25"W x 1"H x 3"D
        • Weight: 0.5 lbs
        • Power: 5 VDC
        • Power Consumption: 1.5W
        • Storage Temp: -10 Through +50 Deg C
        • Operating Temp: 0 Through +40 Deg C
        • Humidity: 0 Through 90% Non-Condensing
        • Warranty: 2 Years Parts & Labor
        • SDI Video
        • Connector type: BNC
        • Data Types: SMPTE 259/292/424
        • Data Rates: 19 Mbit/s through 3.0 Gbit/s
        • Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
        • Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
        • Input Level: 800 mV P-P +/- 20%
        • Input Impedance: 75 Ohms +/- 1%
        • Cable equalization (1694A coax): 350m @ SD, 175m @ HD, 100m @ 3G
        • Output Level: 800 mV P-P +/- 5%
        • Output Impedance: 75 Ohms +/- 1%
        • Output Jitter: < 0.2 UI
