Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel
  • Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel
  • Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel
  • Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel
  • Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel

Questions? Ask a Markertek Expert:
800-522-2025 Email

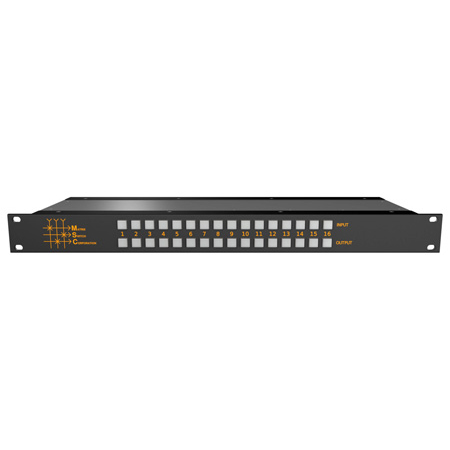

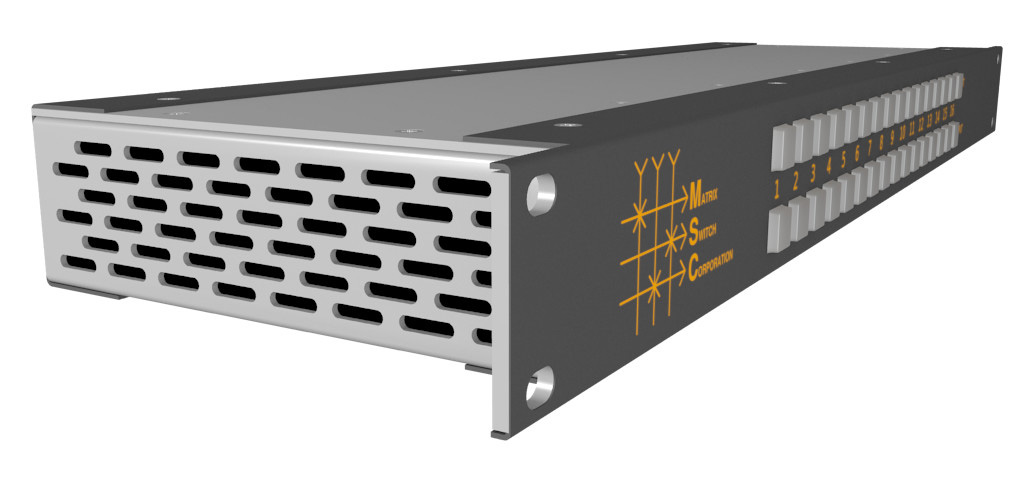

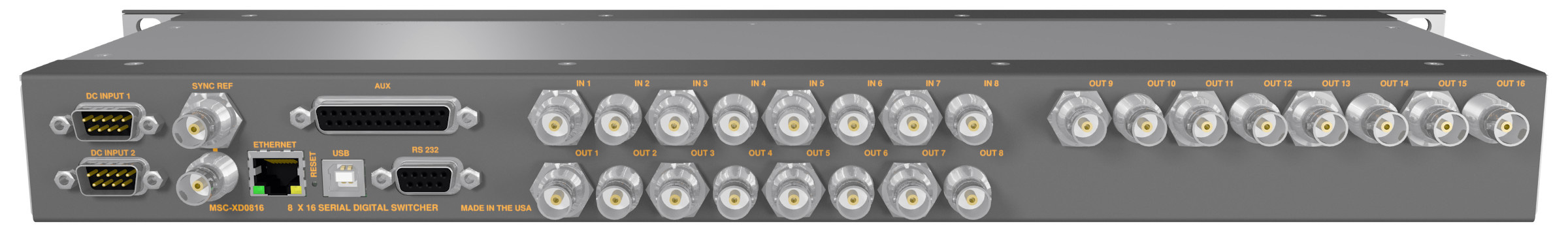

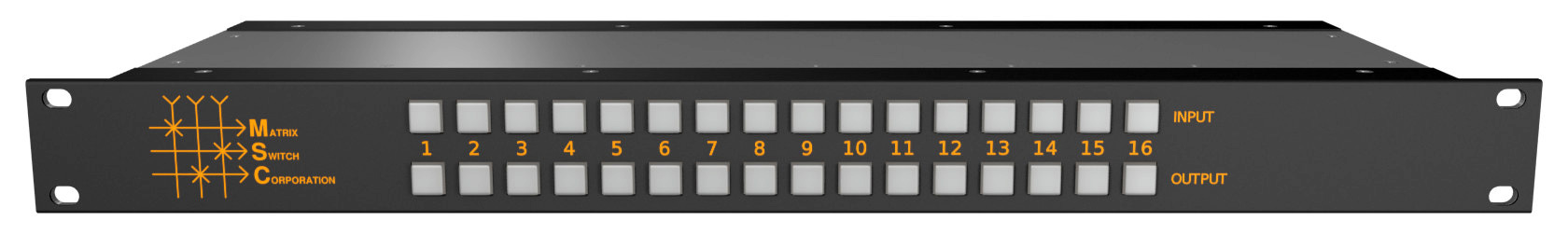

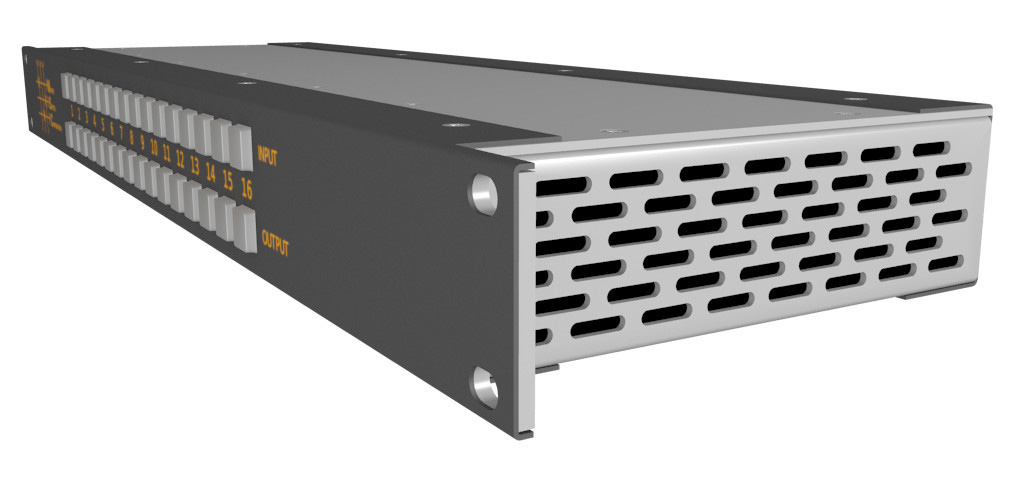

Matrix Switch MSC-XD0816L 8 Input 16 Output 3G-SDI Video Router With Button Panel

Item #: MSC-XD0816L   •   MFG #: MSC-XD0816L



List Price:$2,395.00
Our Price:$2,107.60

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The MSC-XD0816L SDI routing switcher has 8 inputs and 16 outputs, supports reclocking of standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

    Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, AUX GPIO, and TCP/IP over the Ethernet interface.

    Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.


    • Features

      • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.484 Gbit/s), and SD (270 Mbit/s)
      • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
      • Passes SDI embedded audio and ancillary data
      • Additional audio level can be connected to D25 connector (see Related Products), with break away from video support
      • Inputs can be switched to multiple outputs without restriction
      • Outputs can be individually muted
      • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
      • Store and recall up to 10 preset salvos
      • Includes button control panel interface
      • Supports Matrix Switch Corporation Remote Panels
      • Ethernet port for control via built in web page interface or TCP/IP ports
      • Interactive web page interface (Interactive Demo)
      • Serial control via RS-232 port
      • RS-485 port for an additional high speed long distance capable control interface
      • Support for some common 3rd party protocols for added integration flexibility
      • Auxiliary port for external status and control signaling
      • System software updates from webpage interface
      • External DC power supply
      • Redundant power supply included
      • Low noise forced air cooled
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements

    • Specifications

      • General
      • Inputs 8
      • Outputs 16
      • Enclosure Type 1RU
      • Size 19" x 1.75" x 6"
      • Weight 5.0 lbs
      • Power 12 VDC 5A Adapters
      • Power Connector D9 Male
      • Panel Type Buttons
      • Ethernet 10/100 Base-T Auto MDIX
      • Made in USA

      • SDI Inputs
      • Connector Type BNC
      • Data Rates 19 Mbit/s through 3.0 Gbit/s
      • Input Return Loss > 15dB @ HD, > 12dB @ 3G
      • Input Impedance 75 Ohms +/- 1%
      • Input Level 800 mV P-P +/- 20%
      • Cable Equalization 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

      • SDI Outputs
      • Connector Type BNC
      • Data Rates 19 Mbit/s through 3.0 Gbit/s
      • Re-clocking Data Rates 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
      • Output Return Loss > 15dB @ HD, > 12dB @ 3G
      • Output Impedance 75 Ohms +/- 1%
      • Output Level 800 mV P-P +/- 5%
      • Output Jitter < 0.2 UI

      • SDI Standards
      • SD Formats 625i25 PAL and 525i29.97 NTSC
      • HD Formats 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 3G Formats 1080p50, 1080p59.94, 1080p60
      • 2K Formats 2048 x 1556p23.98/24/25
      • Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
      • Video Sampling 4:2:2 and 4:4:4
      • Audio Sampling 24 bit @ 48 KHz
      • Color Precision 4:2:2 and 4:4:4 10 bit
      • Color Space YUV or RGB
      • Metadata Support Ancillary data as defined by SMPTE 352M

      • Reference Sync
      • Connector Type Analog BNC with pass-through
      • Format Tri-Level Sync and NTSC/PAL Black Burst
