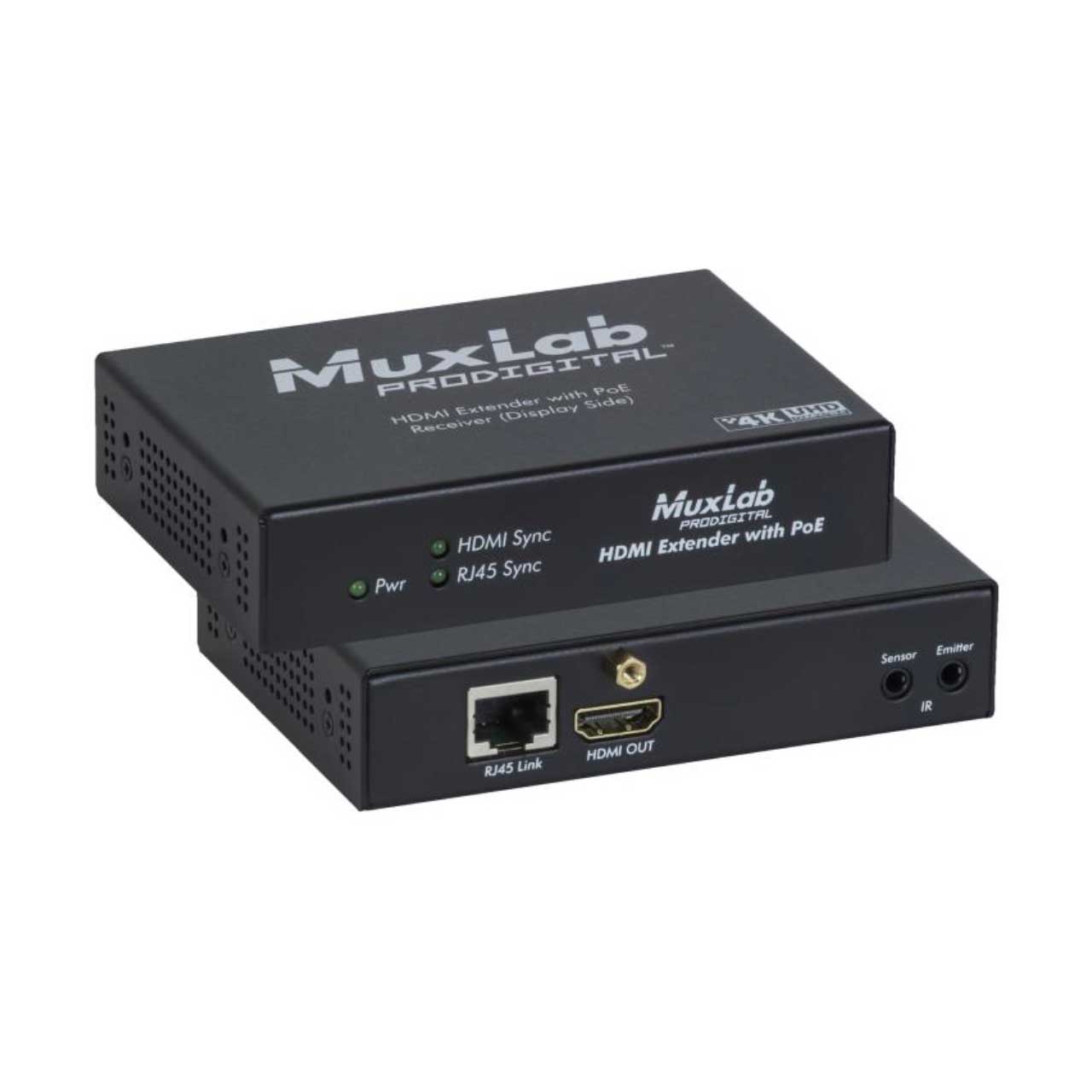

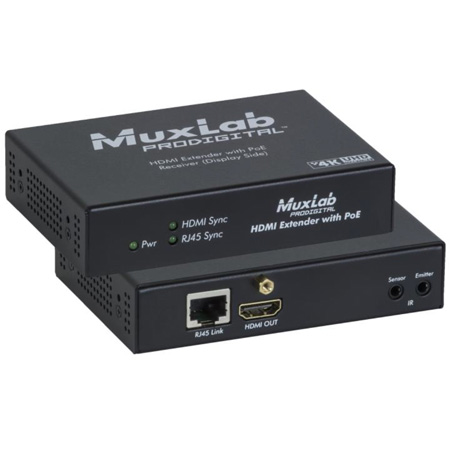

MuxLab 500451-PoE-RX HDMI Extender - Reciever Only

ITEM #: MUX-500451-POERX MFG #: 500451-POE-RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
MuxLab Inc
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$199.00

Our Price:

$137.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    500451-POE-RX - Overview

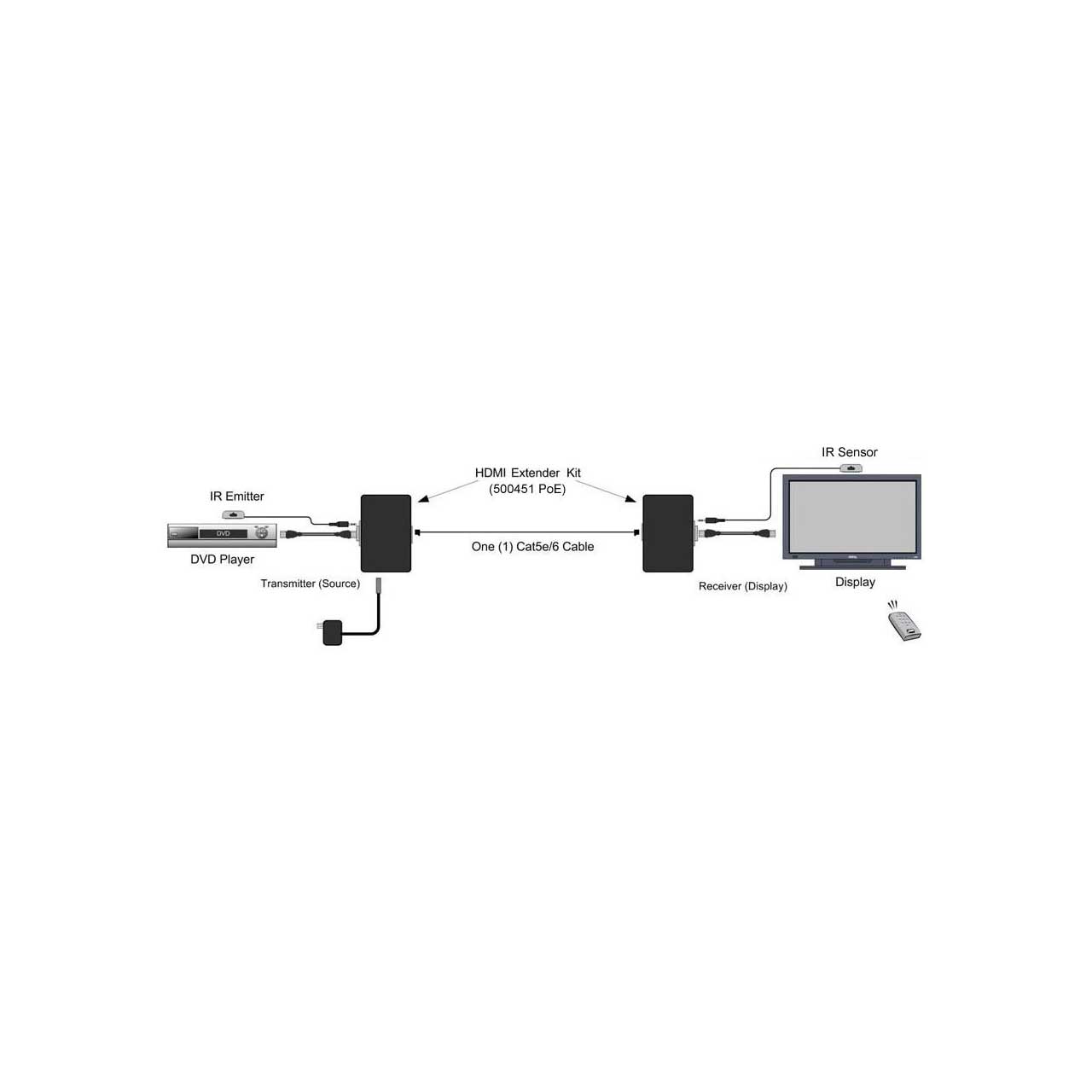

    The 500451-POE-RX HDMI extender 4K allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) or 4K/60 (4:2:0) resolutions, or 230 ft (70 m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. This HDMI extender 4K comes with one (1) receiver, one (1) IR Emitter, and one (1) IR sensor.

    • Features:

      • Supports 1080p deep color and full 3D to distances of up to 230 ft (70m) over single Cat5e/6
      • Supports 4K @ 24/25/30Hz (4:4:4) and 4K/60 (4:2:0) to distances of up to 131 ft (40m) over single Cat5e/6
      • Supports Bi-directional IR pass through
      • Supports all digital audio modes
      • Includes IR emitter and IR sensor (carrier-wave)
      • Compatible with 500451 (non PoE version)


    • Specifications:

      • Environment: HDMI 1.4a (3D)
      • Devices: DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
      • Transmission: Transparent to the user
      • Bandwidth: 340MHz
      • Signals: HDMI 1.4a protocol
      • Cable: One (1) Category 5e or better twisted pair cables required.
      • Power Supply: One (1) 110-240V/48VDC power supply with interchangeable blades
      • Power Consumption: Transmitter: 1.6 Watt Receiver: 3.2 Watt
      • Temperature: Operating: 0° to 40° C. Storage:-20° to 85° C. Humidity: up to 95% non-condensing.
      • Enclosure: Metal
      • Dimensions: 4.4 x 3 x 1" (11.2 x 7.6 x 2.5cm)
      • Weight: 1.4Lbs (.6kg)
      • Compliance: Regulatory: FCC, CE, RoHS


    • Item Includes:

      • 1x Receiver
      • 1x IR Emitter
      • 1x IR sensor


    • Warranty:

      • 2 Year Warranty


    • GTIN:

      0627699960943
