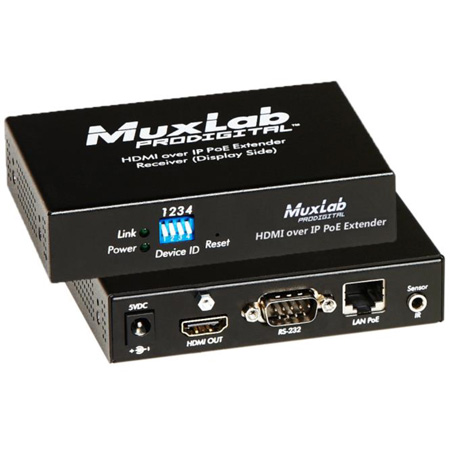

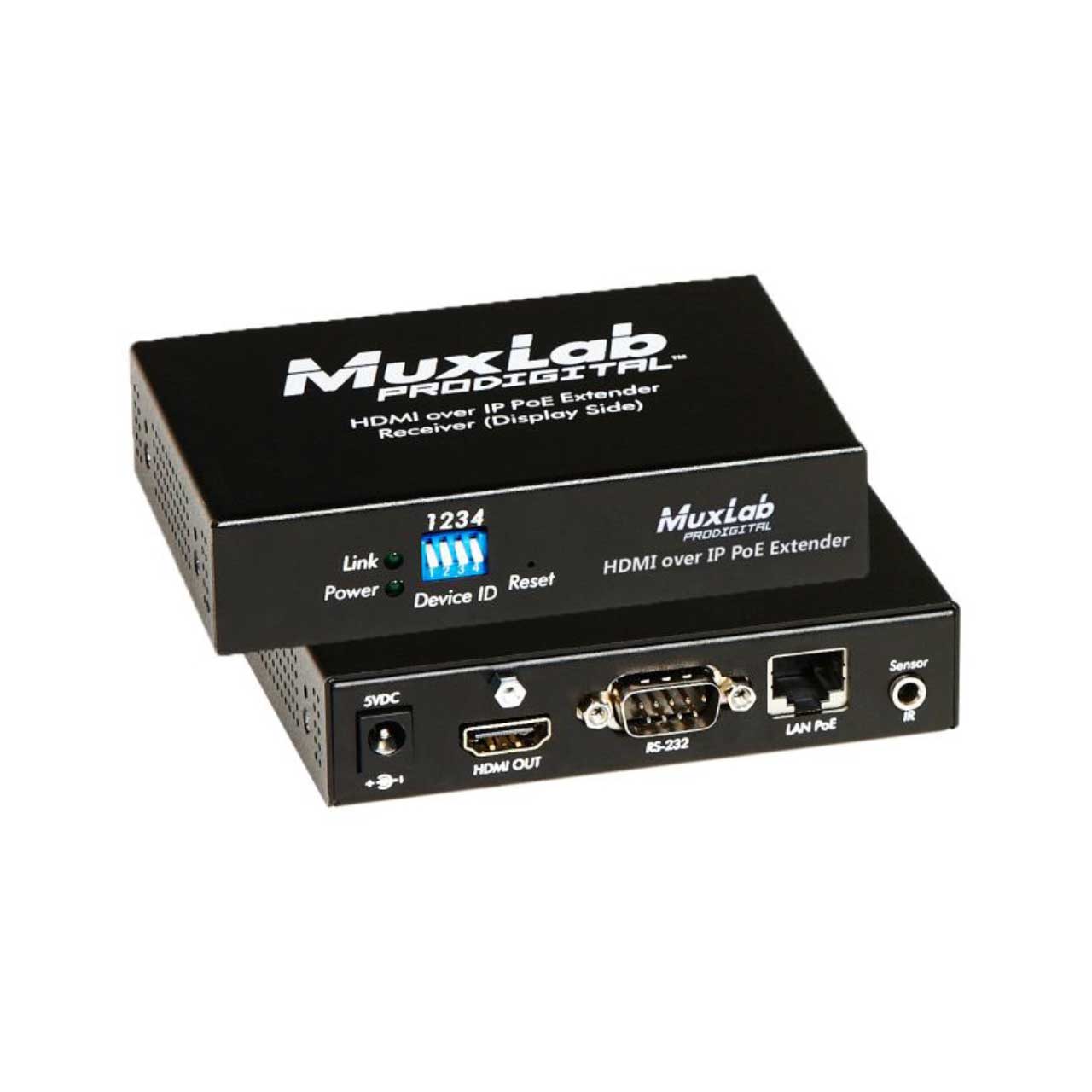

MuxLab 500754 Video Wall HDMI over IP PoE Receiver

ITEM #: MUX-500754-RX MFG #: 500754-RX

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    500754-RX - Overview

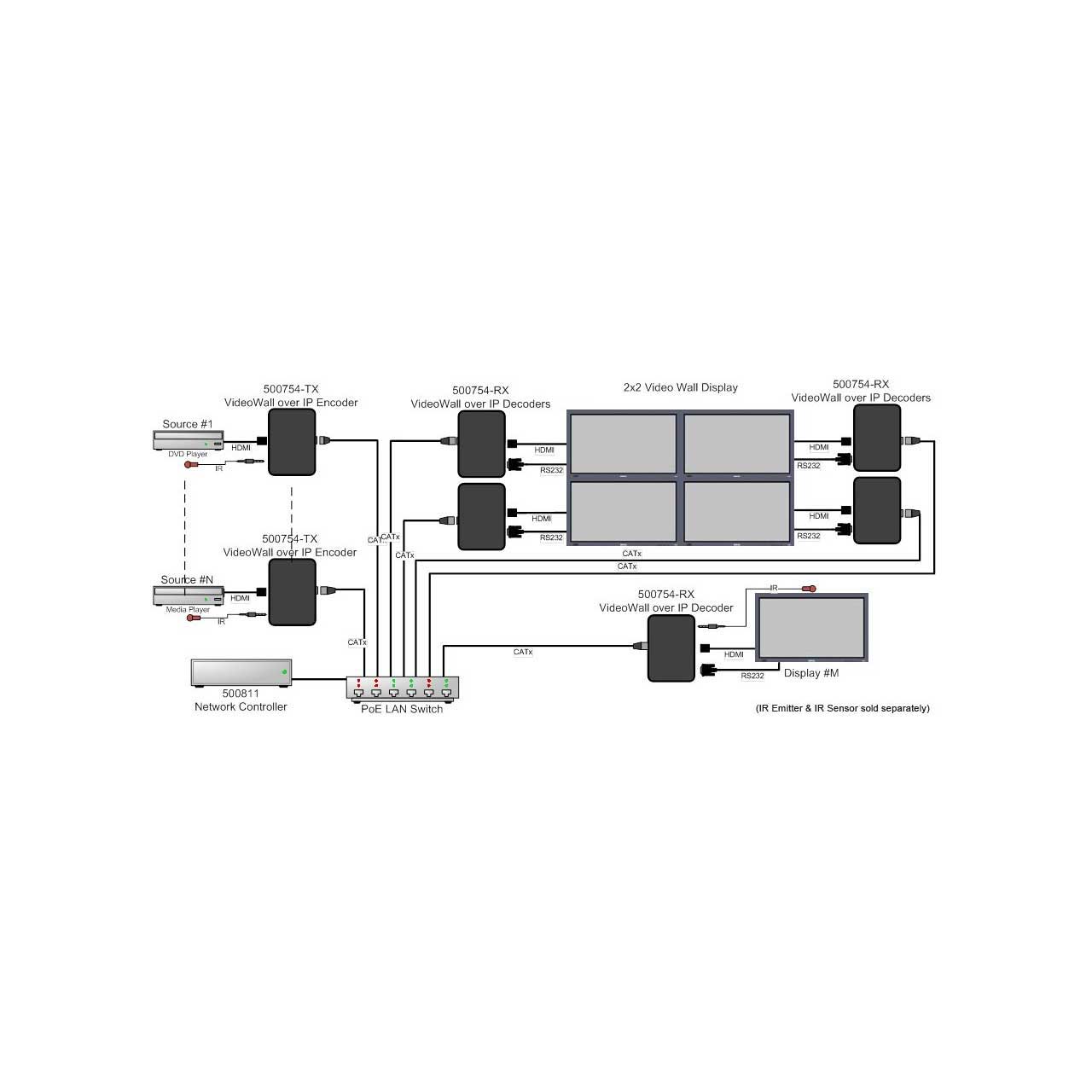

    Muxlab 500754 HDMI over IP PoE Extender allows HDMI equipment to create a Video Wall of user configurable size (X by Y) supporting 100's of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

    The transmitter unit can be connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat 5e/6 cable between equipment.

    The MuxLab Pro Digital Network Controller (500811) is available to simplify configuration and control and allows for third party smartphone and tablet management.

    The transmitter (500754-TX) and receiver (500754-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet switch. The kit comes with one (1) transmitter and one (1) receiver. The IR Emitter and IR Sensor, if required, may be purchased separately for IR based remote control applications.

    For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP server capability and IGMP communications protocol. MuxLab recommends using the Cisco SG350 Series Managed Switches.

    • Features:

      • Configure a Video Wall array with 100's of displays, depending on network bandwidth
      • HDMI 1.3
      • Supports up to 1080p resolutions
      • Visually lossless video (1 frame latency)
      • Supports point-to-point, point-to-multipoint and multipointto-multipoint applications
      • Transmission up to 330ft (100m) over Cat5e/6
      • Transmission up to 390ft (120m) between one (1) TX andone (1) RX when no LAN switch is used in a point-to-point scenario
      • Supports RS232 and IR transmission for remote control
      • PoE powered
      • Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
    • Specifications:

      • Environment: HDMI 1.3a
      • Devices: DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
      • Video Wall: NxM video wall capabilities
      • Max. Configuration: 100's of transmitters and receivers, depending on network bandwidth.
      • Transmission: Transparent to the user
      • Video Bandwidth: 225MHz
      • Signals: HDMI 1.3a protocol

      • One (1) HDMI receptacle.
      • One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
      • One (1) 3.5mm jacks for IR emitter/sensor.
      • One (1) DB9 Serial Port Connector
      • Four (4) DIP Switches for device ID addressing.
        Note: HDMI cables not included

        Maximum Distance - (Based on a maximum length of 6.6ft (2m) of HDMI cable per end.)
      • Cat5e/6: 330ft (100m) up to 1080p
        Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

      • Latency: One (1) Frame
      • Compression: Motion JPEG
      • Network Bandwidth: 60Mbps
      • Network Requirement: 100BaseT for Point to Point; 1000BaseT for other configuration
      • IR Frequency: 38 to 56KHz
      • Cable: One (1) Cat 5e/6 or better twisted pair cables required
      • Power Supply: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500992) may be purchased separately.
      • PoE: IEEE 802.3af
      • Power Consumption: Transmitter: 2.9Watt Receiver: 1.8Watt
      • Temperature Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Enclosure: Metal black
      • Dimensions: 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5cm)
      • Weight: 1.1lbs (0.5kg)
      • Compliance: Regulatory - FCC, CE, RoHS
    • Item Includes:

      • 1x MuxLab 500754 Video Wall HDMI over IP PoE Receiver
    • Warranty:

      • 3 years
