MuxLab 500767-RX-MM 3G-SDI/ST2110 over IP Uncompressed Gateway Converter / Extender RX - MMF

ITEM #: MUX-500767-RX-MM MFG #: 500767-RX-MM

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500767-RX-MM

500767-RX-MM - Overview

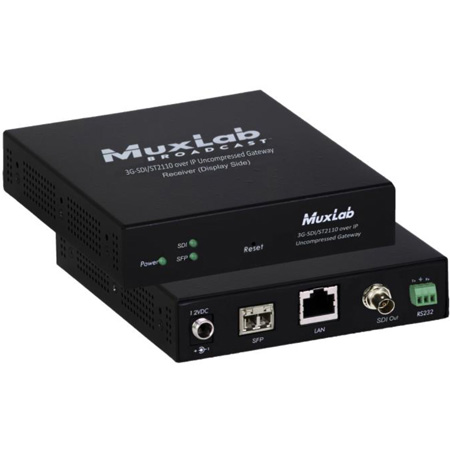

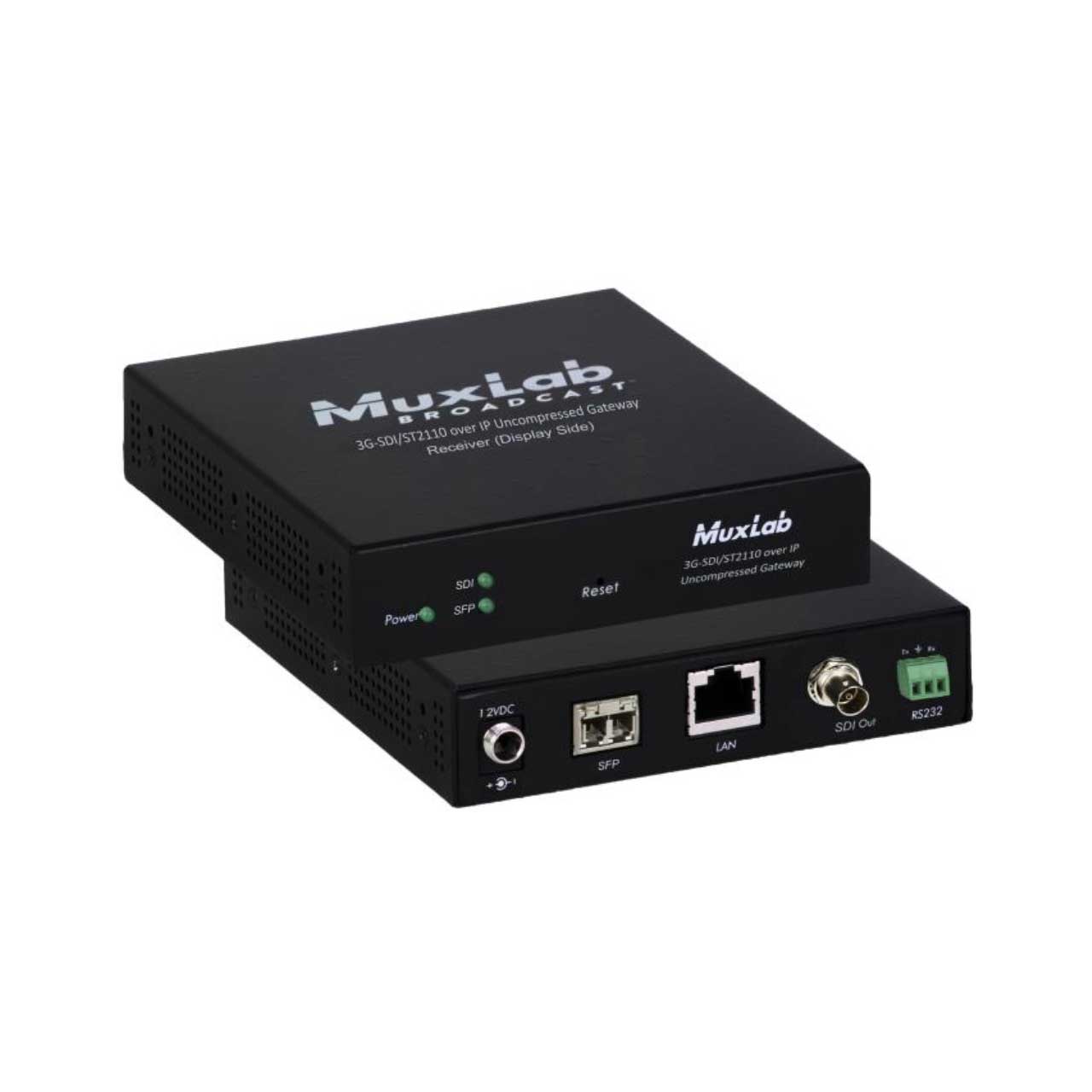

The MuxLab 500767-RX-MM 3G-SDI/ST2110 over IP Uncompressed Gateway Converter allows HD-SDI and 3G-SDI equipment to be extended up to 100ft (30m) via UTP Cat 5e/6 cable or up to 1300ft (400m) via duplex multimode OM4 fiber with LC connectors, at up to 1080p resolution @ 60Hz uncompressed, in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to a 10G Ethernet network. The unit provides a 1G Ethernet Switch port to connect additional network devices, and an RS232 port for remote control of end devices.

This device supports SMPTE ST-2110, and can be managed through its Web interface and an NMOS system via a RestAPI.

Applications:

Commercial broadcast AV systems
News/sports/TV stations
Movie networks

  • Features:

    • Transmit Uncompressed SDI video up to 3G-SDI (1080p @ 60Hz) over a 10G Ethernet network
    • Supports the SMPTE ST-2110 protocol
    • Extend up to 100ft (30m) over Cat5e/6, or 1300ft (400m) over OM4 fiber
    • Supports 100's of Transmitters & Receivers depending on network bandwidth

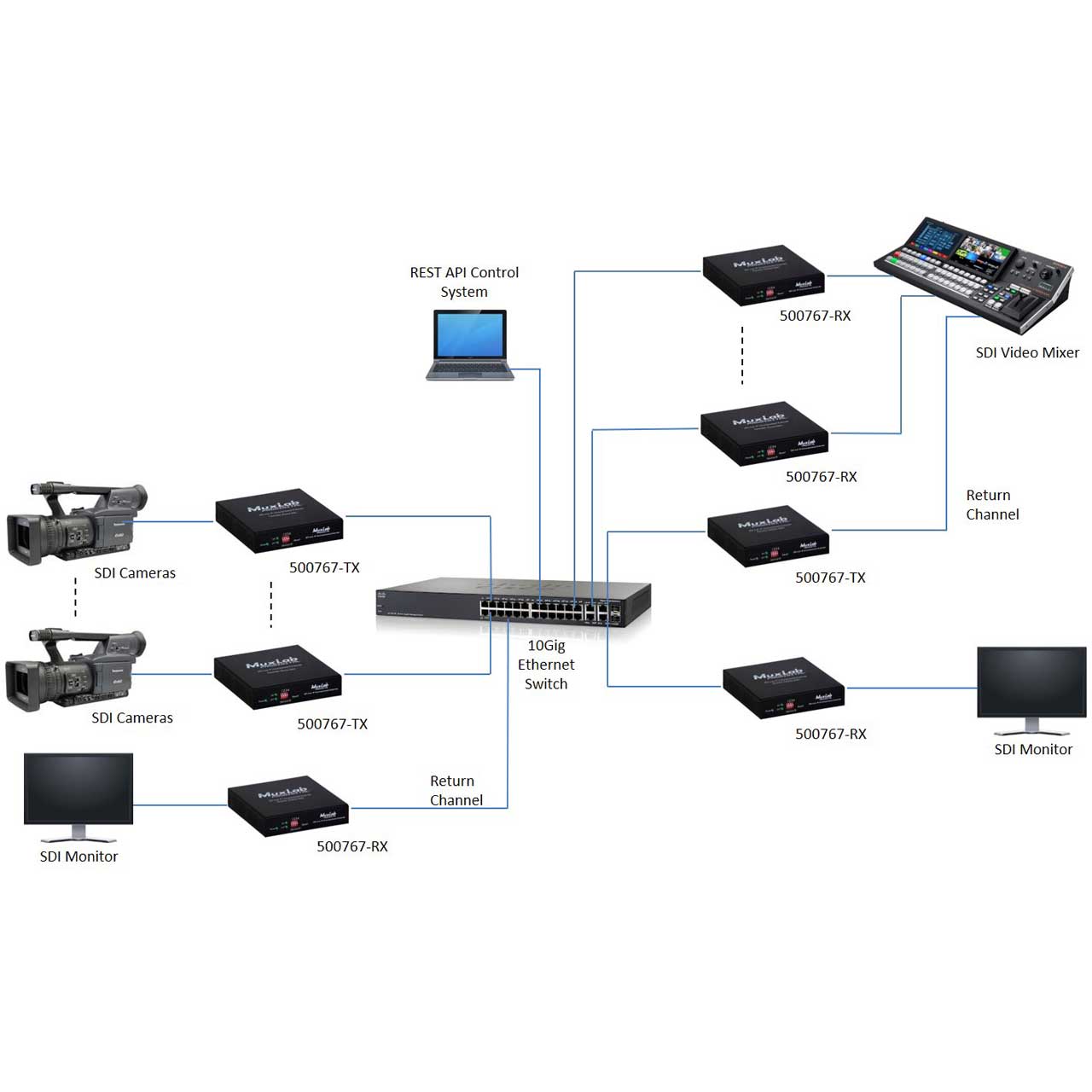

    • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
    • Supports a 1G Switch port for additional network devices
    • Supports RS232 for remote control of end devices
    • Managed via its Web interface and RestAPI

  • Specifications:

    • Environment: HD-SDI and 3G-SDI
    • Devices: HD/3G-SDI cameras, mixers, media players, monitors, TV, PC, laptops, servers supporting HDMI.
    • Signals: SDI protocol (supports ST-2110)
    • Connectors/Switches:
      Note: Cables not included.
      1 x BNC connector for SDI.
      1 x SFP for Ethernet and UTP connection to a 10G Ethernet Switch for transmission & control.
      1 x RJ45S for 1G Ethernet Switch port for additional network devices.
      1 x RS232 3-Pin Phoenix connector.
      1 x 2.1mm locking power connector.
      4 x DIP Switches for device ID addressing.
    • Maximum Distance:
      Cat 6a/7: 100ft (30m) up to 1080P @ 60Hz
      OM4: 1300ft (400m) up to 1080p @ 60Hz, OM3: 985ft (300m) up to 1080p 2 60Hz
      Coax: 689ft (210m) @ 2.97Gbps and 985ft (300m) @ 1.485Gbps (using Belden 1694A cable)
      Note: When installed in an electrically noisy environment, an STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
    • Latency: Zero latency
    • Compression: None (uncompressed)
    • Network Bandwidth: Up to 3Gbps
    • Network Requirement: 10G Ethernet LAN
    • RJ45 Pin Configuration:
    • RJ45 Link:
      Pin 1 (R) Pin 2 (T)
      Pin 3 (R) Pin 6 (T)
      Pin 4 (R) Pin 5 (T)
      Pin 7 (R) Pin 8 (T)
    • Cables:
      1 x Duplex multi-mode fiber cable (for MM Fiber version).
      1 x Cat 6a/7 or better twisted pair cables (for UTP version).
    • Power Source: 1 x 12VDC Power Supply included per Transmitter and per Receiver.
    • Power Consumption: 15 watts (max)
    • Temperature Operating: 32° to 104°F Storage: -4° to 185°F
    • Humidity: Up to 95% non-condensing
    • Dimensions: 4.4" x 4.6" x 1.0" (111mm x 120mm x 25mm)
    • Weight: 1.5lbs (0.7kg)
    • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
    • Warranty: 3 Years

  • Warranty:

    • 3 Years
