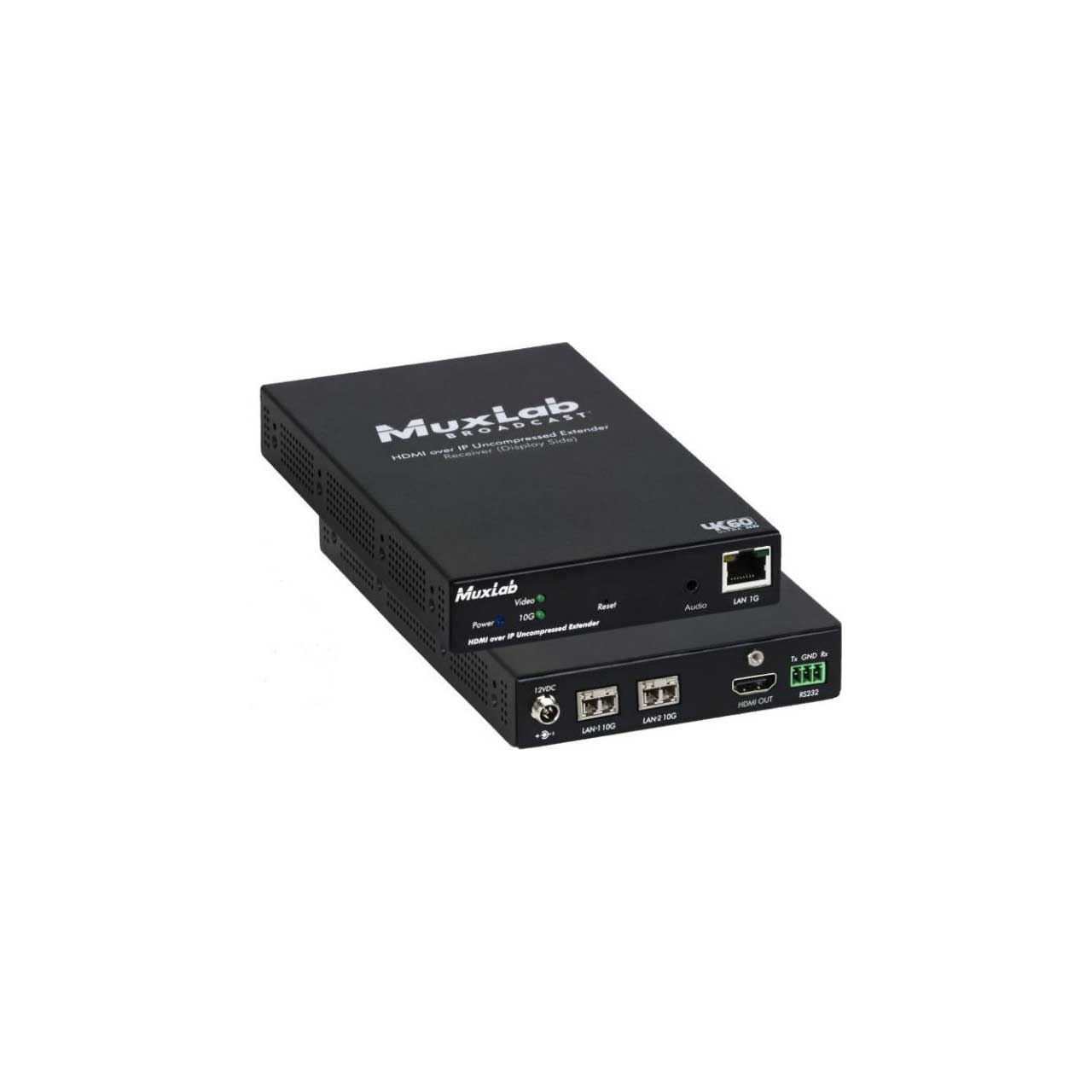

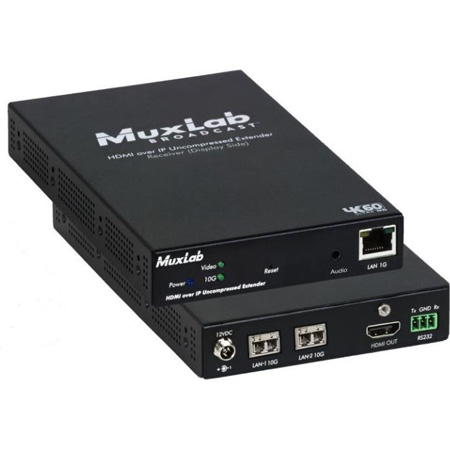

MuxLab 500774-RX-MM HDMI 2.0/ST2110 over IP Uncompressed Receiver - MM Fiber

500774-RX-MM - Overview

• Features:

  • Supports Uncompressed HDMI video up to 4K @ 60Hz and SMPTE ST-2110
  • Extend HDMI over an IP network at up to 1300ft (400m) over duplex OM4 fiber
  • Supports 100's of Transmitters & Receivers depending on network bandwidth

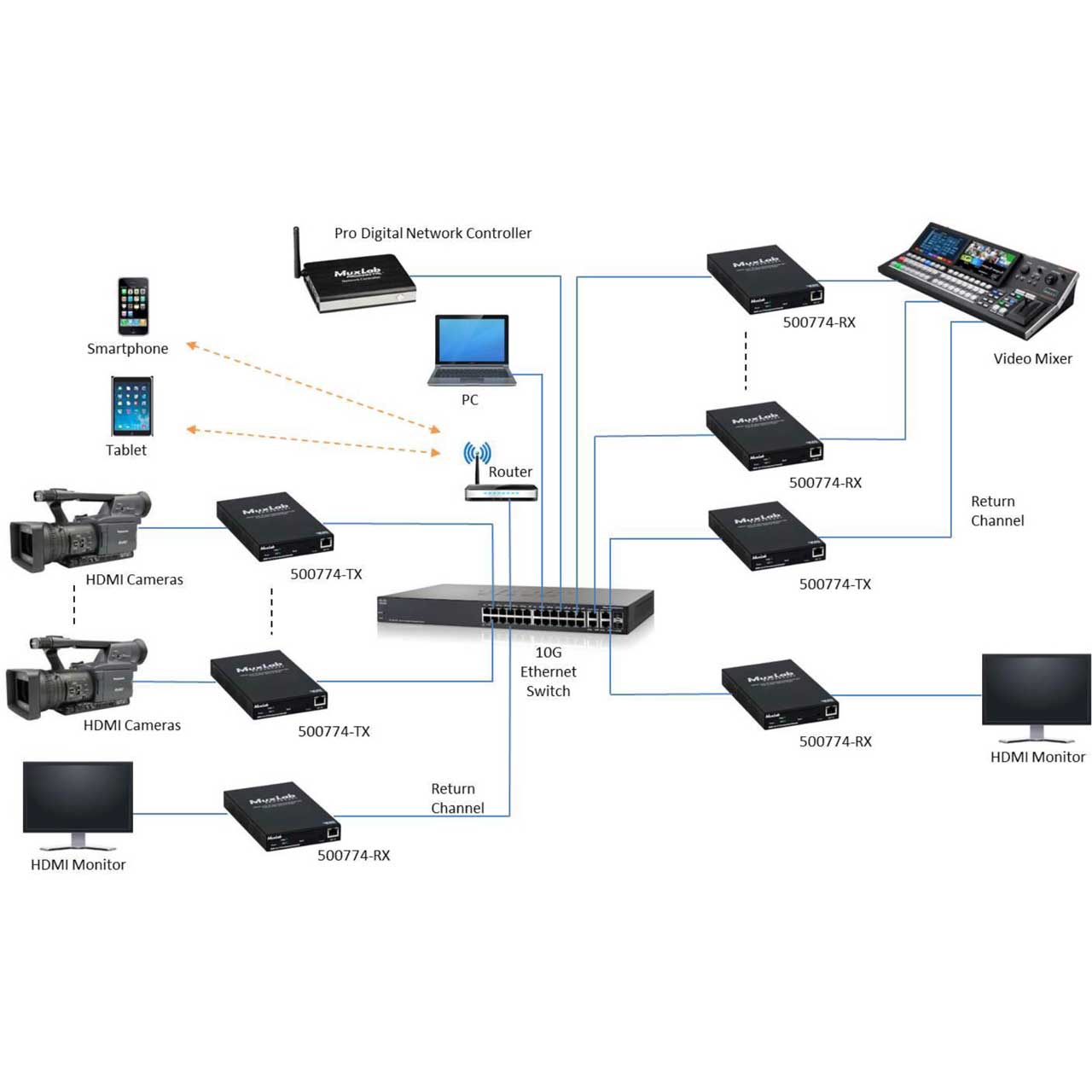

  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Supports two 10G Ethernet ports for communications and a 1G Switch port for additional network devices
  • Supports audio insert (TX) & audio extract (RX)
  • Supports RS232 for remote control of end devices
  • Managed via its Web interface and RestAPI


• Specifications:

  • Environment: HDMI
  • Devices: Cameras, mixers, media players, monitors, TVs, PCs, laptops, servers supporting up to HDMI
  • Signals: Up to HDMI 1.4 (4K @ 30Hz, including 4K 4:4:4 8 bit and 4K 4:2:2 10 bit)
  • Connectors/Switches:
    - 1x HDMI connector
    - 2x SFP Connectors for 10G Ethernet ports for redundant AV transmission
    - 1x RJ45S Connector for 1G Ethernet port for control
    - 1x 3.5mm audio connector (for future use)
    - 1x 2.1mm locking power connector
  • Max Distance:
    - OM4: 1300ft (400m)
    - OM3: 985ft (300m)
  • Latency: Zero latency
  • Compression: None (uncompressed)
  • Network Bandwidth: Up to 10 Gbps
  • Network Requirement: 10G Ethernet LAN for AV transmission, and 1G LAN for 3rd party management platforms
  • 3rd Party Control: Via RestAPI and NMOS (IS-04 for discovery & IS-05 for connectivity management)
  • Cable: 2x Dual Multi-mode fiber cables for AV Transmission and Cat 5e/6 UTP for control
  • Power Consumption: 15 Watt
  • Temperature:
    - Operating: 32 - 104°F (0 - 40°C)
    - Storage: -4 - 185°F (-20 to 85°C)
    - Humidity: Up to 95% non-condensing
  • Enclosure: Aluminum
  • Dimensions: 4.4" x 7" x 1.0" (11.1 x 17.5 x 2.5 cm)
  • Weight: 1.5 lbs (0.7 kg)
  • Compliance:
    - Regulatory: FCC, CE, RoHS
    - Flammability: 94V0


• Warranty:

  • 3 Years


• GTIN:

  0627699817742
