The Multidyne NBX-TRX-12G-ST is a 4K/3G/HD/SD-SDI 1x4 Reclocking Distribution Amplifier designed for broadcast use. The NBX-TRX-12G-ST will provide up to 4 outputs of the incoming SDI signal on 75 Ohm BNC connectors.
Featuring the latest multi rate 12G-SDI cable equalizing and reclocking technology the NBX-TRX-12G-ST can automatically switch between all SDI formats up to 2160p60 making the NBX-TRX-12G-ST ideal to distribute SDI signals to multiple destinations.
A dual-color LED indicator will illuminate green indicating the NBX-TRX-12G-ST is locked to a valid SDI signal at the input or it will be illuminated red indicating that the NBX-TRX-12G-ST is not locked to a valid SDI signal.

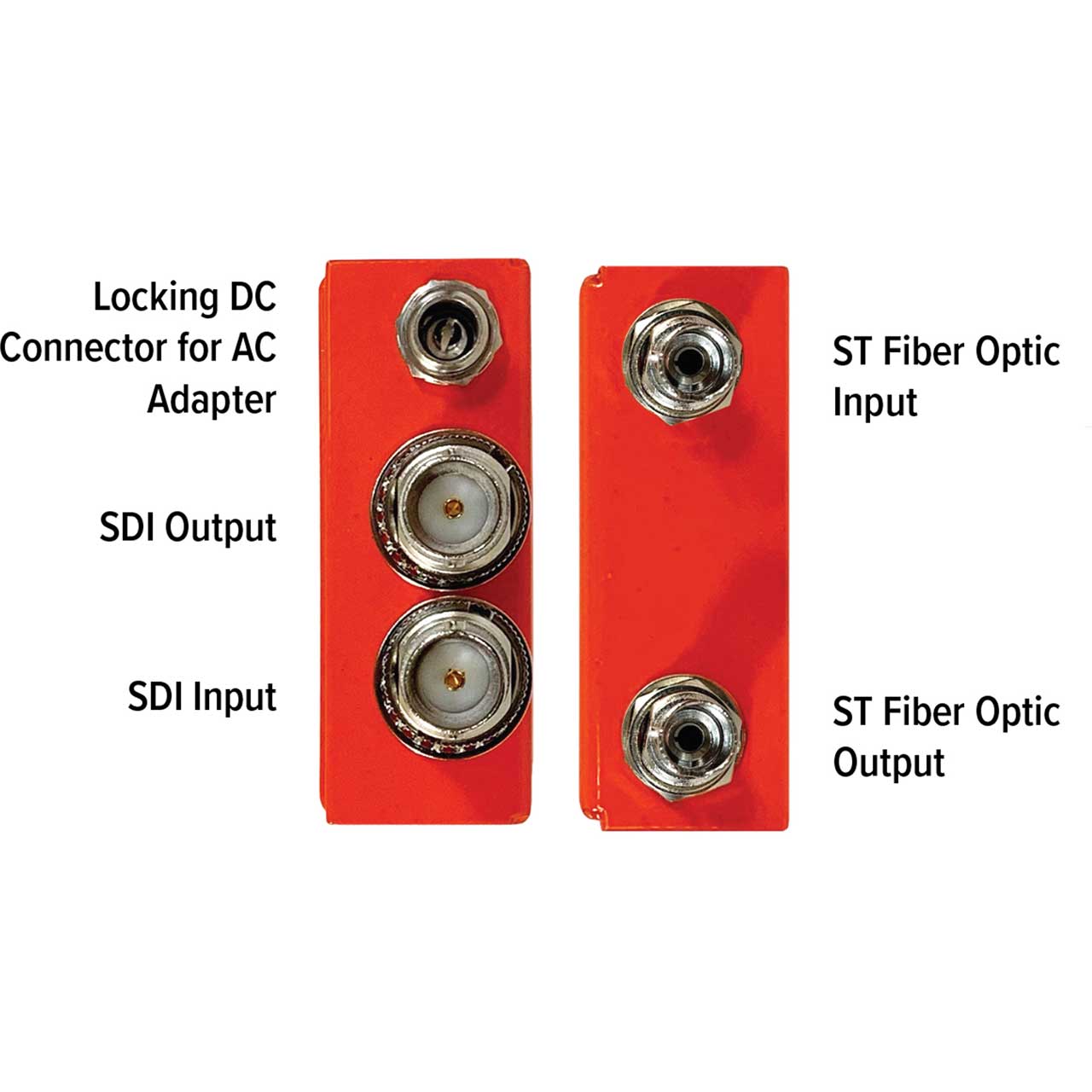

The NBX-TRX-12G-ST has rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.
Applications
Live Broadcast
Arenas and Stadiums
Shared Control Rooms
Campus Facilities
