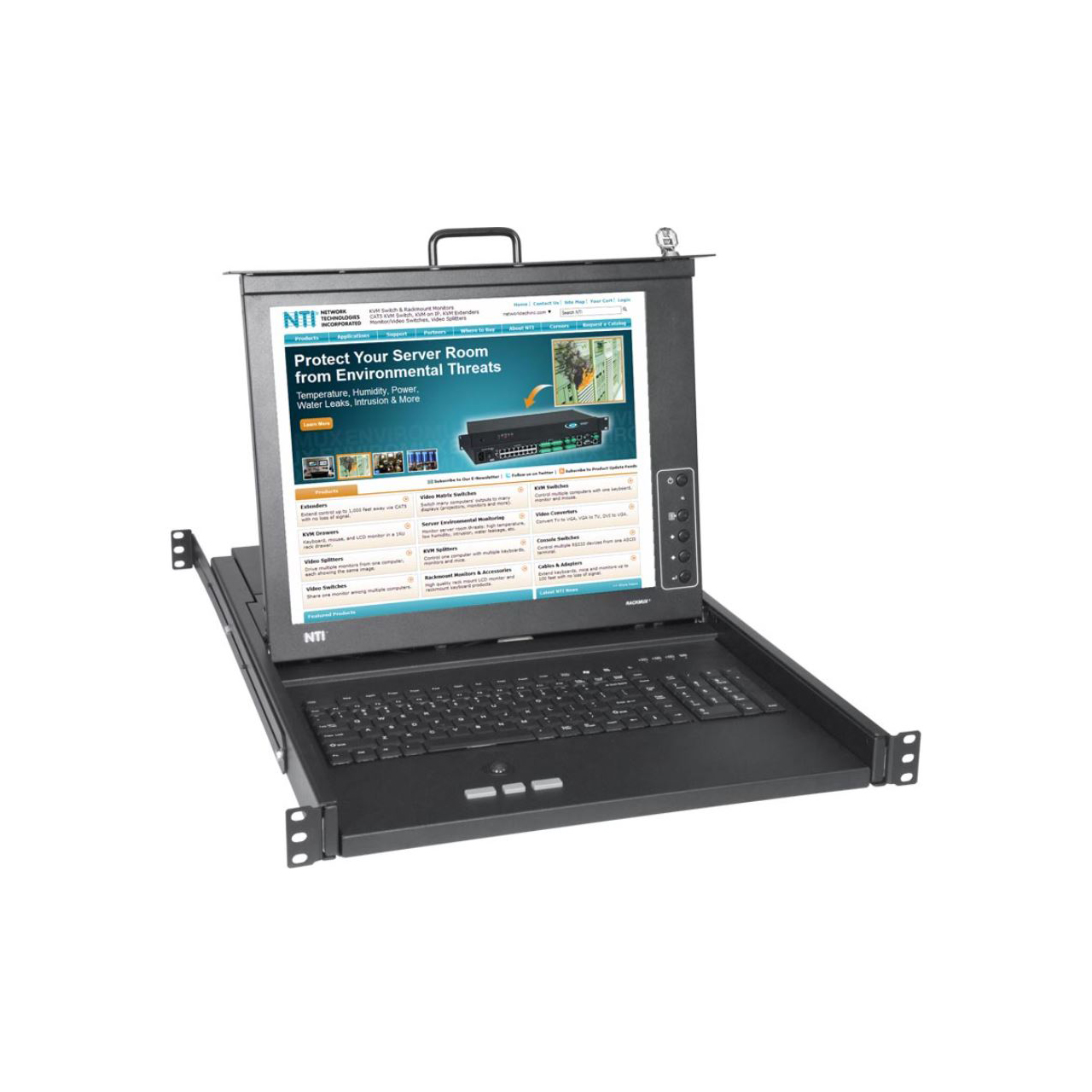

NTI RACKMUX-VS17-NT-8USBHD 17 Inch VGA SUN USB KVM Drawer with 8-Port High Density Switch and Numeric Keypad

RACKMUX-VS17-NT-8USBHD - Overview

• Features:

  • Crisp and clear 1280x1024 video resolution.
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Control up to eight USB computers (PC, SUN, and MAC).
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Designed to be a one-person job when installing the drawer.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in: English(US).
  • Cabling runs are simplified with NTI's high density KVM switch cables.


• Specifications:

  Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power Consumption: 40W max.

    Physical
  • Dimensions (WxDxH): 19" x 23.9" x 1.75" (483mm x 607mm x 44mm)
  • Drawer is adjustable to various rack depths from 24" (610mm) deep to 40" (1,016mm) deep
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL

    Regulatory Approvals
  • CE, RoHS
  • TAA compliant

    Environmental
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Operating and Storage Relative Humidity: 20% - 90% non-condensing RH.


• Item Includes:

  • 1x Line cord, country specific
  • 1x Set of keys for keylock
  • 2x Rear Mounting Brackets w/nuts
  • 8x #10-32x3/4" screws and cage nuts for mounting to a rack
