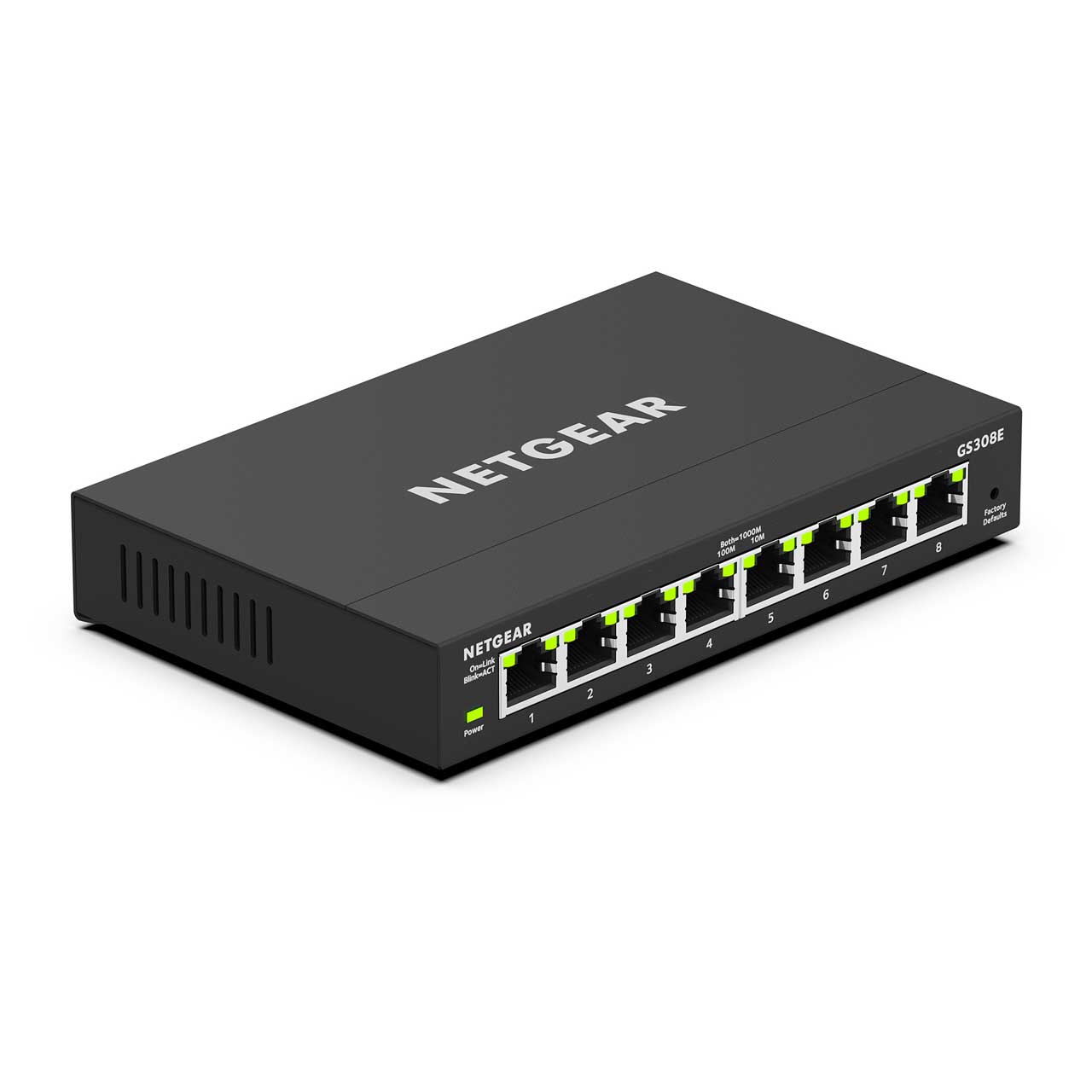

NETGEAR GS308E-100NAS 8-Port Gigabit Ethernet Smart Managed Plus Switch (GS308E)

ITEM #: NG-GS308E100NAS MFG #: GS308E-100NAS

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NG-GS308E100NAS

GS308E-100NAS - Overview

NETGEAR GS308E-100NAS Smart Managed Plus Switch meets this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.

  • Features:

    • Enable network configuration and management at the price point of Unmanaged Switches
    • Simple, yet useful network set-up on top of plug-and-play connectivity
    • Flexible management via easy-to-use web browser-based management GUI or using the PC-based Utility application
    • VLAN support for traffic segmentation
    • Quality of Service (QoS) for traffic prioritization Auto "denial-of-service" (DoS) prevention
    • Troubleshoot connection issues via cable test
    • Loop detection and broadcast storm controls
    • Rate limiting for better bandwidth allocation
    • Port mirroring for network monitoring
    • Jumbo frame support


  • Specifications:

    • Features
    • Gigabit Ports: 8
    • Max MAC Entries: 4K
    • Buffer Size: 192KB
    • Energy Efficient Ethernet (IEEE 802.3az) compliant: Yes

      Performance Specifications
    • Forwarding Modes: Store-and-forward
    • Bandwidth: 16Gbps
    • Priority Queuing: Weighted Round Robin (WRR), Strict Priority, or both
    • Jumbo Frame Support: Up to 9K packet size
    • Acoustic Noise Level @ 25° C (dBA) (ANSI-S10.12): 0
    • Mean Time Between Failures (MTBF) @ 25°: 1,638,156 hours

      L2 Services - VLANS
    • VLAN (# Supported): 32
    • IEEE 802.1Q VLAN Tagging: Yes
    • Port-based VLANs: Yes

      L2 Services - Availability
    • Link Aggregation/ Port Trunking: No
    • Number of Static Manual LAGs and # of members: N/A

      L2 Services - Multicast Filtering
    • IGMP Snooping (v1, v2, and v3): Yes
    • Block Unknown Multicast: Yes
    • Supported Multicast groups: 128

      L3 Services - DHCP
    • DHCP Client: Yes

      Quality Of Service (QOS)
    • Rate Limiting: Yes
    • DSCP: No
    • IEEE 802.1p COS: Yes
    • Port-based VLAN: Yes
    • TOS: No
    • WRR (Weighted Round Robin): Yes
    • Strict Priority queue technology: Yes


  • Item Includes:

    • 1x NETGEAR GS308E-100NAS 8-Port Gigabit Ethernet Smart Managed Plus Switch (GS308E)


  • GTIN:

    0606449140606
