Ocean Matrix OMX-01HMBT0011-R HDBaseT 4K HDMI Receiver with Two-Way IR - RS232 - ARC - KVM - PoH

ITEM #: OMX-01HMBT0011-R MFG #: OMX-01HMBT0011-R

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$299.95

Our Price:

$277.95

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


OMX-01HMBT0011-R - Overview

The Ocean Matrix OMX-01HMBT0011 HDMI receiver meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT56a/CAT7 cable up to 328 feet. Supporting video resolutions up to 4K@60Hz 4:2:0, this receiver features 1 Ethernet port, RS232 control, two-way IR, USB KVM, and 48V PoH. The power over cable makes system installation easier and allows for streamlined setups. With many features, this product is ideal for classrooms, meeting rooms, showrooms, and lecture halls.

  • Features:

    • Features HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Two-Way IR/RS232 Pass Through
    • 1 LAN / Ethernet Port
    • Transmission Distance: 328 Feet over Cat6/7 and 295 Feet over Cat 5e
    • Video Resolution up to 4K@60Hz YUV 4:2:0 / 3D / DVI 1.0 compatible
    • Supports Optical Audio Sampling Rates up to 48kHz
    • Supports Audio Return Channel
    • 48V PoH Transmitter to Receiver
    • Rugged Black Powder-Coated Metal Enclosure
    • CE, FCC Certified

  • Specifications:

    • Compliance: HDCP 2.2
    • Bandwidth: 10.2Gbs
    • RS232 Baud Rates from 110-115200bps
    • IR Frequency: 30 - 50kHz
    • Supported Resolutions 480i@60Hz - 4K@60Hz (4:2:0, 8-bit) / VGA@60Hz - WUXGA@60Hz (RB)
    • Audio Format: LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
    • Power Consumption: 17W
    • Dimensions (HxWxD): 0.63in x 7.20in x 3.15in
    • Weight: RX 12.56 oz

  • Item Includes:

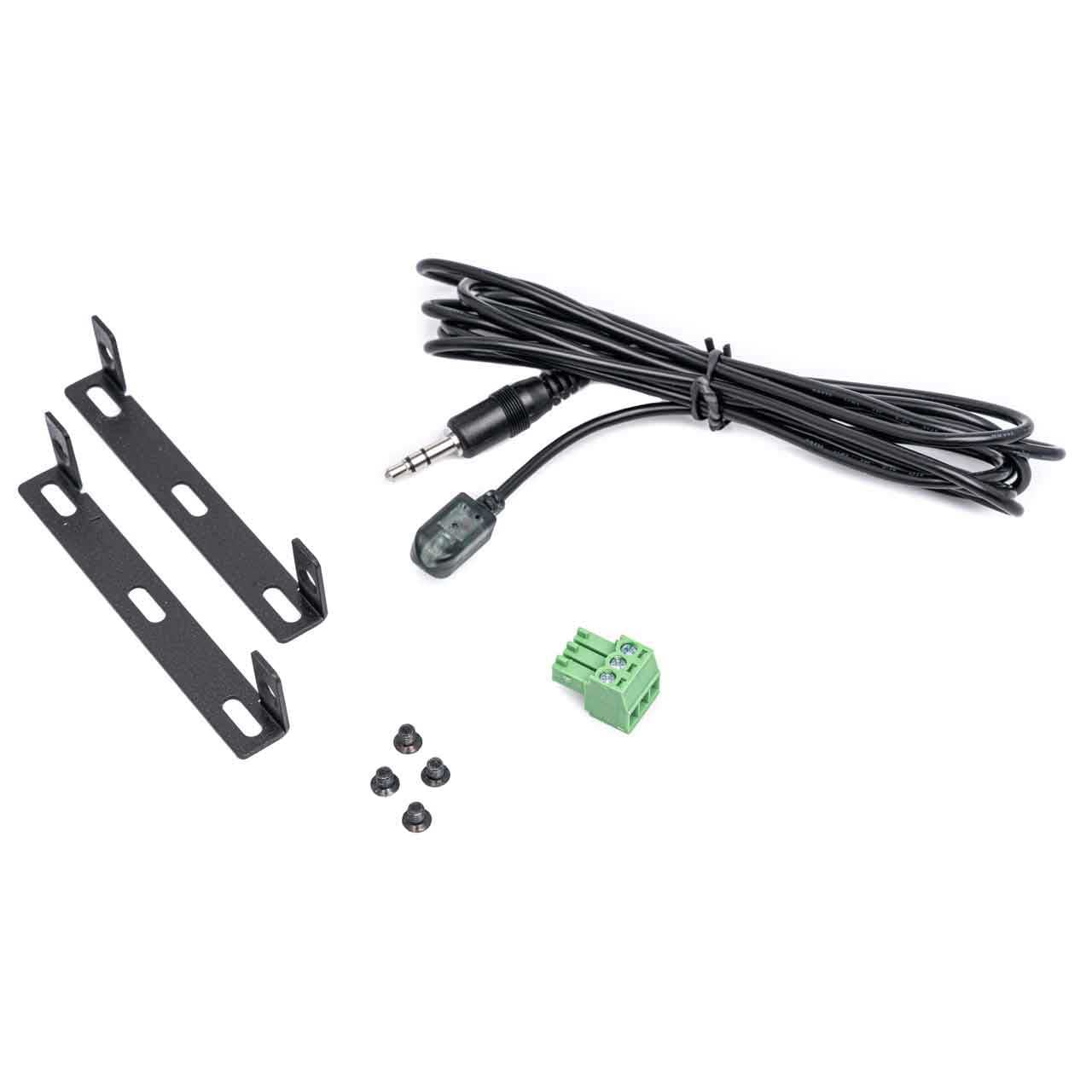

    • (1)-IR Blaster Cable, (2) 3-Pin Terminal Blocks, (2) Mounting Ears & Screws, 1-48V/0.83A power supply w/ cord

  • Warranty:

    • 1 Year
