Ocean Matrix 01HMET0001 Extender - 4K HDMI Over Single CAT6 with EDID / PoC / IR - 164 Feet

ITEM #: OMX-01HMET0001 MFG #: 01HMET0001

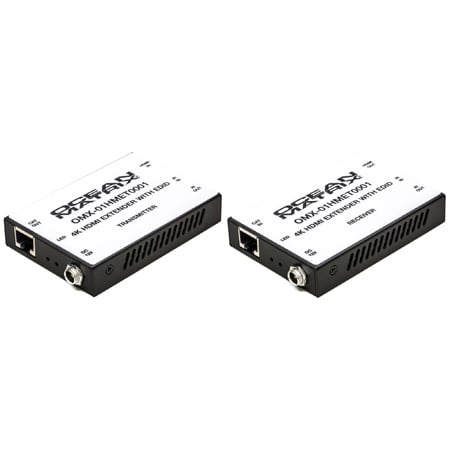

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OMX-01HMET0001

01HMET0001 - Overview

The Ocean Matrix 01HMET0001 4K HDMI Extender is the perfect tool for sending 4K2K@30Hz HDMI up to 164 feet (50 meters) over a single CAT6 cable. The system also supports 1080P@60Hz signals up to 196 feet. The 01HMET0001 is ideal in digital signage, live event venues and distance learning installations.

The Ocean Matrix 01HMET0001 4K HDMI Extender includes power over cable (PoC) functionality allowing the receiver to be placed behind TVs, monitoring walls or recording areas without the need for a power supply. It also features HDMI audio pass-through, IR signal transmission, EDID support, and is compatible with DTS-HD and Dolby TrueHD audio.

  • Features:

    • HDMI Audio/Video over a Single CAT6 Cable
    • Transmission Distance (CAT6): 4K2K@30Hz up to 164 feet, 1080P@60Hz up to 196 feet
    • PoC for Either Transmitter or Receiver
    • Supports EDID from Receiver Display
    • Rugged Black Powder-Coated Metal Enclosure
    • CE, RoHS Certified

  • Specifications:

    • Compliance: HDMI 1.4, HDCP 2.2
    • Video Bandwidth: 10.2 Gbps
    • Video Resolutions: up to 4K2K@24/30 Hz
    • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 / Color Depth: 8-bit
    • HDMI Audio Pass-through Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

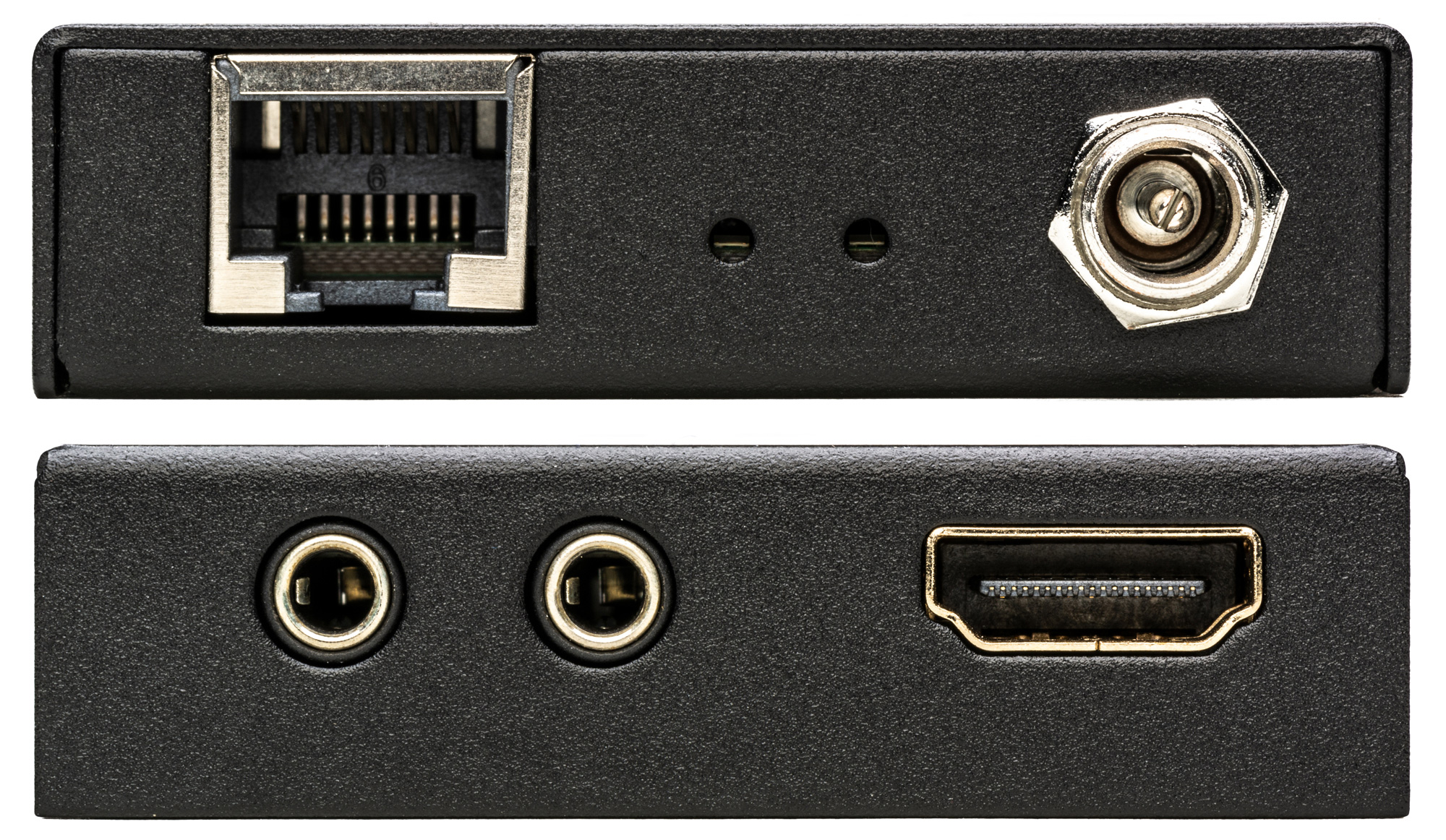

    • Inputs: TX - 1-HDMI Type A / RX - 1- RJ45, 2-3.5mm Mini-Jack / Outputs: TX - 1- RJ45, 2-3.5mm Mini-Jack / RX - 1-HDMI Type A
    • Power Consumption: TX - 1W / RX - 1.5W
    • Dimensions (each): 3.46 x 2.40 x 0.67 in
    • Weight (each): 5.08 oz

  • Item Includes:

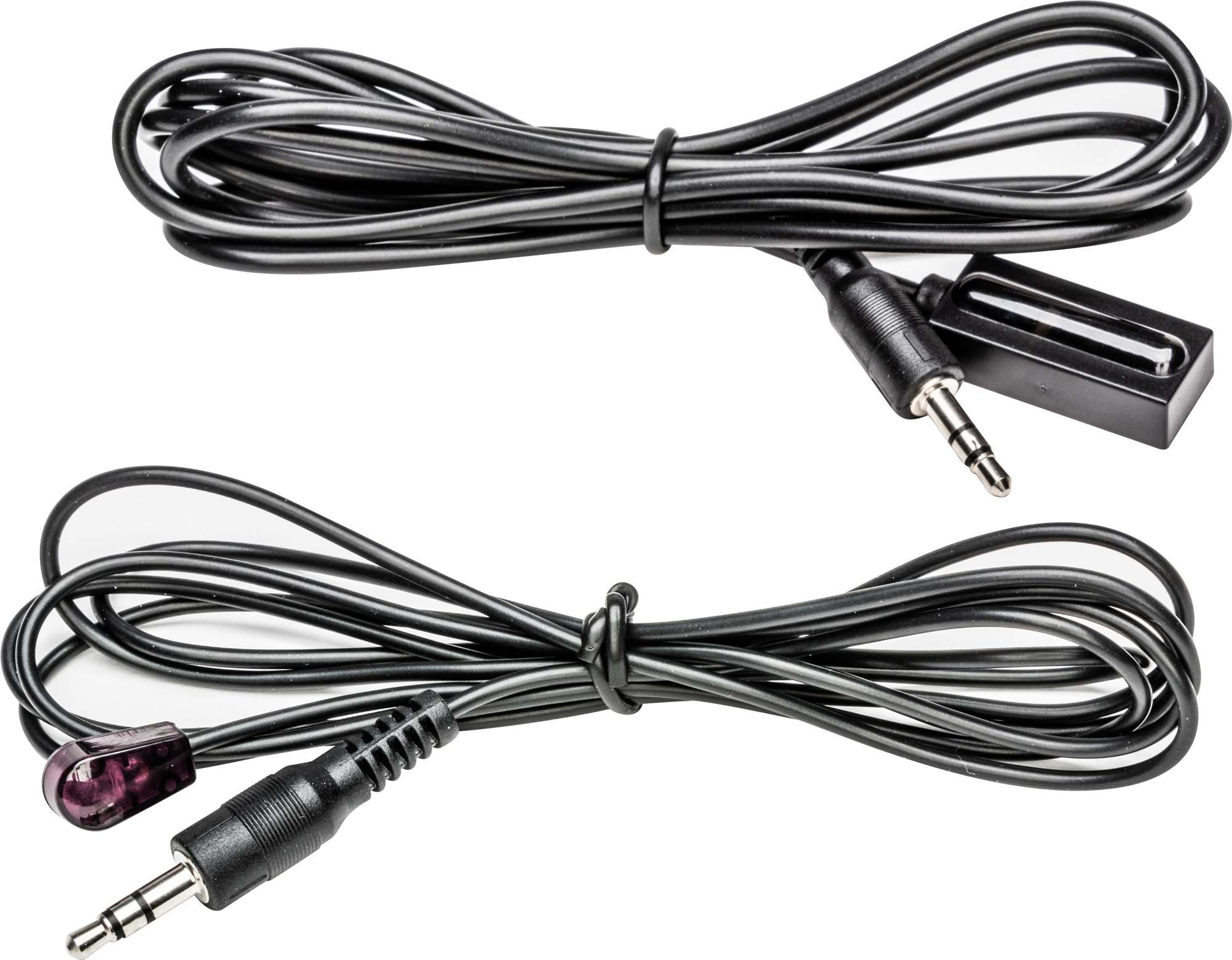

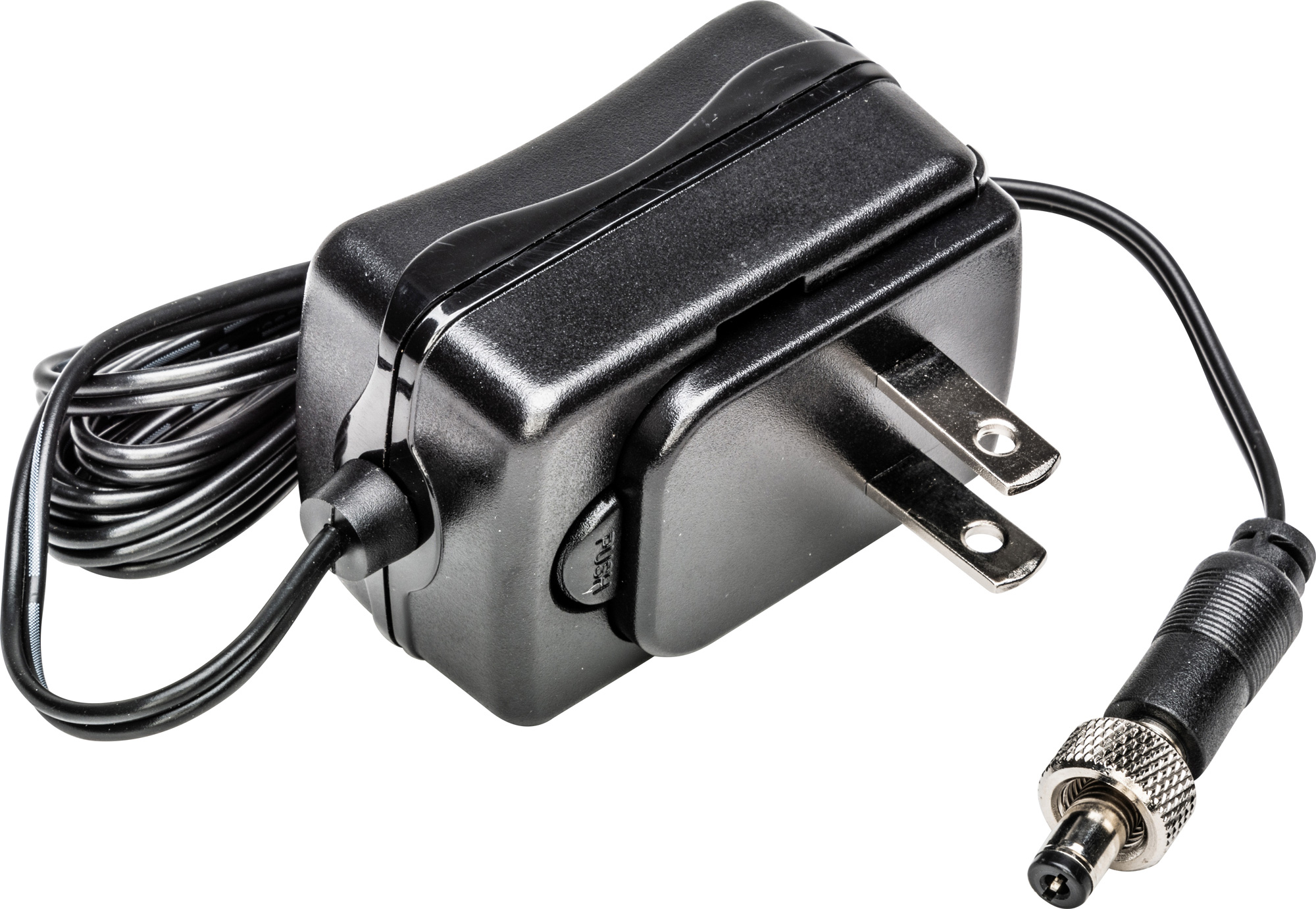

    • 12V/1A Power Supply, 2 Pair of IR Blasters

  • Warranty:

    • 1 Year
