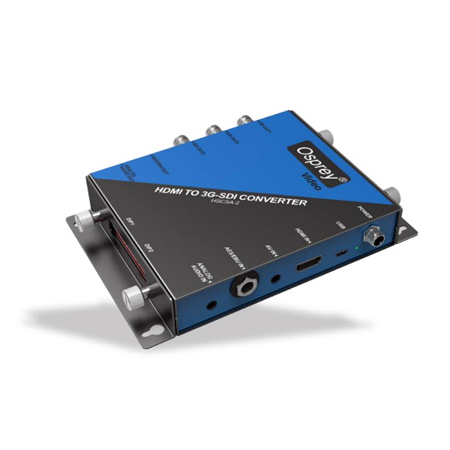

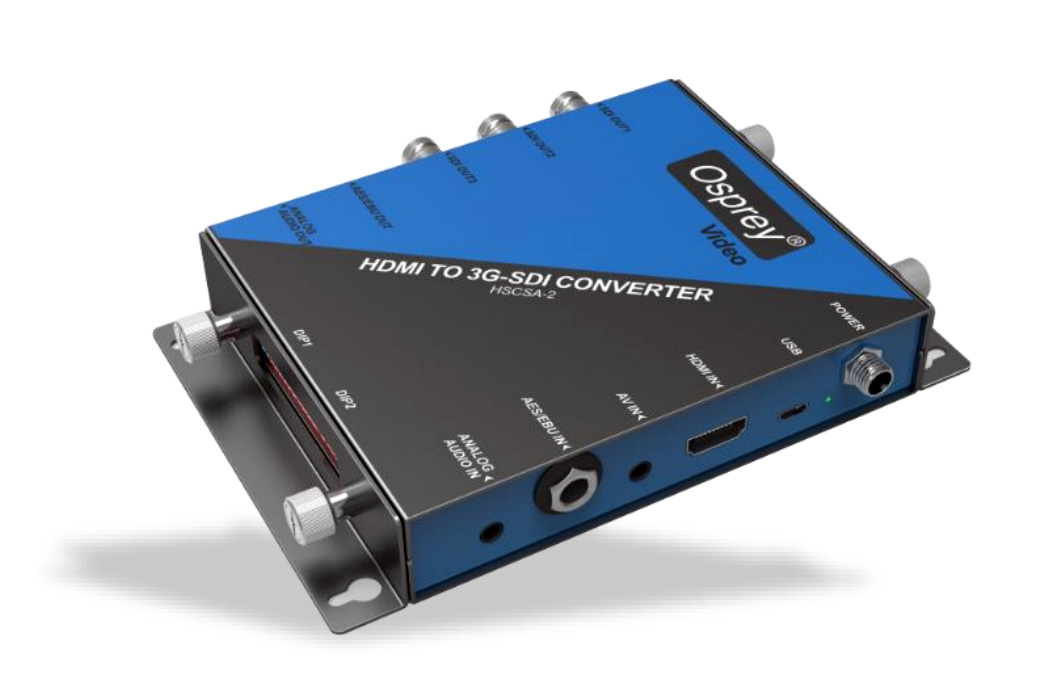

Osprey HSCSA-2 Scaling HDMI to SDI Converter with Frame Rate and Audio Conversion Options

ITEM #: OSP-HSCSA-2 MFG #: 97-42111

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$299.00

Availability: In Stock
iAvailability Description Popup


    97-42111 - Overview

    The Scaling Converter Series of products includes these "Swiss Army Knife" converters, an all-in-one solution to your SDI and HDMI needs. Supporting conversion from SDI to HDMI (SHCSA-2) or HDMI to SDI (HSCSA-2) as well as Scaling, Audio, and Color Space options, these unique tools also feature Video Frame Rate Conversion and Up / Down Scaling Options. AES/EBU and Analog Audio can be embedded into the workflow or deembedded for external monitoring. Multiple video output options enable confidence monitoring of the workflow.

    The settings can be changed by manual dip switches as well as a USB interface. Up to four custom settings can be configured with the software and are accessible via either interface. Diagnostic data overlay can be enabled to monitor video information.

    • Specifications:

      • Input Video Formats HDMI: 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1920x1080i 50, 59.94, 60; 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 576i, 576p; 480i, 480p
      • Input Video Formats AV: NTSC, PAL
      • Output Video Formats SDI: 1920x1080p 24, 25, 30, 50, 60; 1920x1080i 50, 59.94, 60; 1280x720p 24, 25, 30, 50, 60; 625i; 525i
      • Color Space and Precision: HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4; SDI: YUV 4:2:2

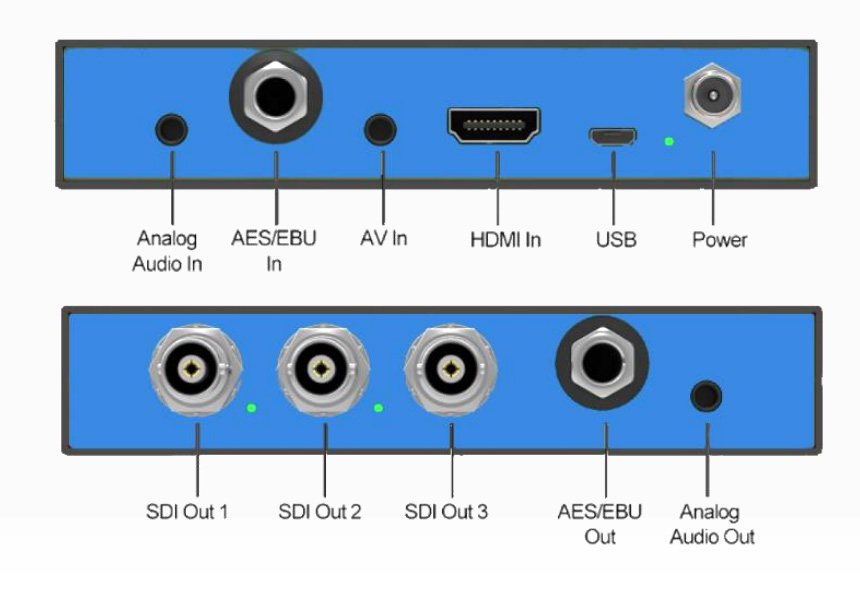

      • Video Input: HDMI 1.3a; CVBS (Composite)
      • Video Output: 3G-SDI x3
      • Audio Input: Embedded SDI, Analog Stereo, AES/EBU
      • Audio Output: Embedded HDMI, Analog Stereo, AES/EBU
      • Size: 5"x2.4"x0.95"
      • Weight: 0.7lb
      • Power: 12V 6W max

    • Item Includes:

      • Converter
      • International Wall Power Supply
      • Mounting Brackets
      • USB and AV Breakout Cable

    • Warranty:

      • 2 Year

    • GTIN:

      0850189006689
