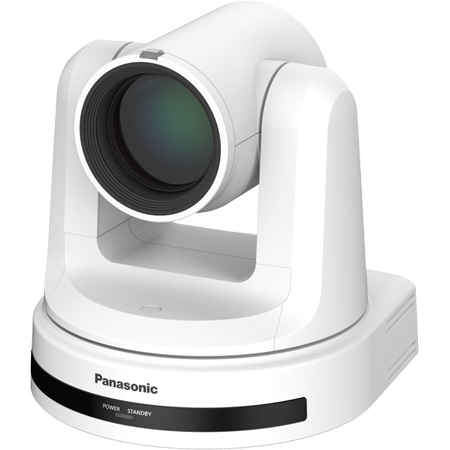

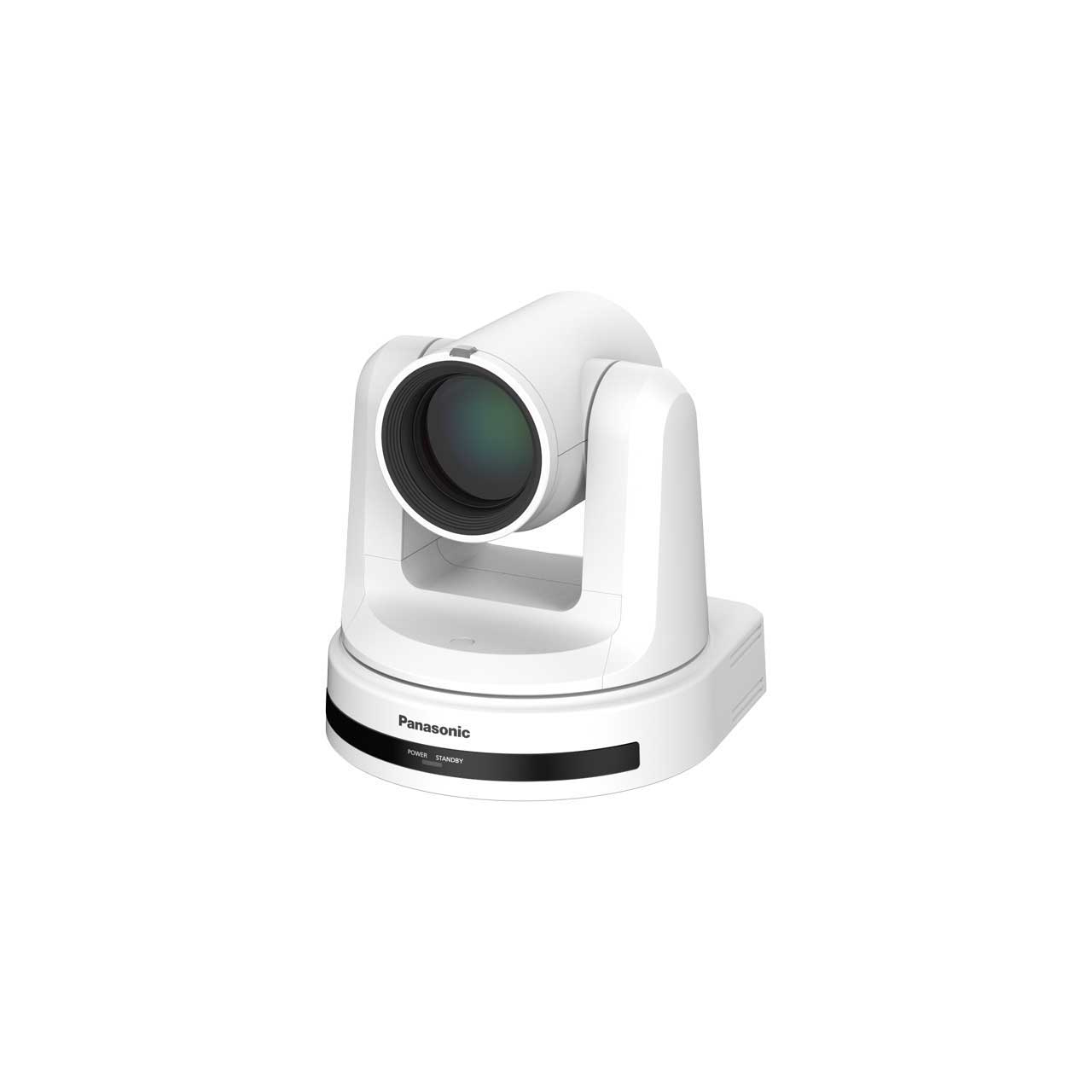

Panasonic AW-HE20 Motorized Optical 12x Zoom HD PTZ Camera - White


Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    AW-HE20WP - Overview

    PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes.
    The AW-HE20WP offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-HE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. This camera is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

    • Features:

      • High-quality video streaming for more comfortable online communication
      • Wide shooting range and high-magnification zoom deliver "the ambience of hall" intact.
      • Auto Tracing Software accurately follows and captures the speaker.
      • Excellent system flexibility to achieve smart wiring and smooth operation
      • Easy installation/setup and compact system configuration.
      • Single PC or controller can manage and control multiple cameras.
      • Use as a USB camera.
      • Direct upload of videos to video livestreaming services.
      • Compact size and excellent functionality that do not disturb the existing video streaming environment
      • Compact design blends in with the surroundings. Light weight and small size for added installation flexibility.
      • Linkable with existing system.
    • Specifications:

      • Comprehensive
      • Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
      • PoE+: IEEE802.3at compliant
      • Current Consumption: TBD
      • Ambient Operating Temperature: 0° to 40°C (32° to 104°)
      • Allowable Humidity Ranges: 20 % to 90 % (no condensation)
      • Storage Temperature: -20° to 50°C (-4° to 122°F)
      • Mass: TBD
      • Finish:
        AW-HE20W: White
        AW-HE20K: Black
      • Compatible controllers: AW-RP150GJ, AW-RP60GJ, AW-RM50AG

        Camera Part
      • Image Sensors: 1/2.8-type MOS x 1
      • Lens: Motorized Optical 12x zoom, F1.6 to F2.8 (f=3.9 mm to 46.8 mm)
      • Zoom: Optical zoom: 12x
      • Conversion Lens: Not supported
      • Angle of View Range: Horizontal angle of view: 71.0° (wide) to 6.0° (tele)
      • Vertical angle of view: 43.0° (wide) to 3.0° (tele)
      • Diagonal angle of view: 79.0° (wide) to 7.0° (tele)
      • Minimum Illumination: TBD
      • Horizontal Resolution: TBD
      • Output Format:
        HDMI: HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
        SDI: HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p

      • Video Output: HDMI, 3G-SDI OUT

      • Input/Output Connector: LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT

        Pan-Tilt Head Unit
      • Installation Method: Stand-alone (Desktop) or suspended (Hanging)*1
      • Panning Range: ±170°
      • Tilting range: -30°to 90°*2 (TBD)
      • Quietness: TBD

        Supported Operating Systems and Web Browsers:
      • Windows*3:
        Windows 10
        Windows® Internet Explorer® 11 (32 bit / 64 bit)
        Microsoft Edge
        Google Chrome
      • Mac*3:
        Mac OS v10.15
        Mac OS v10.14
        Mac OS v10.13
        Mac OS v10.12
        Google Chrome

        IP Streaming
      • Image Streaming Mode: JPEG (MJPEG), H.264, H.265
      • Image Resolution: 1920x1080, 1280x720, 640x360

        *1: To ensure safety, the unit must be secured using the mount bracket supplied.
      • *2: The main unit may appear in the video depending on the pan/tilt position.
      • *3: Supported OS indicated are for browsers current as of September 2021. See Panasonics "Service and Support / PASS" for the latest information on browser support.
    • GTIN:
