    DINET DAN-TX2 - Overview

    Two Channels of Analog Audio over Dante

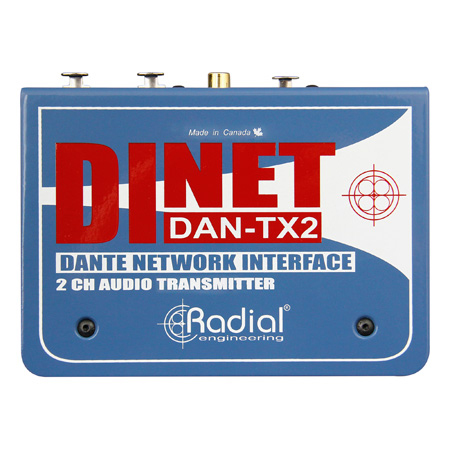

    The Radial Engineering DAN-TX2 is a 2-Channel analog-to-digital converter that allows you to connect any line level source to a Dante or AES67-compliant network.

    Seamless network integration
    The DiNET DAN-TX2 makes it easy to transmit two channels of high quality analog audio over a Dante or AES67-compliant network. Multiple input options are provided, with Balanced XLR/TRS connectors for professional audio sources, RCA jacks for line level consumer devices, and a 3.5mm aux input for connection to laptops, smartphones, and tablets. Trim controls and pad switches are included for each channel, with a link switch to simplify control for stereo sources. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations, and redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously. The DAN-TX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

    Features:
    2 channel analog to Dante interface - connect any analog device to a Dante enabled network.
    24bit/96kHz analog to digital conversion.
    Neutrik XLR/TRS combo jack, RCA, and 3.5mm inputs.
    Ethercon network connection.
    PoE or external 15VDC power.

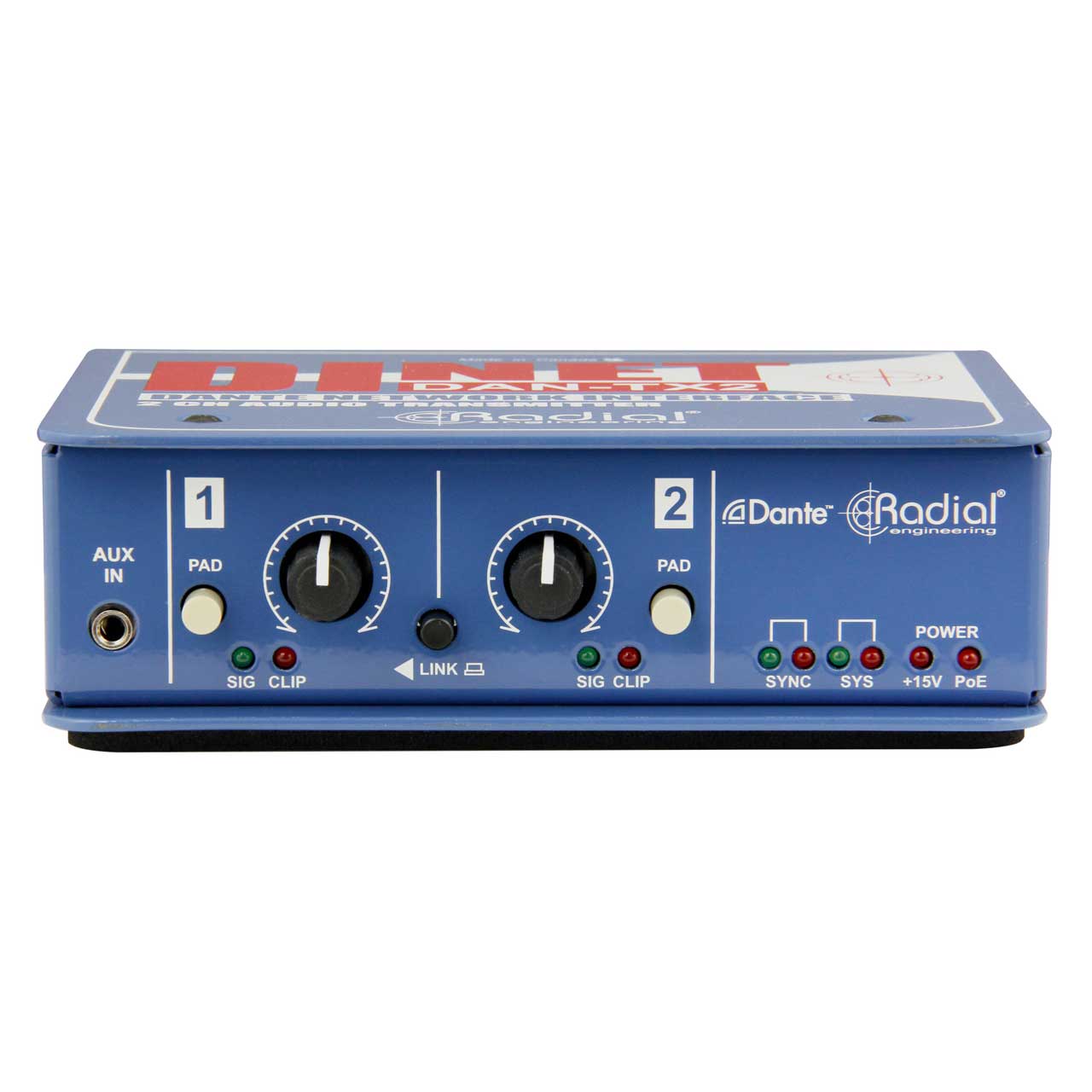

    Adjustable trim controls for both inputs with stereo link feature.
    Input pad for both channels.
    AES67 compliant.
    Radial stand-alone chassis allows for rack mounting with optional kit.
    Not replacing the original TX.

    What is different on the TX2 vs the original TX:
    Rack-mountable stand-alone chassis.
    Neutrik Ethercon network connection.
    Combo jacks on the input allow for XLR connection.
    Separate trim controls allow for true 2-channel operation.
    Cannot be used as a direct box. The DAN-TX has a switchable instrument input and thru, The TX2 is designed for line level applications.

    DiNET DAN-TX2 Applications:

  • Using the DAN-TX2 with consumer electronics

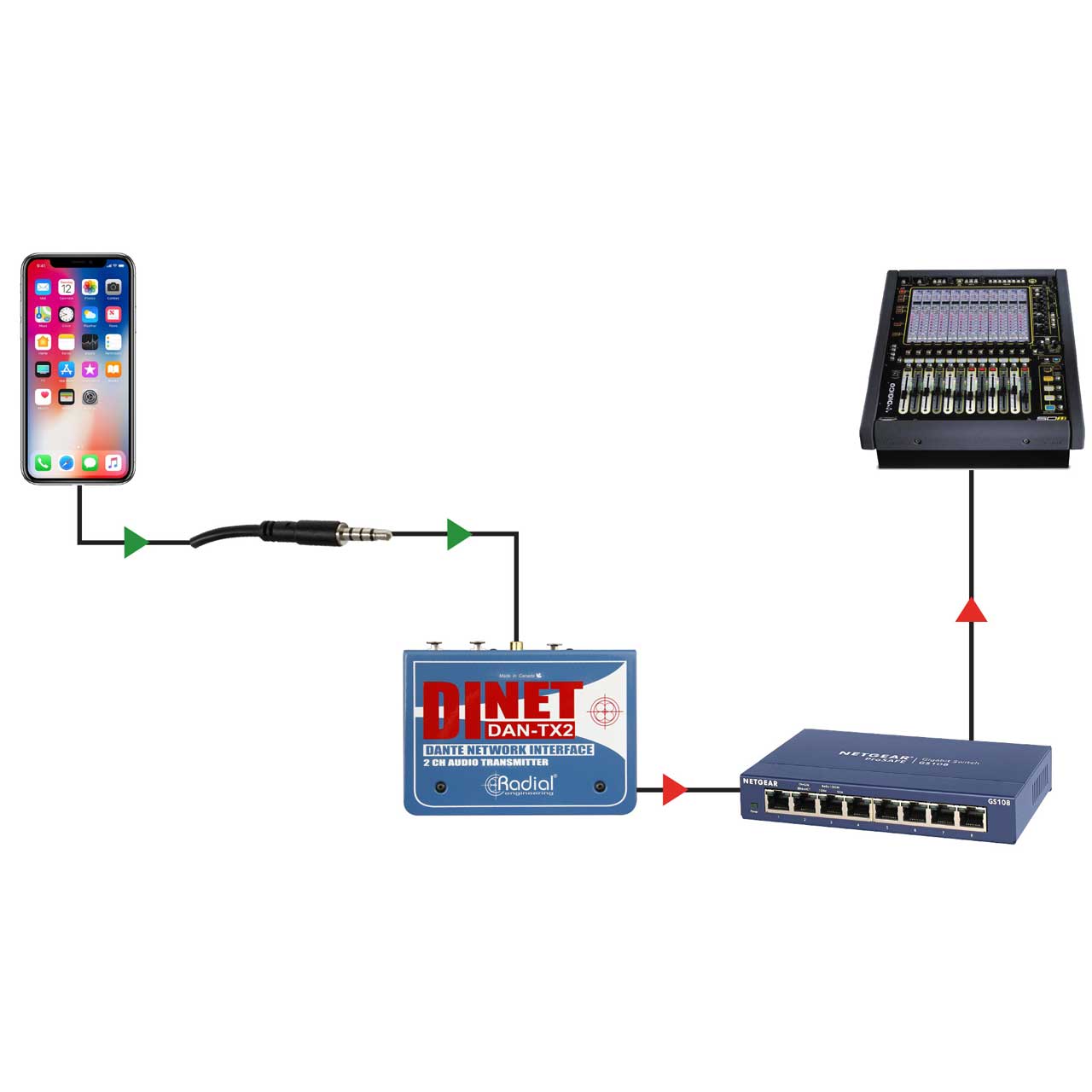

  • Using the DAN-TX2 with mobile devices

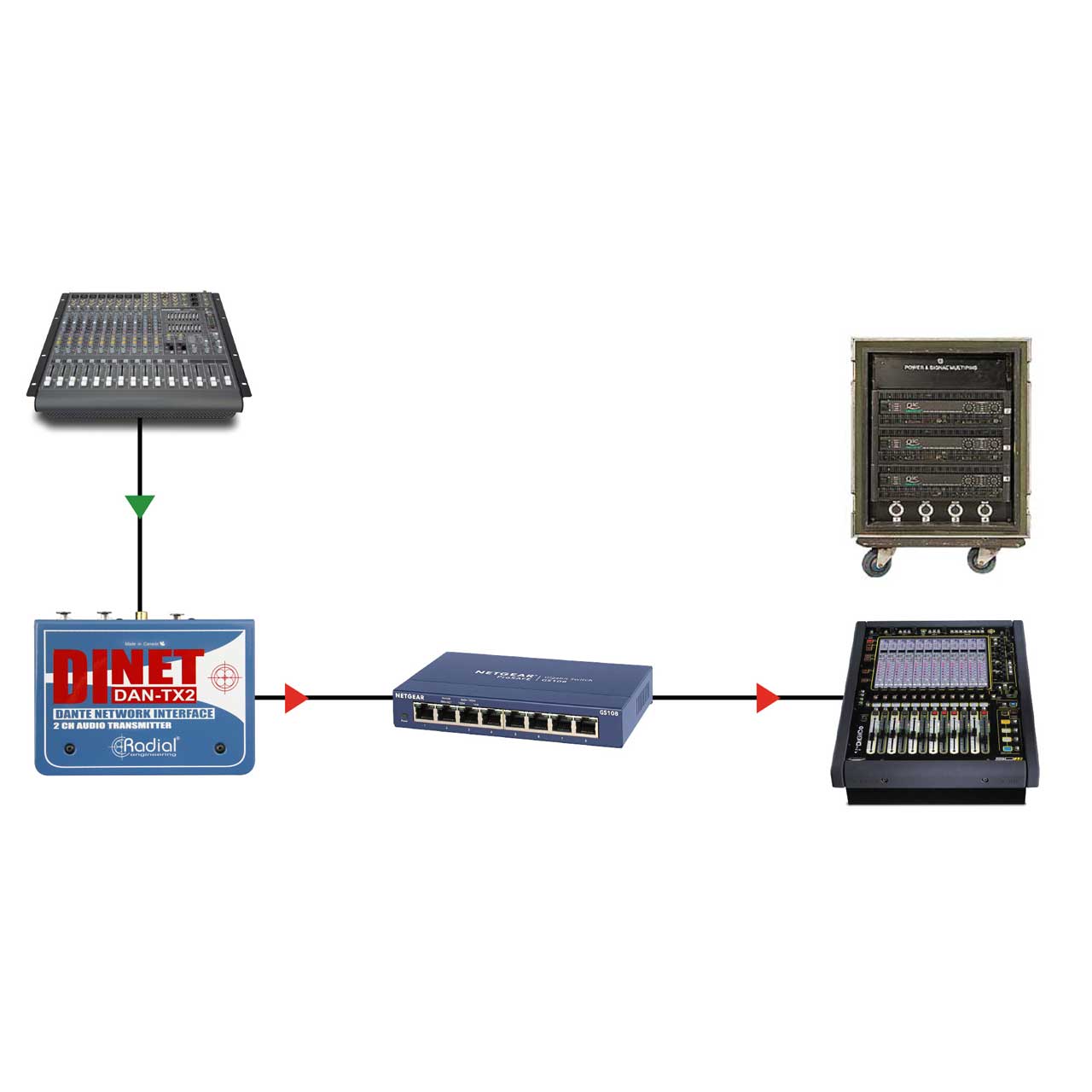

  • Using the DAN-TX2 for balanced professional audio
    • Features:

      • Connect any line level source to a Dante network
      • XLR, 1/4" TRS, RCA and 3.5mm input jacks
      • 24bit/96kHz analog to digital conversion
      • Handles signal levels up to +24dBu
      • Compliant to AES67 specifications

    • Specifications:

      • Specifications
      • Audio circuit type: High current balanced active input device
      • Number of channels: 2
      • Frequency response: 20Hz-20kHz
      • Dynamic range: >103dB
      • Total harmonic distortion: 0.008% @ -6dBfs
      • Intermodulation Distortion: 0.0017% -10dBfs
      • Input Impedance: 40kOhm (Balanced); 20kOhm (Unbalanced)
      • Equivalent Input Noise: -98dB
      • Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
      • Maximum Input: +28dBu

        Features
      • Input pad

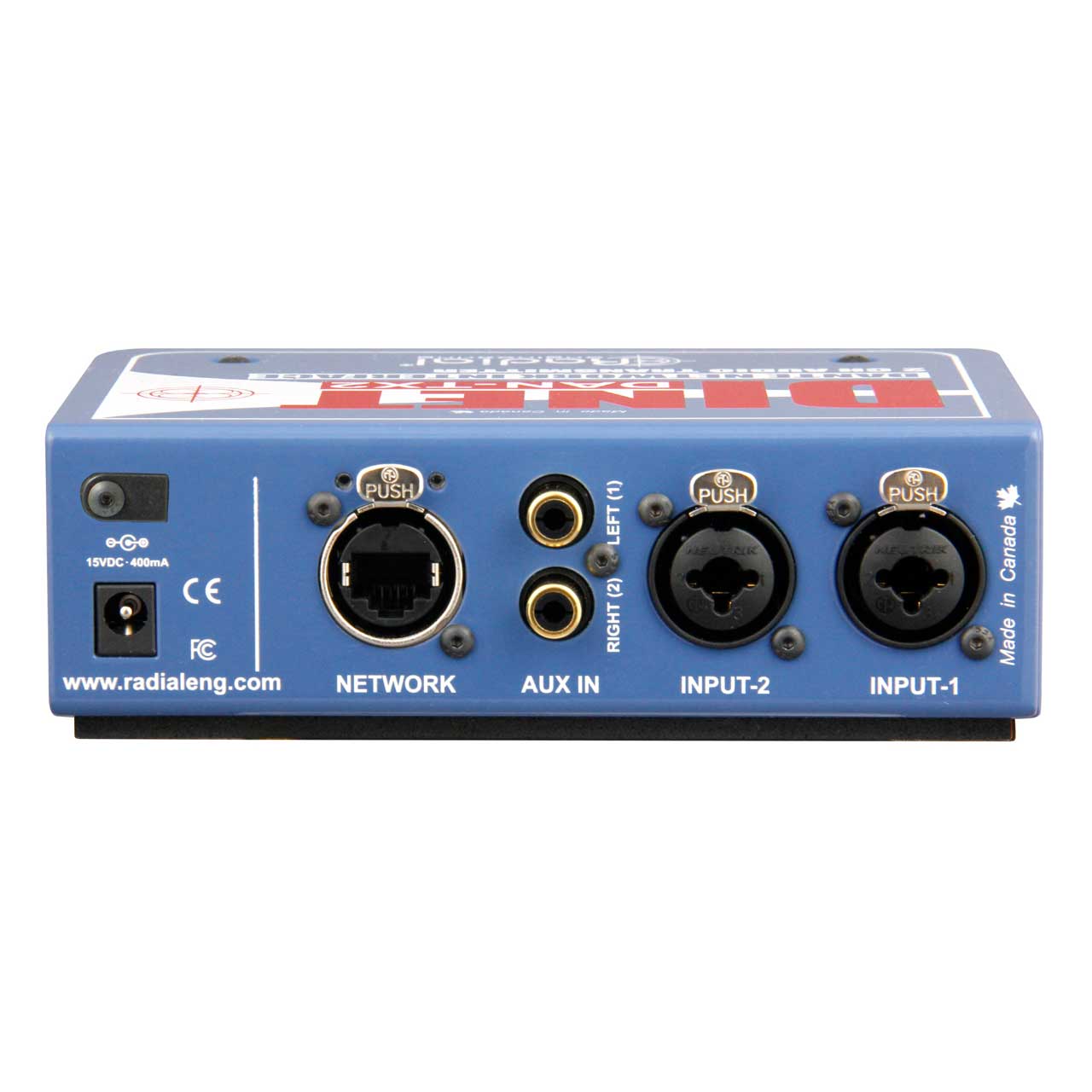

      • Input Connectors: 2x XLR/TRS combo, 3.5mm TRS, 2x RCA
      • Output Connectors: RJ45 Ethernet with locking etherCON
      • Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >85dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af

        General
      • Construction: 14-gauge steel
      • Finish: Durable powder coat
      • Size (L x W x D): 4.5" x 2" x 6" (121 x 6 x 147mm)
      • Power: 15VDC 400mA (included) or PoE
      • Conditions: For use in dry locations only between 5°C and 40°C

    • Item Includes:

      • 15VDC power supply

    • Warranty:

      • Radial 3-year, transferable

    • GTIN:

      0676101044795
