Telecast Rattler 4 Optical - ST 22 dBm - in to Electrical - BNC Out - Mini-XLR Locking Cord

Item #: RAT4-OE-MXLR   •   MFG #: RAT4-OE-MXLR



List Price:$895.00
Our Price:$873.50

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

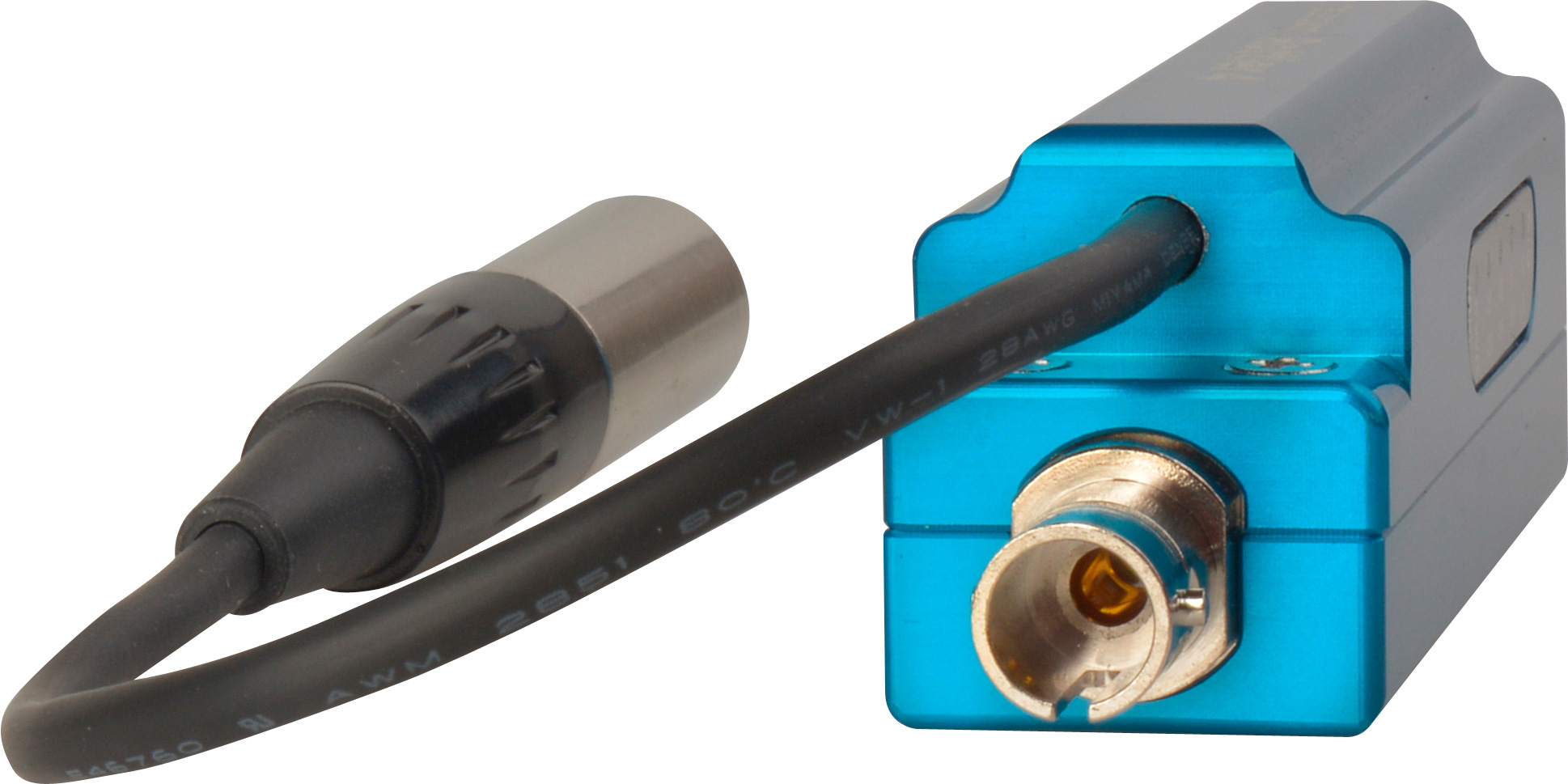

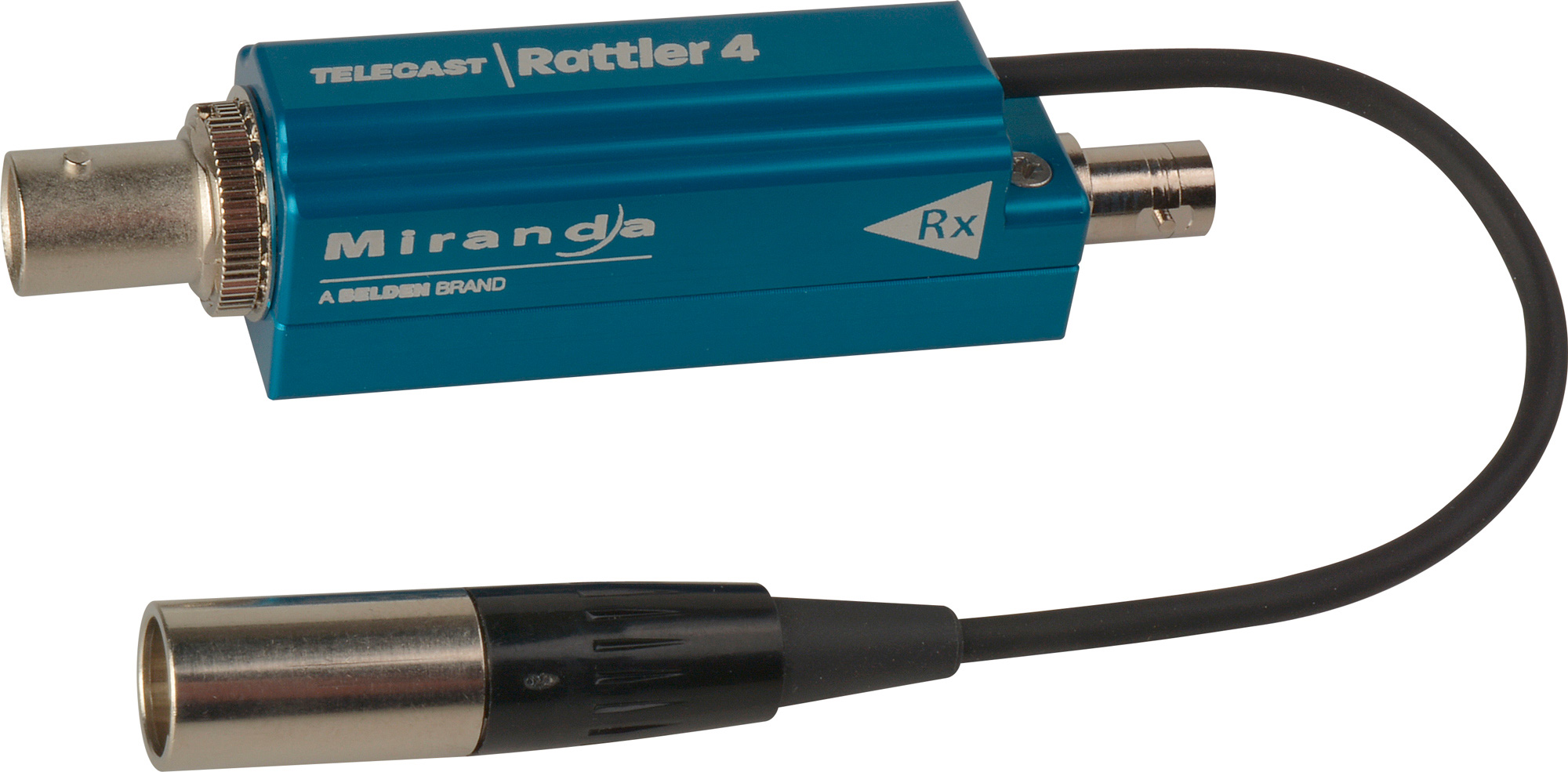

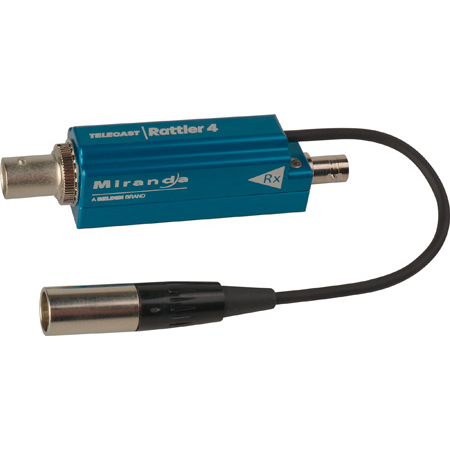

    Rattler 4, optical (ST, -22 dBm) in to electrical (BNC) OUT; mini-XLR locking cord


    • Features

      • 19.4 Mbps to 3 Gbps
      • Compatible with SMPTE 310M, 292M,
      • 259M, 297M, 424M
      • Standard formats internally reclocked:
      • 270 Mbps, 1.5 Gbps and 3 Gbps
      • 18 CWDM wavelengths
      • Up to 50 km distance
      • Cool, efficient, reliable
      • Quick, easy installation

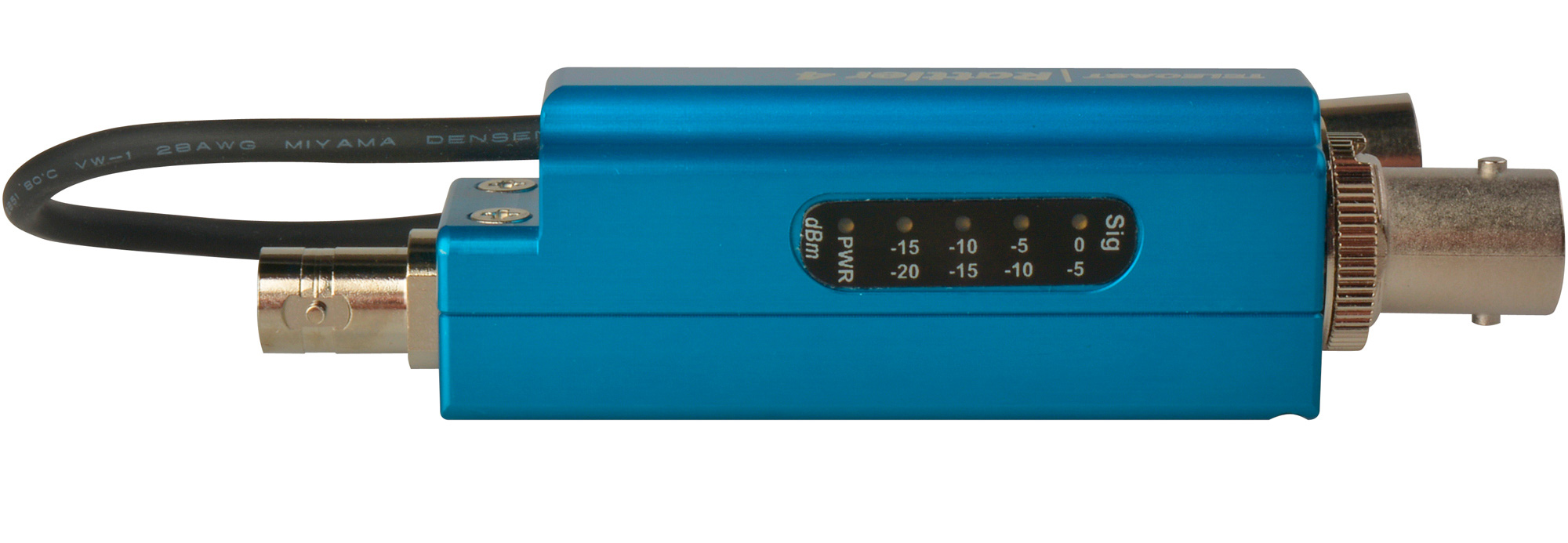

      • LED indicators show you:
      • Power ON
      • HD-SDI data presence
      • Rx optical power levels
      • Supports embedded audio
      • Power from 5-16 VDC
      • Durable, reliable and serviceable
      • Very low system jitter
      • >10 dB return loss at 3 GHz

    • Specifications

      • VIDEO
      • Transmission
      • method: Digital
      • Input level: 800 mV p-p
      • Input
      • impedance: 75 ohm
      • Coax equalization
      • at 2.97 Gbps: 100 m
      • Output
      • impedance: 75 ohm
      • Bit-error rate
      • at -22 dBm: 10-11
      • Jitter (pathological
      • data pattern): <0.2 UI
      • Rise/fall times: <120 ps

      • TRANSMISSION
      • Operating
      • wavelength: 1310, 1550, or 1270-1610 nm
      • (CWDM)
      • Coaxal video connector
      • I/O: BNC
      • Optical
      • connector: ST
      • Optical source: Laser diode (FP or CWDM DFB)
      • Optical detector: PIN-TIA diode
      • Transmitter
      • output (typ): 1310,1550: -7 dBm
      • CWDM: 3 dBm
      • Receiver
      • sensitivity: -22 dBm
      • Singlemode
      • 3Gbps*: Link margin: 15-25 dB
      • Distance: 20-50 km
      • Multimode
      • 3Gbps*: Distance: 300 m

      • MECHANICAL/ENVIRONMENTAL
      • Dimensions (W x H x D):
      • Singles: 0.75 x 0.75 x 3.2 in
      • Doubles: 0.75 x 1.5 x 3.2 in
      • Weight,
      • each end: 3 oz
      • Input voltage: 5-16 VDC
      • Power connector: plug replaceable, mini XLR
      • Power consumption
      • (typ.) 600 mW
      • Indicators: Power, signal, link, optical power
      • Temperature range,
      • operating: -25° to 55 °C
      • Humidity range: 0 to 95 % RH, non-condensing
      • * Performance may be limited by fiber and installation.
