RF Venue DFINB Diversity Fin Antenna Install Black

ITEM #: RFV-DFINB MFG #: DFINB

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$682.00

Our Price:

$649.00

Availability: In Stock
iAvailability Description Popup


    DFINB - Overview

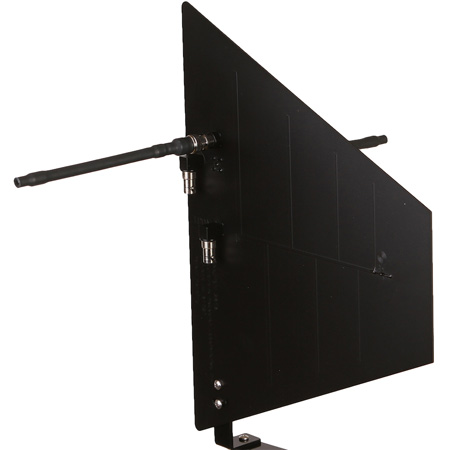

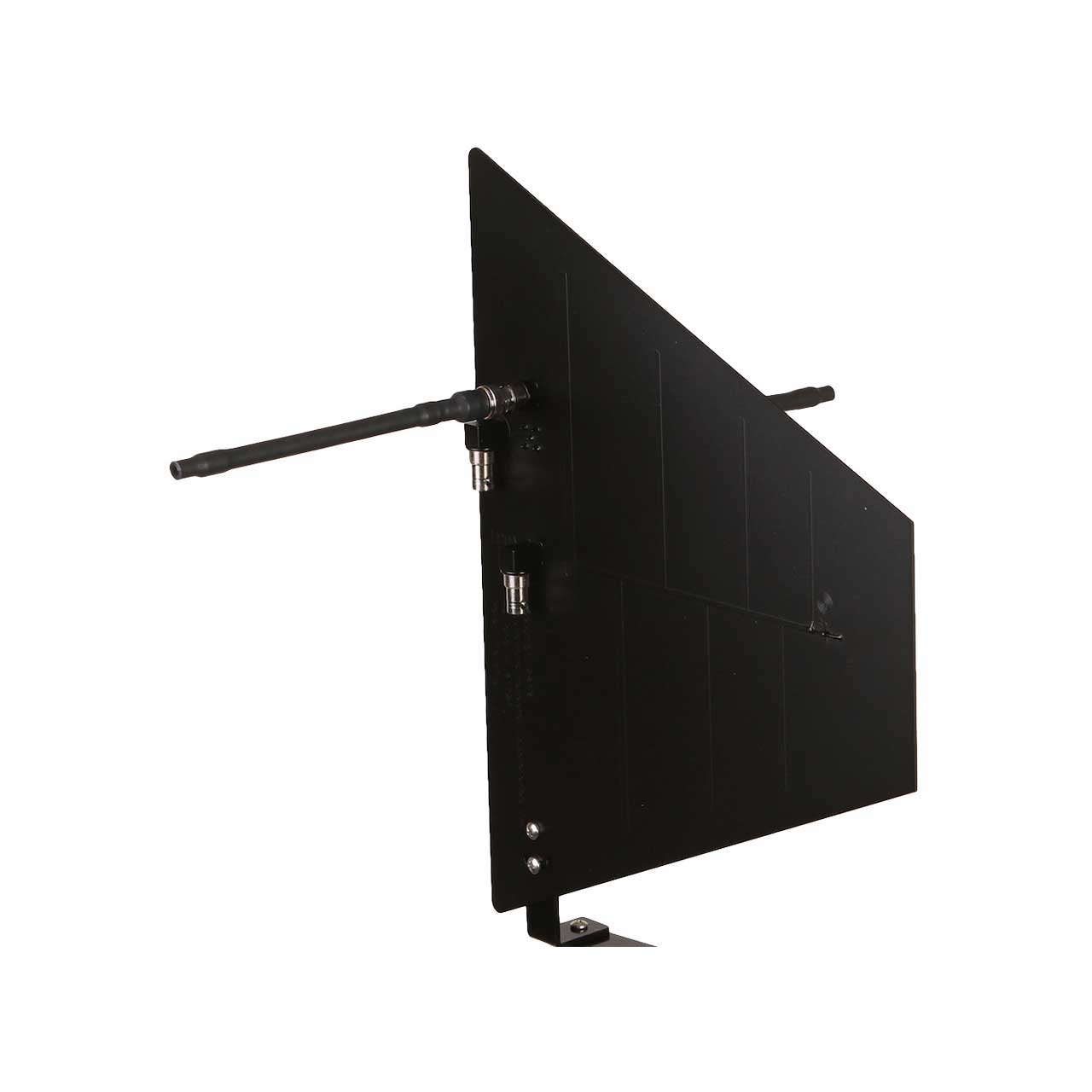

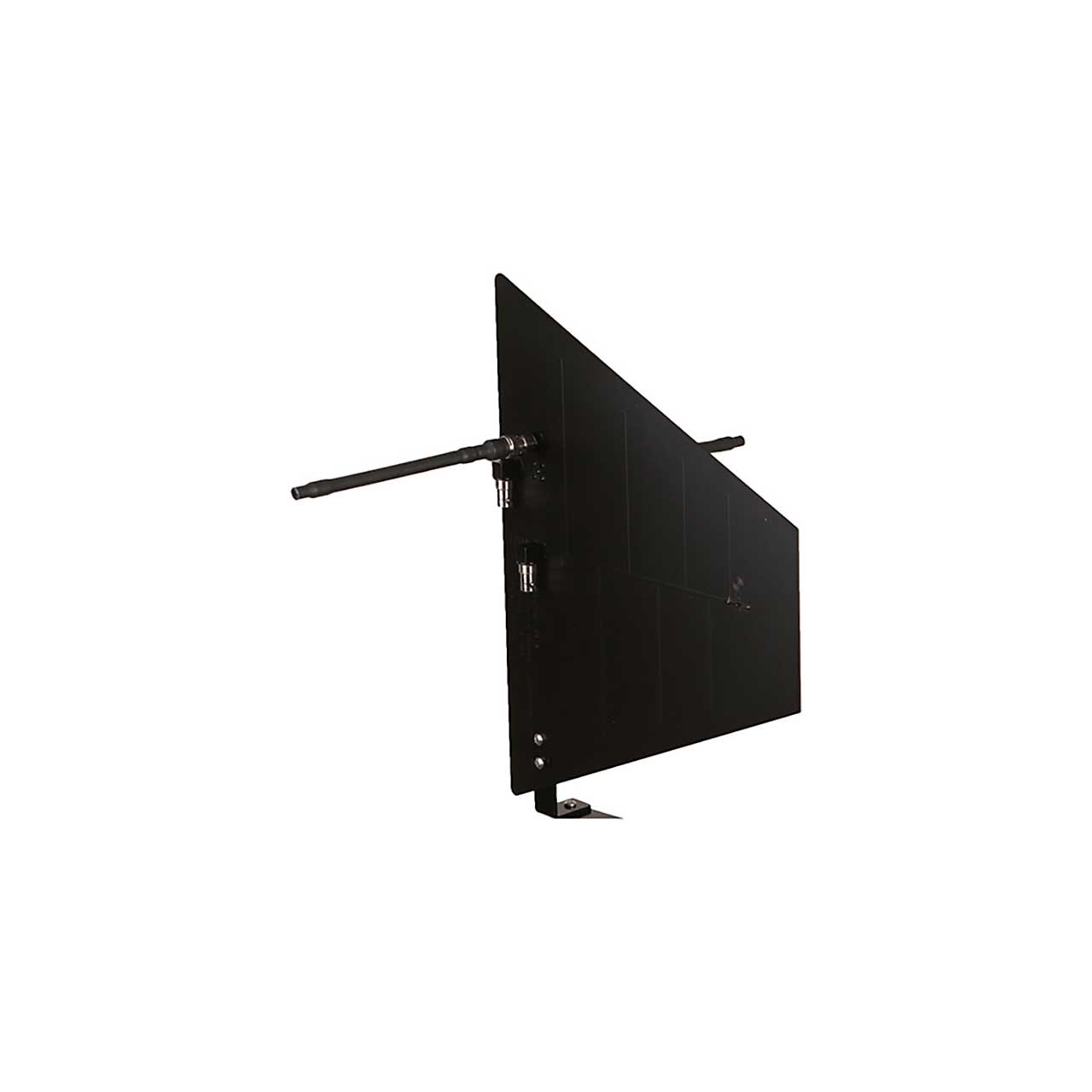

    The patented Diversity Fin™ is a multi-purpose antenna for wireless microphones that reduces dropouts using a cross-polarized, hybrid design. It combines one LPDA and one dipole antenna in an orthogonal (right angle) configuration. One element captures vertically polarized waves, and the other horizontally polarized waves-doing the same job as two "shark fin" paddles while greatly improving RF and audio performance.

    To use, just connect both the A and B outputs on any antenna distributor or microphone receiver and point toward the stage.

    The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits. From high profile live sound events, to film and TV productions, to routine installations in schools and churches, the Diversity Fin is the ideal all-purpose external antenna for diversity microphone systems of any brand.

    Note: The Diversity Fin has two elements and requires two coax cables (not included).

    • Specifications:

      • Physical
      • Length: 300mm (12 in)
      • Height: 370mm (14.5 in)
      • Weight: 454g (1 lb)
      • Mount threads: 1/4-20, 3/8-16, 5/8-27
      • Operating temperature: -23°C-54°C
      • Color: Black or white
      • Connector(s): (2) BNC female

        Electrical
      • Operating frequency: 470-698 MHz
      • Bandwidth: 228 MHz
      • Average return loss: -9.4 dB
      • Impedance: 50ω

        LPDA
      • Beam width: 140° azimuth
      • F/B ratio: -8 dB
      • F/S ratio: -5 dB
      • Gain: 5 dBd

        Dipole
      • Beam width: 100° azimuth
      • F/B ratio: -5 dB
      • F/S ratio: -13 dB
      • Gain: 1.8 dBd

    • GTIN:

      0718122341016
