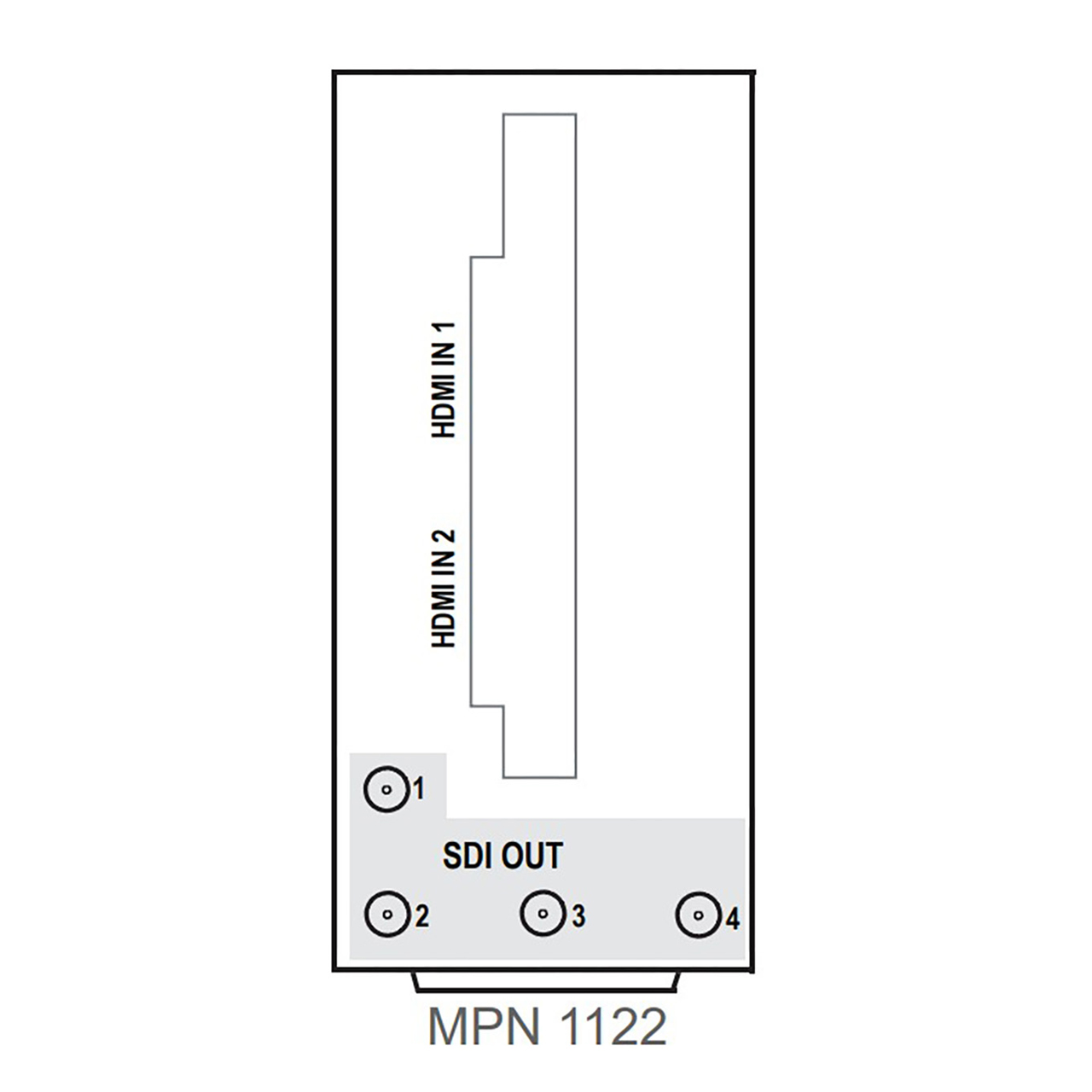

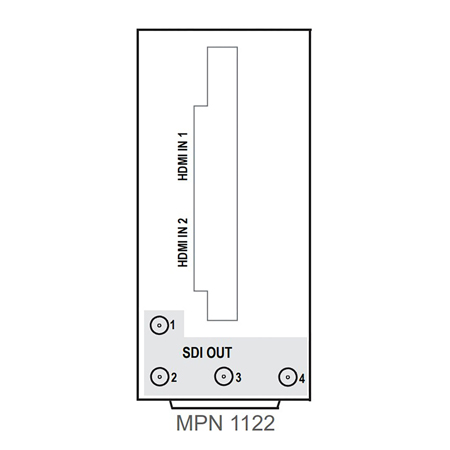

The Cobalt Digital RM20-9926-2HTOS-B-HDBNC is a standard-width, openGear rear module panel that matches the 9926-2HtoS card's I/O layout.Gives you 2 HDMI inputs and 4 SDI outputs(on HDBNC connectors) for the 9926-2HtoS card.
Aligns with the card so signals pass through the module's connectors.
Occupies two frame slots (the card's slot plus the adjacent even slot).
Please Note: Note: Due to the alignment of the 9926-2HtoS card and this rear module, the combination of the card and rear module will consume the adjacent even-numbered frame slot in addition to the odd slot occupied by the card.
MPN 1122 Note: Mates to card in an odd-numbered frame slot.
This Revision B rear module may be used on the Sapphire 9926-2HtoS card or the Sapphire 9926-4HtoS card.
A Revision A rear module with no space for the Sapphire 9926-2HtoS
HDMI connectors may only be used on the Sapphire 9926-4HtoS card.
Make 9926-2HtoS into a standalone unit by using 9926-2HtoS with the BBG-1300-FR 1RU Enclosure for openGear cards.
