Roland V-600UHD 6-Input HDR 4K/UHD HDMI 2.0 & 12G-SDI Video Mixer Video Production Switcher

ITEM #: ROL-V-600UHD MFG #: V-600UHD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$11,999.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    V-600UHD - Overview

    Meeting the Demands of Live 4K Production!

    Upgrade your events to 4K HDR - One input at a time
    As clients and audiences start demanding 4K at events, your current HD sources and displays shouldn't become obsolete - and the Roland V-600UHD lets you transition to 4K workflows as demand and budgets allow. With Roland's Ultra Scaler technology, scaling is provided on every input, so you can use Full HD and 4K sources simultaneously, and output at multiple resolutions. You can also leverage the high pixel density of 4K camera sources in Full HD workflows for problem-free, visually-impressive productions.

    4K Without Compromise
    Upgrading to 4K greatly improves the image quality of your productions, and allows you to immediately start working, exploring and taking advantage of the true capabilities of 4K, with your current products.

    The Roland V-600UHD lets you transition to 4K workflows as demand and budgets allow. With Roland's Ultra Scaler technology, scaling is provided on every input, so you can use Full HD and 4K sources simultaneously, and output at multiple resolutions. You can also leverage the high pixel density of 4K camera sources in Full HD workflows for problem free, visually impressive productions.

    The Right I/O for Your Show
    The V-600UHD has four HMDI 2.0 and two 12G SDI inputs, perfect for events needing several computer and video playback sources complete with IMAG camera support. Each input independently supports input and scaling of HD, Full HD, UHD 4K, and DCI 4K, as well as PC resolutions from UXGA to DCI 4K - with no converters needed. AUX destination switching makes it easy to include down-stage confidence monitors, while the configurable multi-view monitor lets you see all your sources, programs and previews - at a glance. Each output also supports downscaling to Full HD for outputting to streaming encoders or other HD-equipped destination displays.

    Capture All the Action with a Single 4K Camera
    You don't need multiple cameras for multiple shots. If your production requires a wide shot of the stage, a medium shot of the speaking panel, and close-ups of each speaker, the V-600UHD has you covered with built-in Region of Interest [ROI]. This allows you to point a single 4K camera at the stage and use the V-600UHD's input sharing and scaling functions to crop out up to eight "camera shots" that you can assign to the V-600UHD's cross points. Increase your production value without increasing your camera count, complexity or costs.

    Get Creative with Composition
    The V-600UHD supports two Picture-in-Picture windows (PnP) that offer so much more than simple fixed inset windows. You can accomplish results comparable to dedicated screen processors, with fully customizable aspect ratios, sizes and input source scaling - letting you display whatever you want, wherever you want it. Combine flexible PnP with the ultra-wide pixel count of DCI 4K to create engaging and impressive screen sets.

    Integrate with the Audio System
    Embedded audio from digital video signals can be tricky to incorporate into audio systems at an event or performance. Superior audio management lies at the heart of the V-600UHD, with flexible 24-bit 48kHz audio processing that lets you avoid problems before they occur. You can de-embed audio from the currently selected source and send to an external sound mixer using Audio Follows Video.

    • Features:

      • High Dynamic Range [HDR]
      • Full 60Hz Frame Rate
      • A More Vivid Color Space
      • 10-bit 4:4:4 Pixel-accurate Color
      • Support for DCI Cinema 4K Resolution

    • Specifications:

      • Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit
      • Supported Video Input Formats:
        Video: 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
        PC: 1600 x 1200/60 Hz (UXGA), 1920 x 1080/60 Hz (FHD), 1920 x 1200/60 Hz (WUXGA, Reduced blanking), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)
        Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
      • Supported Video Output Formats:
        Video: 1080/59.94p, 1080/50p, 2160/59.94p (UHD 4K), 2160/50p (UHD 4K), 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)
        PC: 1920 x 1080/60 Hz (FHD), 3840 x 2160/60 Hz (UHD 4K), 4096 x 2160/60 Hz (DCI 4K)
        MULTI-VIEW: 1080/60p
        * Conforms to VESA DMT, VESA CVT, CEA-861-F
        * Color Gamut: BT.709, BT.2020
        * Dynamic Range: SDR, HDR PQ (HDR10)HDR HLG

        Video Effects
      • Transition: Mix, Cut, Wipe (9 patterns)
      • Composition: PinP, Key (*1), PinP + Key (*1)
      • DSK: PinP, Key (*1), PinP + Key (*1)
      • Others: Output Fade, Output Freeze
        *1 Luminance Key, Chroma Key

      • Audio Processing: 24 bits/48 kHz

        Audio Formats
      • SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
      • HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch

      • Audio Effects:
        Matrix mixer
        Delay (1 ms units, max 500 ms)
        Test tone output

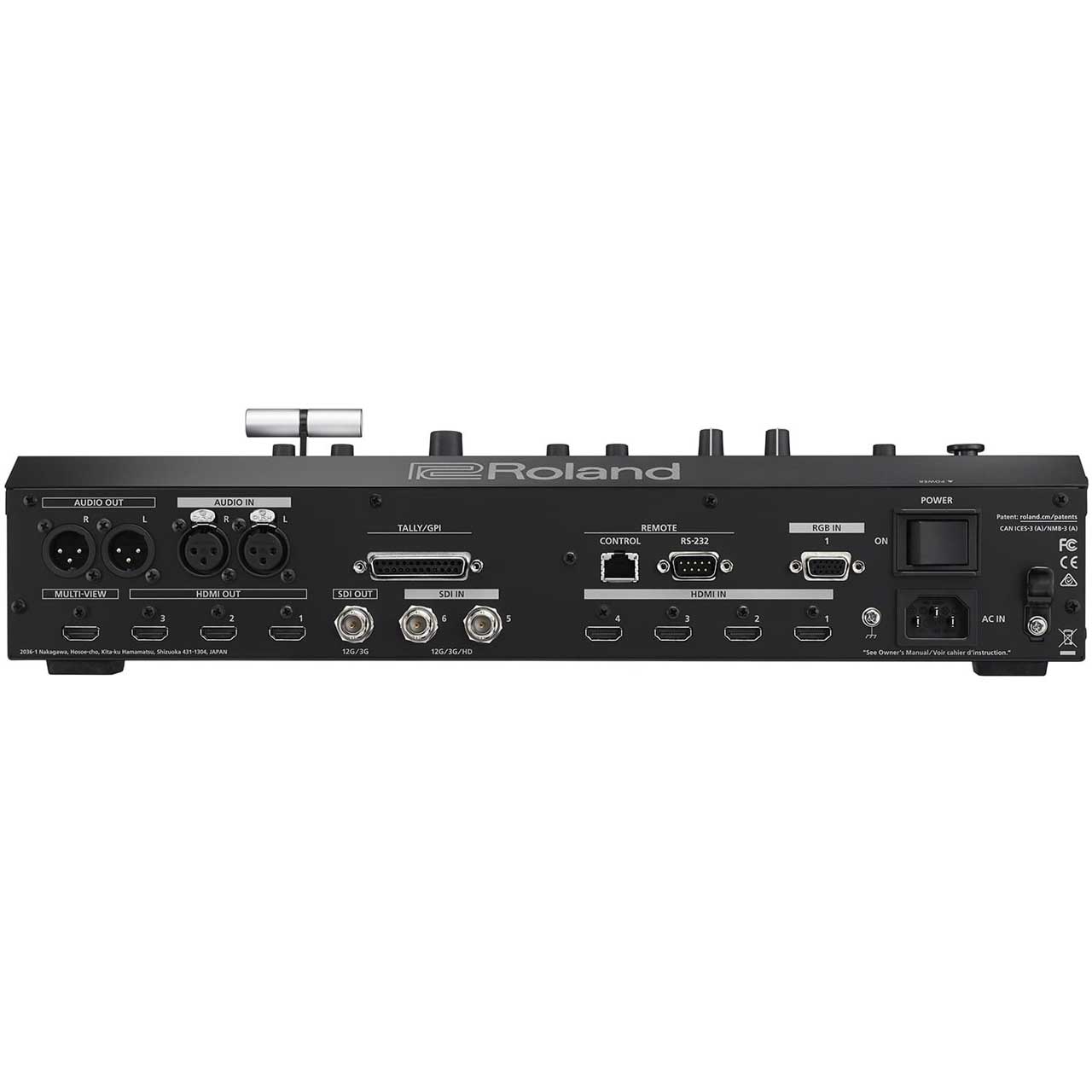

        Connectors
      • Input Connectors:
        HDMI IN 1 - 4: HDMI type A (HDMI 2.0)
        SDI IN 5 - 6: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
        RGB IN 1: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
        AUDIO IN L/R: XLR-3-31 type (balanced)
      • Output Connectors:
        SDI OUTPUT: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
        HDMI OUT 1 - 3: HDMI type A (HDMI 2.0)
        MULTI-VIEW: HDMI type A (HDMI 1.4)
        AUDIO OUT L/R: XLR-3-32 type (balanced)
        PHONES Jack: Stereo miniature phone type
      • Other Connectors:
        USB MEMORY: USB A type (for USB flash drive)
        RS-232: DB-9 type (Male) (for Remote Control)
        CONTROL: RJ45 type, 100BASE-TX (for Remote Control)
        TALLY/GPI: DB-25 type (Female) (Tally: 16, GPI: 8)

        Other
      • Power Consumption: 75W
      • Dimensions HxWxD): 4.3" x 19 x 11.8" (109mm x 482mm x 300mm)
      • Weight: 11lbs (5.3kg)
      • Operation Temperature: 41°F - 104°F (5°C - 40°C)

    • GTIN:

      0761294513668
