NDI® Studio 4K.S
NDI® Studio 4K.S encoding 1 channel 1.5G/3G/6G-SDI/12G-SDI video source into Full NDI, users can choose any format from HD to 4K FULL NDI; and also support NDI decoding, Convert Full NDI to 1.5G/3G/6G/12G-SDI, and output any format specified by the user through SDI output port.
Encoding/Decoding In One Key Switch
Switch Full NDI Encoding and Decoding by clicking; Support 12G-SDI or below any SMPTE standard format input; Full NDI Encodes and Decodes exact original image color and sharpness, low latency, broadcast-grade metrics, flexible UDP features, integrated TALLY, audio embed/unembed and call capabilities, flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost...
UpdownCross Convertion

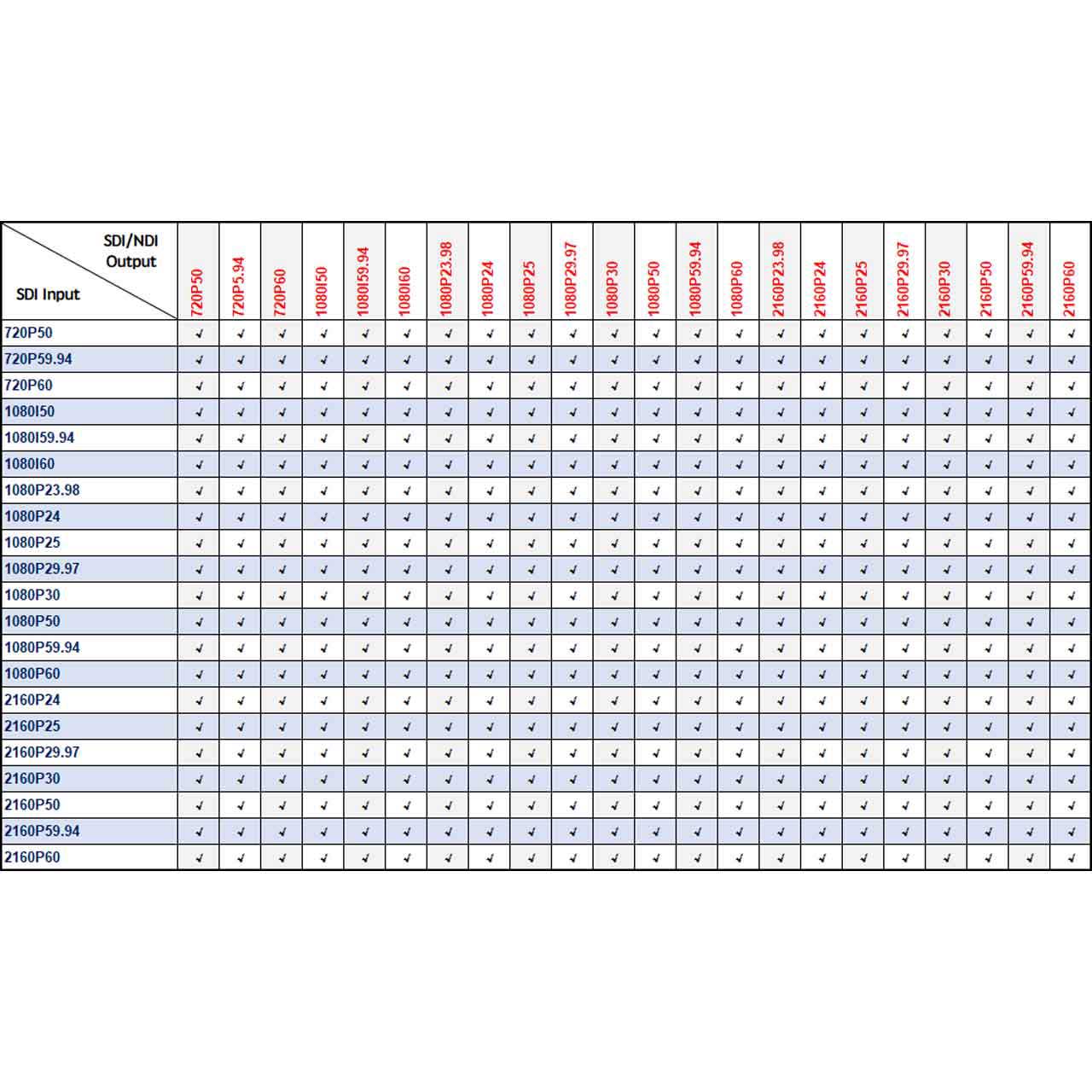

NDI® Studio 4K.S is also both 12G-SDI/HDMI2.0 Interface Up/Down/Cross converter. The conversion function and NDI codec function work at the same time and it supports at least 27 SMPTE standard formats, special formats customized by users can also be accepted.
UHD Optical Transceiver
Built-in 12G-SDI optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the Transmitting or Receiving function with one click according to the actual situation, automatic signal recognition, up to 20KM transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment;
Complete and overall

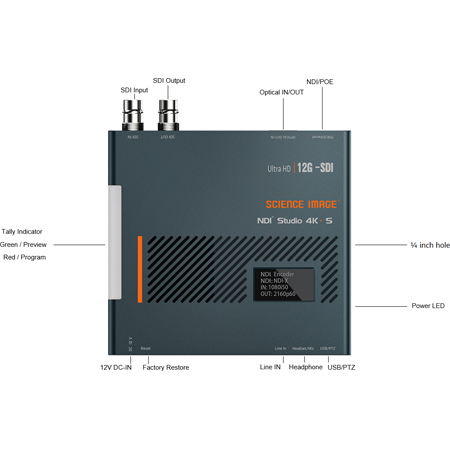

large size, three sides Tally light
1.3" OLED will display all working status, such as encoding or decoding, signal, format, network, input/output, optical transmit or receive and more other info in your live.
Flexible deployment, convenient and practical
Built-in 12G-SDI optical transceiver function, optical transceiver integrated, when using NDI in the field, can be used as a two-way optical transceiver, it can receive, also can send; Users can switch the receiving or sending function with one key according to the actual situation, namely plug and play, support hot plug and plug, automatic signal recognition, up to 40 km transmission; Optical terminal machine and NDI encoding and format up and down frequency conversion can work at the same time, one machine and three uses, you can set up flexible transmission mode anytime and anywhere according to the requirements of the field environment;
NDI 5
Support NDI 5 functions, the application of NDI 5 features and tool set, give full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.
Broadcast Quality
Broadcast level indicators and reliability, support 12G-SDI and SMPTE/ITU broadcast level international standard formats and specifications, support 444,422,420 and other sampling formats, accurate and rapid signal recognition, using Selinth FPGA SOC hardware and internal logic design, embedded Linux system, The program runs like a rock, impervious to the environment
Please Note! SFP Module Sold Separately
