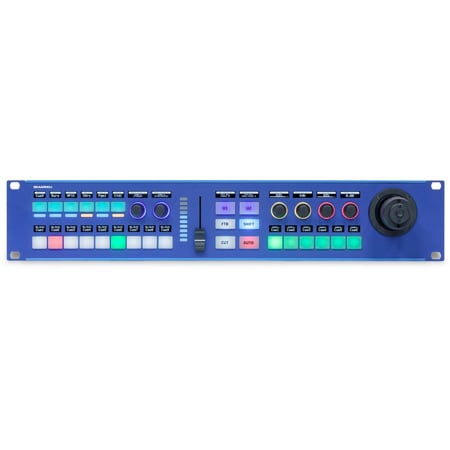

Skaarhoj Rack Fusion Live with Hall Effect Joystick Option


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    RACK-FUSION-LIVE-J-V1 - Overview

    Live switch and control PTZ camera movement from a single 2 RU unit with the Rack Fusion Live from SKAARHOJ. Equally at home on your desktop or in a rack, this versatile controller incorporates switcher, ME, and PTZ sections.

    The switcher section provides a nine-key bus row plus six additional four-way buttons with RGB multilevel metering LED bars and two encoder knobs. Each of the buttons and knobs in the switcher section has its own dedicated OLED display. In the ME section, there is a transition fader with an RGB LED bar for transition position or VU metering, six keys including multilevel shift ad assignable user keys, and two OLED displays. Lastly, the PTZ section is equipped with six multifunction keys for presets and camera selection, four encoder knobs, a total of ten OLED displays, and a three-axis joystick.

    The Rack Fusion Live runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.

    • Features:

      • Four-way buttons with OLED legends
      • RGB multi-level metering LEDs
      • High-quality backlit encoders with wide OLED displays
      • 3-axis joystick
      • Custom molded 9-key bus row
      • Transition fader with RGB LED bar for transition position or VU
      • ME section with multi-level shift, and user keys
      • Multi-function keys for pre- sets and camera selection
      • Rack unit or desktop console in one
      • Ethernet with PoE (IEEE802.3af)
      • UniSketch OS
    • Specifications:

      • Controls and Indicators
      • Switcher Section
        15 x 4-Way Buttons with OLED Displays
        2 x Encoder Knobs with OLED Displays
        6 x RGB Multilevel Metering LED Bars
      • ME Section
        1 x Transition Fader with RGB LED Bar
        6 x Buttons (User 1, User 2, Fade to Black, Shift, Cut, Auto)
        2 x OLED Displays
      • PTZ Section
        6 x Multifunction Keys with OLED Displays
        4 x Encoder Knobs with OLED Displays
        1 x 3-Axis Joystick
      • Connectors
        1 x RJ45, Ethernet
        1 x Micro-USB, Programming
        1 x 12 V Power Input
      • Rack Mountable: 2 RU
      • Power Source: PoE IEEE802.3af, DC
      • Operating System: UniSketch
      • Dimensions: 20.1 x 6.3 x 6.3 Inches
      • Weight: 4.2 lb
    • Item Includes:

      • 1x Skaarhoj Rack Fusion Live PTZ Controller
      • 1x 12V Power Supply
      • 1x Micro-USB Programming Cable
      • 1x Networking Cable
    • GTIN:
