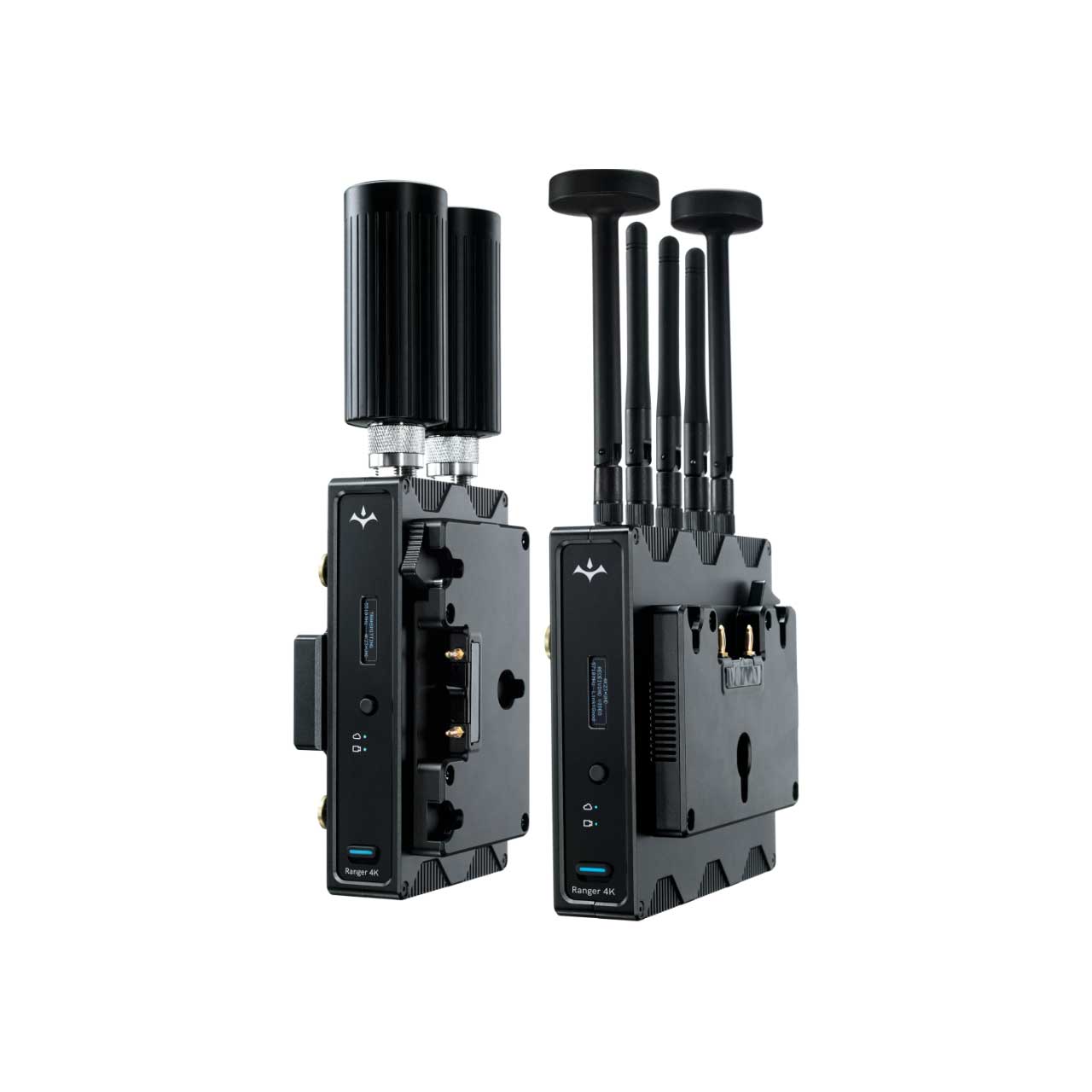

RANGER 4K TX/RX GOLD MOUNT SET - Overview

• Features:

  • Wireless 4K (2160p60) HDR video
  • Zero-delay (< 1 ms)
  • Uncompressed, 10-bit, 4:2:2 image quality
  • Directional antenna for superb wireless performance
  • Up to 3,000 ft. of wireless range or 5,000 ft. with panel antenna (included)
  • 4.9 GHz to 6.0 GHz operation
  • UNII-5 ready
  • 40 MHz / 20 MHz channel bandwidths
  • AES-256 encryption using RSA 1024 key exchange protocol
  • Manual and automatic frequency selection
  • Broadcast-capable
  • Multicast-capable up to 6 receivers


• Specifications:

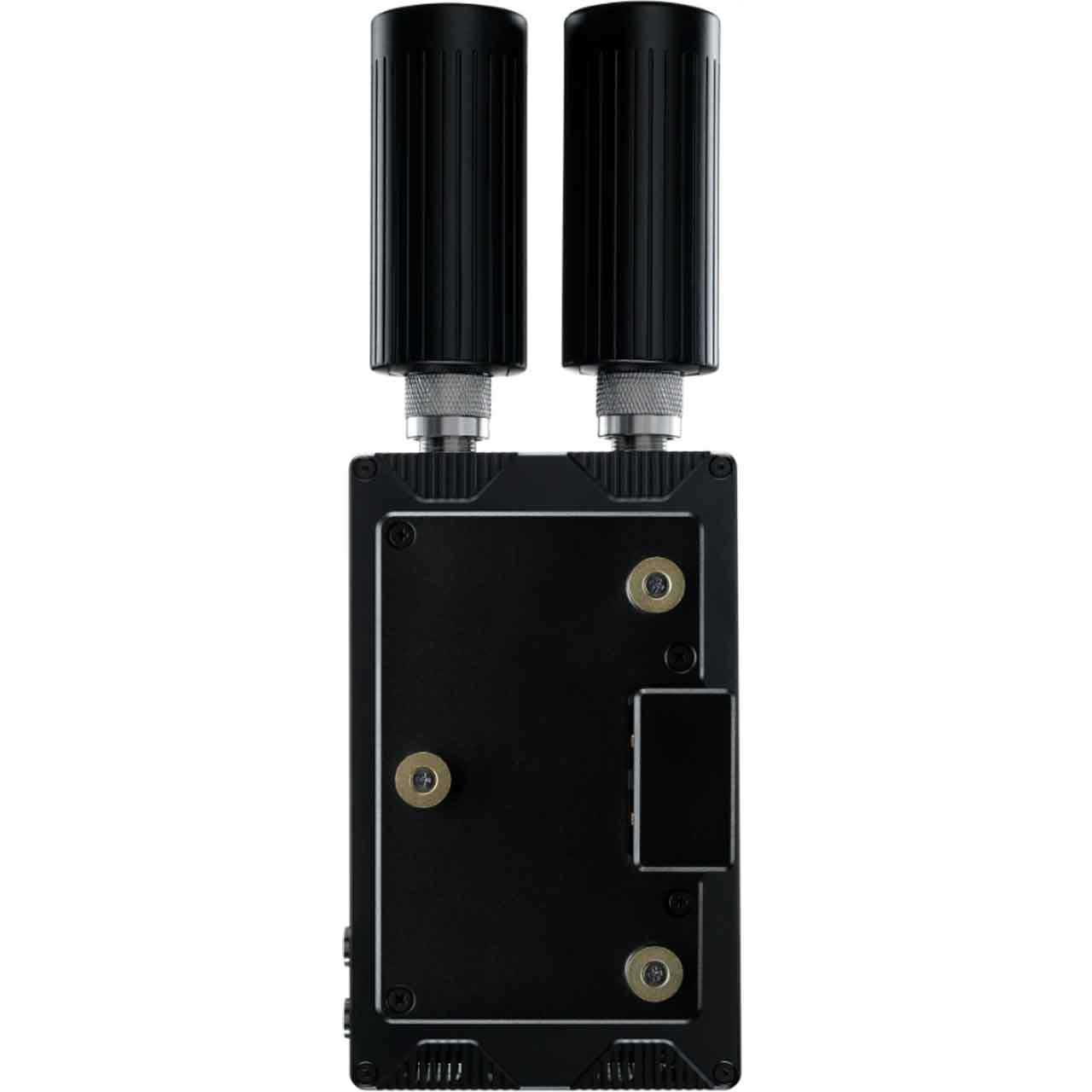

  • Ranger 4K Transmitter (Gold Mount)
  • Video Inputs: 12G-SDI SMPTE 2082-1 standard / 75Ω (BNC x1) 1x HDMI 2.0 Type-A receptacle
  • Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75Ω (BNC x1)
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
  • Delay Tx To Rx: <0.001sec
  • Input Cross Conversion: Yes, HDMI to SDI
  • Bonding: No
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
  • Video Compression: Uncompressed
  • Audio Format: 48kHz 24-bit PCM
  • Audio Input: Embedded SDI/HDMI Audio Input (2CH)
  • Dimensions: 5.9 x 3.6 x 1.2"
  • Weight: 19.1oz (544g)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 and M3 holes
  • Configuration Interfaces: OSD with Menu, Joystick Navigation
  • Switches: On/Off Switch
  • Recording Storage: Upgrade via Micro-USB
  • Mobile App: iOS and Android app configuration via Bluetooth
  • Desktop App: Launchpad application for OSX & Windows
  • USB Interface Functionality: Bluetooth 5 LE
  • Wireless Licensed Frequencies*: 4.850 ~ 5.150 GHz, 5.350 ~ 5.470 GHz, 5.850 ~ 5.925 GHz
  • Wireless Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS) 5.250 ~ 5.350 GHz (DFS) 5.470 ~ 5.725 GHz (DFS) 5.725 ~ 5.850 GHz (Non-DFS)
  • RfCH Selection: Auto, Manual available for DFS and non-DFSCHs
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 19 dbm EIRP (2 external 2dBi antennas) (<80mW transmit power)
  • Rf Sensitivity: 1x Horizontal N-Type 2dBi antenna; 1x Vertical N-Type 2dBi antenna
  • Range: Up to 5000 ft line of sight (using Panel Antenna on RX)
  • Unicast Multicast: Can connect one transmitter to up to 6 receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
  • Power Input: 2-Pin Circular locking connector 7-28 VDC
  • Battery: Gold mount battery plate
  • Nominal Power Consumption: 19 Watts
  • Operating Temperature: 32° to 104°F

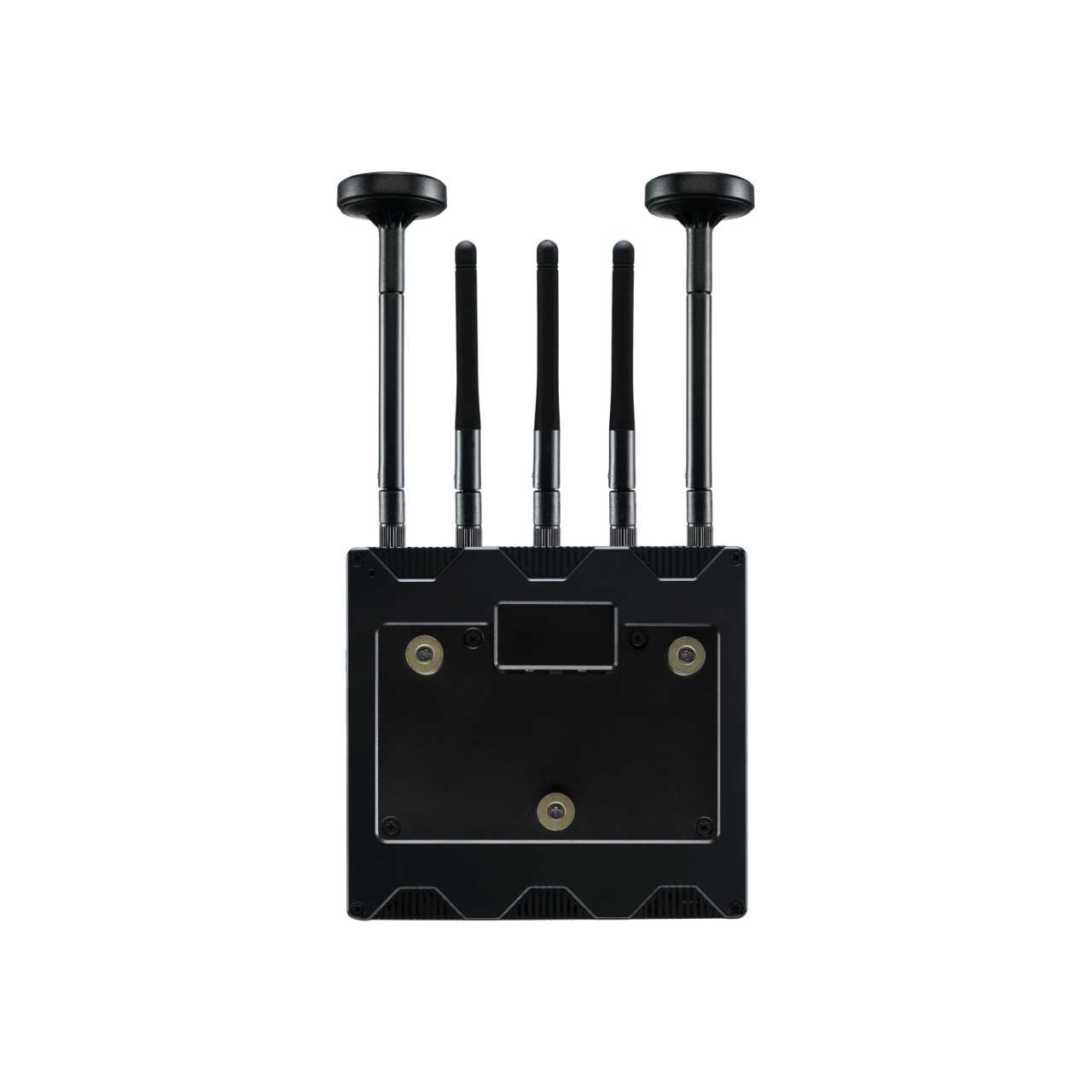

    Ranger 4K Receiver (Gold Mount)
  • Video Outputs: 12G-SDI SMPTE 2082-1 standard / 75Ω (BNC x2) 1x HDMI 2.0 Type-A receptacle
  • Color Sampling: SDI: YCbCr 4:2:2, 10-bit HDMI: RGB 4:4:4, 8-bit | YCbCr 4:2:2, 10-bit
  • Delay Tx To Rx: <0.001sec
  • Supported Resolutions: 4Kp23.98/24/25/29.97/30/50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60, 1080psf23.98/24/25/29.97/30, 1080i50/59.94/60, 720p50/59.94/60, 480p50 576p59.94/60, 480i(NTSC)/576i(PAL)
  • Video Compression: Uncompressed
  • Video Format Conversion Support: Yes, Framerate and Resolution Scaling
  • Audio Format: 48kHz 24-bit PCM
  • Audio Output: Embedded SDI/HDMI Audio Output (2CH)
  • Dimensions: 5.3 x 5.5 x 1.2"
  • Weight: 23 oz (656g)
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Mountability: Multiple mounting options with 1/4"x20 and 3/8"x16 holes
  • Antennas: 5 External 2 dBi antennas (included)
  • Wireless Licensed Frequencies*: 4.850 ~ 5.150 GHz, 5.350 ~ 5.470 GHz, 5.850 ~ 5.925 GHz *By using this product in the licensed frequencies, you acknowledge and agree to comply with all applicable regulations and rules, and to only operate this system in compliance with the applicable license requirements.
  • Wireless Unlicensed Frequencies: 5.150 ~ 5.250 GHz (Non-DFS) 5.250 ~ 5.350 GHz (DFS) 5.470 ~ 5.725 GHz (DFS) 5.725 ~ 5.850 GHz (Non-DFS)
  • RfCH Selection: Auto, Manual available for DFS and non-DFSCHs
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power)
  • Range: Up to 5000 ft line of sight (using Panel Antenna on RX)
  • Unicast Multicast: Can connect one transmitter to up to 6 receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones. Can operate up to 6 sets in same location
  • Power Input: 2-Pin circular locking connector 6-28V DC
  • Battery: Gold mount battery plate
  • Nominal Power Consumption: 15 Watts
  • Operating Temperature: 32° to 104°F

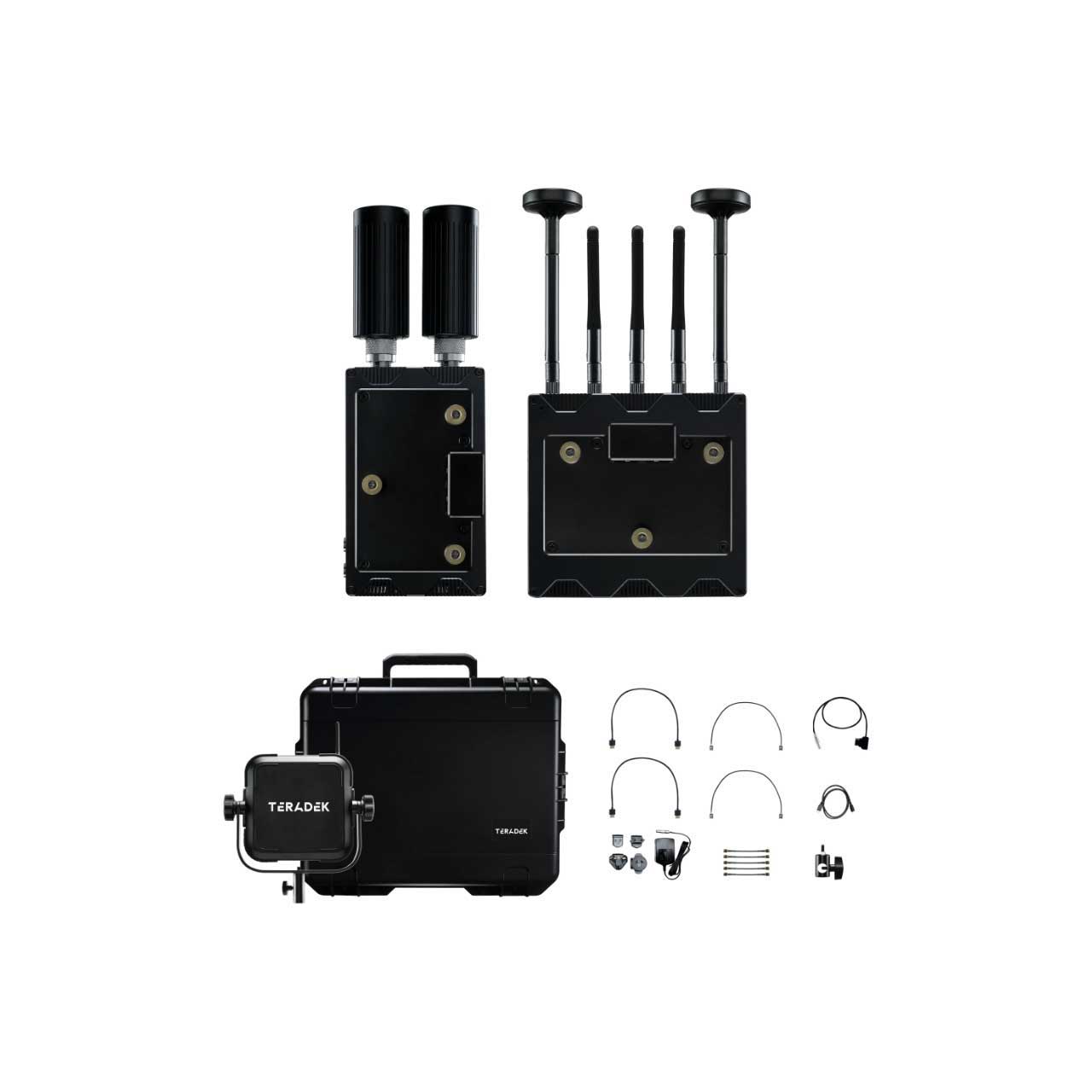

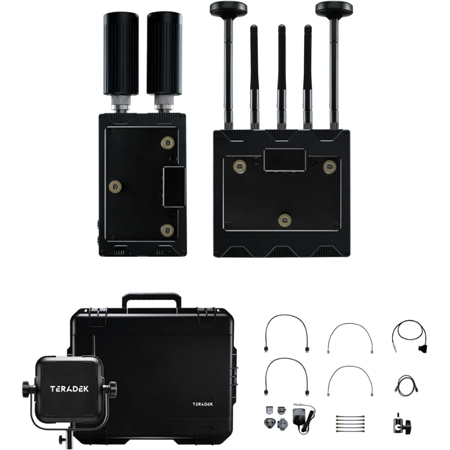

• Item Includes:

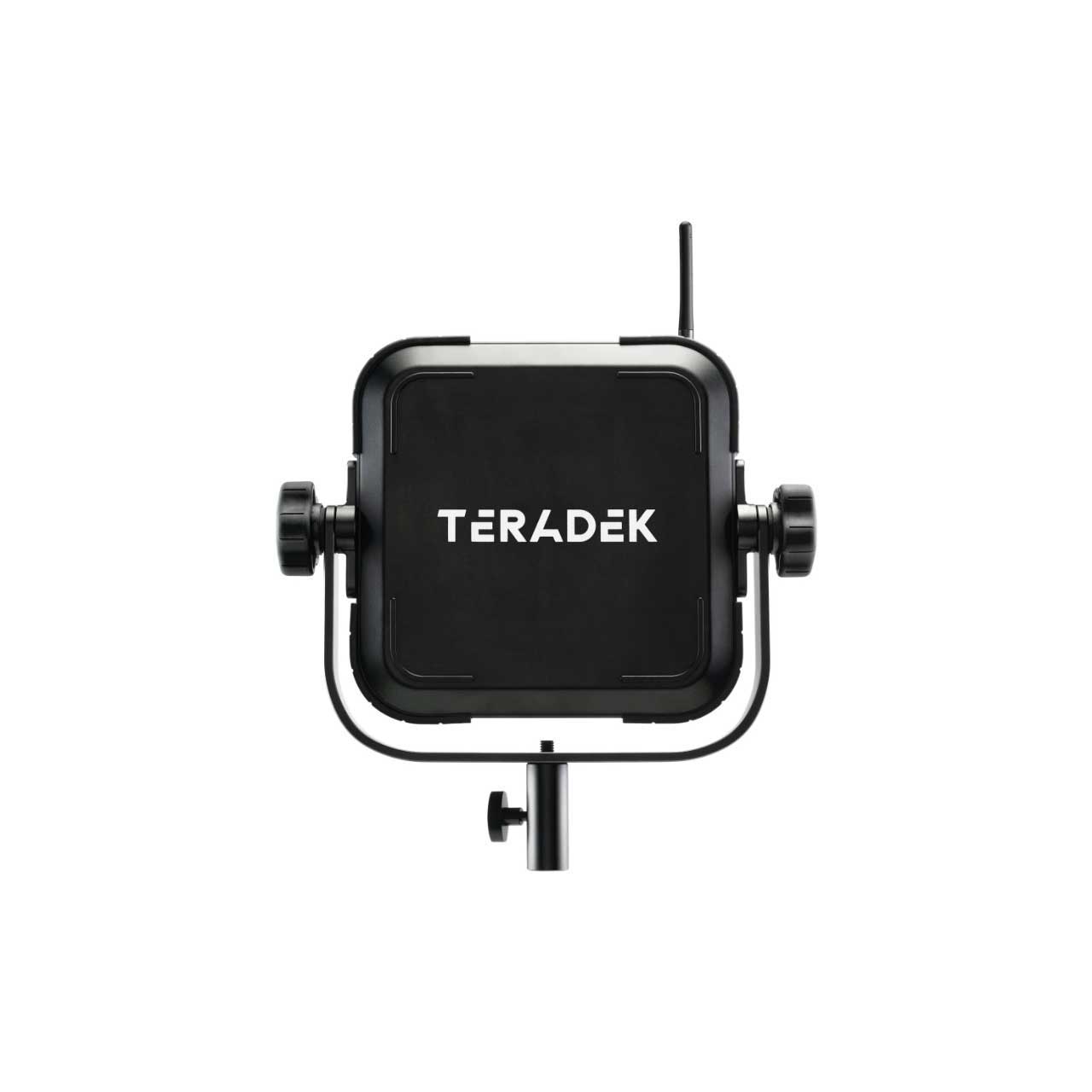

  • 1x Antenna Array for Bolt 4K 4.9-7.3GHz Gold Mount
  • 1x Ranger 4K 12G-SDI/HDMI - Wireless TX Gold-Mount
  • 1x Ranger 4K 12G-SDI/HDMI - Wireless RX Gold-Mount
  • 4x Battery Slot Cover
  • 1x Lightstand Adapter 1/4-20in
  • 4x Screw Flat Head Phillips Black SS M2 x 4mm
  • 1x (Bit 118) 2pin Conn. to PowerTap - 18in Cable
  • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
  • 2x Ultra Thin HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
  • 5x RP-SMA Male to RP-SMA Male 4in/10cm Cable
  • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1x Teradek Case XL - Ranger 4K TX/RX and Antenna Array
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable
  • 3x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 2x Antenna H Mushroom
  • 1x Antenna H N-type Barrel
  • 1x Antenna V N-type Barrel
  • 1x Teradek Standard Terms and Conditions
  • 1x Insert - Product Register
  • 1x Quickstart Guide - Ranger 4K/HD
