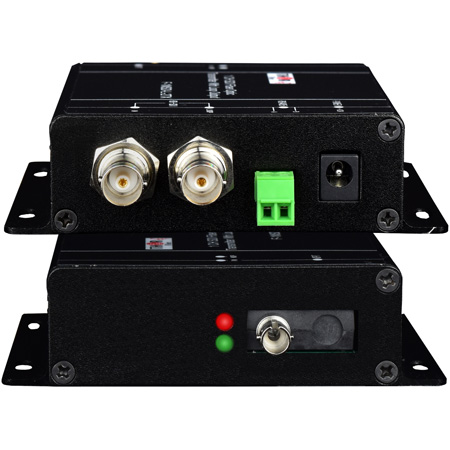

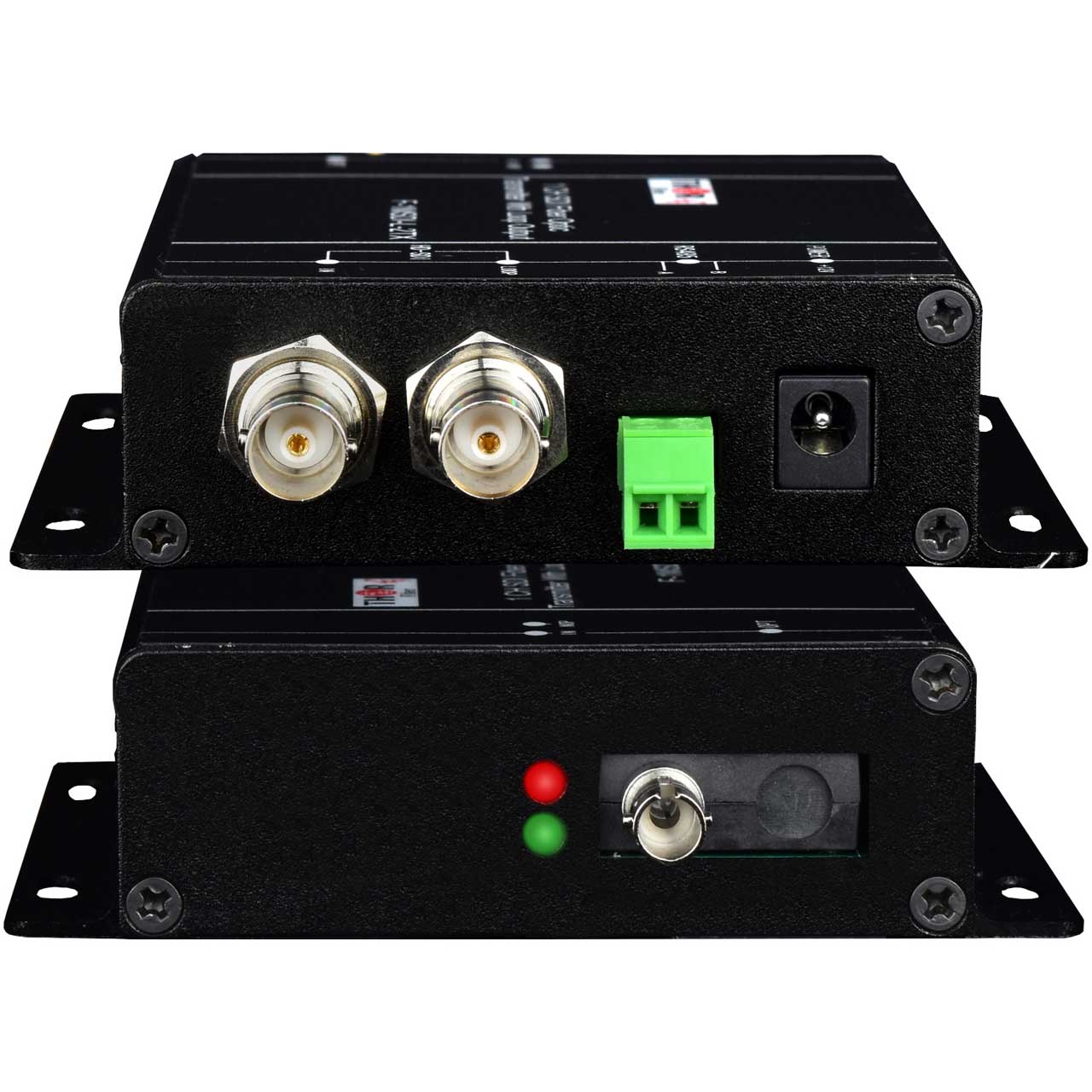

Thor F-1MSDI-L-2Tx/Rx 1Ch HD-SDI Transmitter w/Loopout & Receiver w/2 Outputs over Singlemode Fiber Kit 20km ST/PC

ITEM #: THR-1MSDIL2TXRX MFG #: F-1MSDI-L-2TX/RX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Thor Fiber
Free Shipping with $49 Minimum Order

List Price:

$714.00

Our Price:

$595.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

F-1MSDI-L-2TX/RX - Overview

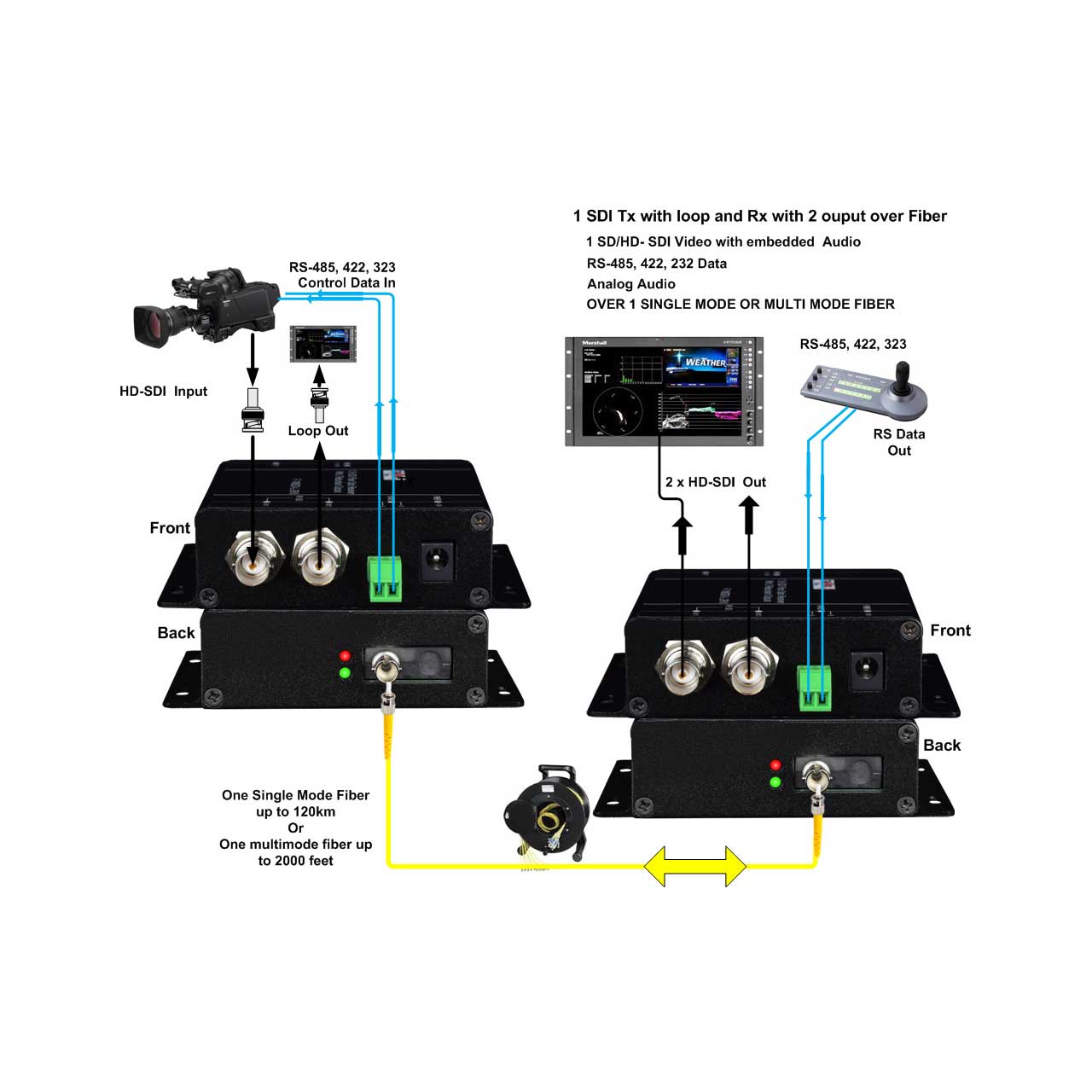

The F-1MSDI-L-2TX is a mini Fiber Optic Transport unit that utilizes an extra loop out SDI connector, on the transmitter, for monitoring and for additional screening. The matching receiver F-1MSDI-L-2RX uses the same technology as the transmitter so you can acutally have 2 SDI outputs on the receiving end of the Fiber. This allows for easy access to redistribute a primary Fiber Cable that needs to be split to two SDI outputs.

  • Features:

    • Signal is equalized and re-clocked prior to fiber optic transmission
    • Transmitter features a re-clocked SDI loop through
    • Receiver features two re-clocked SDI outputs
    • Immunity to pathological patterns over entire link budget and operating temperature range
    • Compliant with SMPTE 259M-2006,292-2006, 424M-2006, 297-2006
    • Supports transmission of SMPTE305M-2005, 310M-2004, 344M-2000,DVB-ASI
    • Supports both Single Mode and Multimode ( 62.5u & 50u) fiber types
    • Supports HD/SD-SDI inputs with orwithout embedded audio and data
    • Wide operating temperature range:-10° C to +50° C
    • Available in Box and Card versions


  • Specifications:

    • Serial Video BNC Input
    • Number of Inputs 1
    • Supported Standards: SMPTE 259M, 292, 297-2006,
    • 424M-2006, 305M, 310M, 344M,
    • DVB-ASI
    • Re-clocked Data Rates: 270 Mbps (SMPTE 259M, DVB-ASI-270),
    • 1.485 Gbps (SMPTE 292),

    • Serial Video BNC Loop-Through Output
    • Number of Loop-Throughs 1
    • Signal Level 800mV ± 10%
    • DC Offset 0V ± 0.5V
    • Rise/Fall Time < 135 ps at 2.97 Gbps per SMPTE 424M;
    • < 270 ps at 1.485 Gbps per SMPTE 292;
    • 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
    • Overshoot < 10% of amplitude
    • With color bar signal

    • Optical Output
    • SMPTE 297-2006
    • Connector ST/PC (special order SC/PC or FC/PC)
    • Wavelength 1310nm (nominal)
    • Emmiter Type FP Laser
    • Output Power (nominal)
