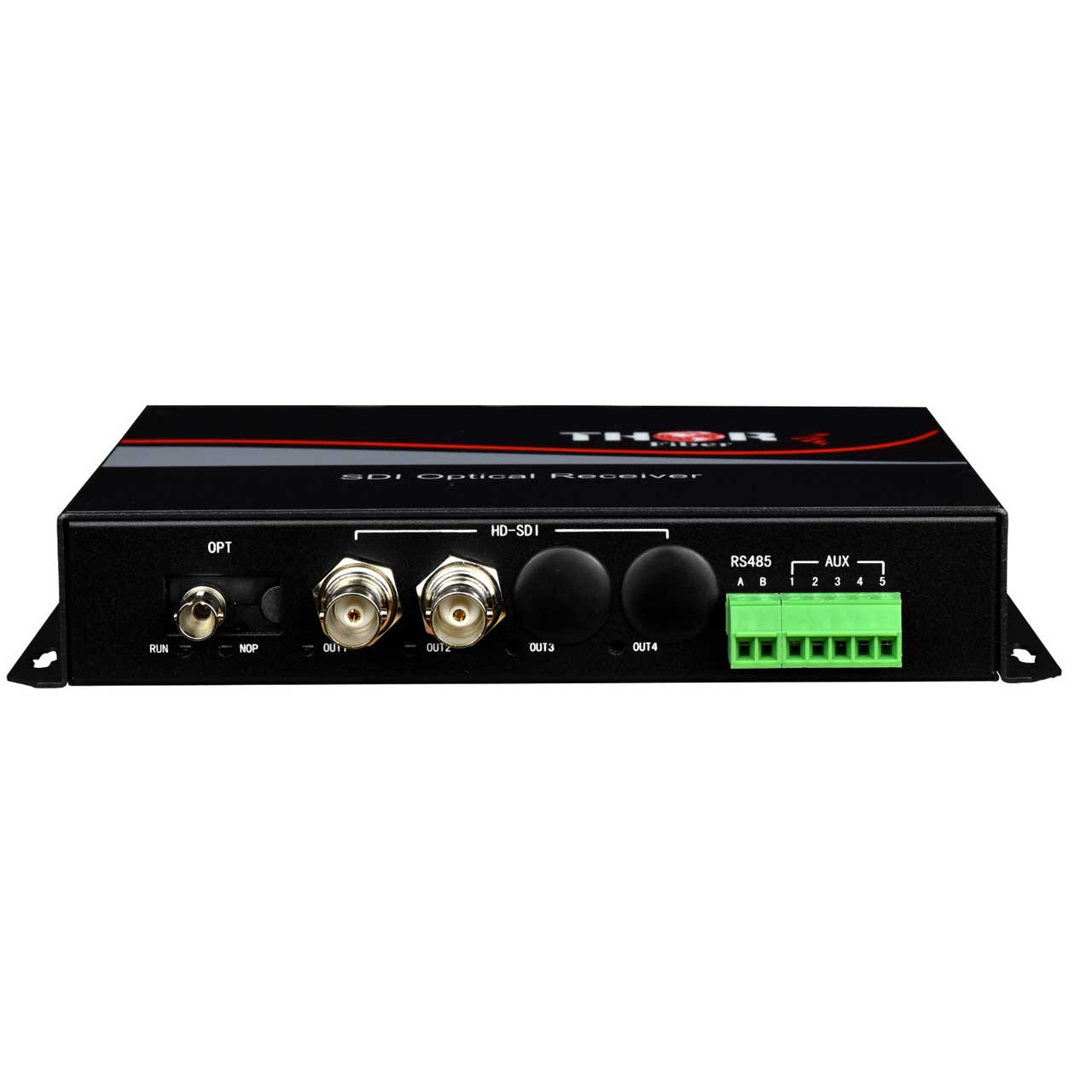

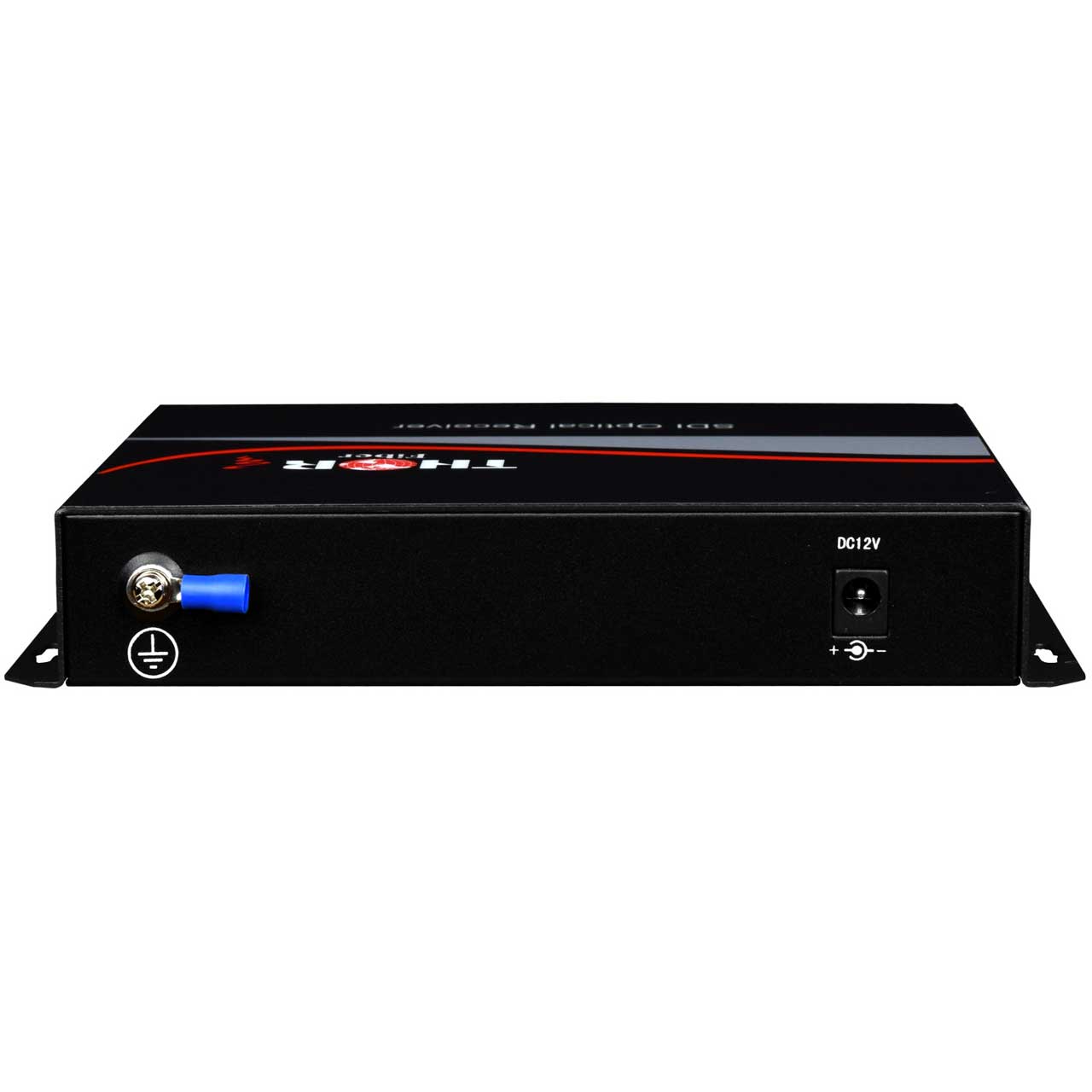

Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km
  • Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km
  • Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km
  • Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km
  • Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km
  • Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km

Questions? Ask a Markertek Expert:
800-522-2025 Email

Thor Fiber F-M2SDI-Tx-Rx 2Ch HD-SDI Transmitter & Receiver Kit over Singlemode Fiber ST/PC 20km

Manufacturer: Thor Fiber

Item #: THR-M2SDI-TX-RX   •   MFG #: F-M2SDI-TX-RX



List Price:$1,373.75
Our Price:$1,099.00

free ship


Availability:
Direct Ship from manufacturer, contact us for availability
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

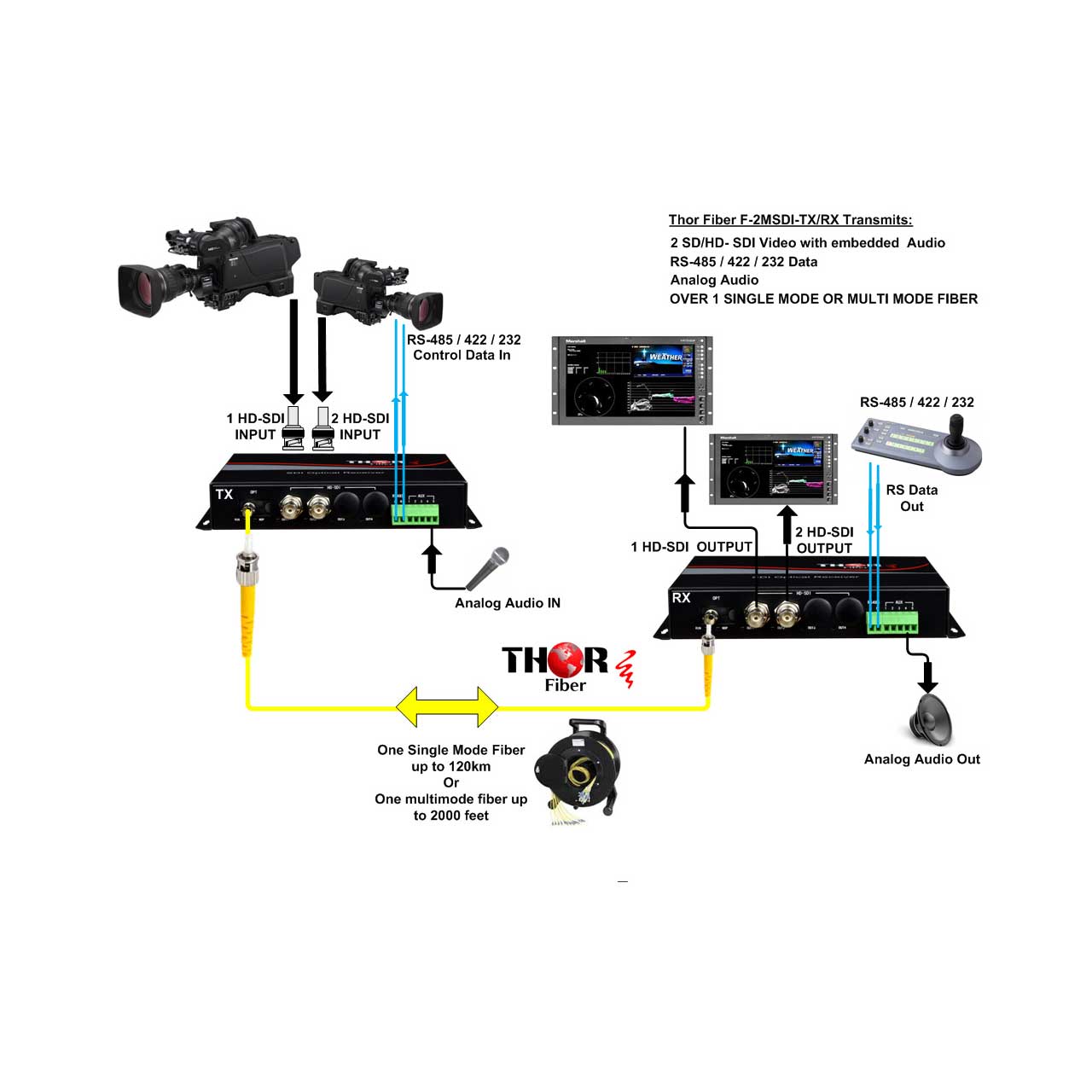

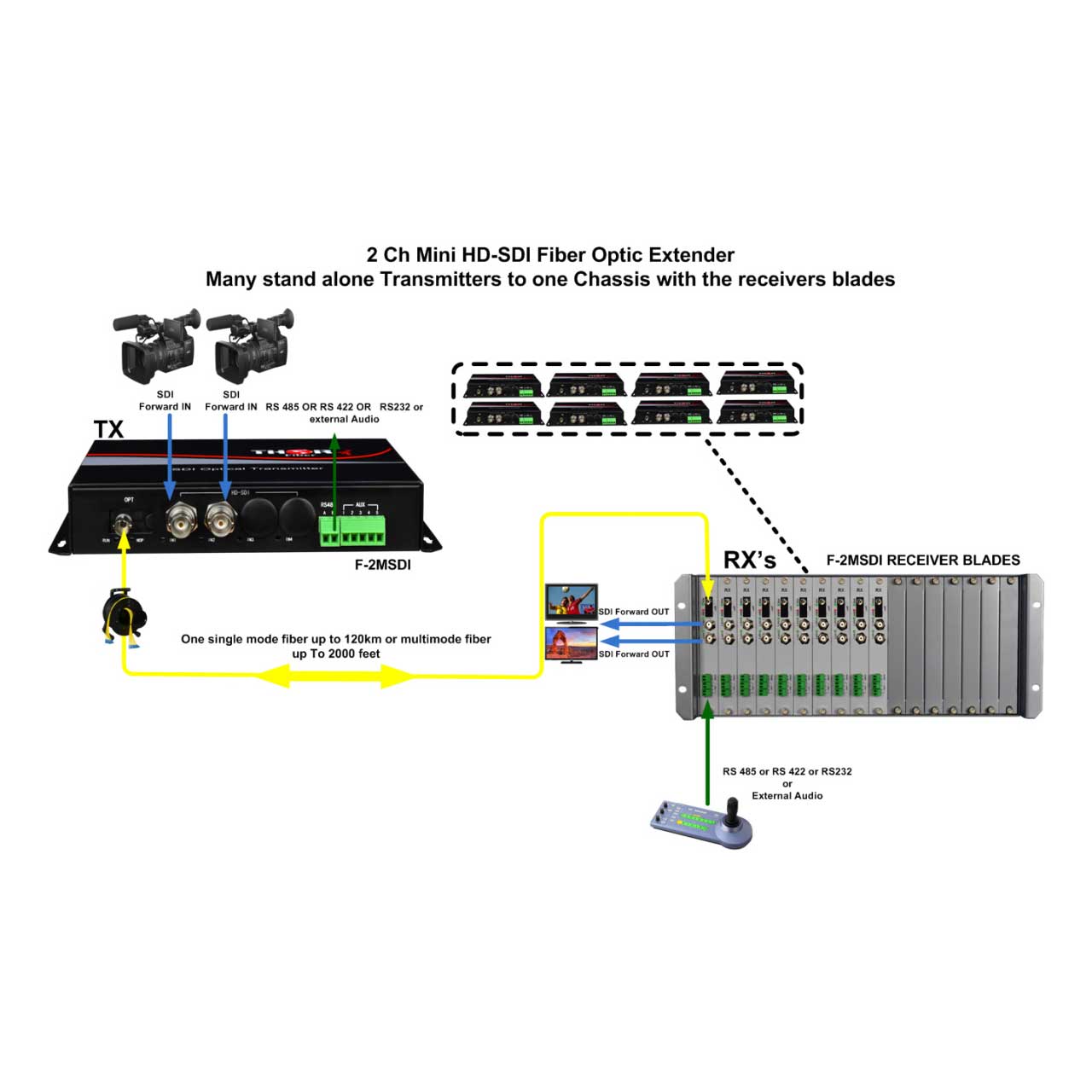

    Thor compact SDI fiber extender kits are designed to increase the range of digital SD-SDI or HD-SDI video signals over singlemode or multimode fiber optic cable. Thor SDI extenders increase this distance to more than 80 miles by using lasers to send the data over fiber optic cable. Compact HD-SDI transmitter and receiver kits are available with many different options for different fiber distances and different types of audio options. Thor F-M2SDI fiber optic SDI transmitters and receivers use locking type FC fiber connectors and BNC video cables to ensure that any cable is not accidentally pulled out of the device once the equipment is installed. Adapter jumpers are available by request for most types of fiber cables if a different fiber connector type is required. Options are available for both singlemode or multimode fiber, and a range of transmitter power options can be selected.


    • Features

      • Supports 2 full rate HD-SDI @ 1.5Gbps or lower SDI or ASI digital video
      • Transports embedded audio channels as well as SDI ancillary data
      • Return path serial RS-485 channel for controlling equipment on Tx end
      • Link alarm indicators on both Tx & Rx indicate a problem with the fiber

    • Specifications

      • HD-SDI Input : HD-SDI, SD-SDI, or DVB-ASI; 0 - 1.5 Gbps Serial Digital Signal
      • Input Signal Standard : SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305(SDTI), DVB-ASI(EN50083-9)
      • Number of Inputs : 2 SDI, 1 RS-485, 1 Auxiliary
      • Signal Level : > 380mVp-p
      • Impedance : 75Ω
      • Connector : BNC
      • Distance : 20km (Up to 100km on special order)
      • Mini box : 25+116+110cm
      • Power Supply : 130 - 260 VAC @ 50-60 Hz
      • Power Consumption : <10W
      • Temperature : 0 to +70 Degree
      • Humidity : 0 to 95%
      • Connector : ST/PC
      • Optical Channels : CWDM
      • RH: Non Condensing
