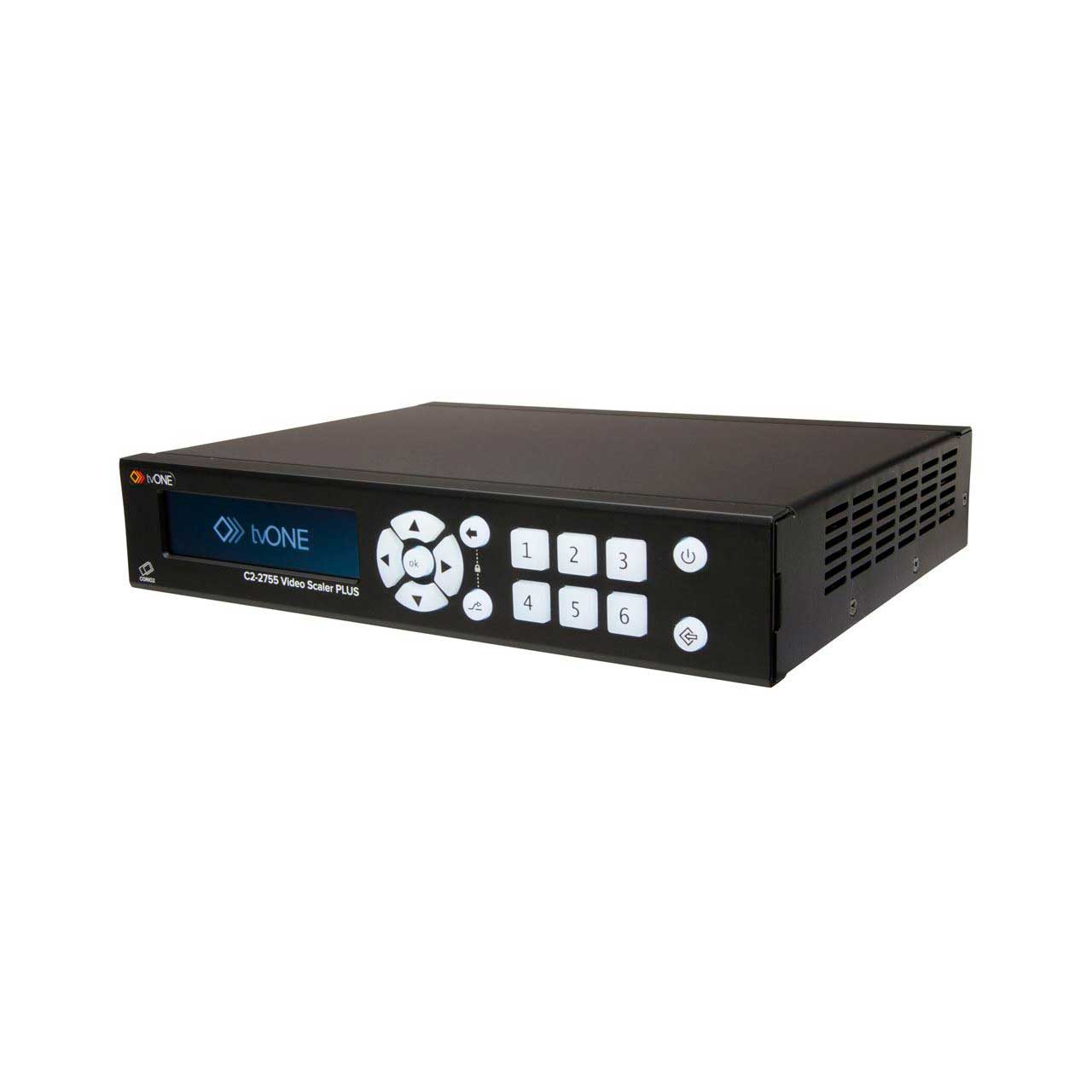

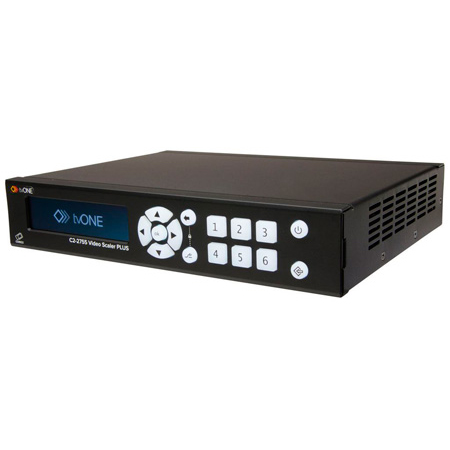

tvONE C2-2755 Up/Down/Cross Converter - HDMI/ DVI-I Outputs
  • tvONE C2-2755 Up/Down/Cross Converter - HDMI/ DVI-I Outputs
  • tvONE C2-2755 Up/Down/Cross Converter - HDMI/ DVI-I Outputs
  • tvONE C2-2755 Up/Down/Cross Converter - HDMI/ DVI-I Outputs

Questions? Ask a Markertek Expert:
800-522-2025 Email

tvONE C2-2755 Up/Down/Cross Converter - HDMI/ DVI-I Outputs

Manufacturer: tvONE

Item #: TV1-C2-2755   •   MFG #: C2-2755




Our Price:$2,490.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The C2-2755 Video Scaler PLUS is one of a new generation of high performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. The crystal clear OLED display intuitively guides users through setup and control using color-modulated, backlit buttons. Alternatively, a graphic user interface for Windows can be used to set up and control the unit via IP. RS232 is also provided as a direct control interface for 3rd party control systems. The video performance of the C2-2755 provides high quality bi-directional conversion and switching between a wide variety of analog and digital video formats. Living up to its designation as a "Video Scaler" the C2-2755 supports SD/HD/3G-SDI, HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on inputs and HDMI and DVI-I outputs, and the signal parameters of the incoming video may be adjusted. The high resolution RGB/YPbPr output is selectable at virtually any PC or HDTV resolution.

    Twelve user-defined presets are readily available for instant, on-the-fly adjustment to diverse customized applications.


    • Features

      • Up/Down/Cross Conversion
      • Supports: NTSC, PAL, PAL-M, PAL-N
      • Motion Compensation & 3:2 Pulldown
      • Temporal Interpolation & Diagonal Interpolation
      • Automatic Incoming Resolution Detection
      • Calibrate - Automatic picture sizing of PC inputs
      • 4:4:4 Full bandwidth Chroma Sampling for RGB sources
      • 4:2:2 for SDI, YC and CV sources
      • HDMI YUV support for either 4:4:4 or 4:2:2 sampling
      • Video signal parameter adjustments
      • Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
      • tereo Audio Embedding on capable outputs (DVI-I, HDMI)
      • RS-232 and IP Interface for Control Software
      • Variable Image Zoom to 10X and Shrink to 10%
      • Genlock
      • Framelock
      • PIP, Chromakey and Lumakey
      • Optional Single/Dual Rackmount Kit

    • Specifications

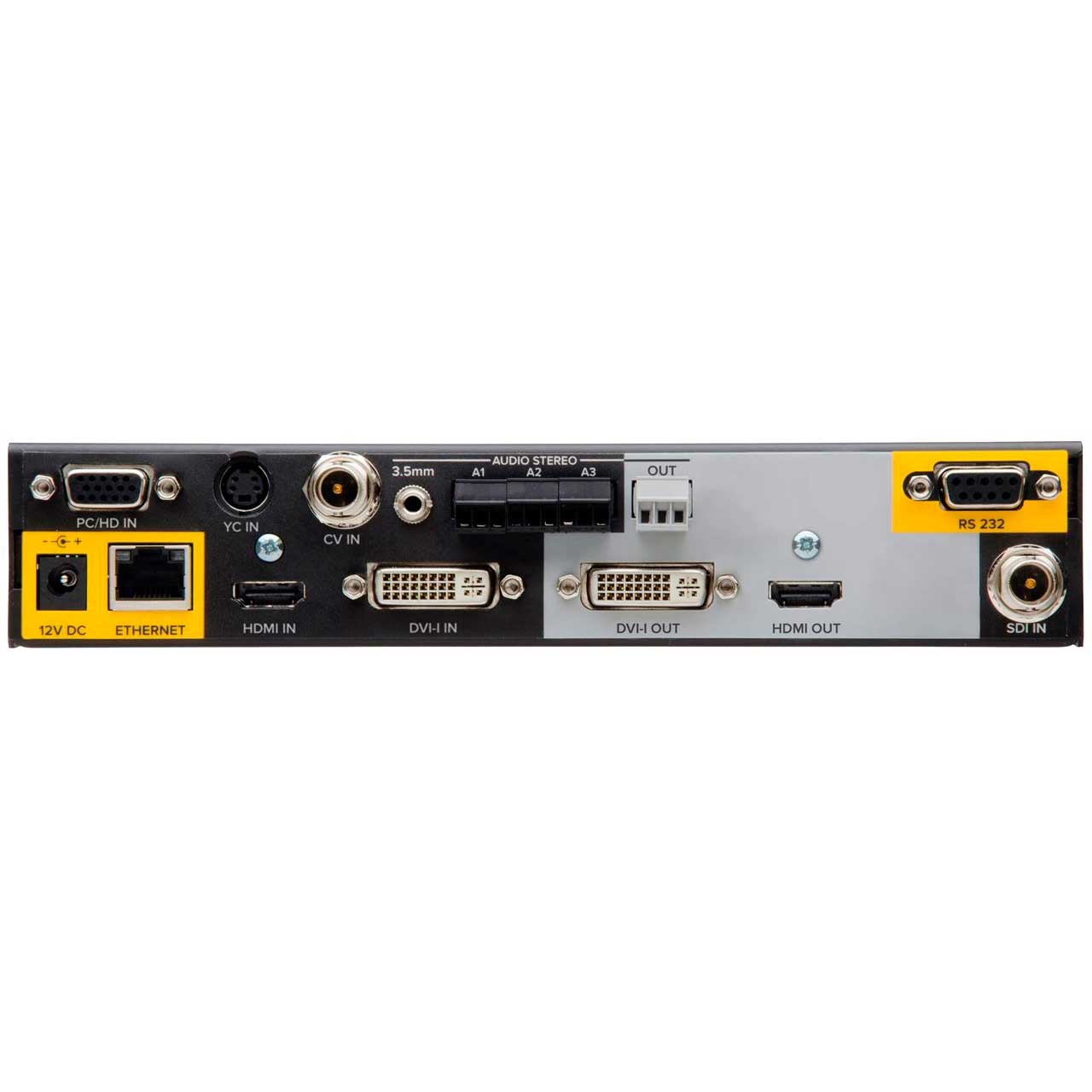

      • Video Inputs
      • Television Standards: NTSC, PAL, PAL-M, PAL-N, SECAM
      • Composite Video: 1x via BNC & 1x via Universal DVI
      • YC (S-Video): 1x via 4-Pin Mini-DIN & 1x via DVI
      • HDTV: 1x via HDMI & 1x via DVI
      • SD/HD/3G-SDI: 1x via BNC
      • Computer Inputs
      • Signal Type: 1x Analog via PC/HD HD15, 1x DVI
      • Format: RGBHV, RGBS, RGsB, YPbPr, YUV
      • Analog Signals: PC to 1920x1080, HD to 1080p/60
      • DVI & HDMI signals: PC to 1920x1200, HD to 1080p/60
      • Video Outputs
      • Television Standards: 720p,1080i,1080p
      • RGB, YUV, YPbPr: 1x via DVI-I
      • HDTV: 1x via HDMI
      • Computer Outputs
      • Signal Type: 1x DVI-I & 1 x HDMI
      • Format: RGBHV, RGBS, RGsB, YPbPr
      • Analog Signals: PC; 800x600/60 to 1920x1080, HD
      • DVI & HDMI Signals: PC; 800x600/60 to 1920x1200, HD
      • Audio Input/Output
      • Inputs: 3x Unbalanced via Terminals; 1x Unbalanced via 3.5mm jack ; 1x HDMI, 1x Universal DVI, 1x SDI
      • Outputs: Unbalanced via Terminals; 1x HDMI, 1x DVI-I
      • De-embedding support: 1 stereo pair at 32 kHz, 44.1 kHz, 48kHz
      • Embedded support: 1 stereo pair at 48kHz
      • Control Methods
      • Front Panel
      • RS-232 Interface
      • IP Interface
      • Control Software included

    • Warranty

      • Limited 5 Years Parts and Labor
