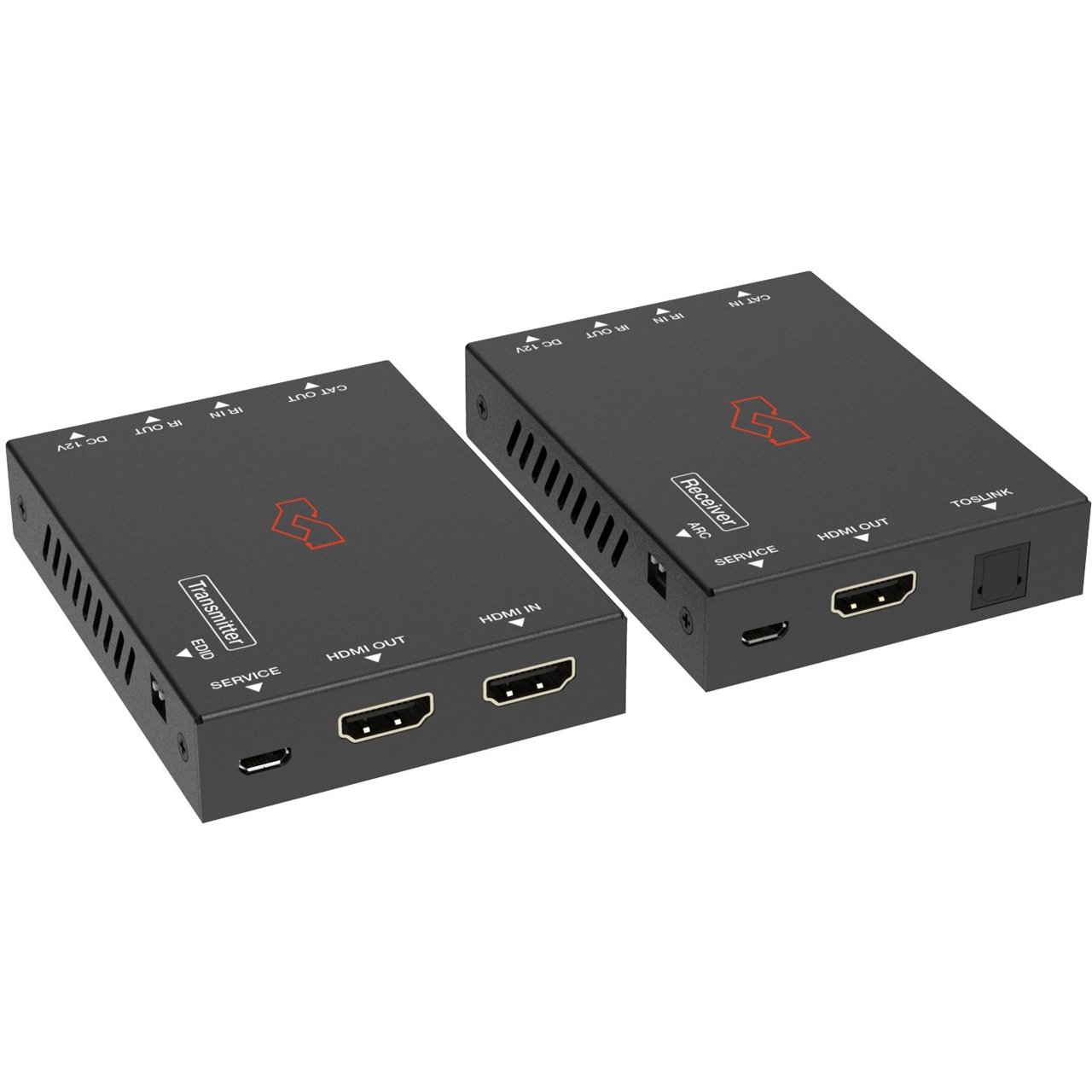

VigilLink VLEX-CT070R-TR CAT6/6a 4k 4:4:4 HDMI 2.0 Extender with ARC and Two way IR - 18Gbps - 229 Foot/70m

VLEX-CT070R-TR - Overview

• Features:

  • HDMI 2.0b and HDCP 2.2 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4
  • Transmission distance can extend up to 230ft / 70m via a single CAT6/6a cable
  • HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
  • Bi-directional IR control signal pass-through
  • Audio formats supported: LPCM 7.1, Dolby True HD, DTS HD Master
  • EDID copy pass-through function between the source device and display device
  • ARC and audio de-embedding support; audio output through the optical fiber port of the receiver
  • Bi-directional POC (Power over Cable) function supported
  • Compact design for easy and flexible installation


• Specifications:

  Technical
  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K @ 60Hz RGB/YCBCR 4:4:4
  • IR Level: 5Vp-p
  • IR Frequency: Wideband 20K - 60kHz
  • Transmission Distance:
    - 4K2K @ 60Hz 4:4:4--70m (CAT6/6a cable)
    - 1080p - 70m (CAT6/6a cable)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
  • Color Depth: 8/10/12-bit
  • Audio Formats:
    - HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master
    - Optical: Dolby 5.1, DTS 5.1, PCM 2.0

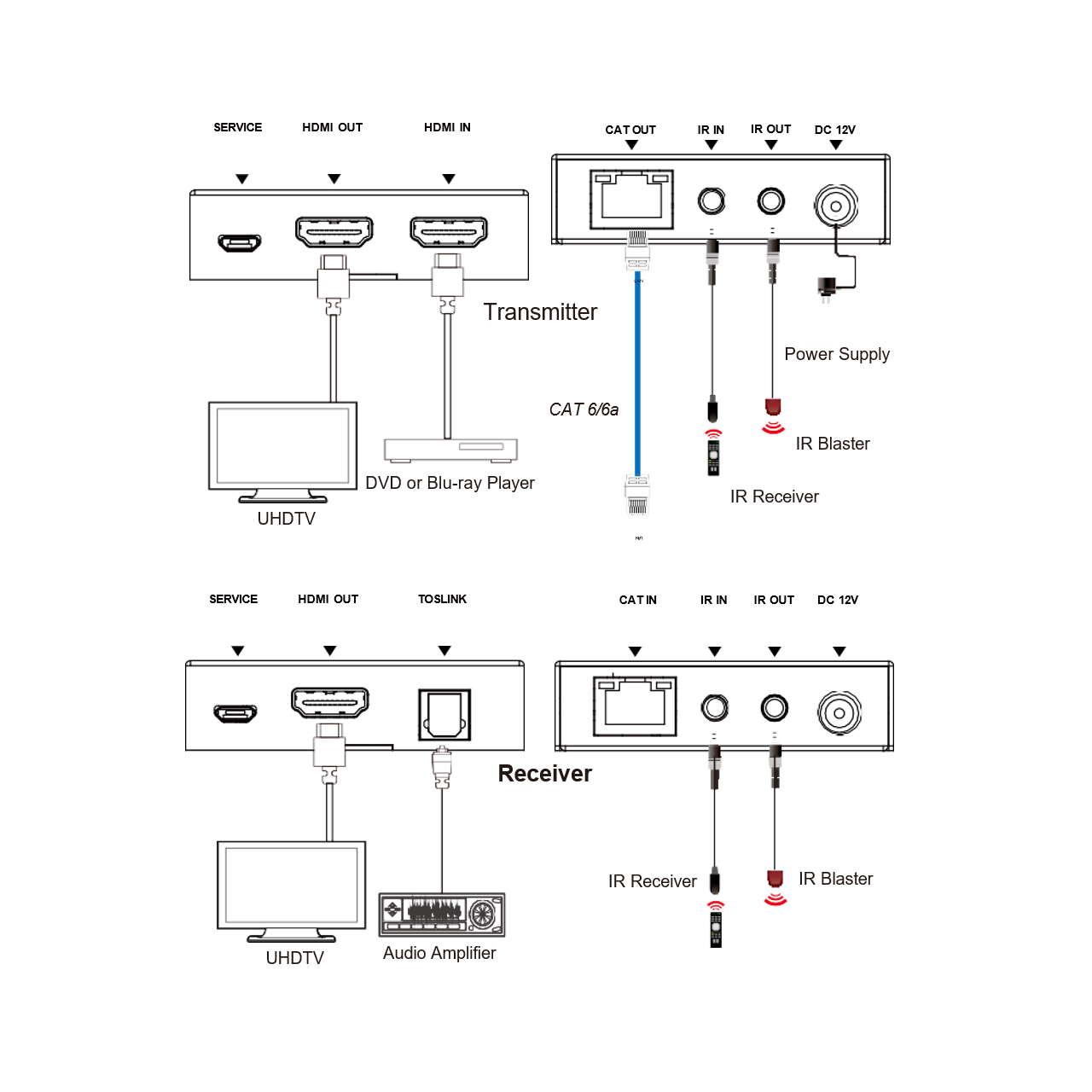

    Connection
  • Transmitter Inputs: 1x HDMI IN (Type A, 19-pin female)
  • Transmitter Outputs:
    - 1x HDMI OUT (RJ45)
    - 1x CAT OUT (RJ45)
  • Transmitter Controls:
    - 1x SERVICE (Micro-USB jack)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)
  • Receiver Inputs: 1x CAT IN (RJ45)
  • Receiver Outputs:
    - 1x HDMI OUT (Type A, 19-pin female)
    - 1x TOSLINK
  • Receiver Controls:
    - 1x SERVICE (Micro-USB jack)
    - 1x IR IN (3.5mm Stereo Mini-jack)
    - 1x IR OUT (3.5mm Stereo Mini-jack)

    Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions: 3.54" x 2.67" x 0.70" (90mm x 68mm x 18mm)
  • Weight: 0.35lbs (160g)
  • Power Supply: DC 12V/1A; Support bi-directional POC function
  • Power Consumption: 3.36W (max)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% RH (non-condensing)


• Item Includes:

  • 1x 18Gbps HDMI Extender (Transmitter)
  • 1x 18Gbps HDMI Extender (Receiver)
  • 1x IR Blaster cable (1.5 meters)
  • 1x IR Wideband Receiver cable (1.5 meters)
  • 4x Mounting Ears
  • 8x Machine Screws (KM3*4)
  • 1x 12V/1A Locking Power Adapter
  • 1x User Manual


• Warranty:

  • 6 Years
