VigilLink VLSP-12H21SA 1x2 HDMI 2.1 48Gbps 8K Distribution Amplifier & Audio De-embeder - HDMI 2.1 & HDCP 2.3 Compliant

ITEM #: VGL-VLSP-12H21SA MFG #: VLSP-12H21SA

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$185.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLSP-12H21SA - Overview

The VigilLink VLSP-12H21SA 8K HDMI 1x2 Splitter can distribute one HDMI source signal to any two display devices. Video resolution is up to 8K@60Hz 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It also has advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz video resolution on your TVs or relative monitors.

  • Features:

    • HDMI 2.1 and HDCP 2.3 compliant
    • Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
    • Supports resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
    • VRR, FVA, ALLM supported
    • Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
    • Supports HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master Audio
    • Supports audio de-embedding function (output through the optical and analog port)
    • Supports resolution auto downscaling and converting on each output port
    • Advanced EDID management


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3, HDCP1.4
    • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
    • Video Resolution: Up to 8K @ 60Hz 4:2:0 12bit, 4K @ 120Hz 4:4:4 12bit
    • Color Depth: 8/10/12-bit
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio Formats:
      - HDMI Input/Output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    • Audio De-embedding Outputs:
      - Optical: LPCM/Dolby/DTS 5.1CH
      - Analog: LPCM 2CH
    • ESD Protection: Human Body Model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

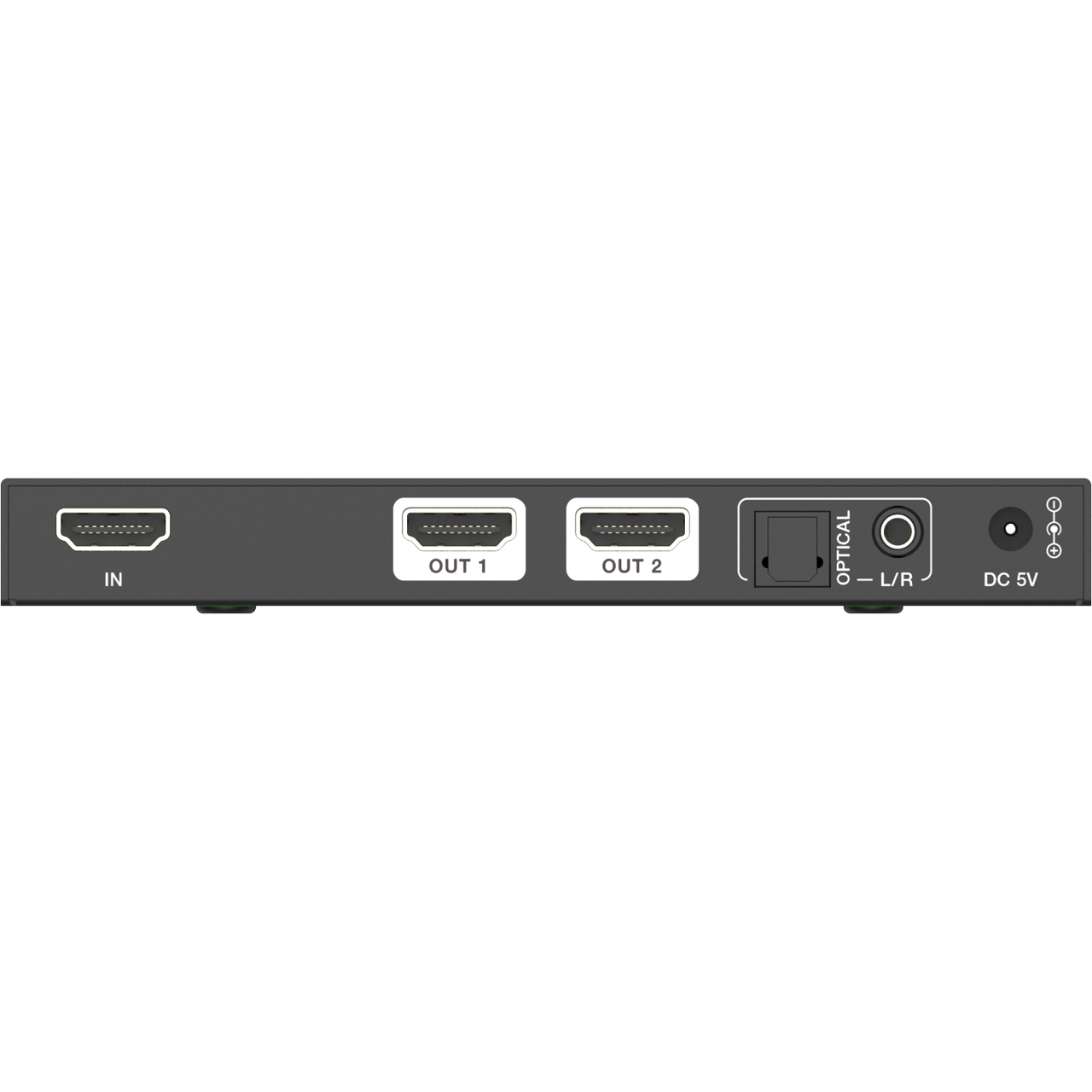

      Connections
    • Input: 1x HDMI IN (Type A, 19-pin female)
    • Output:
      - 2x HDMI OUT (Type A, 19-pin female)
      - 1x OPTICAL (S/PDIF)
      - 1x L/R (3.5mm Stereo Mini-jack)
    • Control: 1x SERVICE (USB Type C, Update port)

      Mechanical
    • Housing: Metal enclosure
    • Color: Black
    • Dimensions: 5.71" x 2.68" x 0.67" (145mm x 68mm x 17mm)
    • Weight: 0.57lbs (260g)
    • Power Supply:
      - Input: AC 100V - 240V, 50/60Hz
      - Output: DC 5V/2A (US/EU standard, CE/FCC/UL certified)
    • Power Consumption: 4.5W (Max)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (No condensation)

      Recommended HDMI Cable (In/Out)
    • 8K: 6.6ft (2m)(Ultra HDMI 2.1)
    • 4K60: 16ft (5m)
    • 4K30: 33ft (10m)
    • 1080p: 49ft (15m)
      **The use of the "Premium High-Speed HDMI" is highly recommended.


  • Item Includes:

    • 1x 8K HDMI 1x2 Splitter
    • 1x 5V/2A Multinational Power Supply
    • 1x User Manual


  • Warranty:

    • 6 Years
