    VHUBSMART6G1212 - Overview

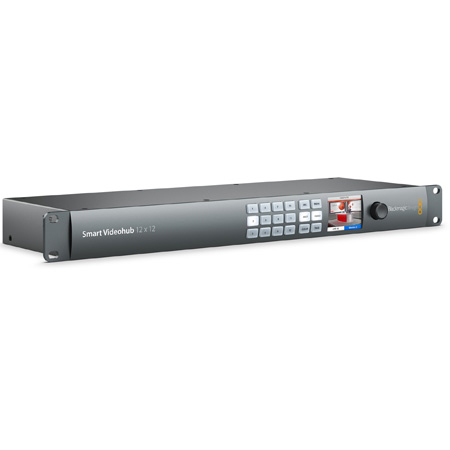

    The Blackmagic Design Smart Videohub 12x12 is an advanced Ultra HD mixed format router with a built in control panel and monitoring. Ideal for larger workgroups and mobile broadcasting, it includes advanced 6G-SDI connections so you can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. You also get revolutionary new visual routing with the unique spin knob control, push button panel and the built in LCD screen. Also includes Ethernet for remote control and a fully customizable software development kit for Mac and Windows.

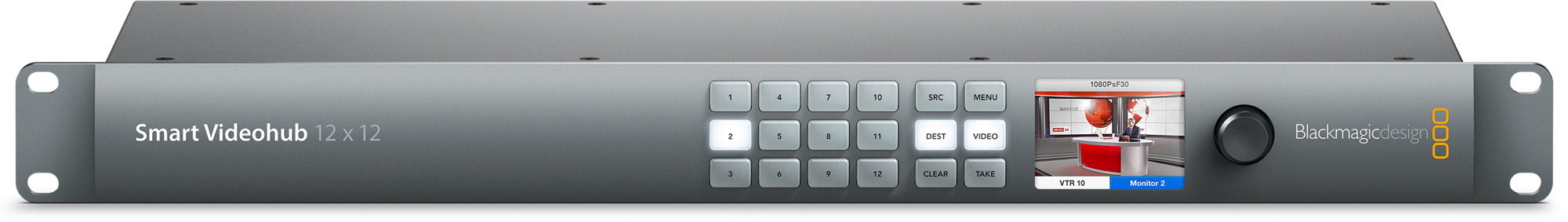

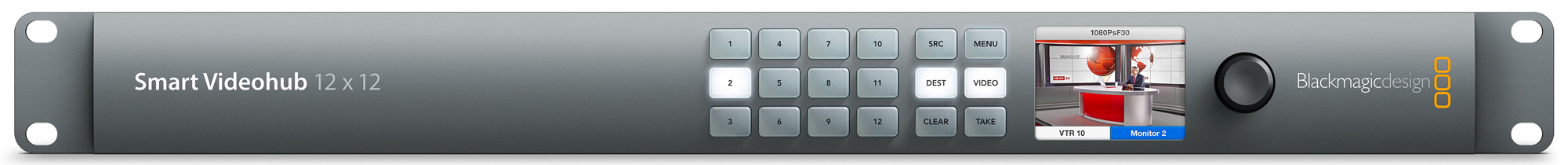

    The control panel includes buttons to direct select a crosspoint, a spin knob for scrolling router cross points as well as a "take" button. The LCD screen can display nice large labels and the routers include over 10,000 separate unicode characters so they can handle non roman labels such as Japanese, Chinese and more. The LCD screen can also display video from the video inputs or even outputs. This feature is called "visual routing" and it allows you to scroll through the router destinations or sources and see the connections as video on the LCD screen as the labels updates. It's really fun to use!

    Please Note: A Universal Videohub Power Supply, part number VHUBUV-POWSUP800, is required when building a fully loaded router with mixed optical fiber and BNC SDI modules. Sold seperately.

    • Features:

      • Perfect for Portable Use
      • Compact Design
      • Visual Routing
      • Built in Video Monitoring!
      • Loads of Connections
      • Multi Rate 6G SDI
      • All Video Formats Simultaneously
    • Specifications:

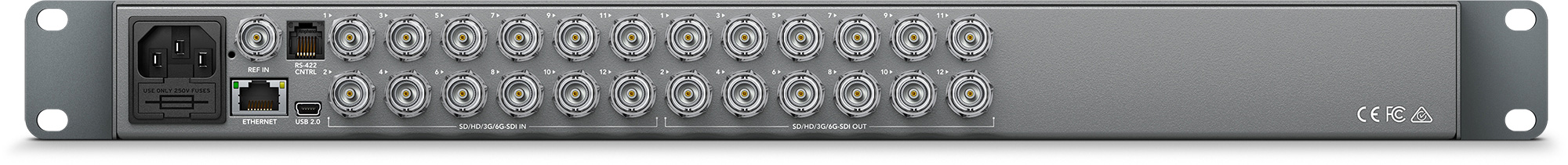

      • SDI Video Inputs: 12x 10-bit SD-SDI, HD-SDI and 6G-SDI
      • SDI Video Outputs: 12x 10-bit SD-SDI, HD-SDI and 6G-SDI
      • SDI Rates: DVB-ASI, 270Mb, 1.5G, 3G, 6G
      • SDI Reclocking: On all SDI outputs
      • Reference Input: Tri-Sync or Black Burst
      • Control Panel Connection: Ethernet
      • Serial Control Connection: RJ-6 RS-422
      • Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.
      • Updates: USB
      • Front Panel Router Control: 12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
      • Router Configuration: Via front panel LCD or RJ45 Ethernet
      • RS-422 Router Control: 1x input for controlling router crosspoint switching
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
      • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
      • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, ITU-R BT.656 and ITU-R BT.601
      • SDI Video Sampling: 4:2:2 and 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48kHz and 24 bit.
      • SDI Color Precision: 10-bit 4:2:2 and 4:4:4
      • SDI Color Space: YUV or RGB.
      • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
      • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
      • Built in Control Panel: 12 buttons for local control of Videohub with 6 buttons and scroll wheel for menu control. 2.2 inch color display.

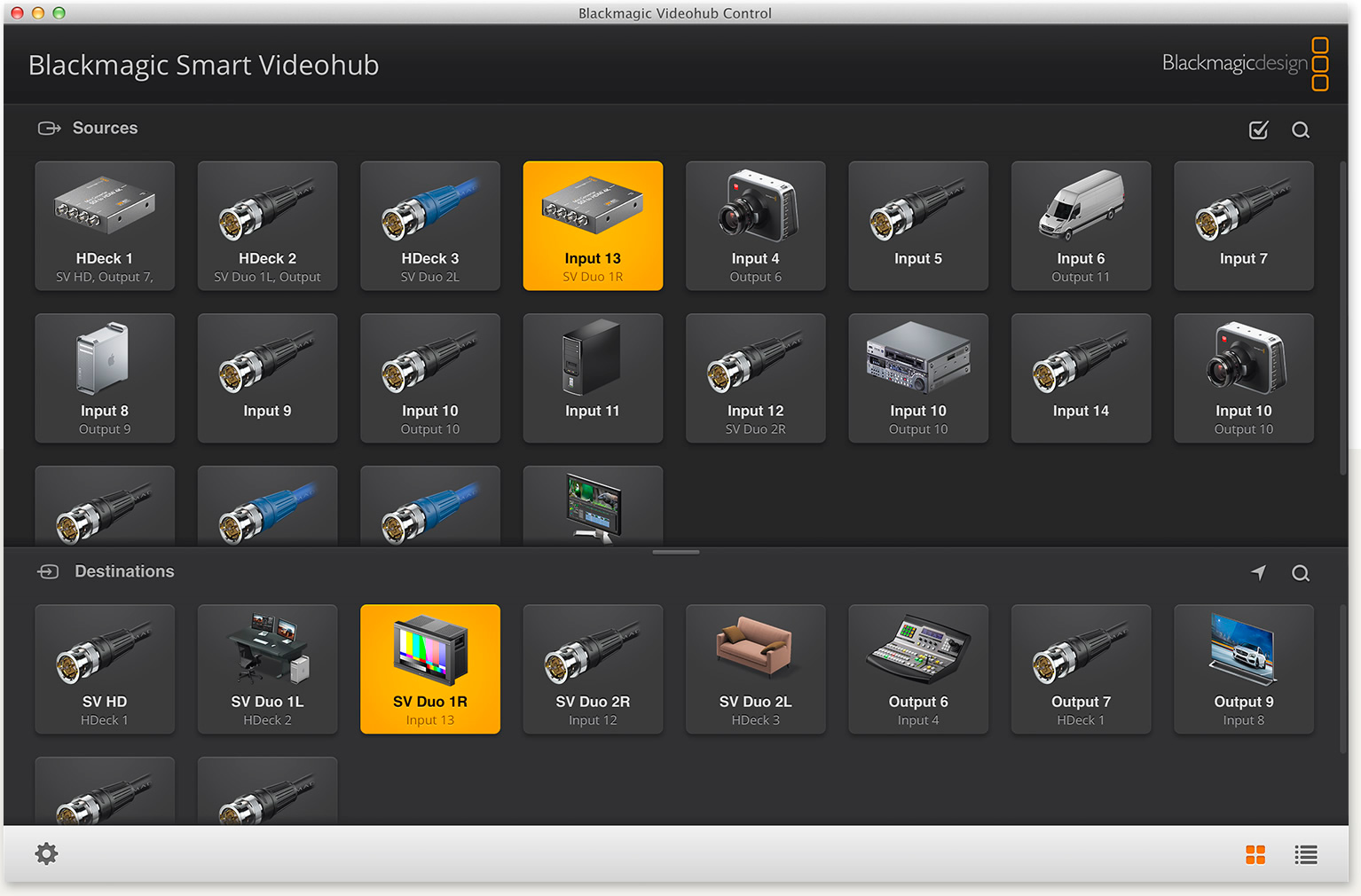

      • External Control Panel: Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control and Blackmagic Master Control hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control protocol.
      • Software Control: Router control included free for Windows® and Mac®.
      • Internal Software Upgrade: Via included updater application.
      • Operating Systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.
      • Display: Built in LCD for video and menu settings.
      • Power Fail Protection: Router connections preserved and restored instantly at power on.
      • Physical Installation: 1 rack unit size. Less than 6 inches deep.
      • Operating temperature: 0° to 40° C (32° to 104° F)
      • Storage temperature: -20° to 45° C (-4° to 113° F)
      • Relative Humidity: 0% to 90% non-condensing
    • Item Includes:

      • Smart Videohub 12x12
      • SD card with software and manual
    • Warranty:

      • 3 Year Limited Manufacturer's Warranty and 12 Month Warranty on the front panel.
