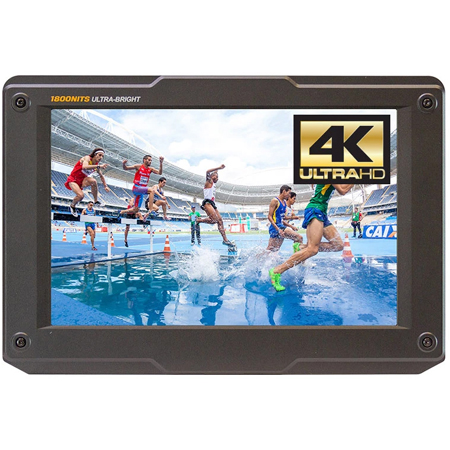

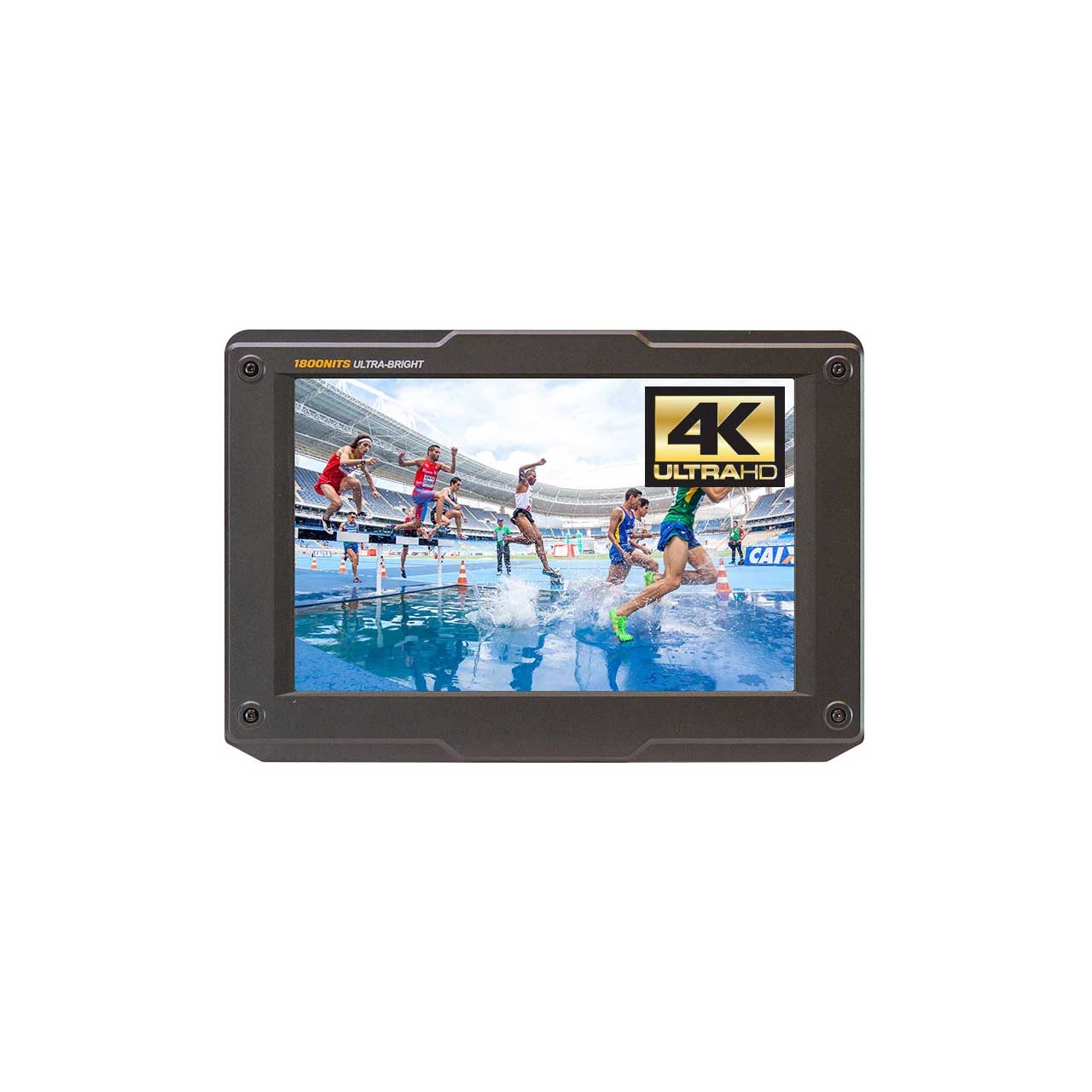

ViewZ VZ-070FM-4K 7 Inch HD Broadcast IPS 8-bit Monitor - Ultra High Brightness 1800cd/m2 - HDR/3D-LUT/3G SDI/HDMI

VZ-070FM-4K - Overview

• Features:

  • 7" LED 3G-SDI/HDMI Portable Monitor
  • Audio Level Meter (2ch out of 16ch), Gamma 1.8/2.0/2.2/2.35/2.4/2.6
  • Aspect Ratio 16:9, 1.85:1, 2.35:1, 4:3, 3:2 and User Defined Ratio
  • Center & Safety Marker
  • SDI & HDMI Loop-through output
  • 3D LUT & HDR (HLG & PQ)
  • Image Flip & Zoom, Histogram
  • Check Field, Freeze, Gamma, Pixel to Pixel
  • User-Definable Button (F1)
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
  • Tally (Red, Green, Yellow) Support, Shoe Mount, Carrying Bag


• Specifications:

  • Display
  • Screen Size: 7" (IPS Panel)
  • Max Resolution: 1920x1080 @60Hz
  • Pixel Pitch: 0.07875 mm x 0.07875 mm
  • Brightness: 1800 cd/m²(Typical)
  • Contrast Ratio: 1200 : 1
  • Aspect Ratio: 16 : 10
  • Viewing Angle (H/V): 160°/160°
  • Display Color: 16.7 Million (8bit)

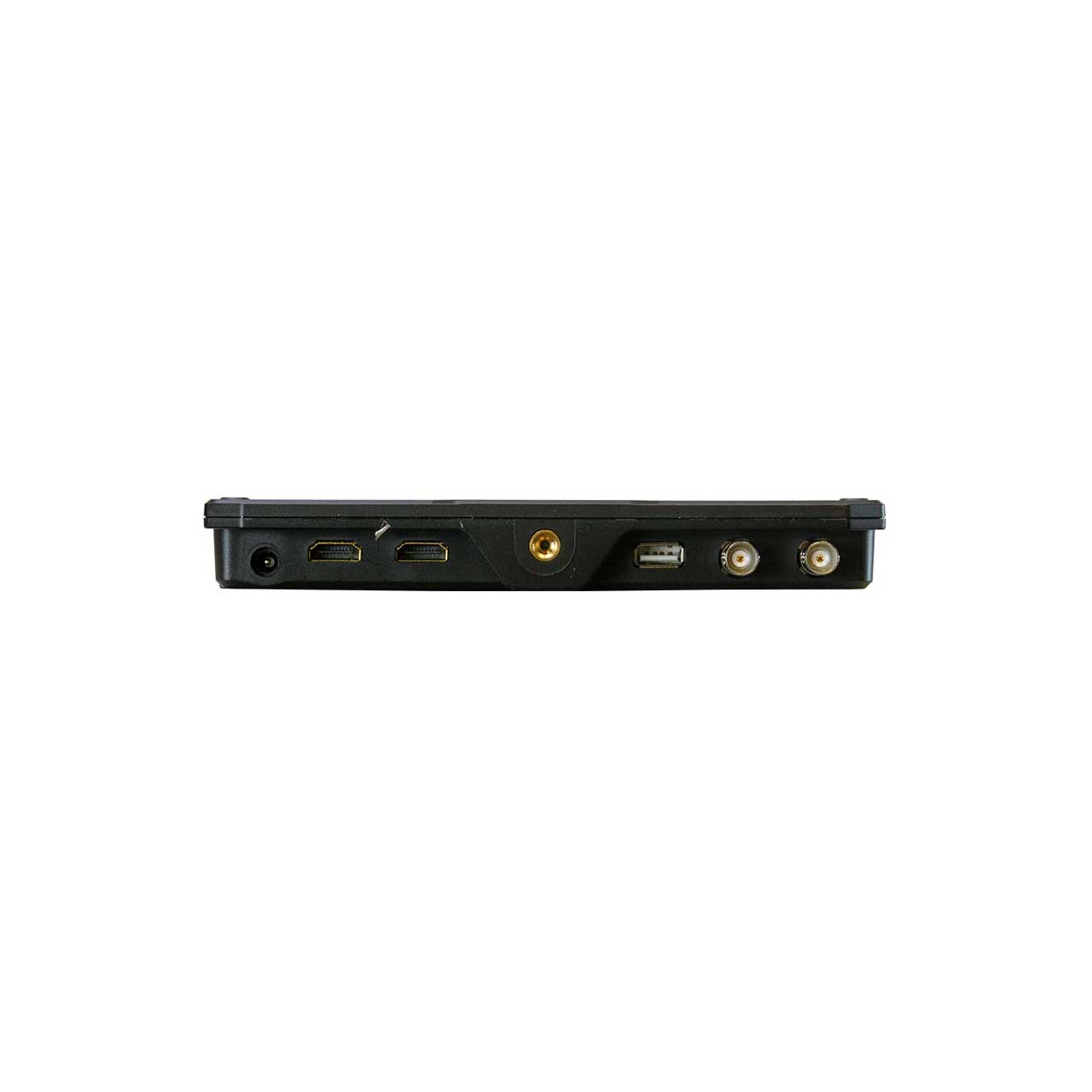

    Interface
  • 3G-SDI In / Out: 1 / 1
  • HDMI In / Out: 1 / 1
  • Tally: 1
  • USB: 1
  • Audio Out: 1 (2ch De-Embedded Audio Selected Output)

    Input Format
  • 3G-SDI Level A/B: 1080p / 60,59.94,50,30,29.97,25,24,23.98, 30sf, 29.97sf, 25sf, 24sf, 23.98sf, 1080i / 60, 59.94, 50
  • HD-SDI: 1080p / 30, 29.97, 25, 24, 23.98, 30sf, 29.97sf, 25sf, 24sf, 23.98sf, 1080i / 60,59.94,50
  • 720p / 60,59.94,50,30,29.97,25,24,23.98
  • SD-SDI: 525i / 59.94, 625i / 50
  • HDMI 1.4B: 2160p (4K) / 30, 29.97, 25, 24, 23.98, 1080p / 60,59.94,50,30,29.97,25,24,23.98, 1080i / 60, 59.94, 50
  • Audio Format - SDI: 12ch 48kHz 24-bit
  • Audio Format - HDMI: 2 or 8ch 24-bit

    Audio
  • Built in speaker: 1

    Dimensions & Weight
  • Outline Dimension (W x H x D): 7.67 x 5.19 x 0.86" / 195 x 132 x 25.4 mm
  • Net Weight: 1.21 lbs / 550g

    General Summary
  • Power - Electrical Ratings: DC 7 ~ 24V
  • Power - Consumption: ≤ 16 W (12V)
  • Warranty: 2 Years
  • Operating Temperature: 32 - 140°F / 0 - 60°C
  • Storage Temperature: 14 - 140°F / -10 - 60°C


• Item Includes:

  • 1x Monitor
  • 1x Carrying Bag
  • 1x HDMI A to C Cable
  • 1x Shoe Mount
  • 1x Tally Cable
  • 1x Manual


• Warranty:

  • 2 Years
